Yamaha Zuma 125 (2009-2021) Forged Variator Kit

Forged Variator Kit for Yamaha Zuma 125 (2009-2021)

The TFC forged variator kit is designed specifically for the Yamaha Zuma 125 models produced between 2009 and 2021, featuring the 5ML engine. This kit is a complete upgrade to your scooter's front CVT drive pulley, improving both performance and efficiency. As one of the Yamaha Zuma scooter parts available, it offers a significant improvement over stock components. The kit includes a variety of components that work together to optimize power delivery and acceleration.

Components Overview

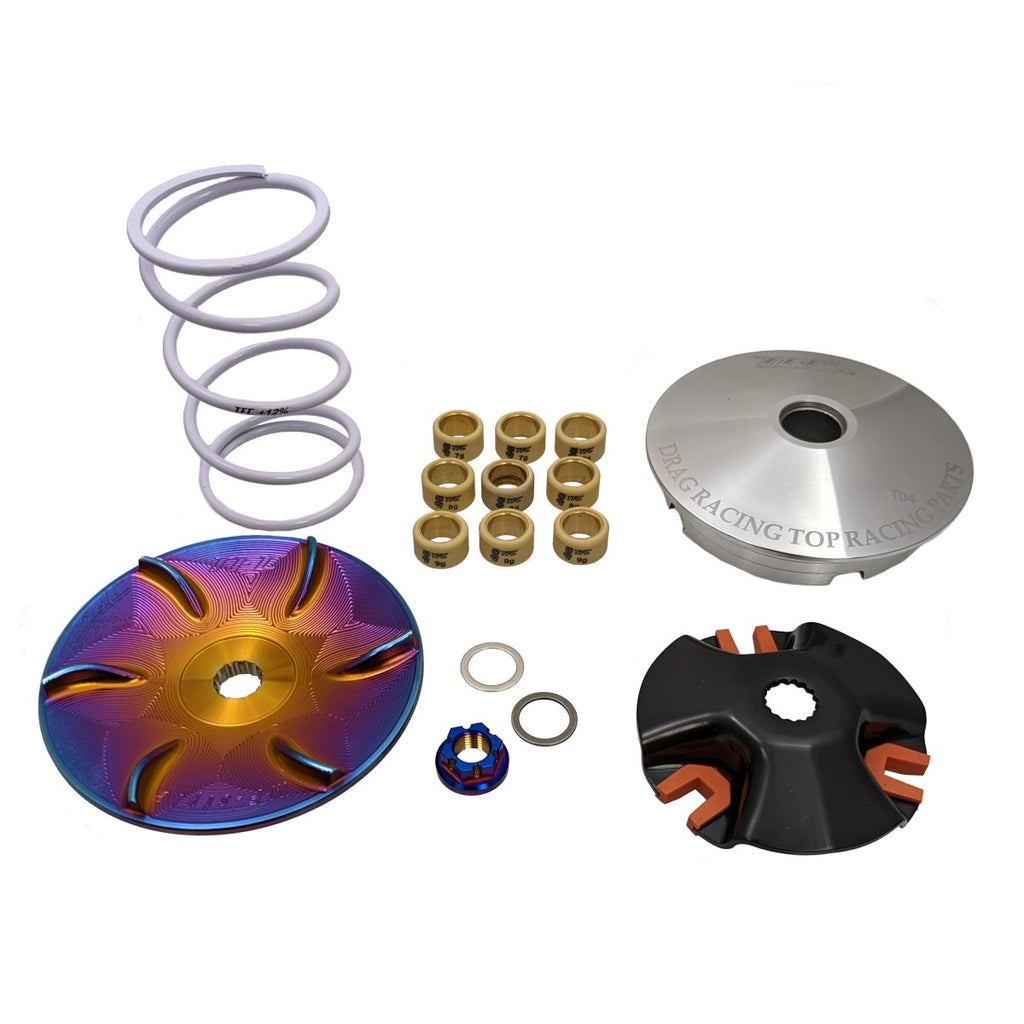

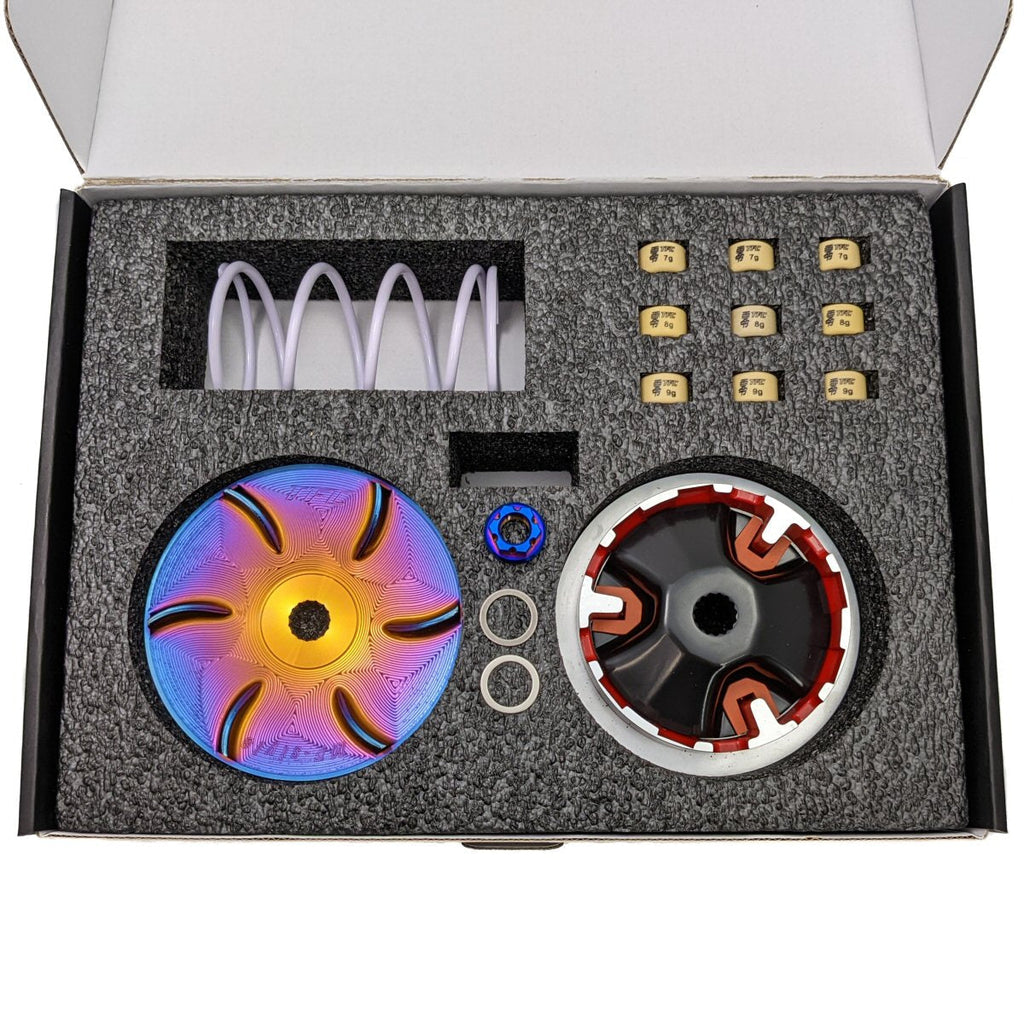

Included in this kit is a forged variator face with a striking rainbow titanium finish, along with a movable rear variator face featuring red friction pad inserts. The polished aluminum sliding sheave, branded by Top Racing, ensures smooth operation. Additionally, the kit comes with a white contra spring that provides 12% more stiffness than the original, resulting in better responsiveness during acceleration.

Weight Configuration and Adjustment

This variator kit features nine roller weights in staggered sets of 7g, 8g, and 9g. Proper installation requires alternating these weights throughout the ramp slots of the variator to ensure correct function. The included blue anodized locking nut and two washers/shims allow for secure assembly, making it straightforward to achieve the desired tuning for your scooter.

Specifications

• Material: Forged aluminum, polished aluminum
• Size: Variator outer diameter 120mm
• Weight Configuration: 3x 7g, 3x 8g, 3x 9g (staggered)
• Spring Stiffness: +12% over stock
• OEM Part Number: N/A

Fitment

This variator kit is compatible with the following vehicle:

• Yamaha Zuma 125 (2009-2021, 5ML 125cc 4-stroke)

Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
