Description
Adjustable Clutch Assembly for Yamaha Zuma 50 and Jog

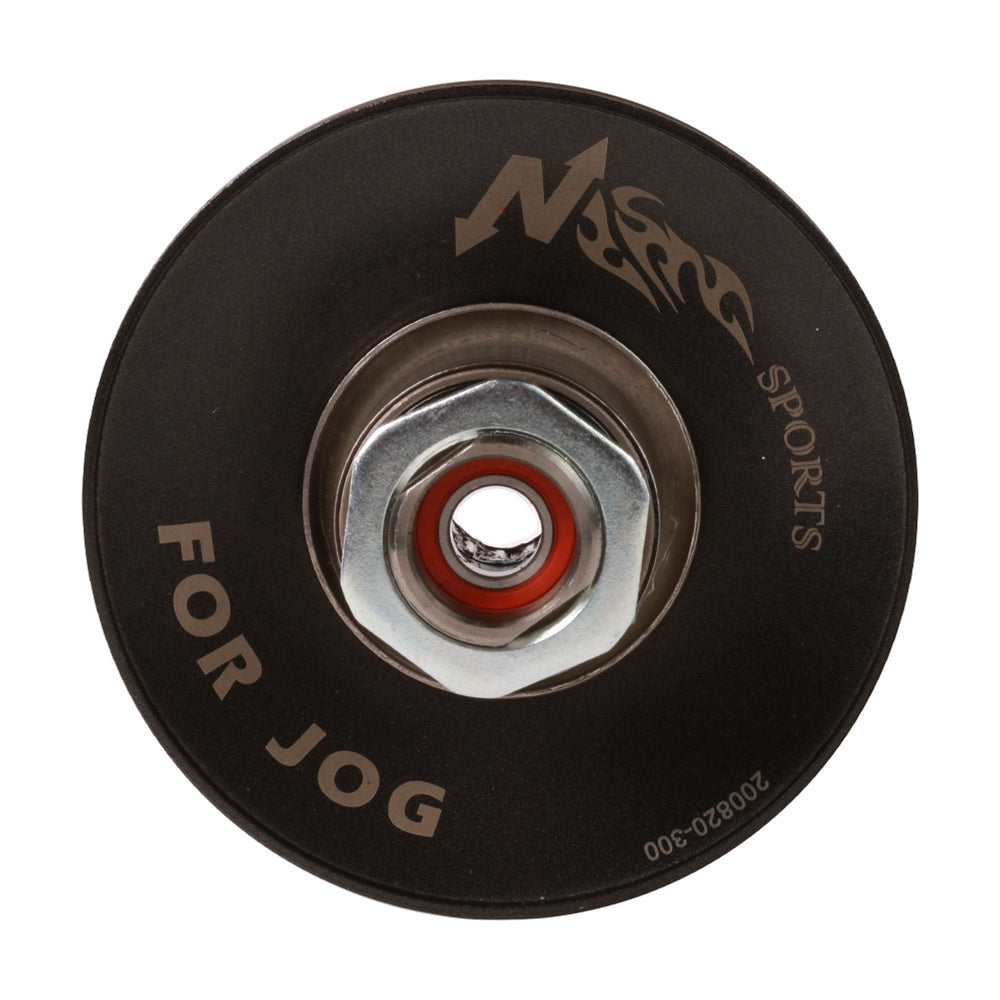

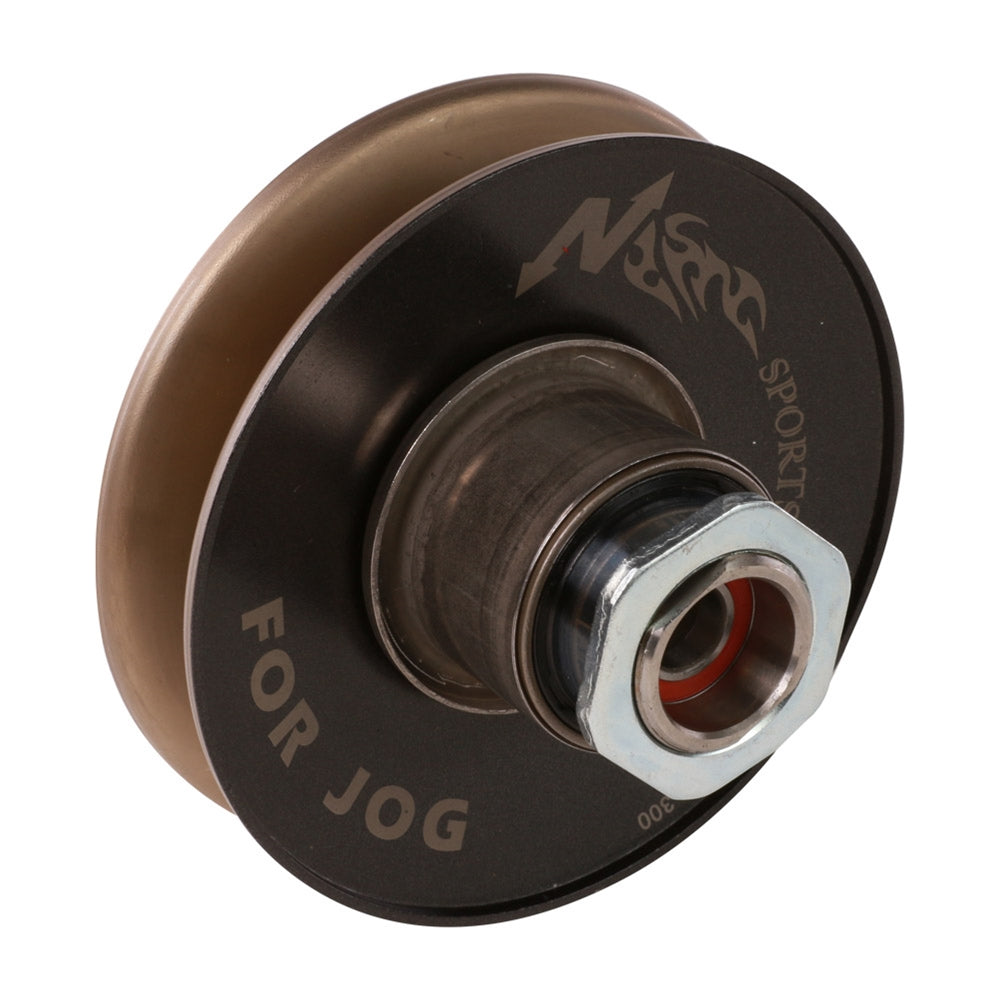

This adjustable secondary sliding sheave clutch pulley assembly is designed for Yamaha Zuma 50 and Jog scooters. It allows for quicker acceleration and improved top speeds. This part is one of the Yamaha Zuma scooter parts that can optimize your ride by tuning the clutch engagement to your preferred style. Choose between steeper or gradual ramp angles for customized performance.
Tunable Engagement Options
This assembly features two interchangeable ramp angles. The steeper ramp offers faster takeoff for those seeking immediate power, while the more gradual ramp aids in achieving higher speeds during cruising. This versatility caters to various riding preferences, making it a practical upgrade.
Straightforward Fit and Compatibility
This clutch assembly is designed to fit Yamaha Zuma 50 and Jog models without any required modifications during setup. It includes key components such as a stainless steel clutch fastener, guide pins, and rubber O-rings that come pre-assembled for your convenience.
Specifications
- Material: Stainless Steel
- Rear Pulley Plate: OD 115mm, Shaft ID 11.95–21.45mm, OD 32.92mm, H 63.1mm
- Secondary Slider Plate: OD 115mm, Funnel ID 33mm, OD 41.95mm, H 38mm
- Secondary Spring Seat/Funnel: ID 42mm, OD 43.53–55mm, H 29.35mm
- Secondary Slider Pins: L 9.3–10.86mm, ID 5mm, OD 6mm
- Clutch Nut: Stainless Steel M28
- Includes: 2 rubber O-rings (pre-assembled)
Fitment
This component is compatible with the following vehicles:
- Yamaha Zuma 50; All Years
- Yamaha Jog; All Years
Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
Shop more: Yamaha Zuma Parts · Minarelli 50cc / Yamaha Jog Parts · Scooter Clutches & Clutch Springs · Scooter Parts
