RX30 24V Control Box for Power Wheels Controller Conversion Kit, RX74
Price: $26.69
Free 7PIN Adapter Cable

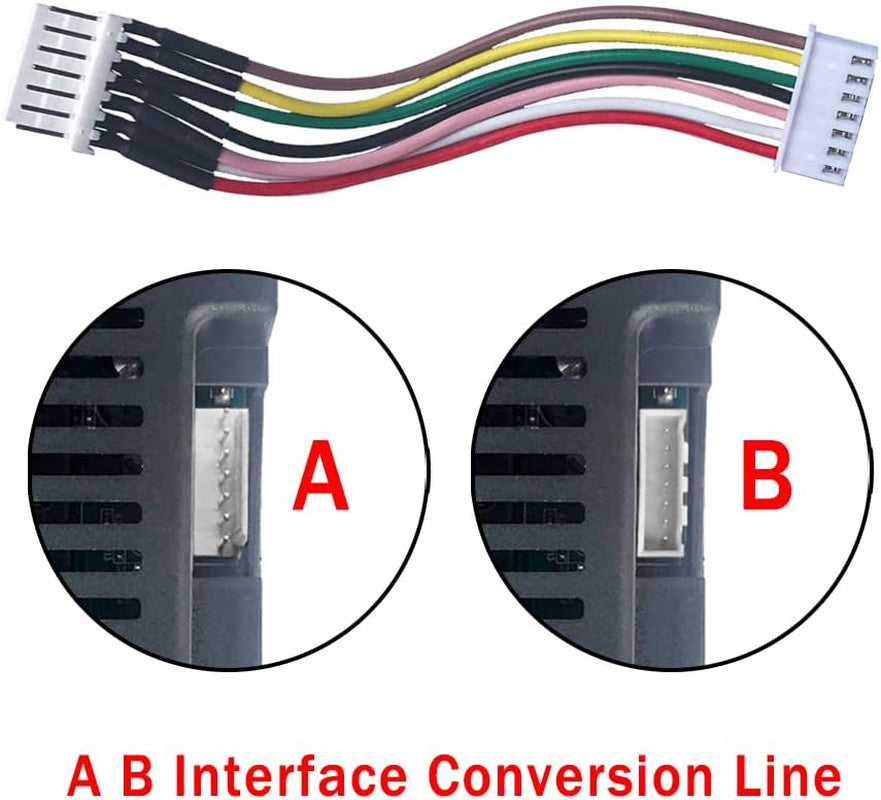

When you receive the product, you will receive a complimentary 7PIN adapter cable. If not in use, the controller's socket will default to the 'B' socket as shown in the provided image. Using this cable will switch the controller's socket to the 'A' socket, offering greater convenience for adapting to multiple models. This cable is also suitable for DIY modifications in other electrical projects.
40A Relay, 200W High-Power Controller

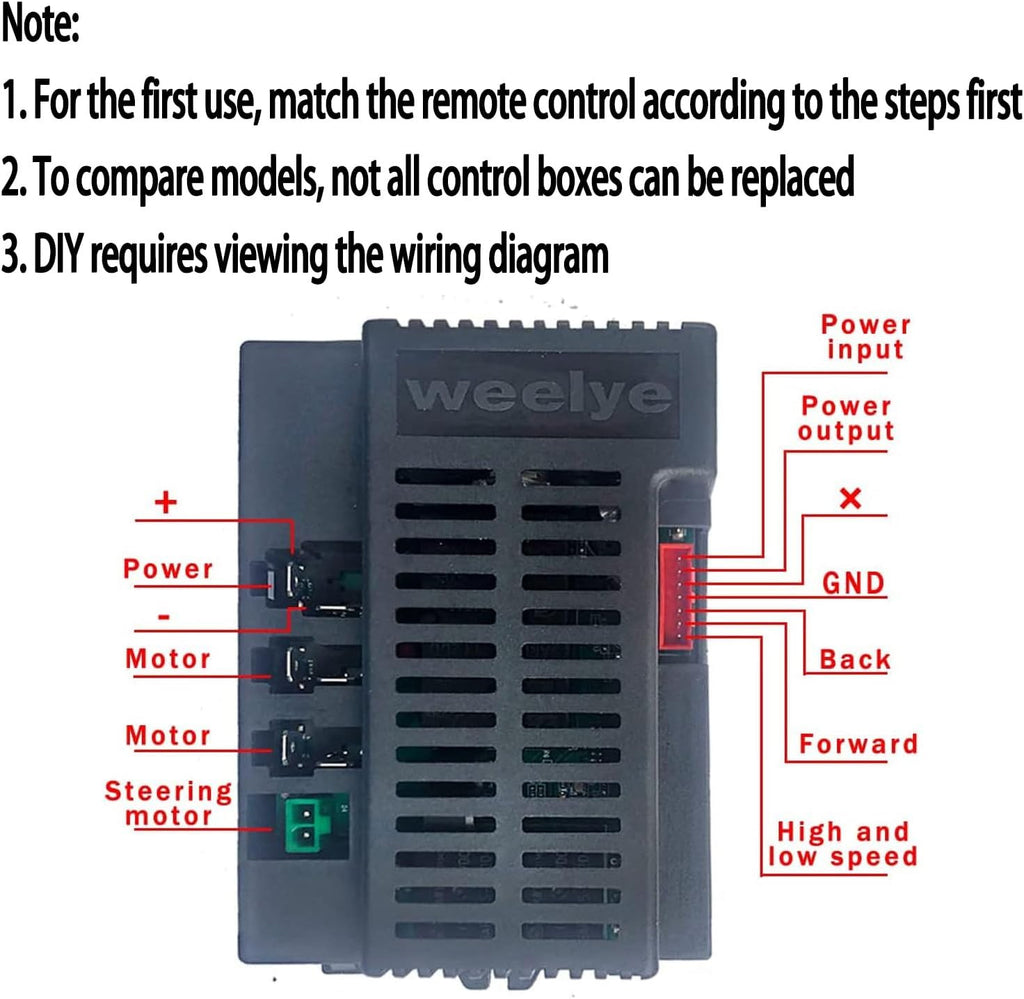

For modification purposes, we supply detailed wiring diagrams. Simply follow the diagram for installation.
Example:
- To use this device in other electrical projects, connect a 24V battery to the controller's power socket, install the motor, and short circuit the power input and output sockets on the 7PIN socket. Follow the remote control instructions for operation.
- For modifications to other toy cars requiring both pedal and remote control functions, ensure all sockets are installed according to the wiring diagram.
RC

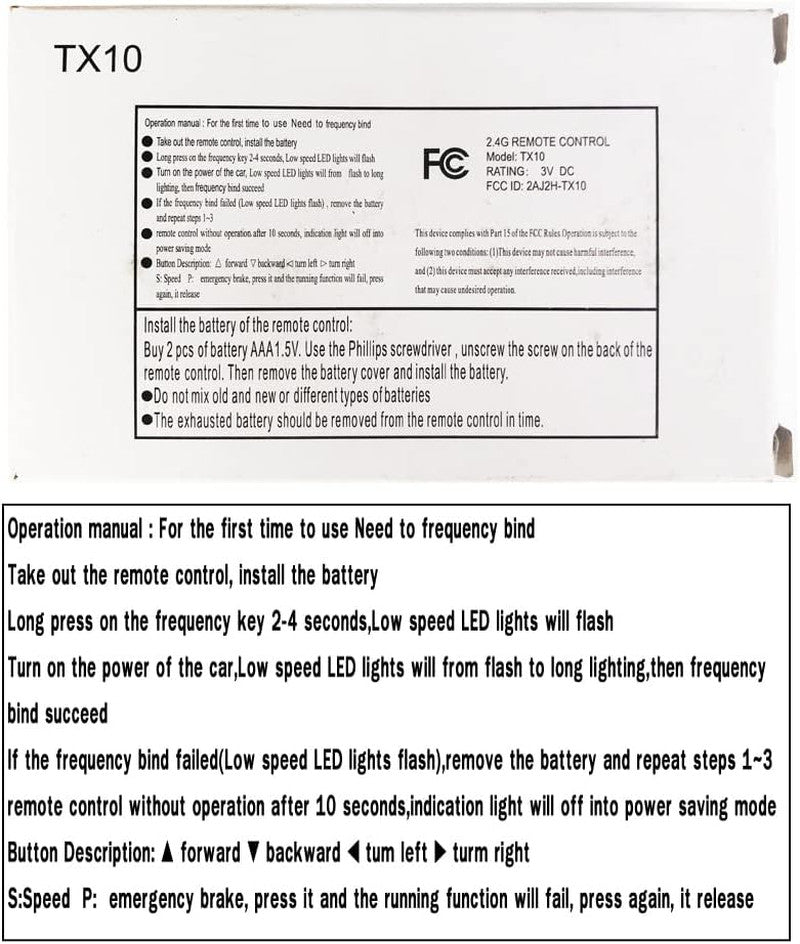

Before using the Bluetooth remote control, please match it according to the provided instructions. The effective range is typically between 20M-30M with one-on-one control and no interference. Use carbon-based batteries for the remote control.
Control Box
Compatible Models: RX30, RX74, RX74-1, RX74-D, RX98.
This control box can upgrade and replace multiple other controller models. If uncertain about compatibility, please send a photo for verification.
Note: Use a 24V battery for proper functionality.
40A/200W
Designed with a high-power 40A relay and 200W output, this controller can work with multiple high-speed motor gearboxes. It features a slight slow start function, effective heat dissipation, and stable operation.

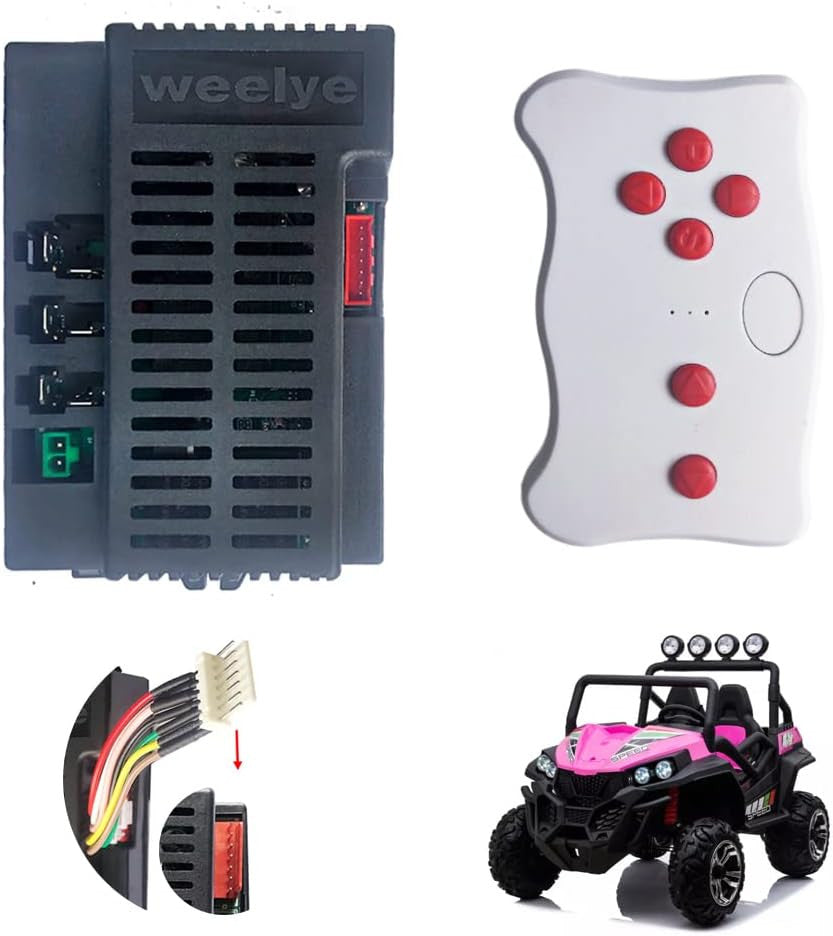

- High Power RX30 (RX74-1, RX89) 24 Volt 7 Pin Socket 2.4G Bluetooth Control Box Receiver Kit for Power Wheels Ride-On Toy Cars Upgrade (Includes Remote Control, Control Box, Conversion Cable).

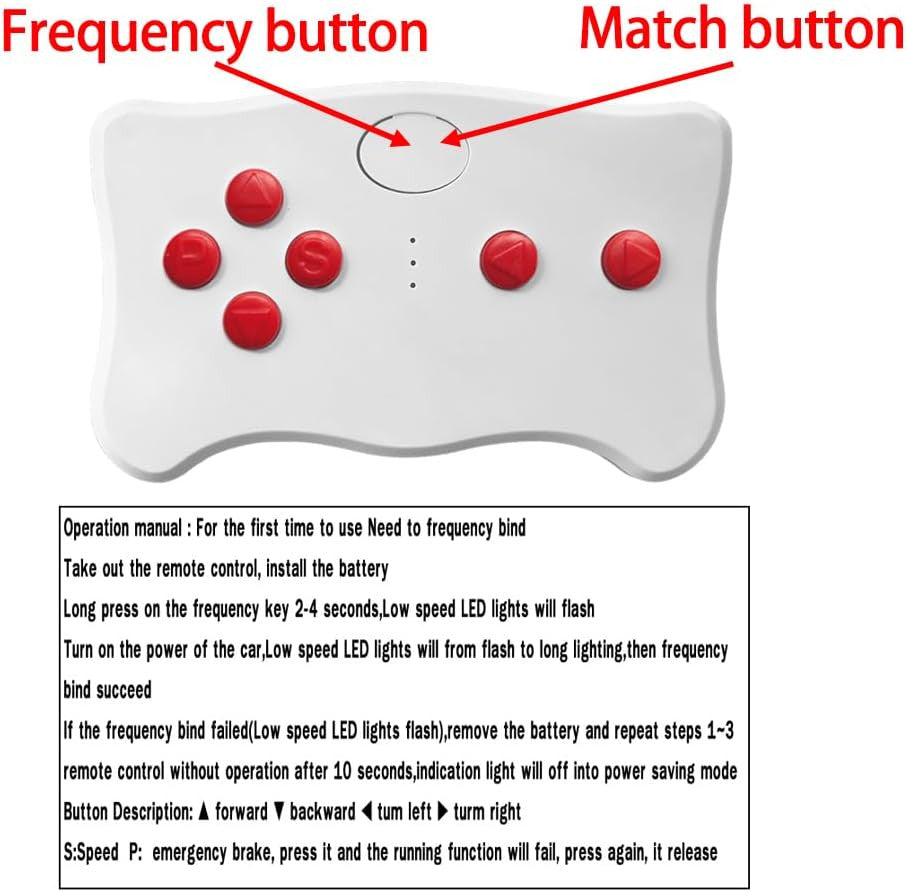

- For first-time use, follow the manual for frequency matching before using the remote control: Turn off the toy car power, press and hold the frequency matching button until the remote control light starts flashing, then turn on the car power. When the remote control light stops flashing, release the button to complete the matching process.
- This device features a 40A large relay combined with a heat dissipation chip, ensuring 200W ultra-high power for compatibility with high-speed motors, a slow start function, and has passed FCC and CE certification for safety.

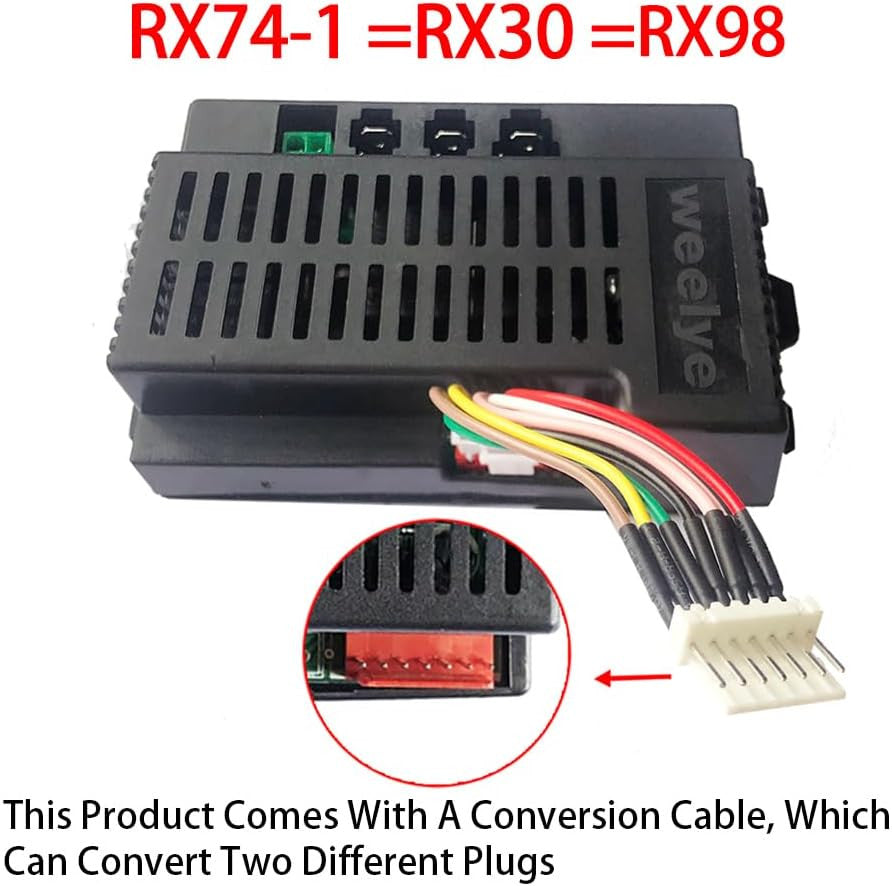

- This product is not suitable for all vehicle models. RX30 is compatible with RX74-1 and RX98. If your original controller is a different model, please consult us for compatibility. The included conversion cable changes the shape of the 7-Pin socket, as illustrated.
- Voltage: The device operates at 24V. Strict adherence to this voltage is required for proper function. Many customers mistakenly interpret the 12V or 14V readings inside the controller as the operating voltage, which is incorrect. The overall design of the device is 24V.
Specifications
- Weight: 11.2 ounces
- Color: Black
