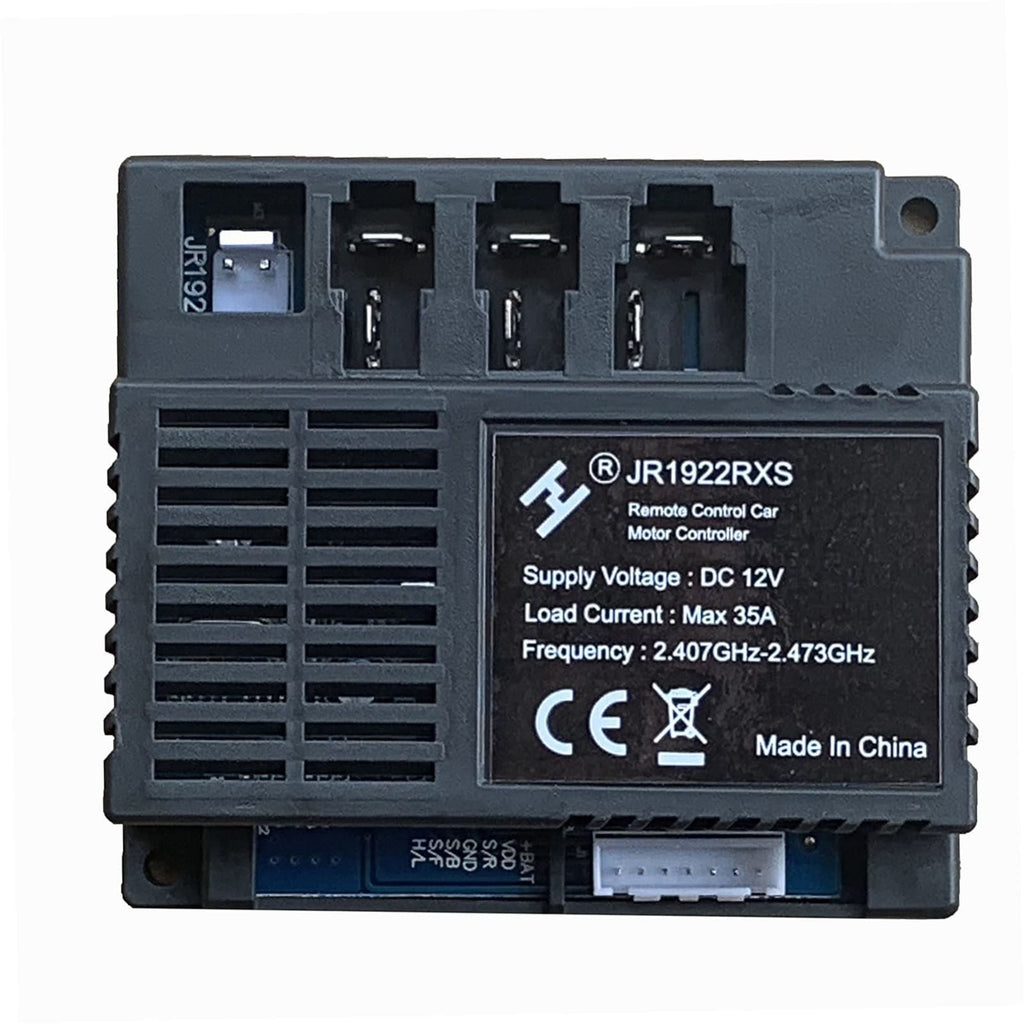

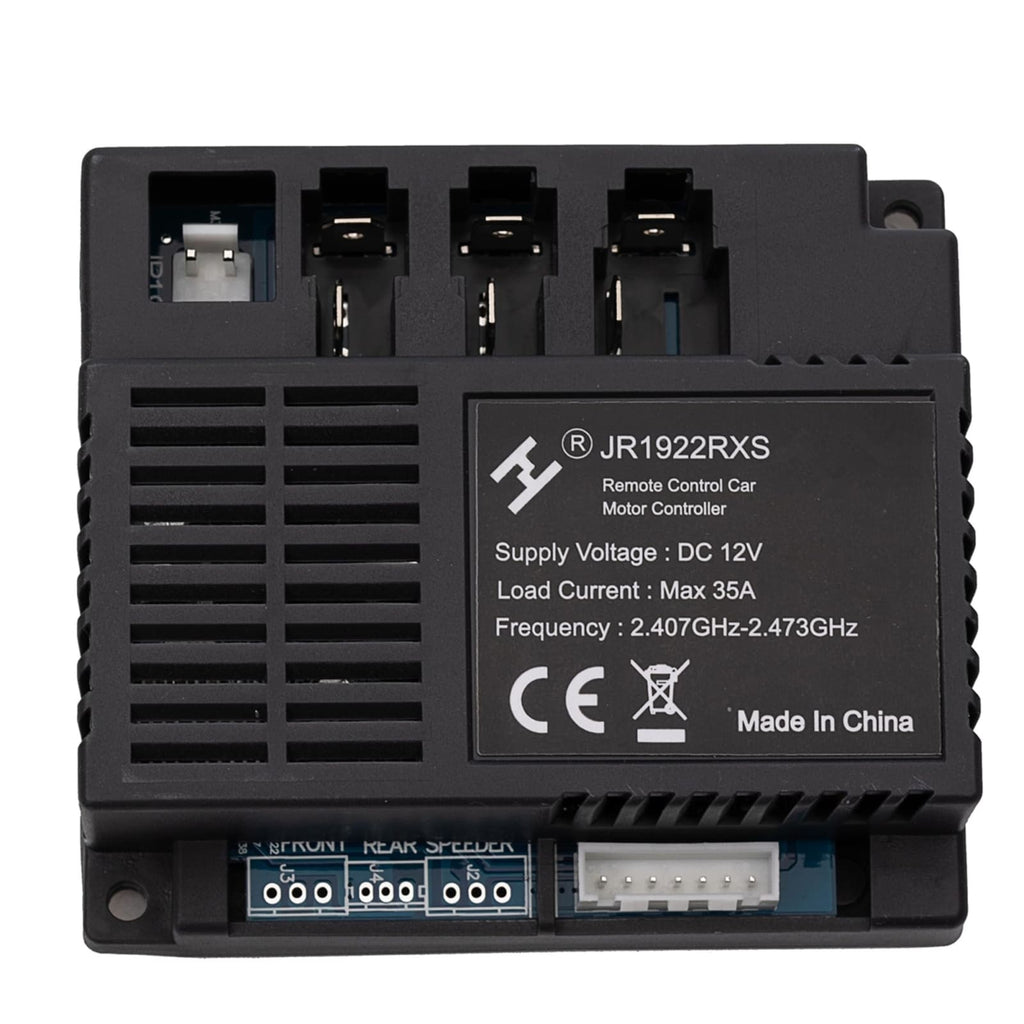

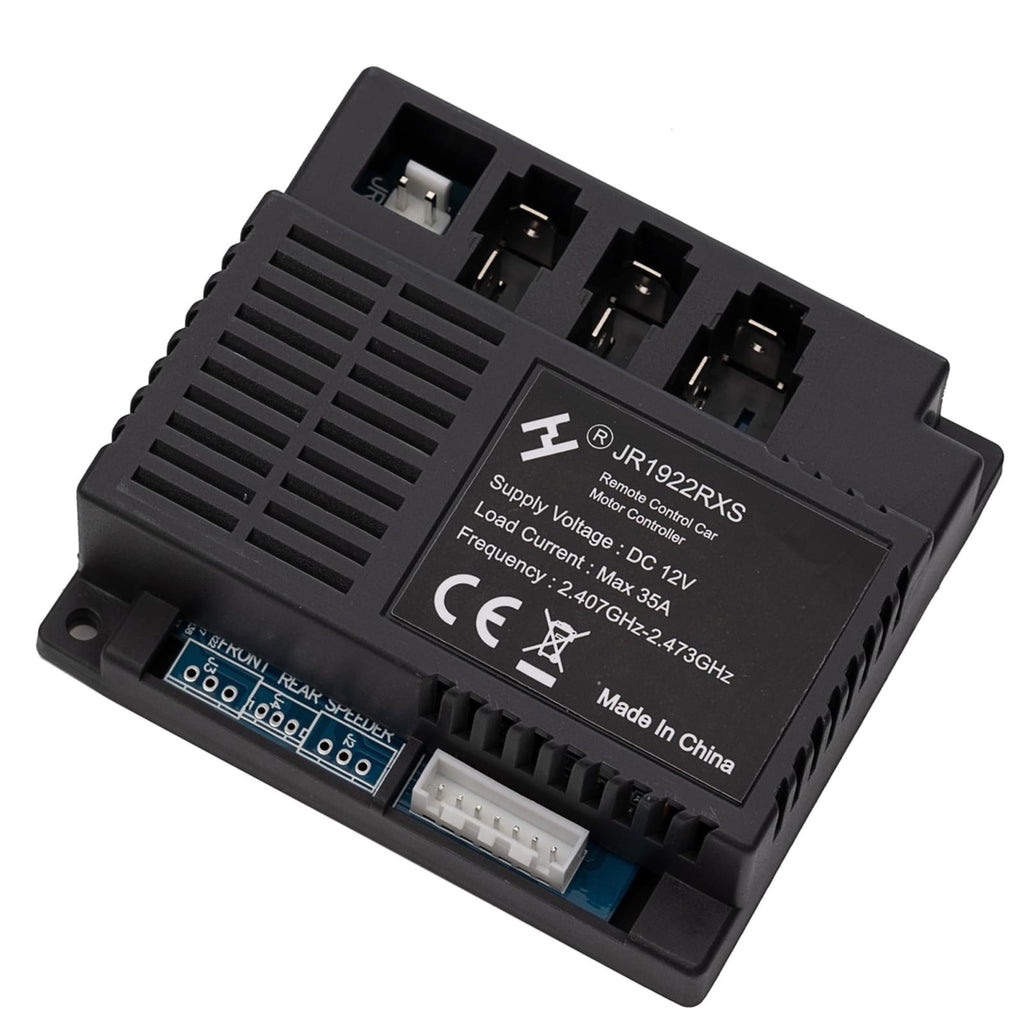

JR1922RXS 12V Receiver Control Box for Child Electric Ride-On Car - Black
Description:
Ensure compatibility with your electric ride-on car by checking the appearance of your existing control box. If it matches, the JR1922RXS part will fit your vehicle perfectly.
2.4G Remote Control Instructions:
- Insert two AAA batteries into the remote controller.
- Turn off the power switch on the vehicle.
- Press and hold the ^▲ and ▼ keys for 3 seconds to start the code matching process. The first LED will flicker. Now turn on the vehicle's power switch.
Once the red indicator lights stop flashing, the code has been successfully matched.
Key Functions:
-
Speed Settings: “S” sets up speed:
- 1 LED lit up = Low Speed
- 2 LEDs lit up = Medium Speed
- 3 LEDs lit up = High Speed
-
Direction Control:
- “▲” = Forward
- “▼” = Back
- “◀” = Left
- “▶” = Right
- Press “P” key to hold the brake; all LEDs will flicker.
WARNING: Not suitable for children under 3 years. Contains small parts that may pose a choking hazard.
Important Battery Instructions:
- Load two AAA (1.5V) batteries as per the diagram.
- Non-rechargeable batteries must not be recharged.
- Avoid mixing different types of batteries or new and used batteries.
- Ensure batteries are inserted with the correct polarity.
- Remove exhausted batteries from the toy.
- Avoid short-circuiting the supply terminals.
- Retain the packaging for important information.
Features:
- Compatible with Child Electric Ride-On Car JR1922RXS 12V Receiver
- Includes Wellye 2.4G Control Box with a slow start function (no additional installation required)
- Designed for specific children’s riding toys; ensure the purchased part matches the original appearance
- Remote control not included
- Post-installation, re-link the remote control by holding down ^▲ and ▼ keys for 3-5 seconds
Specifications
- Dimensions: 3.6 inches L x 3.4 inches W x 1.4 inches H
- Color: Black
- Material: Plastic
