Durable Waterproof Battery Monitor for 12V to 72V Vehicles and Equipment

Waterproof Battery Monitor

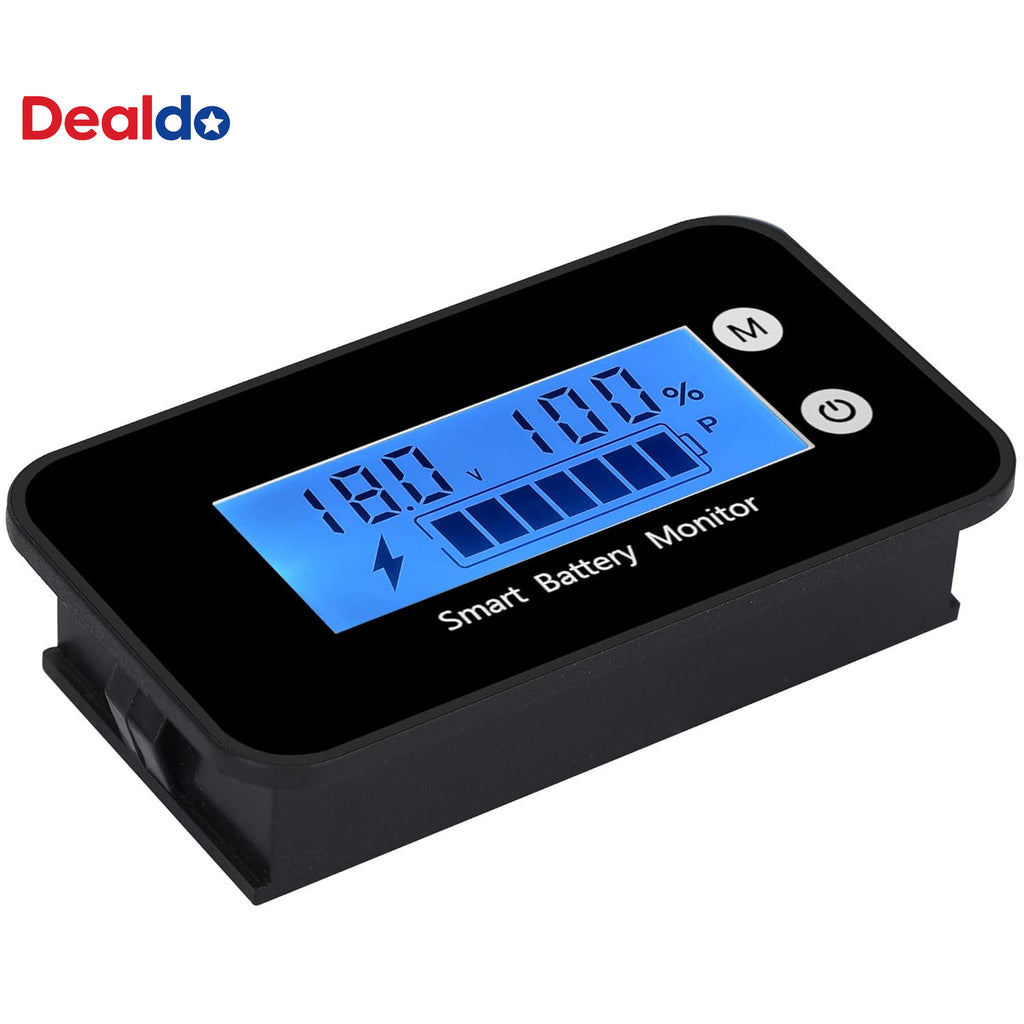

IPX7 Waterproof Battery Monitor (Blue)

Product Introduction

The smart battery monitor offers multiple functions to ensure effective monitoring of your battery systems.

• IPX7 Waterproof, suitable for both indoor and outdoor use.

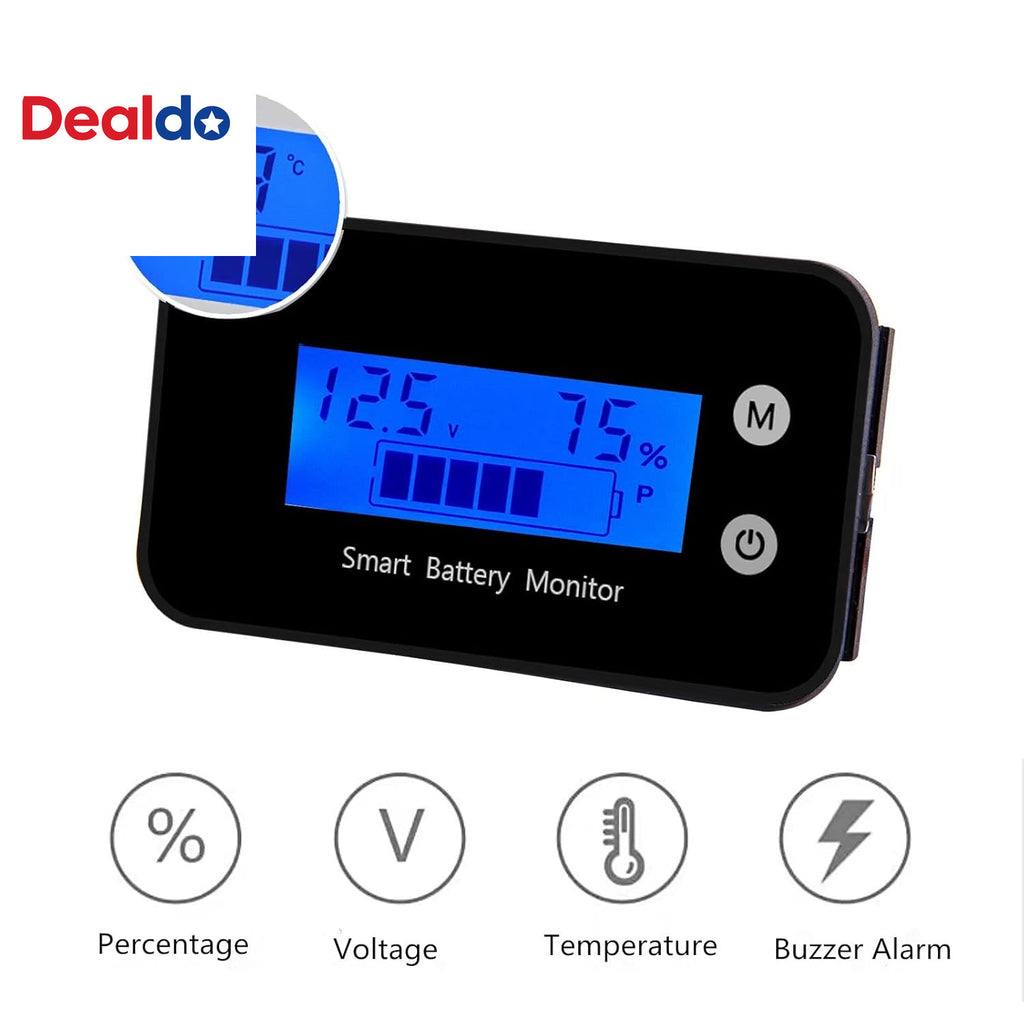

• Tests voltage, remaining capacity, and temperature (short press "M" key to switch between temperature and voltage).
• Configurable low and high voltage buzzer alarm settings.
• Compatible with 12V, 24V, 36V, 48V, 60V, 72V batteries, including ternary lithium, lead-acid, and lithium iron phosphate batteries.
• Power-off memory function retains settings even when power is removed.
• Ideal for use in cars, motorcycles, golf carts, boats, and electric bikes.

Note:

• Temperature is displayed in Celsius, not Fahrenheit.
• Simple setup is required according to instructions; otherwise, capacity will always show as 100%!

Specifications

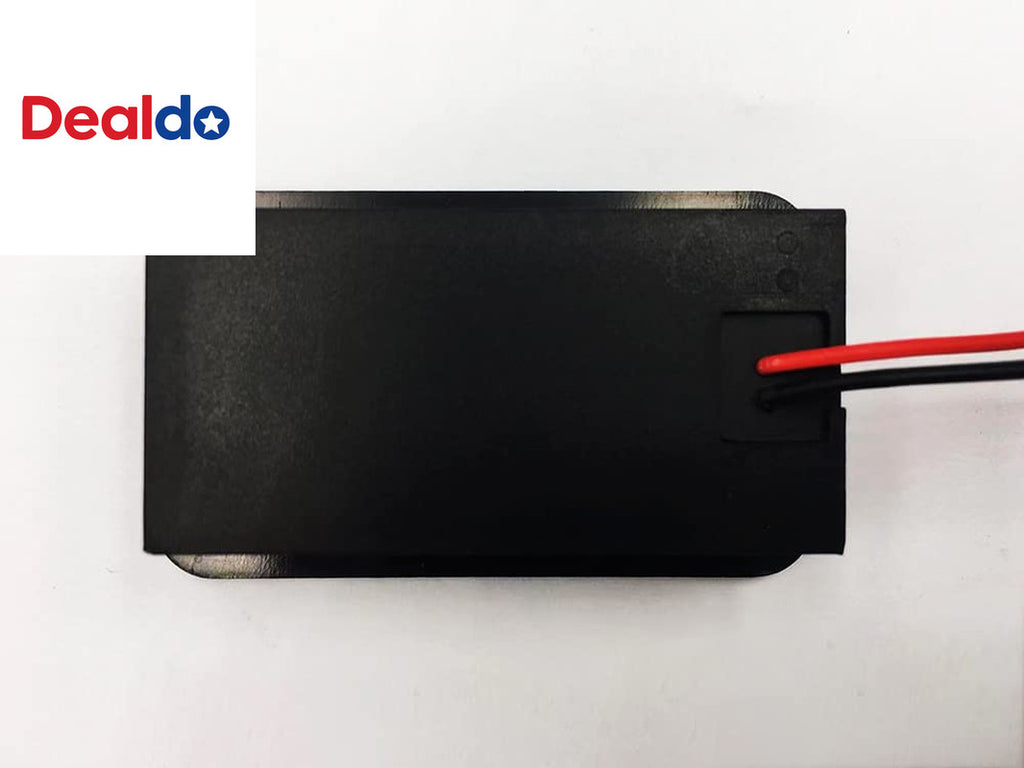

• Wire length: 60cm (23.62 inches); red wire for positive and black wire for negative.
• Short press "M" key to switch between temperature and voltage.

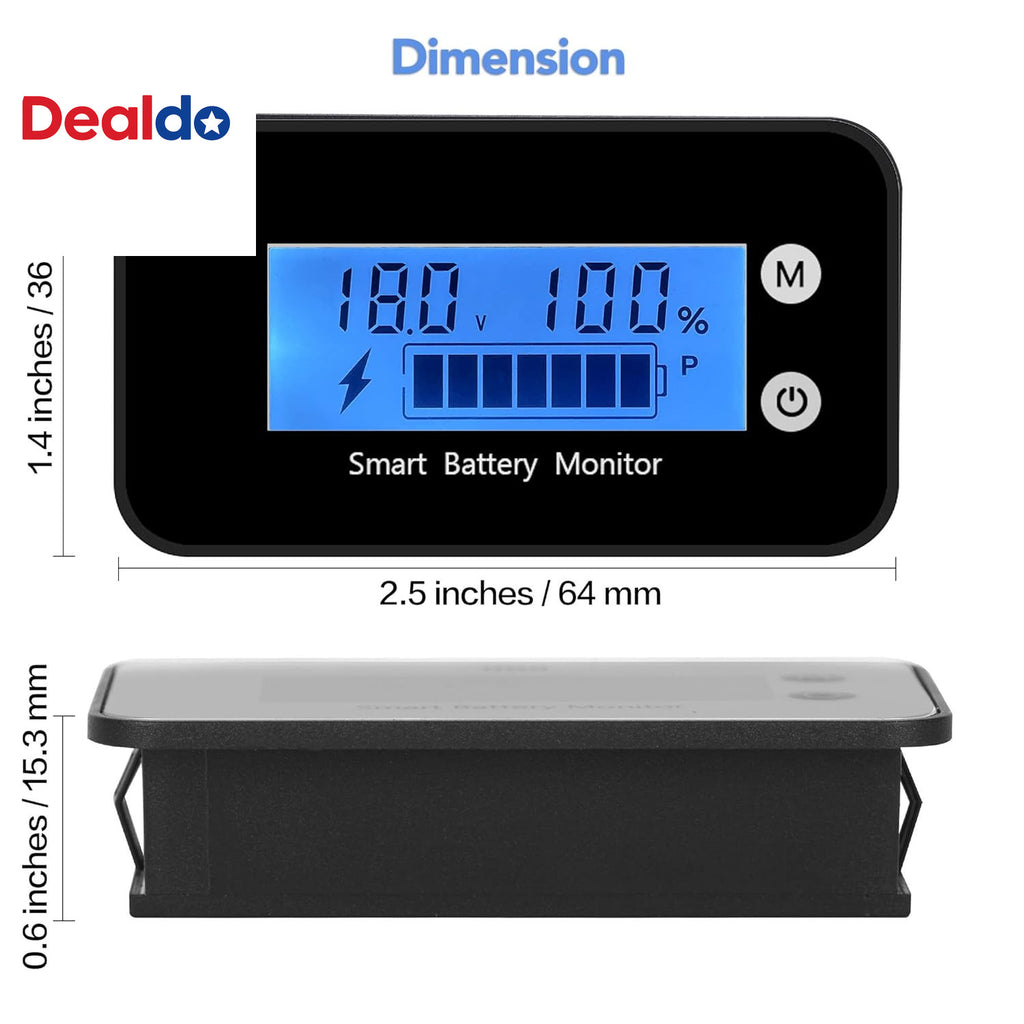

• Product dimensions: 64mm x 36mm x 15.3mm (2.5 x 1.4 x 0.6 inches); install dimensions: 58mm x 28mm (2.28 x 1.1 inches).

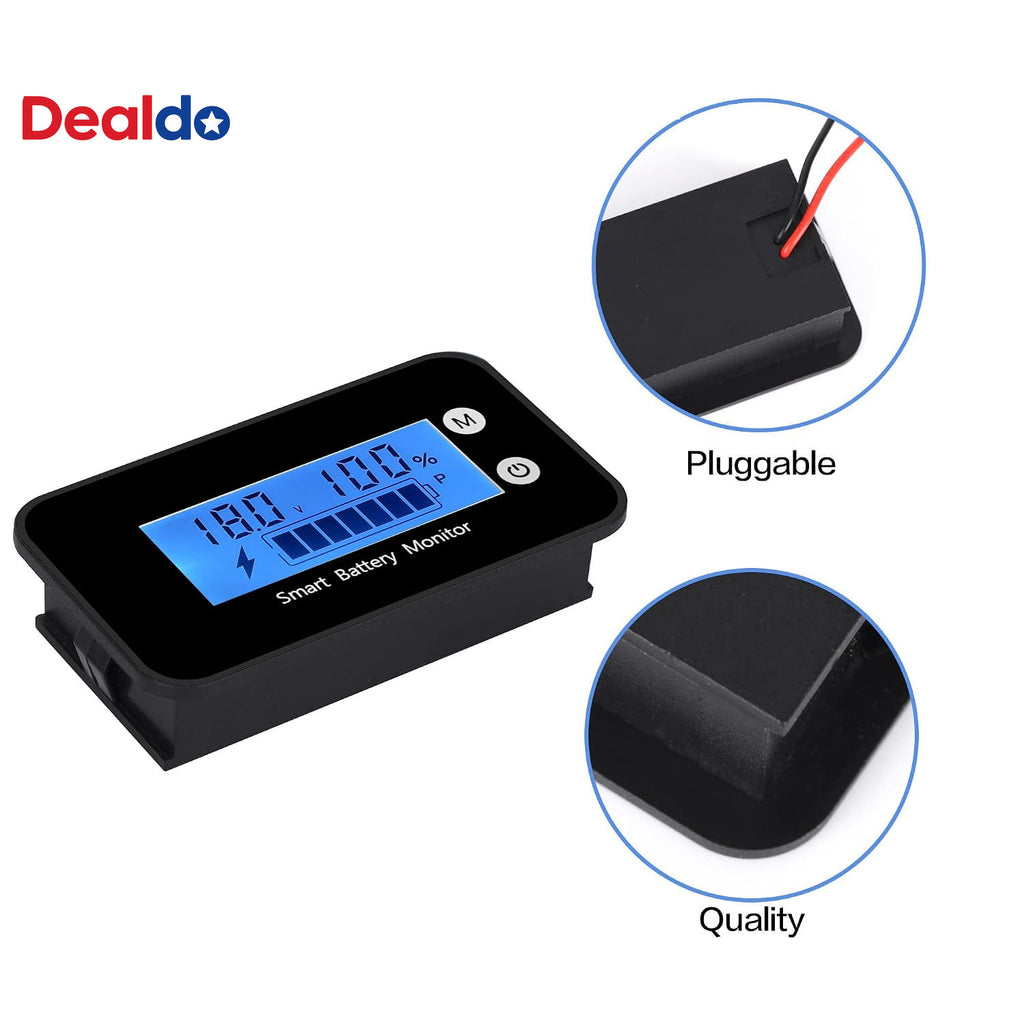

• Shell designed with buckles for hole installation.

Technical Parameters

Q&A

1. Does the battery monitor come with a battery? Is it easy to wire?

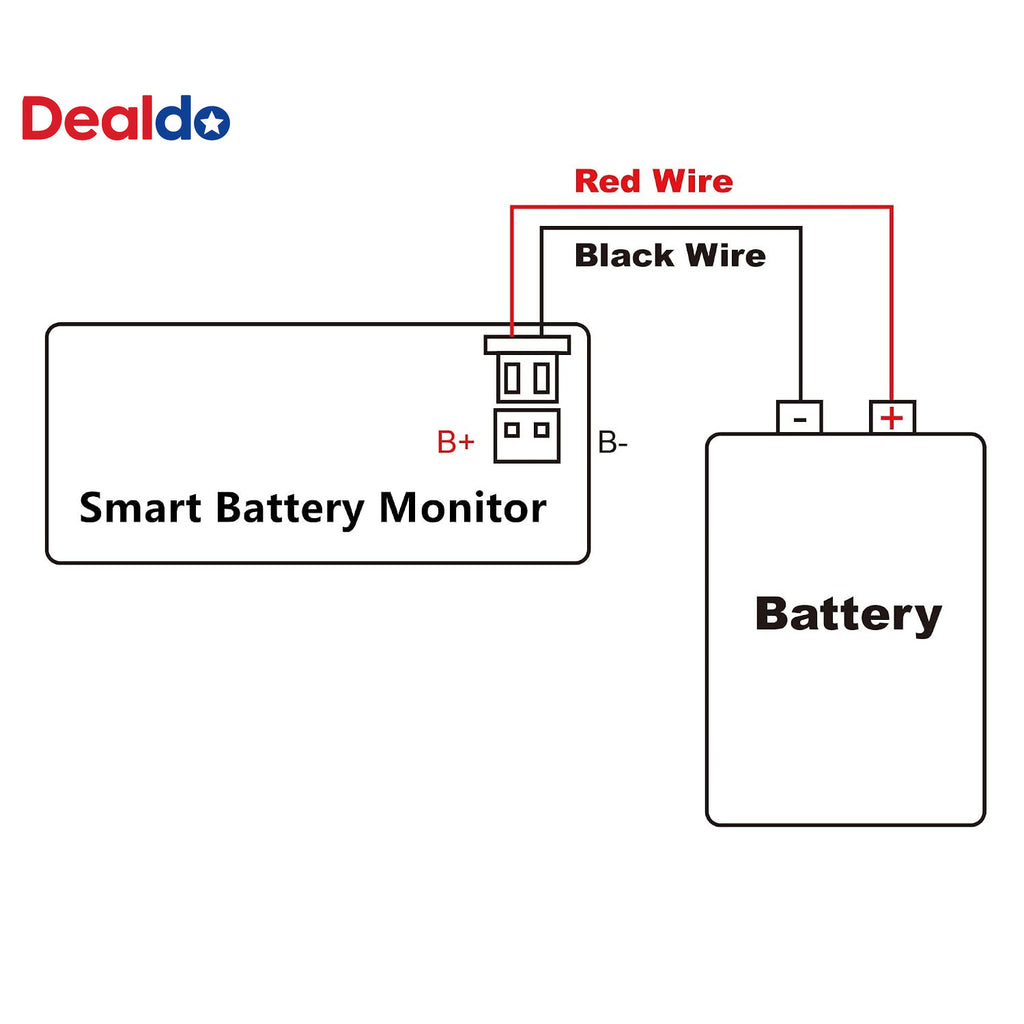

No, the battery monitor does not include a battery. Simply connect the red wire to the positive terminal and the black wire to the negative terminal of the battery for display.

2. Is setup required after receiving the product?

Yes, the battery monitor is compatible with all battery types (7-100V), but you must follow the instructions to set it based on your battery type. Without setup, the voltage will display normally, but the battery capacity will remain at 100%.

3. Is the battery monitor waterproof? What is its waterproof rating?

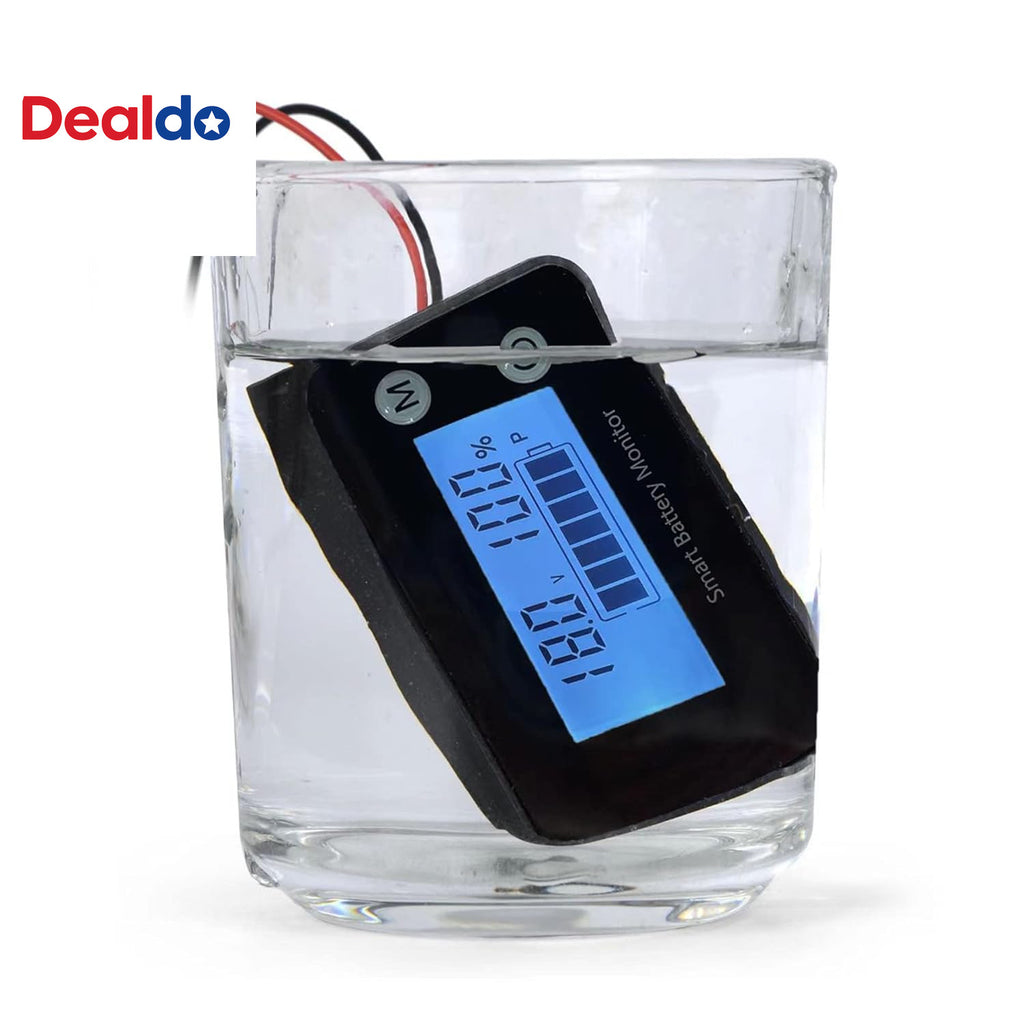

Yes, the battery monitor is waterproof with an IPX7 rating. It can be submerged in water for up to 72 hours without damage.

4. Do 12V lead-acid batteries require manual setup?

No, the default setting is for 12V lead-acid batteries, but as the battery ages, you may need to customize settings for more accurate capacity display.

Features

• Application: Suitable for testing battery voltage and capacity for electric motorcycles, golf carts, cars, marine vehicles, RVs, boats, etc.
• Applicable Battery: Compatible with 7-100V (12V, 24V, 36V, 48V, 60V, 72V, 84V) batteries including ternary lithium, lead-acid, and lithium iron phosphate batteries.
• Protection: Fully closed shell with IPX7 waterproof and dustproof rating; reverse connection protection.
• Installation: Red wire for positive and black wire for negative. Can be installed using double-sided adhesive (included). Wires length: 15.75 inches.
• Buzzer Alarm & Temperature: Configurable low and high voltage buzzer alarm; short press "M" key to switch between voltage and temperature (Celsius).
• Power-off Memory: Retains settings even when power is removed.
