Adjustable Speed Foot Pedal Accessory for Children's Electric Cars

Product Description

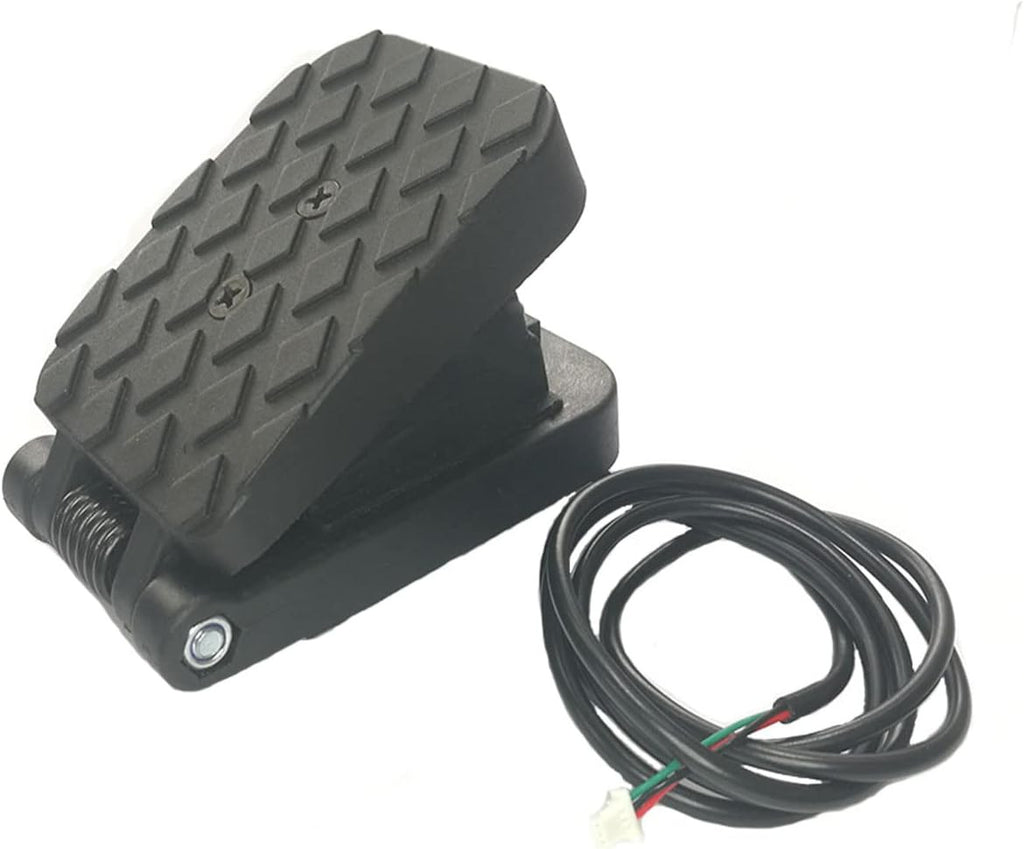

This variable speed pedal accessory is designed for children's electric cars, providing a reliable and durable solution for speed control.

Key Features

• Durable construction utilizing Hall sensor technology for accurate pedal angle position detection without contact.
• Wide output range with pedal angle adjustment from 0° to 30°, corresponding to a voltage output of 1V to 4V.

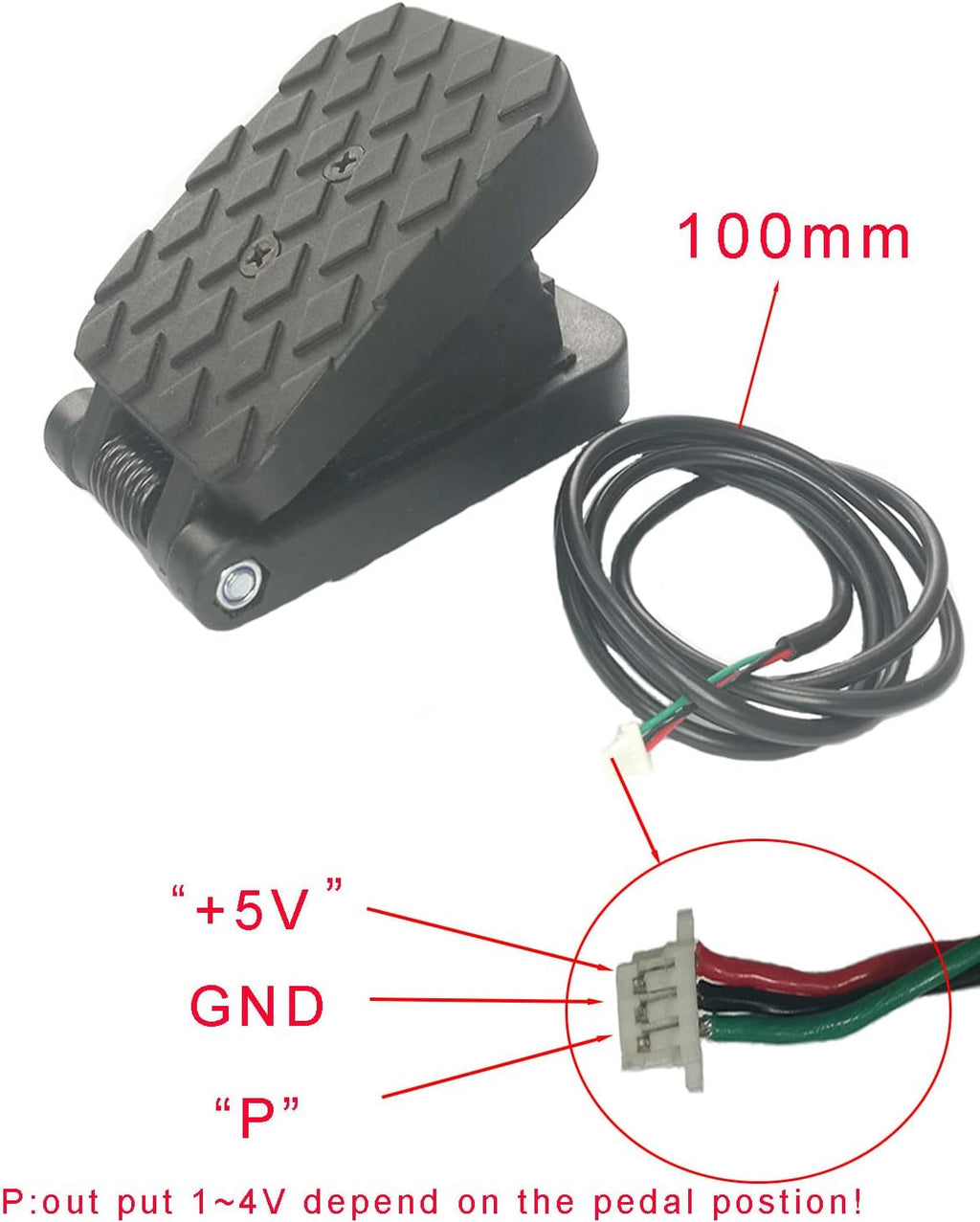

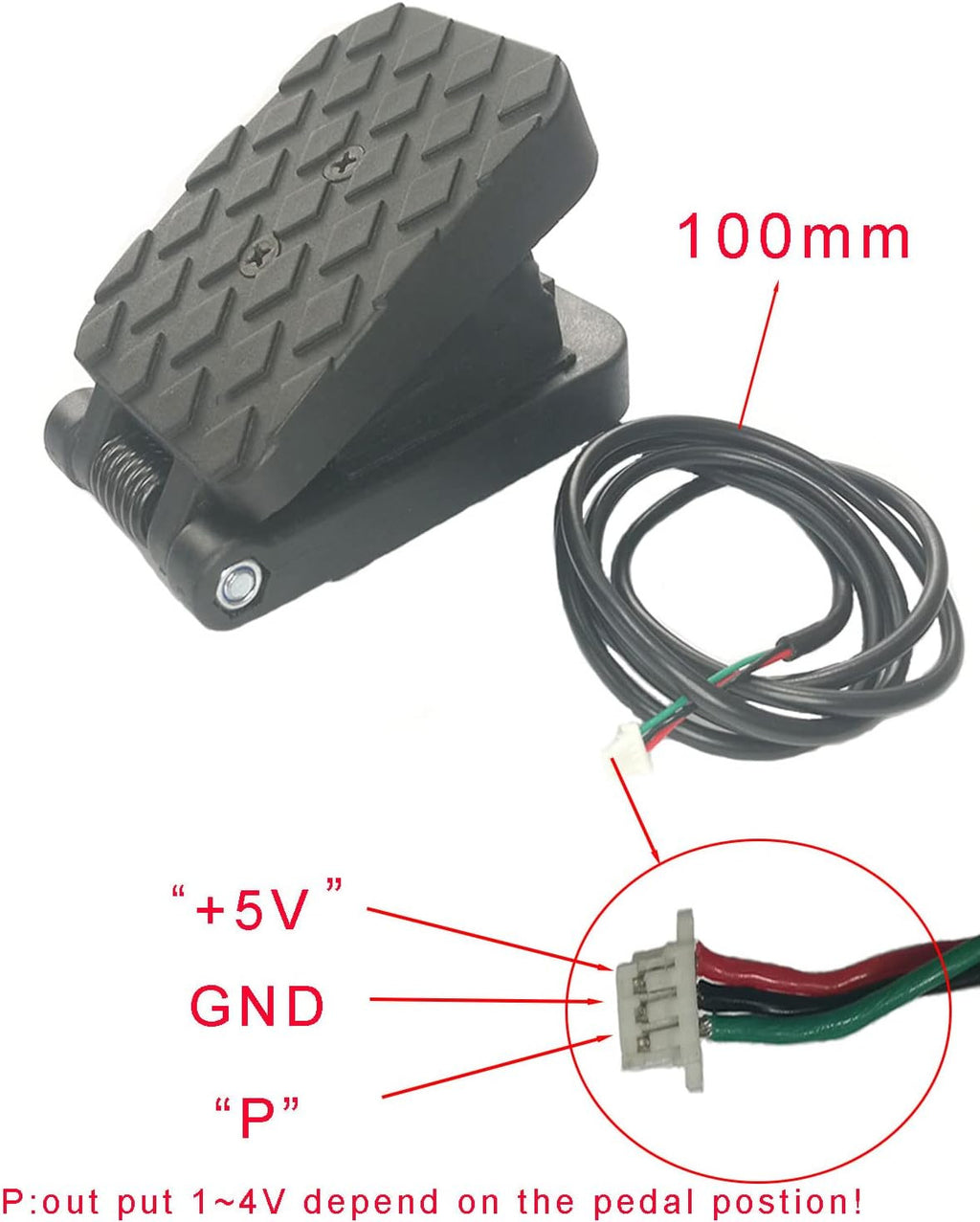

• Pedal signal line length: 1 meter, featuring a SH1.0-3 interface (red for +5V input, black for GND, and the remaining color for output voltage signal).
• Optimized physical and electrical interfaces for seamless compatibility with PWM modules (2.0A/2.0B) available on Amazon for variable speed control.
• When connecting to PWM 2.0B, ensure to power cycle the PWM module to allow recognition of the pedal.

Compatibility Information

This pedal accessory does not include PWM functionality. For PWM capabilities, purchase a compatible PWM module (e.g., PWM2.0A, PWM20B).

The Hall sensor inside measures pedal pressing position and outputs a voltage signal ranging from 0.8V to 4.2V based on the pressing position.

This pedal is not compatible with other resistive sensor pedals.

To check for damage, apply +5V to the red wire, connect the black wire to ground, and measure the voltage on the green wire. The voltage should vary between 0.8V and 4.2V based on pedal position.
