Star Vented Clutch Bell for GY6 125-170cc & Honda Navi

Star Vented Clutch Bell for GY6 125-170cc & Honda Navi. The clutch engages the rear wheel as engine speed rises; clutch springs set how early it grabs. Built to fit GY6, GY6 150cc (157QMJ). Shop more GY6 150cc Scooter Parts (157QMJ) and Scooter Clutches & Clutch Springs.

A worn clutch shudders, slips or engages late. Stiffer springs make the clutch engage at a higher RPM for stronger launches. Confirm the clutch bell diameter and fitment for your engine.

Product details

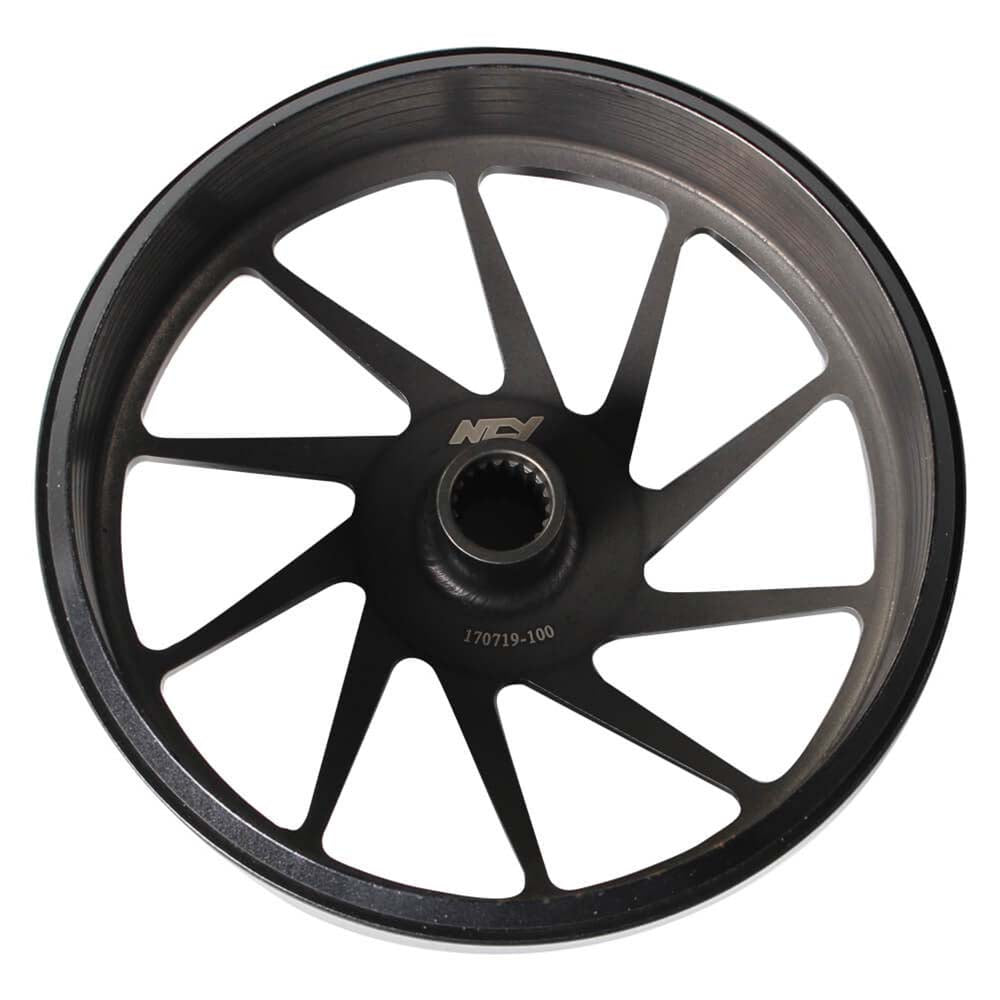

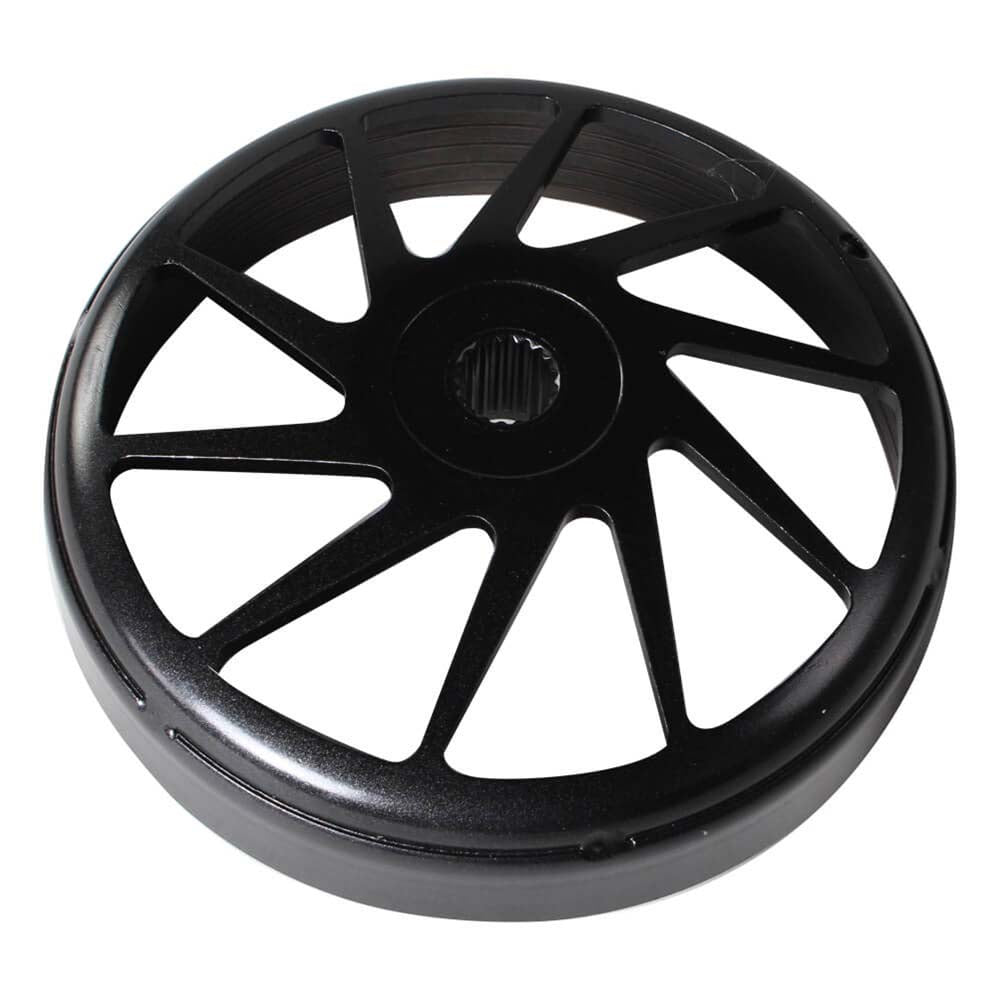

This Star Vented Clutch Bell is a lightweight, Teflon-coated performance clutch bell for GY6 125cc to 170cc scooters (based on the Honda GY6 design) and the Honda Navi 110. The star-cut design and black PTFE (Teflon) coating keep weight down for less rotating mass and quicker acceleration, while cut channel grooves on the inner friction surface give the clutch shoes more bite and push dust and dirt outward.

Key Features

• Teflon (PTFE) coating: The black PTFE coating keeps dust and debris from sticking to the outside of the bell, so it stays clean and light. Less rotating mass means faster, harder acceleration.
• Lightweight star design: The star-cut openings remove material to lower the bell's weight for improved acceleration, and let air flow through the clutch to help it run cooler.
• Cut channel grooves: Grooves cut into the inner friction surface enhance clutch shoe bite and channel dust and dirt outward, so the shoes keep a clean surface to grip.
• Sandblasted friction surface: Textured inside surface for firm clutch shoe engagement.
• 19-spline hub: Bolts onto GY6 125-170cc and Honda Navi 110 driveshafts.
• Made in Taiwan: Built by .

Technical Specifications

• Part number: 1200-1223
• MPN: 6106A12GY6D

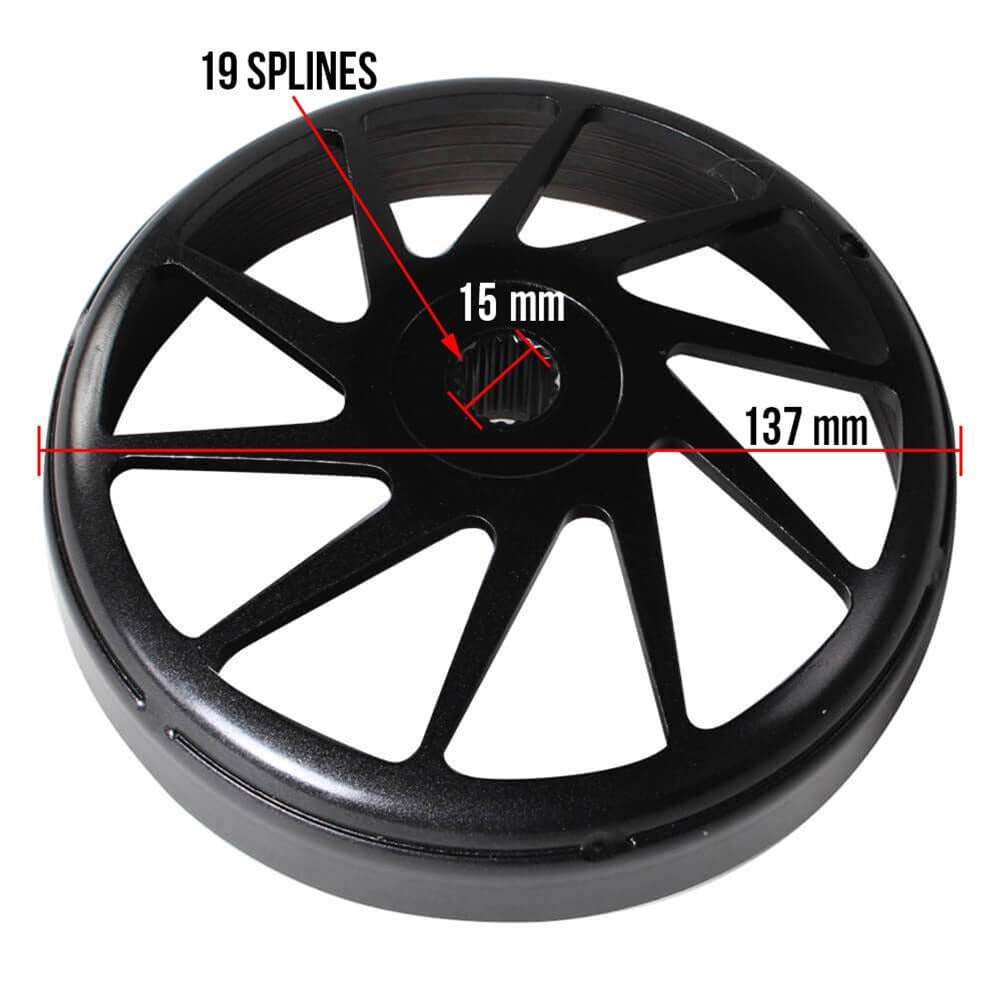

• Inner diameter: 125mm
• Outer diameter: 137mm
• Splines: 19
• Spline bore: 15mm
• Weight: 660g
• Friction surface: Sandblasted with cut channel grooves
• Finish: Black PTFE (Teflon) coating
• Brand:

Compatibility

• Honda: Navi 110
• Genuine: Buddy 125, Buddy 150, Buddy 170i, Hooligan 170i
• GY6 125-170cc: 152QMI, 157QMJ, 161QMK, 1P61QMK, BN157QMJ
• GY6 scooters: Wolf, Ice Bear, Jonway, TaoTao, Bintelli, SSR, Roketa and other GY6 125-150cc models

Check the engine code stamped on your engine case to confirm fit.

Usage Tips

• For the best performance, pair this bell with the N-20 Performance CVT Clutch (1200-1290). Its oversized shoes and high-friction lining are made to run with a vented bell like this one.
• Replacing the bell and clutch together gives you fresh friction surfaces on both sides.
• Apply blue thread locker to the clutch bell nut and torque it to factory spec.

This product is intended for off-road use only. This product is not intended for use on public roads or land.

Performance upgrades are considered racing parts and are not covered by warranty.

Specifications

• Fits: GY6, GY6 150cc (157QMJ)
• Part type: Clutches & Clutch Springs
• Engine size: 125-170cc
• Condition: New

Fitment check

Compare this part with your original before ordering: match the size, connector or part number, and the position on your scooter. Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm.
