How to Ensure the Control Box Fits Your Ride-On Car

Follow these simple steps to confirm that the replacement control box is compatible with your electric ride-on car before installation:

• 1. Visual Comparison: Carefully open your ride-on car’s hood or body panel to access the existing control box. Compare its shape, mounting points, and connector arrangement to the new control box. If the overall appearance, dimensions, and plug orientation match exactly, it’s a strong indicator the part will fit.

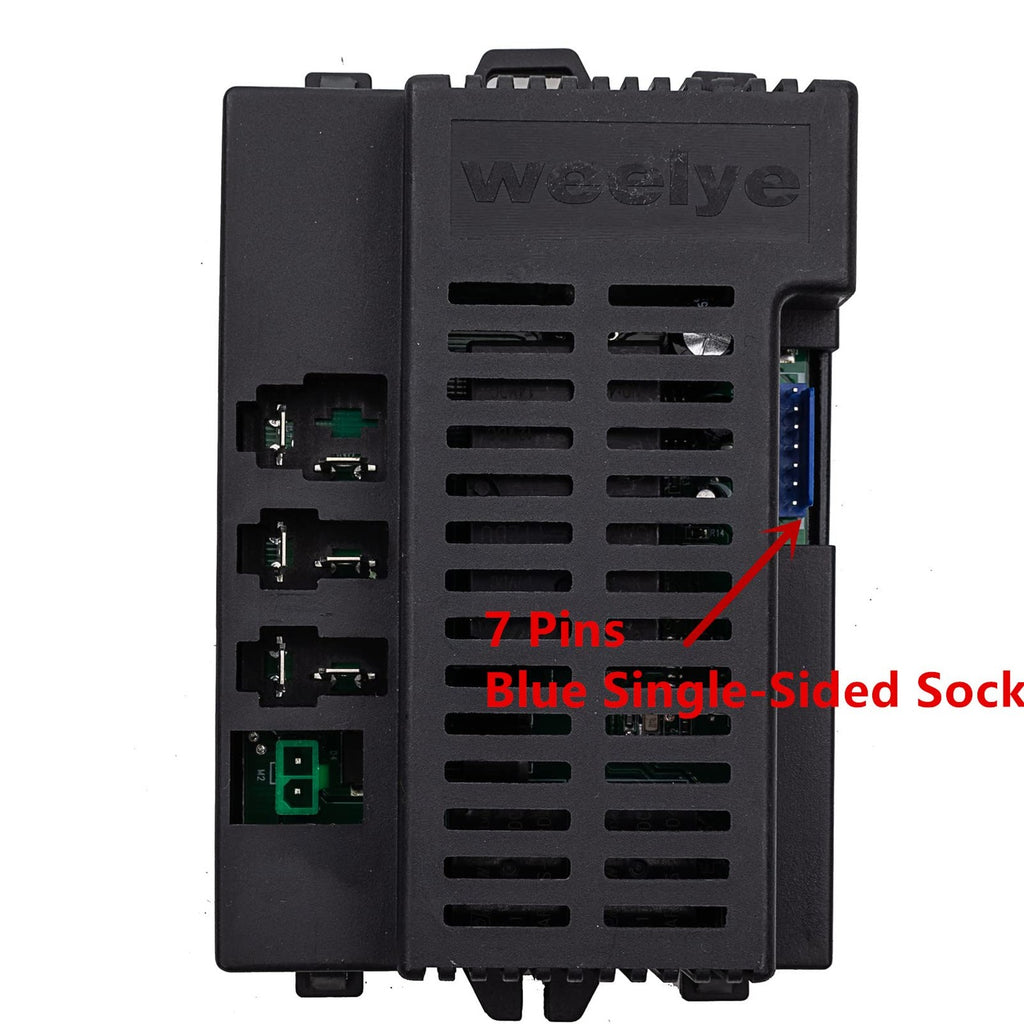

• 2. Connector Check: Examine the number of pins, the color of the socket, and the housing style on both the old and new control boxes. The replacement should feature the same 7-pin blue single-sided socket as your original unit. A mismatch here means the part won’t plug in correctly.

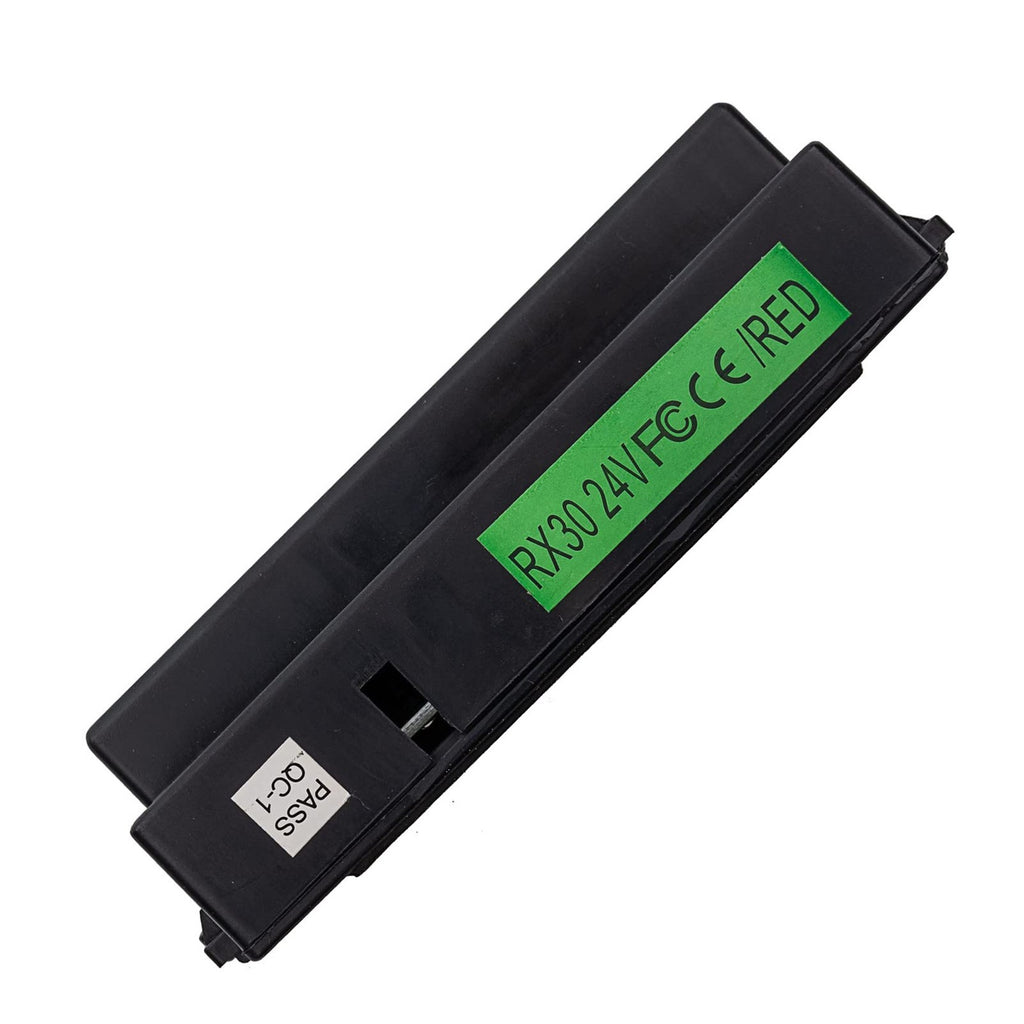

• 3. Part Number Verification: Look for the model identifier printed on the case of your existing control box. If it reads “RX30” and matches the model number on the new unit, you’ve got the right component. Consistent labeling confirms compatibility.

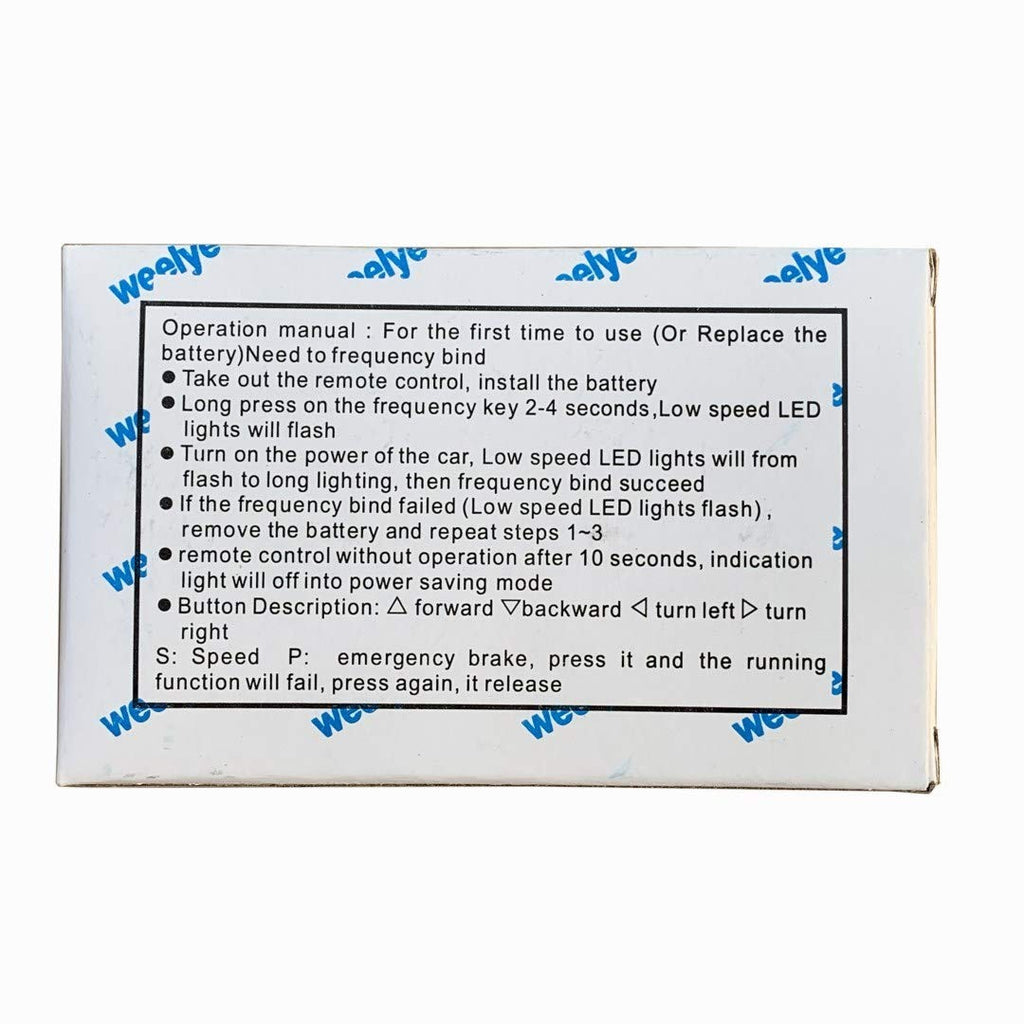

First-Time Setup & Frequency Matching

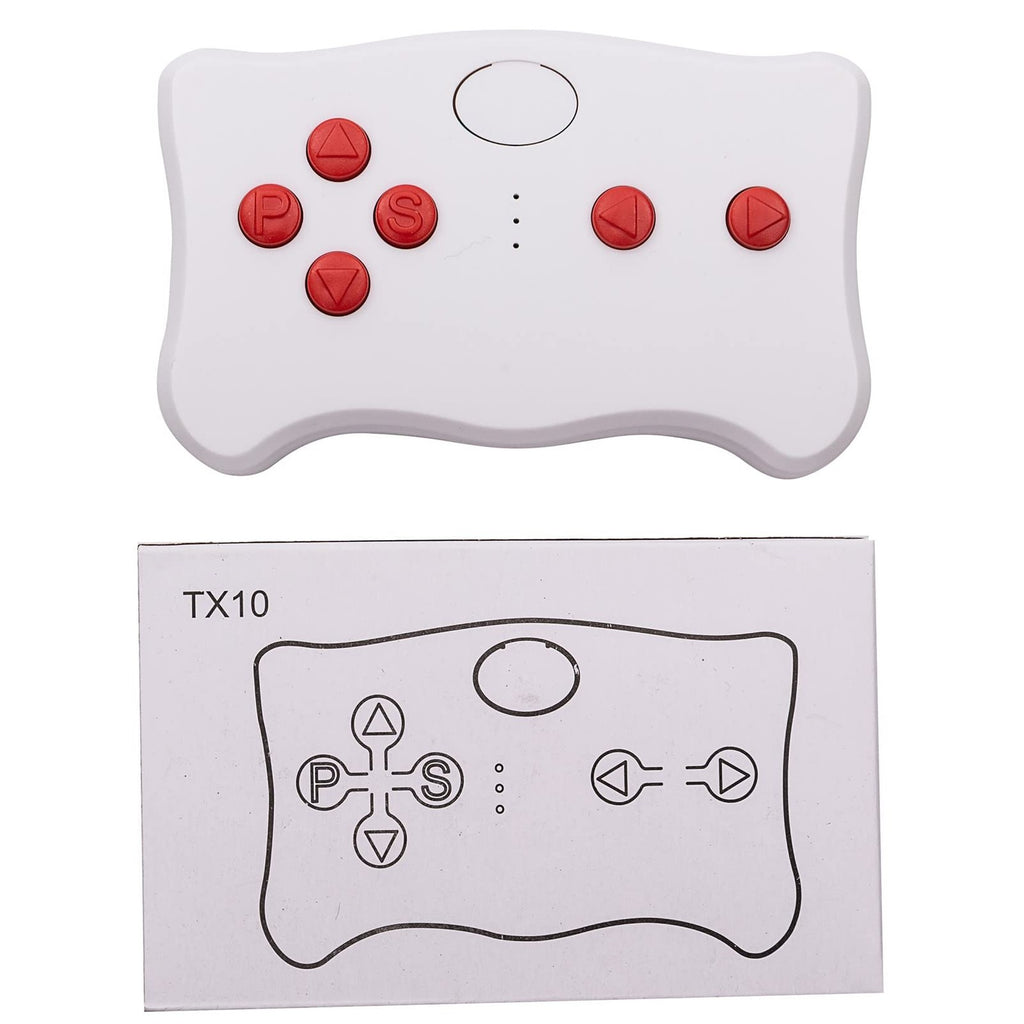

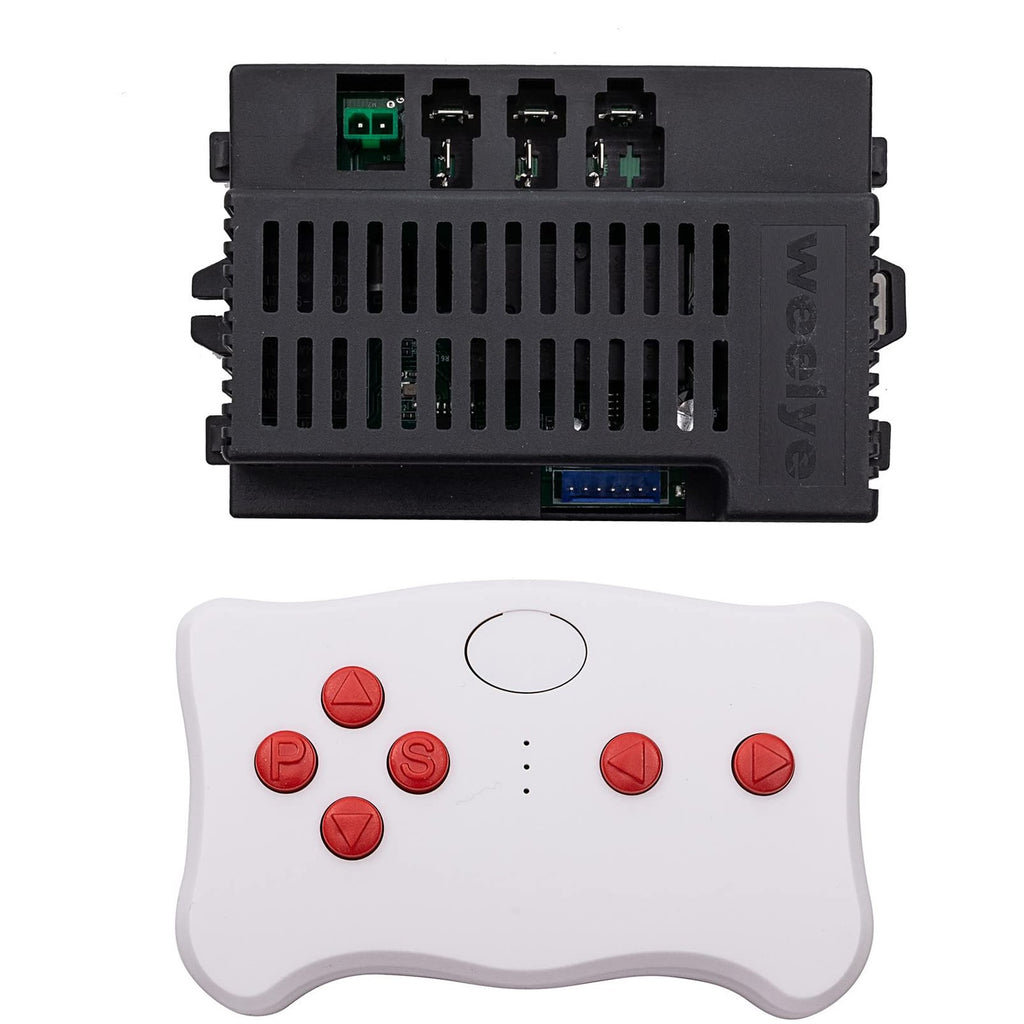

Whenever you replace the control box or install fresh batteries in your 2.4G Bluetooth remote control system, you’ll need to re-sync the transmitter (TX10) to the receiver (RX30). Here’s how:

1. Install Transmitter Batteries
   Open the battery compartment on the TX10 remote. Insert two AAA 1.5V batteries, ensuring correct polarity (+ and –). Close the cover securely. The remote’s LED indicator will flash three times, indicating power-up is successful.
2. Enter Pairing Mode
   Press and hold the “frequency” or “car select” button on the remote for about 2 seconds. The LED will begin to flash continuously, signaling it’s ready to pair.
3. Power On the Ride-On Car
   Switch on the car’s main power. As the receiver initializes, the remote’s flashing indicator should go steady or turn off—this means the devices are successfully paired.
4. Troubleshoot if Needed
   If the indicator keeps flashing (pairing failed), turn off the car’s power and repeat steps 2 and 3. Ensure you hold the frequency button firmly for the full 2 seconds before powering on the car again.

Additional Compatibility Tips

• Ensure your car’s motors and batteries are in good working order. A compatible control box won’t operate correctly if other core components have failed.
• This kit includes a slow-start function—no extra soft-start install is required. The ride-on will accelerate smoothly, protecting gears and reducing wear.

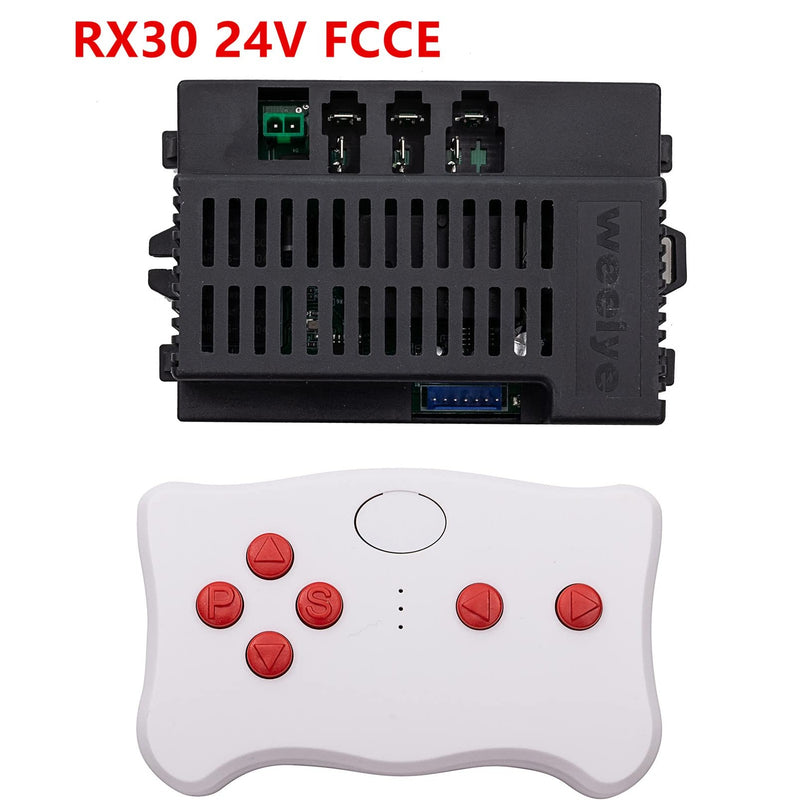

• Confirm you have the correct receiver variant: RX30 24V FCCE control box with a red four-sided socket if specified by your ride-on manufacturer.
• If your original receiver features printed serial numbers on the side, verify they match the numbers on the new unit to avoid mismatched versions.

By following these checks and setup instructions, you’ll ensure your new control box fits perfectly and pairs seamlessly with your existing ride-on car and Bluetooth remote. Enjoy smooth, reliable control and endless fun!
