RS775 Motor Gearbox 1:75 Ratio 18V-24V For Power Wheels Kids Ride On Vehicles

Features:

• High-Power Drive Engine: RS775 24 Volt 280 Watt drive engine with gearbox for Power Wheel motor upgrade at 18V. Requires matching control box of 40A or above and fuse of 25A or above to avoid capacitor damage.
• Versatile Voltage Compatibility: 18V DC motor engine suitable for Power Wheel ride-on cars. Outputs 280W at 24V (360 RPM), 200W at 18V (270 RPM), and 180 RPM at 12V.

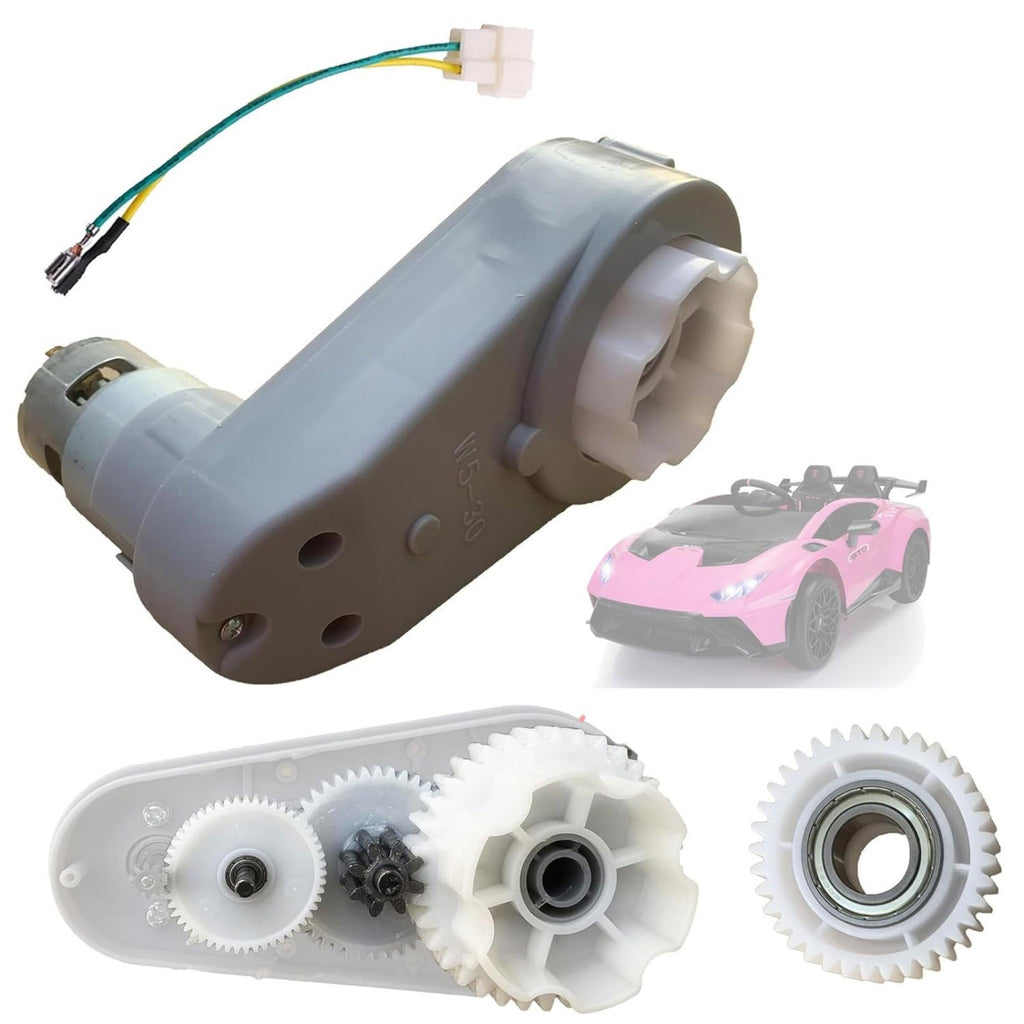

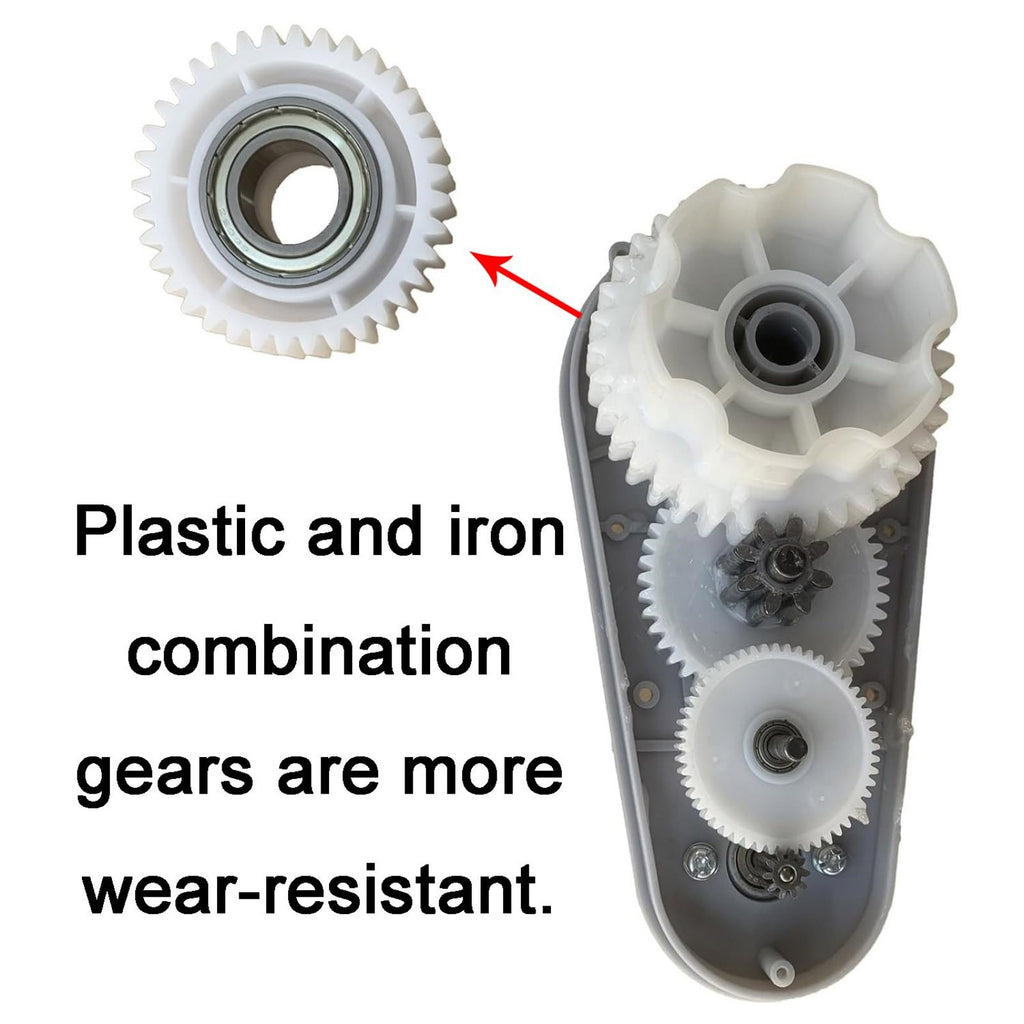

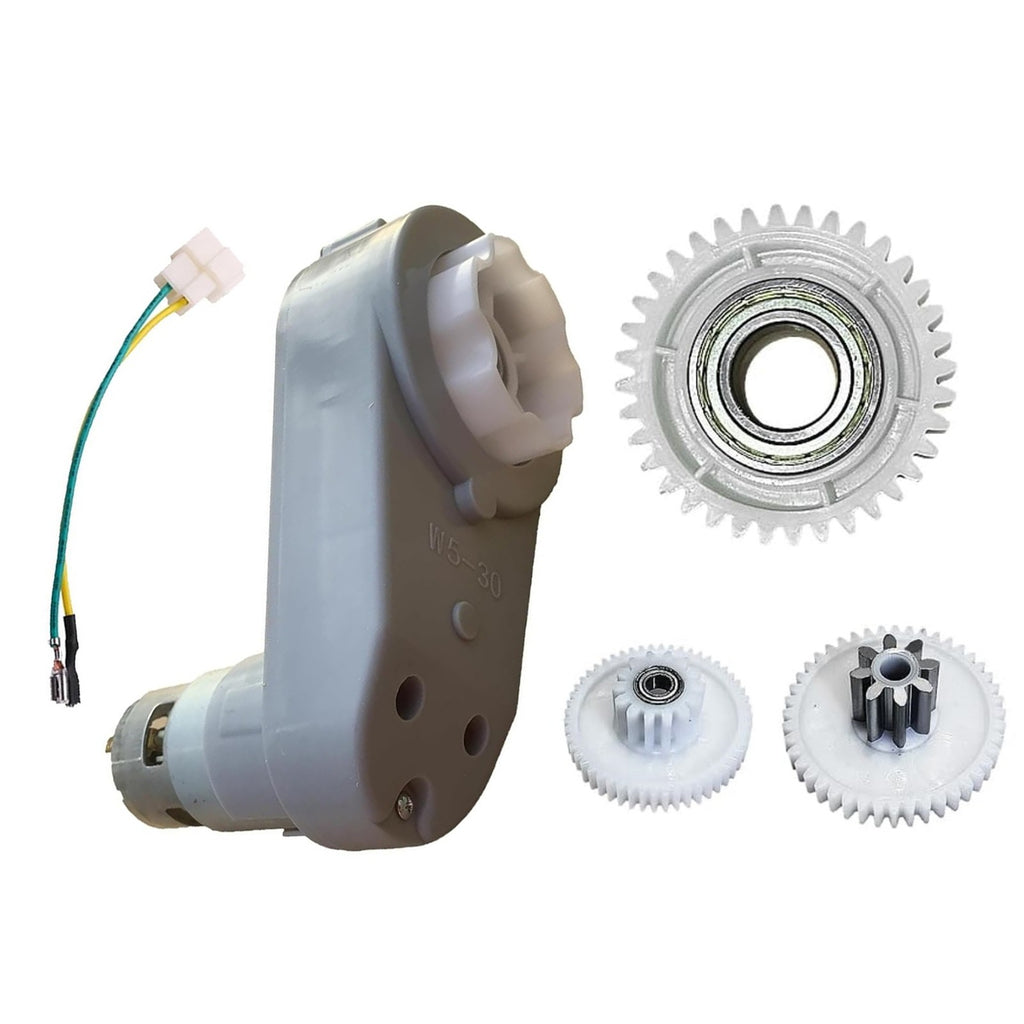

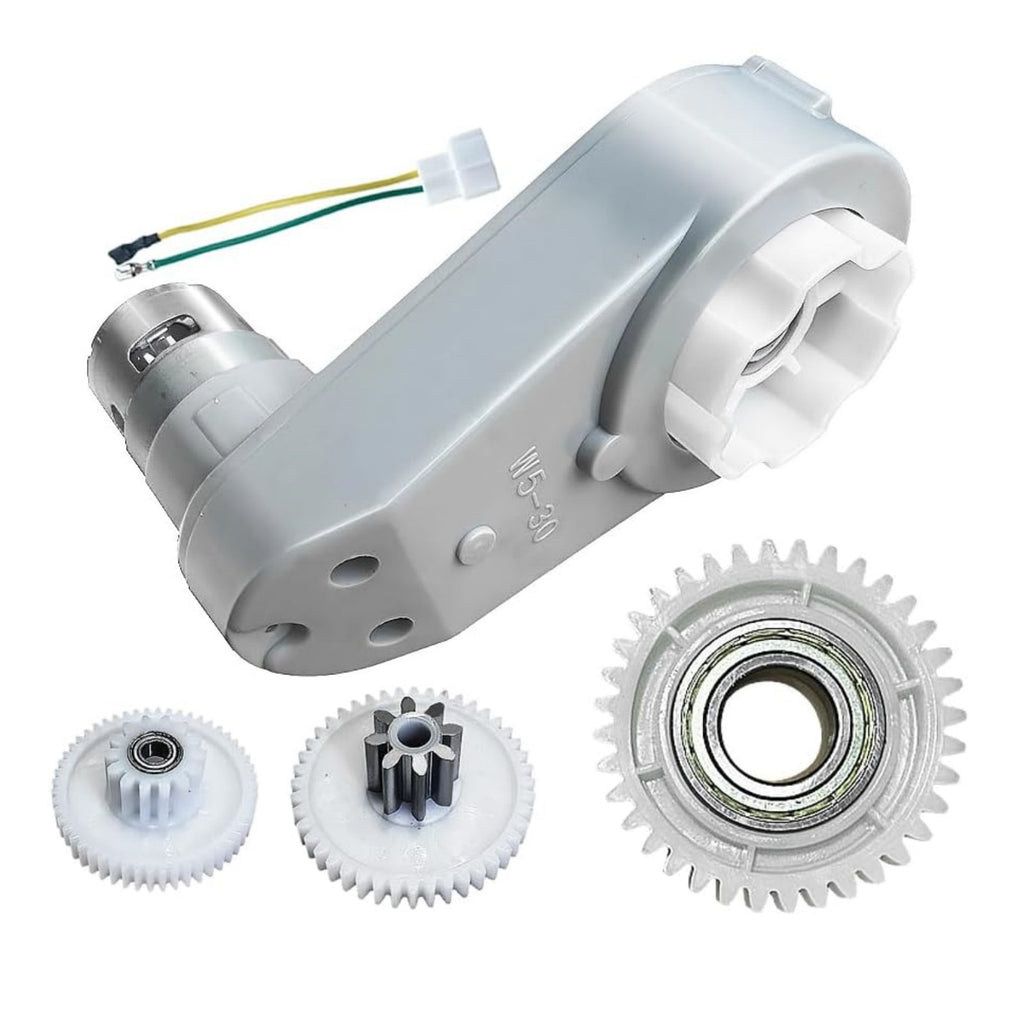

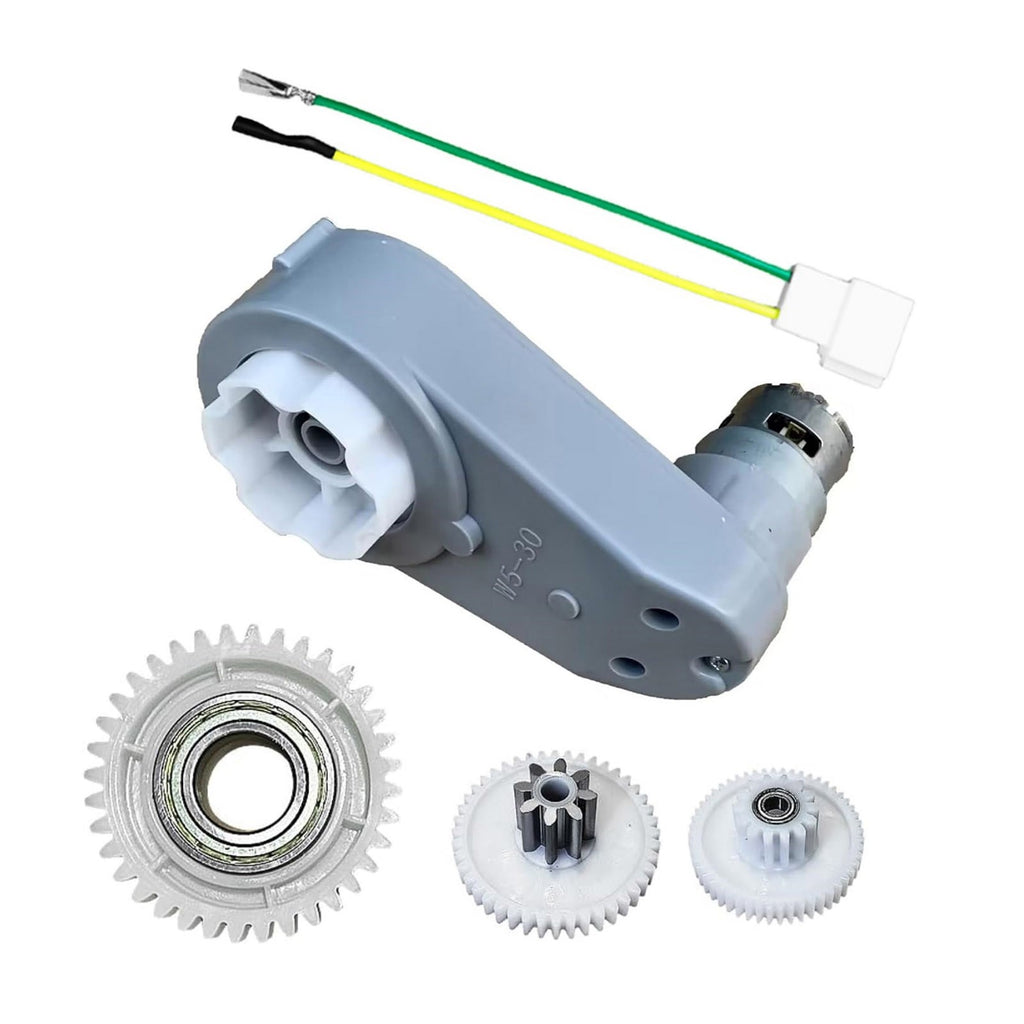

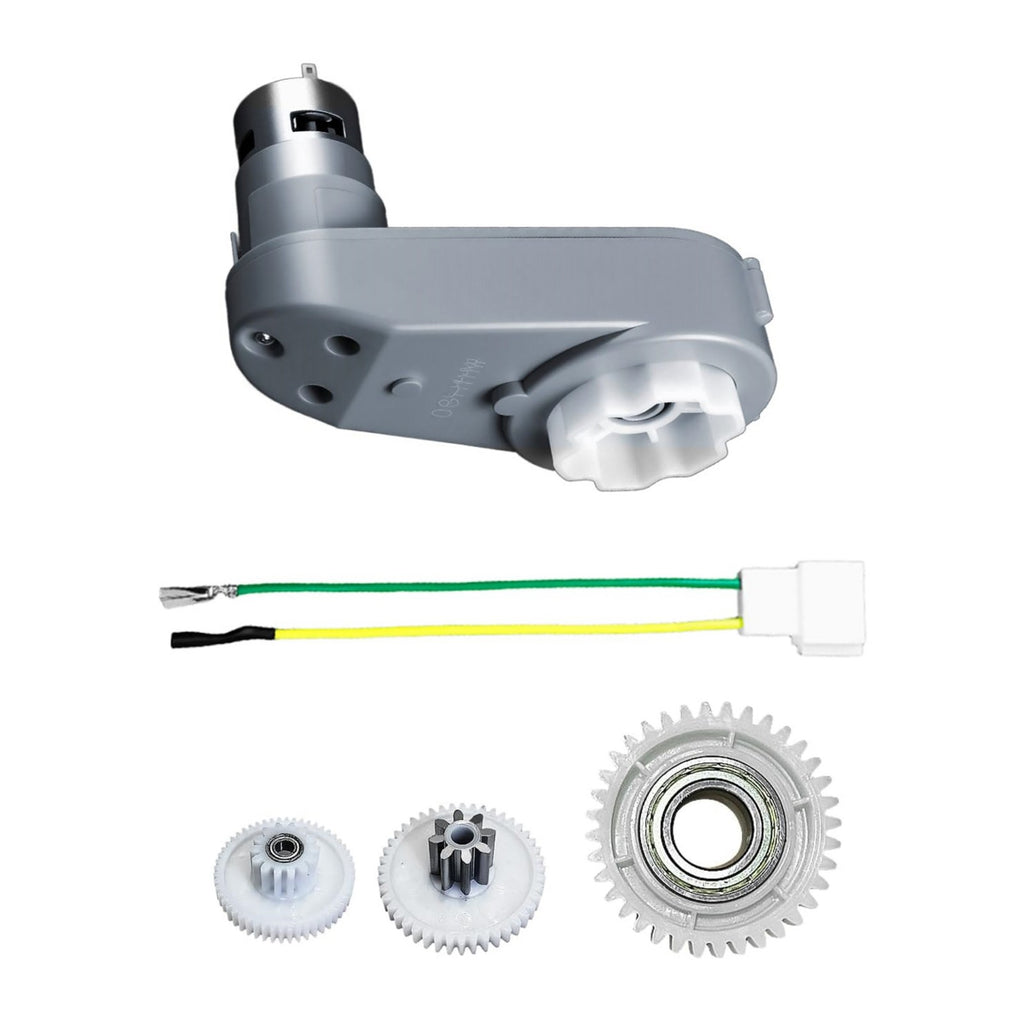

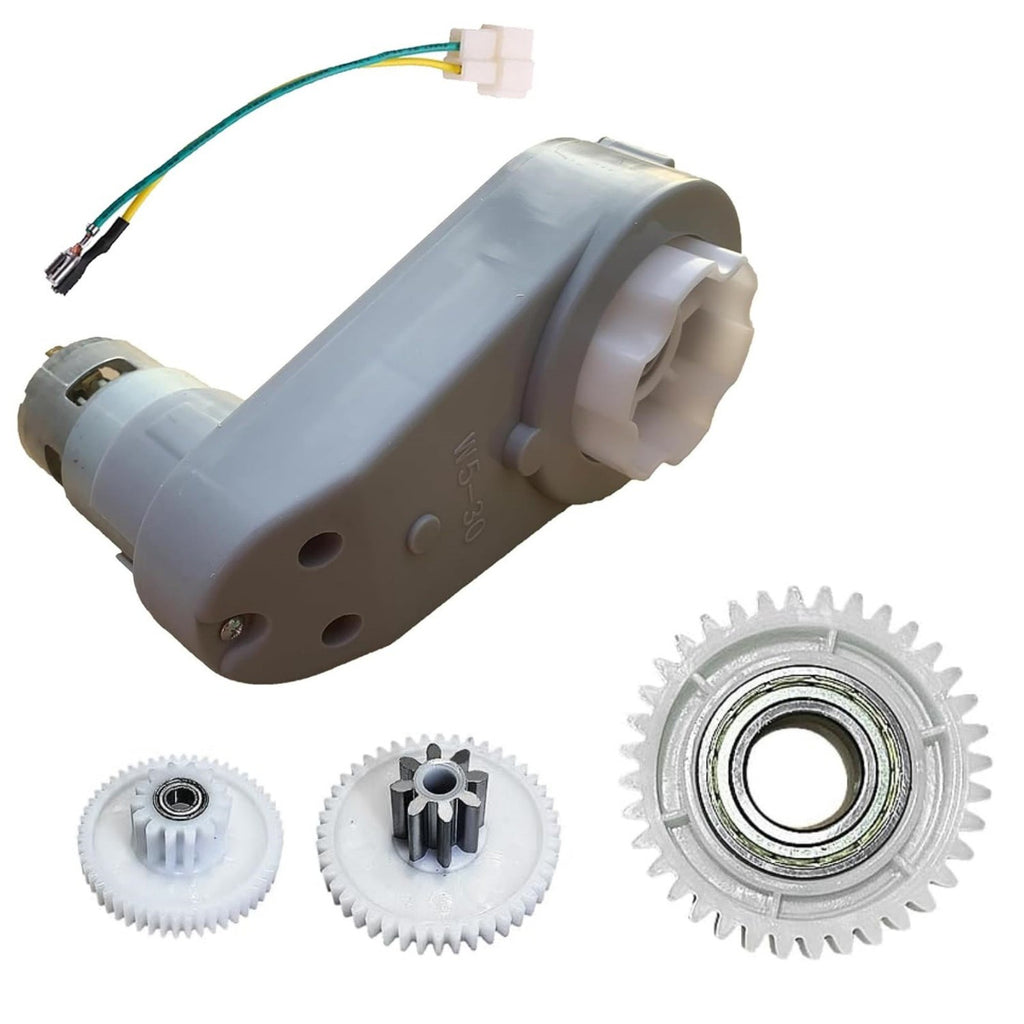

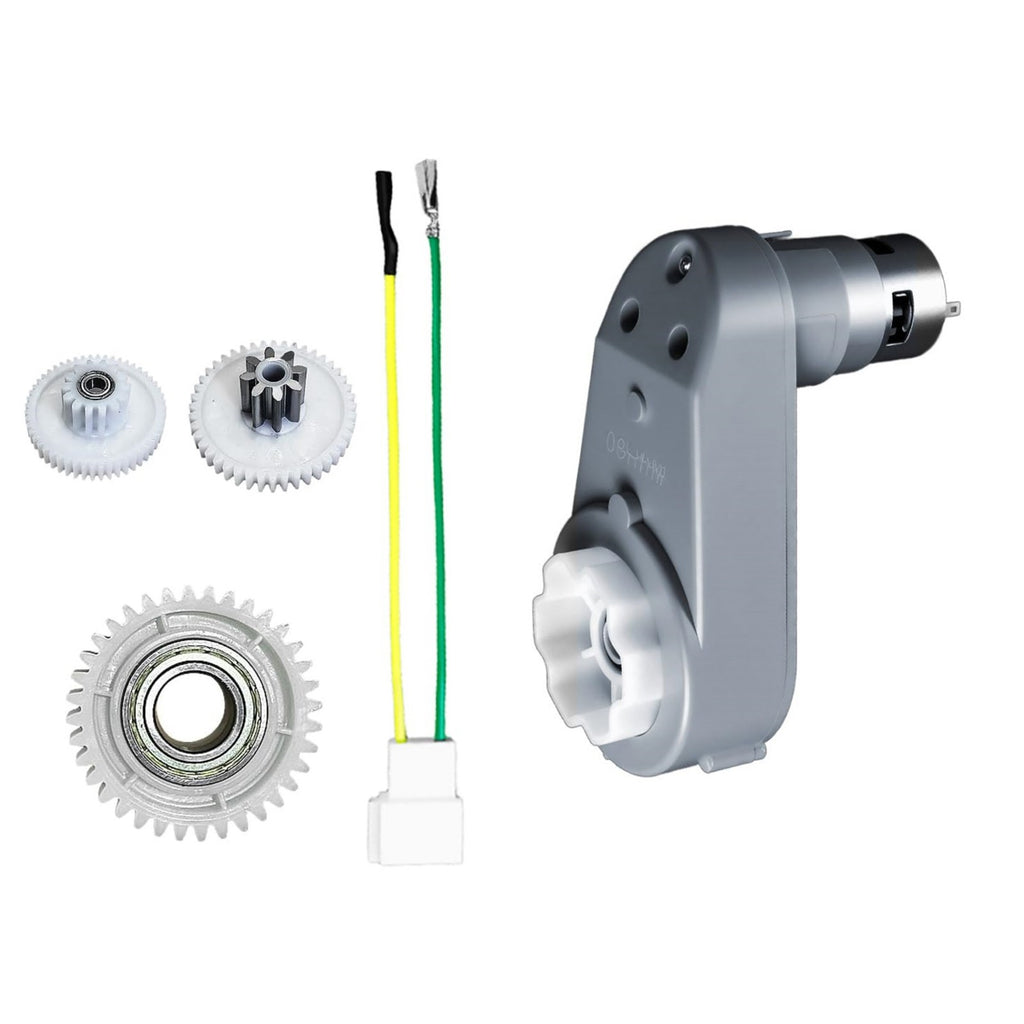

• Durable Gearbox Construction: Gearbox shell made from high-strength composite materials. Features built-in bearings in both small and large gears to reduce friction and enhance service life, with a metal middle gear.
• High Speed Ratio: Gearbox speed ratio of 1:75 provides higher output speed. The motor power of 280W ensures superior torque output.

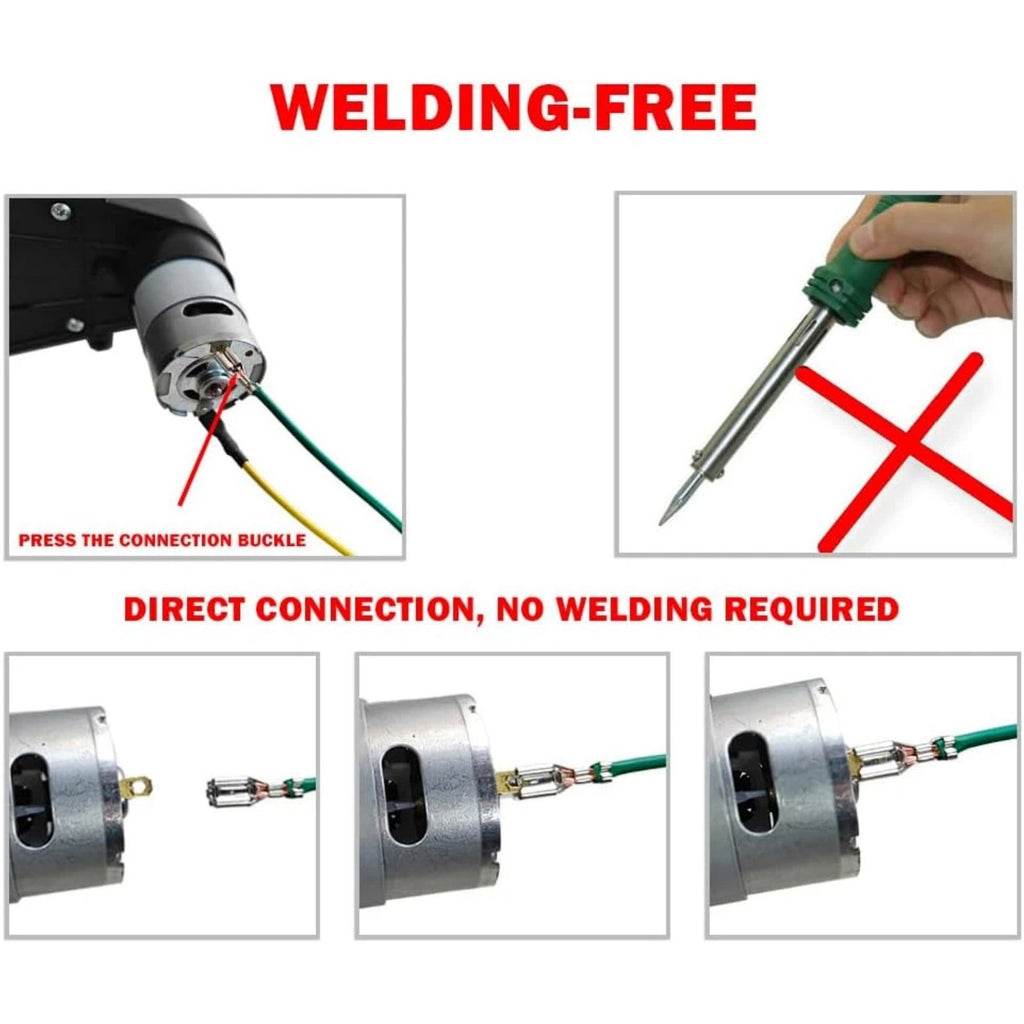

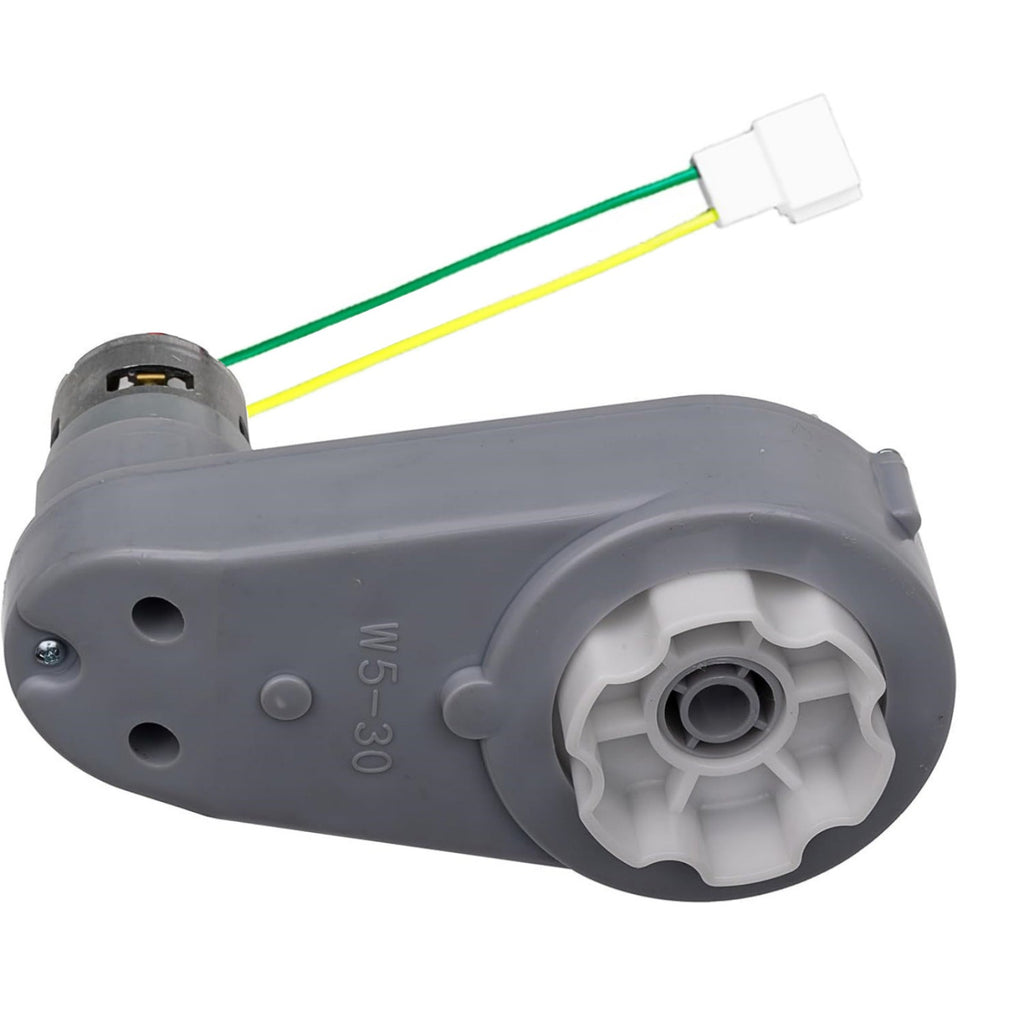

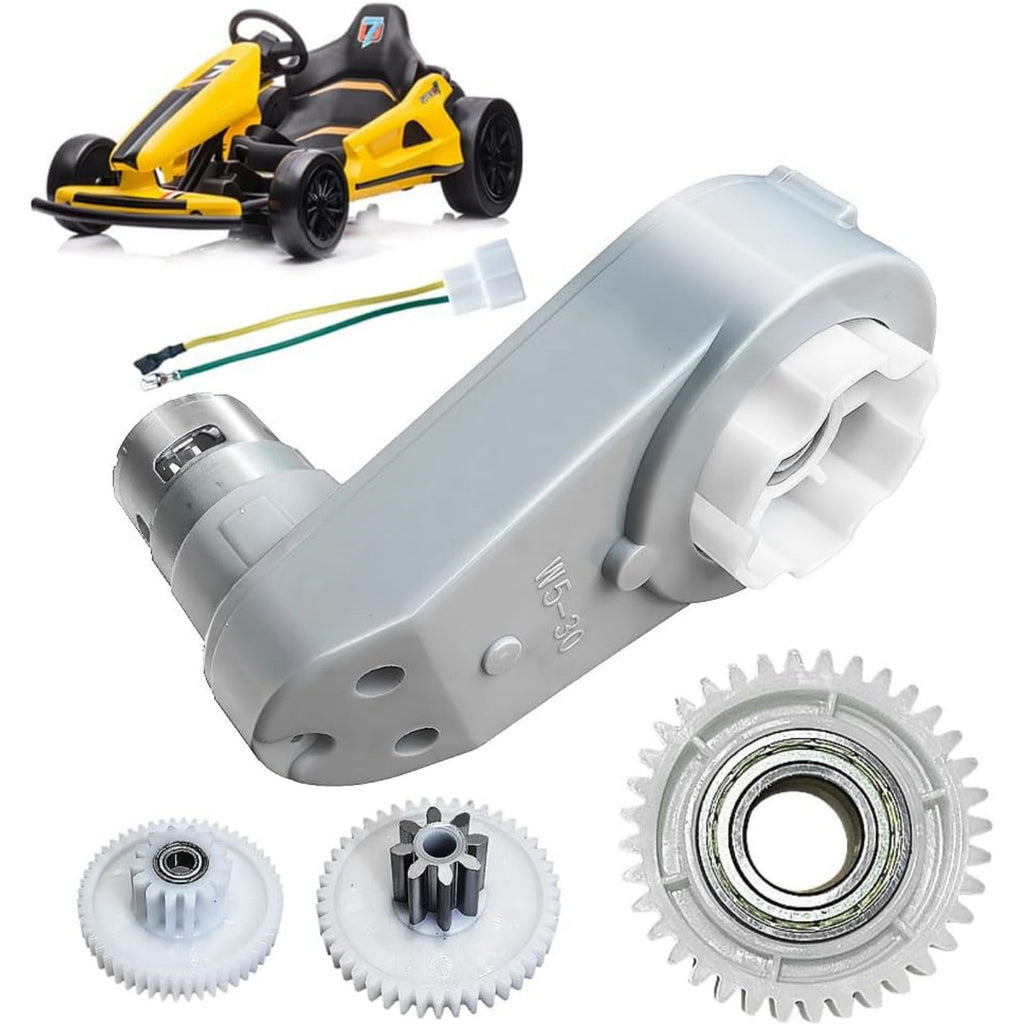

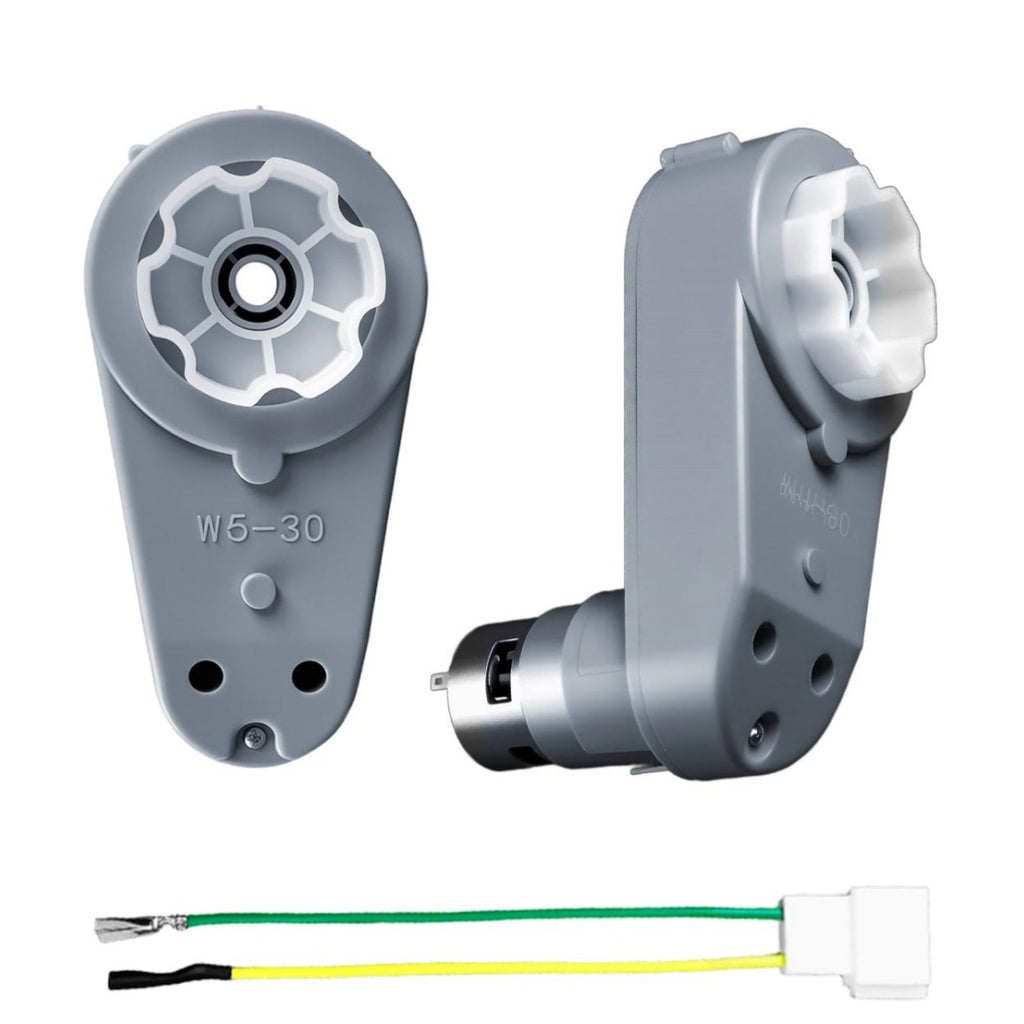

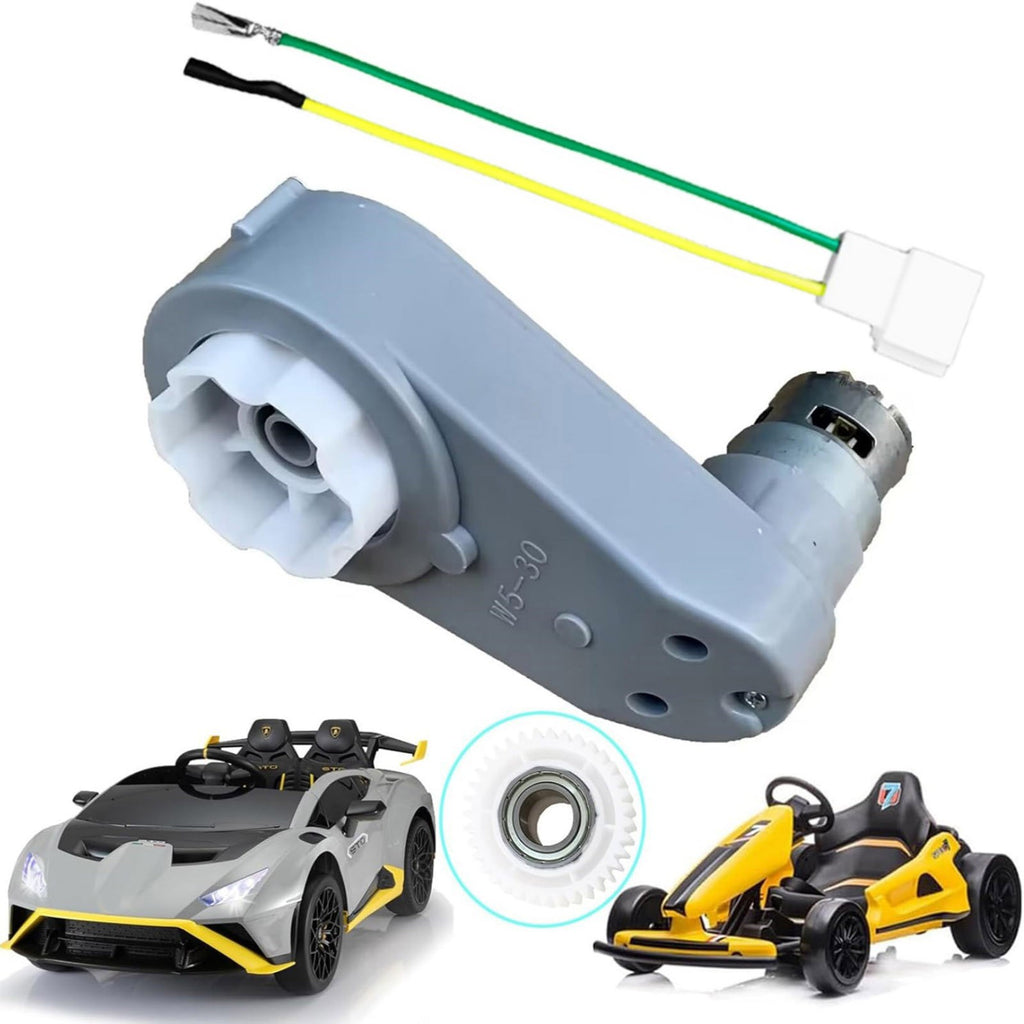

• Easy Installation: Compare the size of the original motor gearbox. One-click installation wires make it easy to replace, suitable for kids ride-on cars, and compatible with gearboxes featuring 6 plum blossoms.
• Battery Compatibility: Designed for use with 24V battery. Can also operate on 12V battery, albeit at reduced speed (half speed). Gearbox design still provides fast speed.

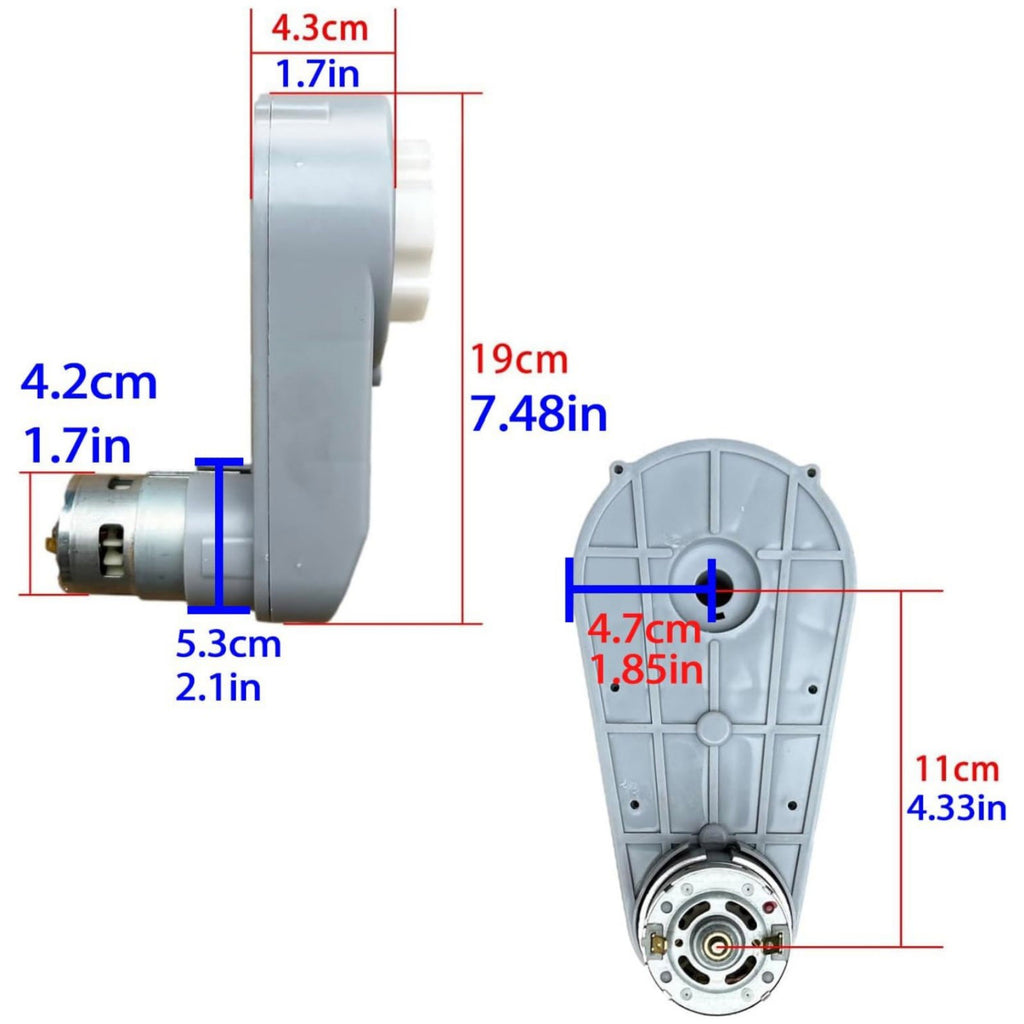

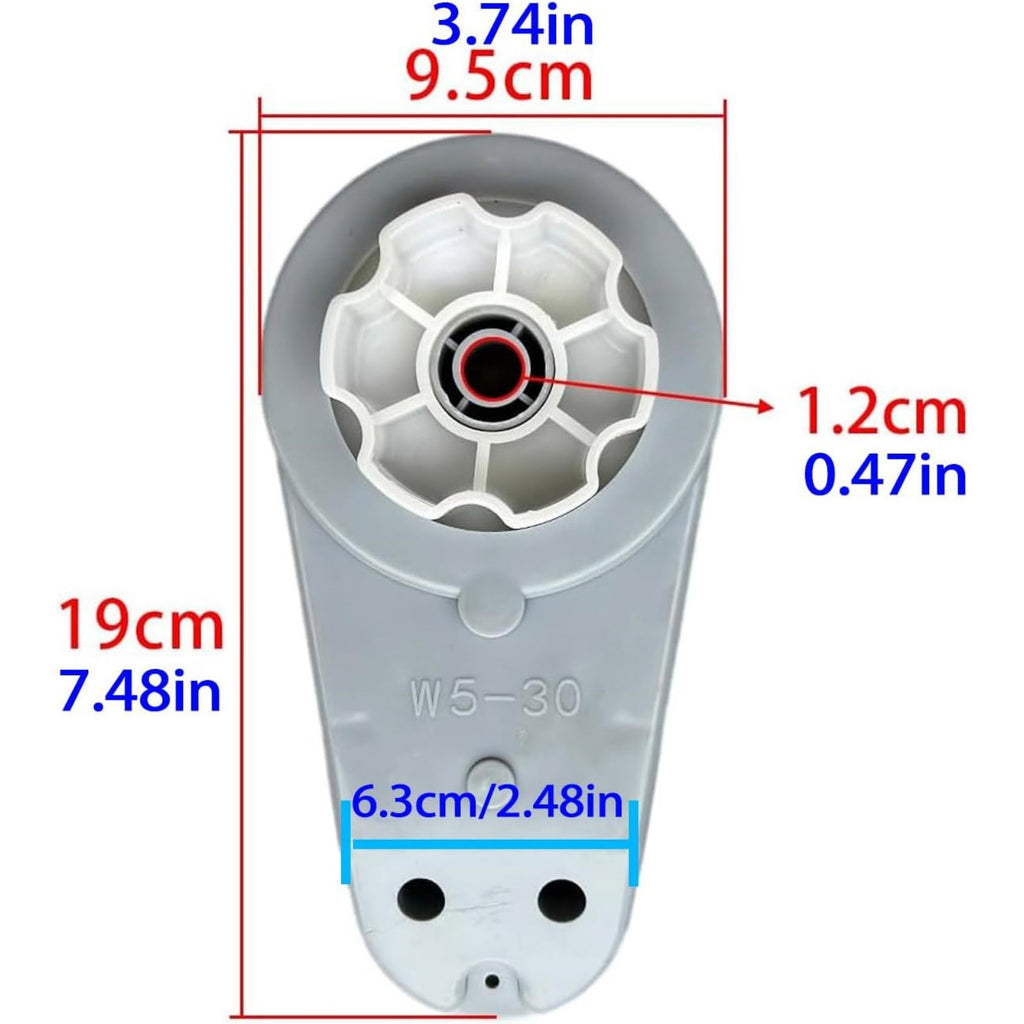

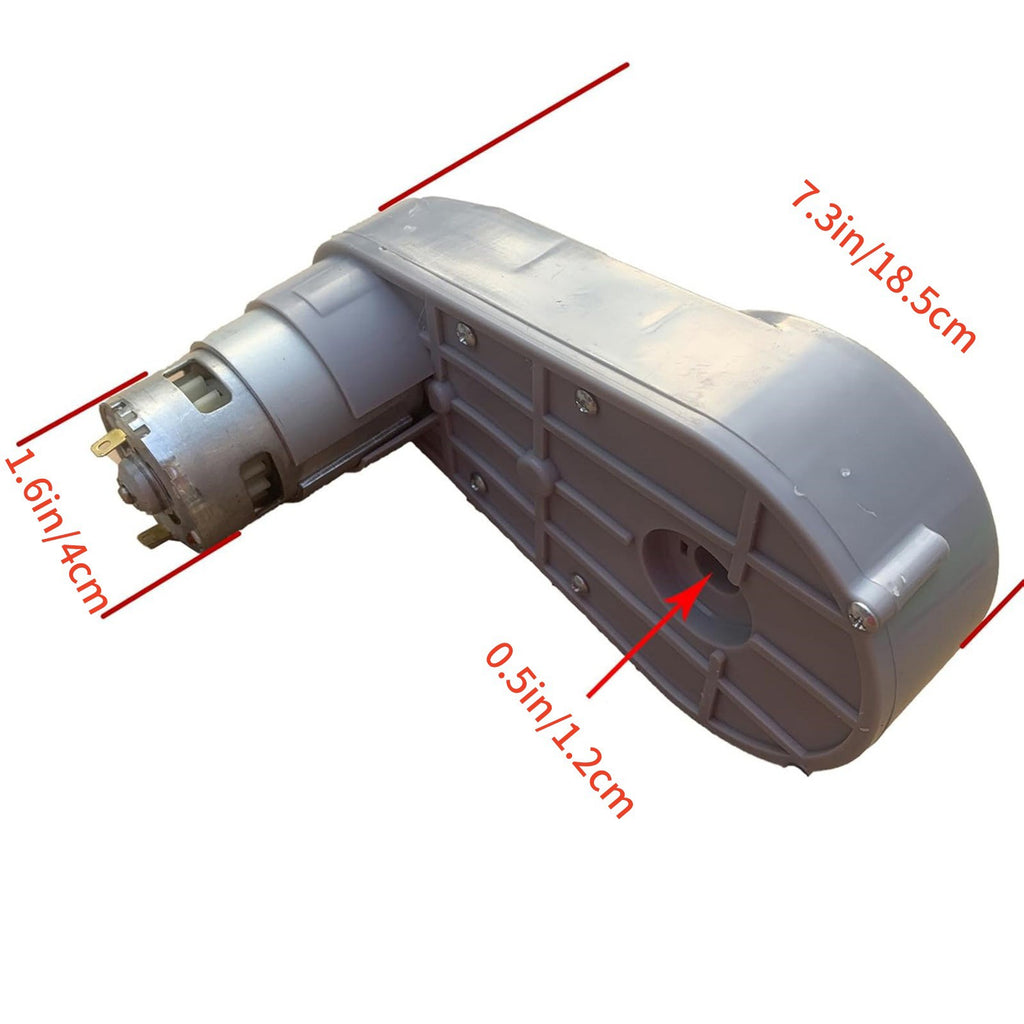

• Larger Installation Holes: Installation holes for this motor gearbox are larger than those for RS550 due to the motor's larger diameter. Measure all dimensions carefully before purchasing for perfect installation.

Specifications:

• Type: High-Speed Motor Gearbox
• Condition: 100% New
• Material: Metal + Plastic
• Power and RPM: 12V - 180 RPM, 18V - 270 RPM (200W), 24V - 360 RPM (280W)

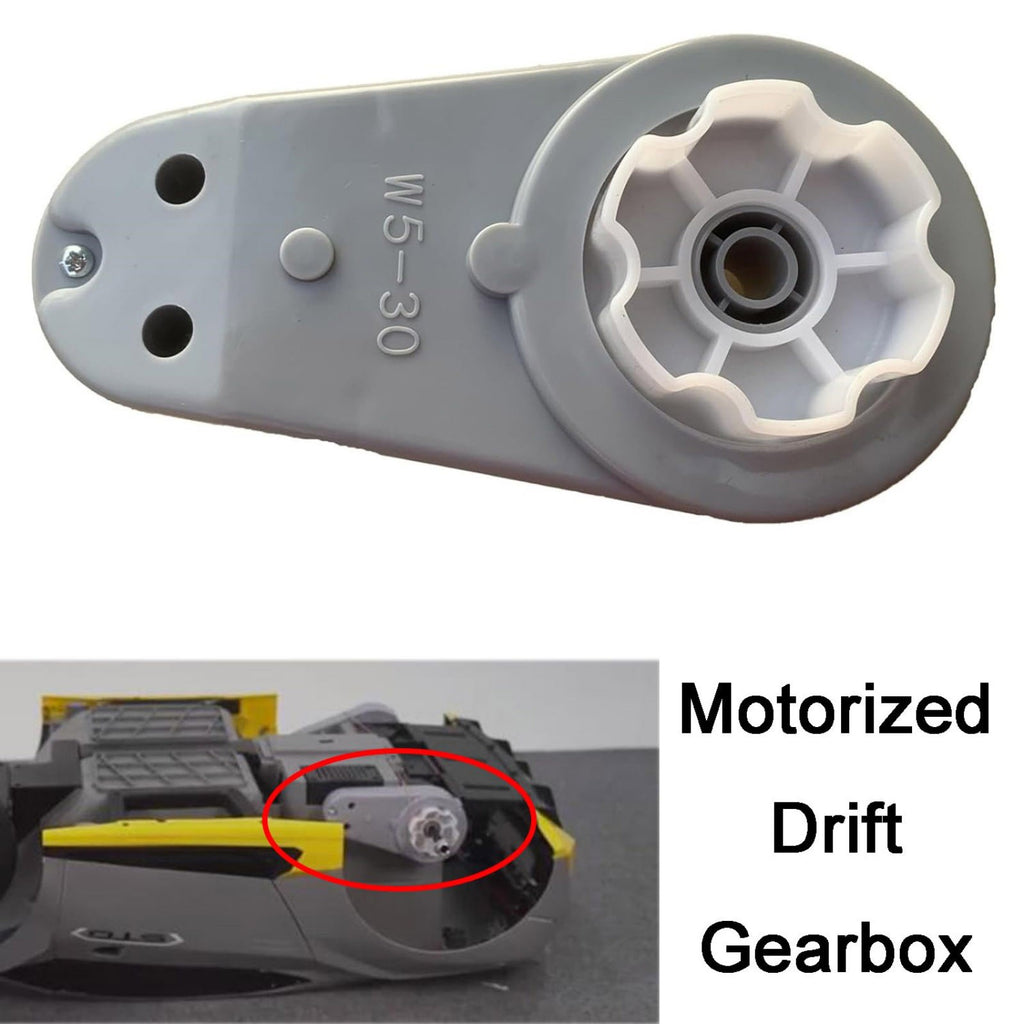

• Model: W5-30-RS775

Packaging Includes:

• 1 x High-Speed Motor Gearbox
