RS775 Motor and Gearbox Upgrade Kit for Power Wheels, Pair - 24V 280W, 360RPM

Ready for a serious power upgrade? This pair of RS775 motors and gearboxes swaps in on both sides and puts out 280W with a 360RPM gearbox output on 24V. It also runs on 18V or 12V at lower speeds.

What Makes It Faster

• RS775 motors: 280W each on 24V for much more torque.

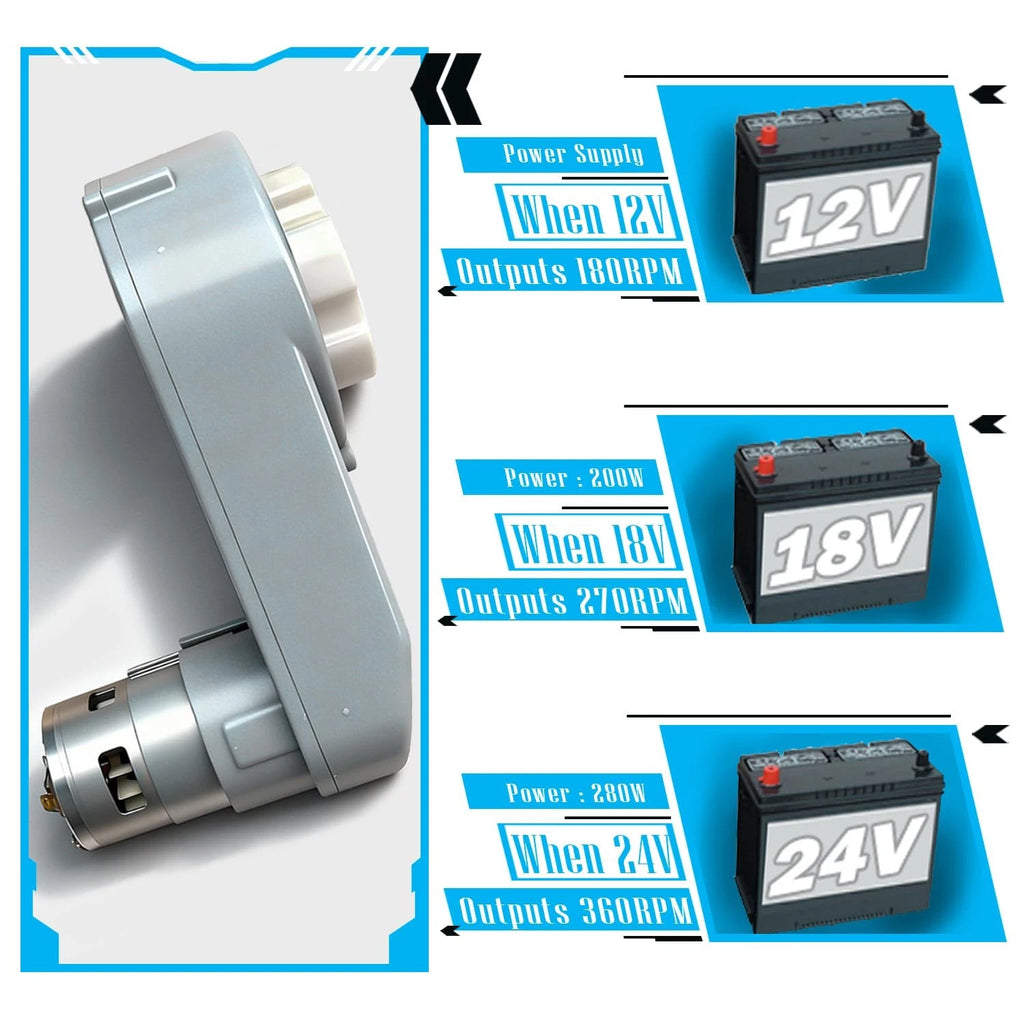

• Speed by voltage: 360RPM at 24V, 270RPM at 18V, 180RPM at 12V.

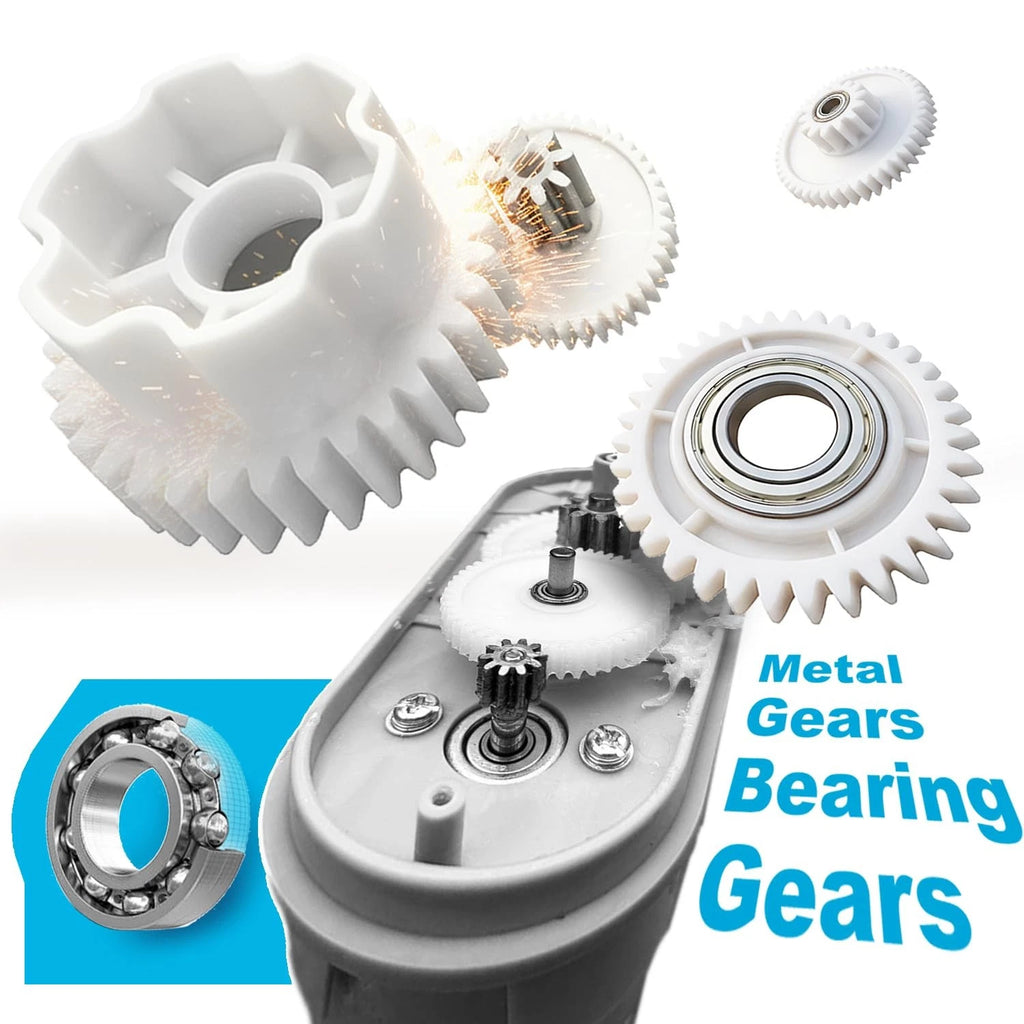

• Tough gearbox: high-strength composite shell, metal middle gear and bearings in the small and large gears.
• Quick install: wires plug right in.

Before You Order

• Fits ride-ons whose gearbox has the 6-point (flower-shaped) axle hole

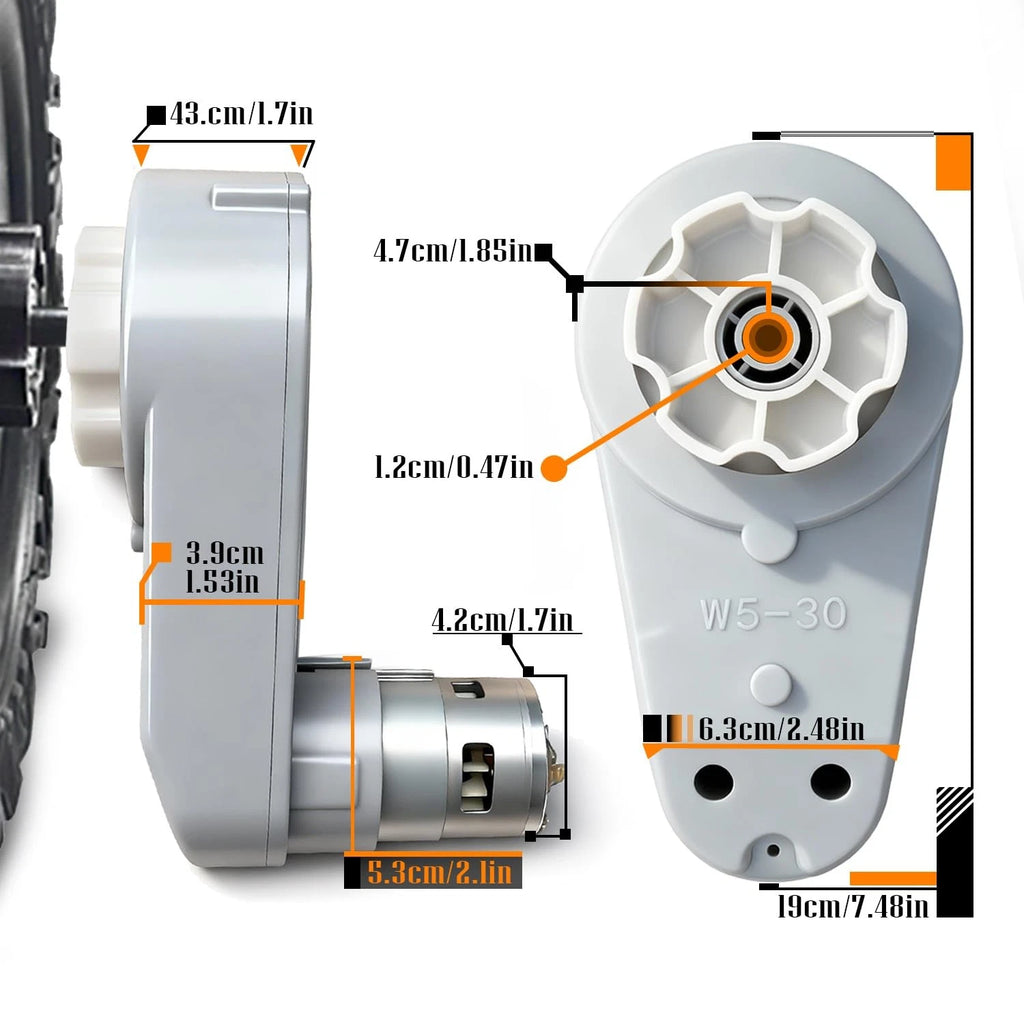

• Shaft hole 12mm (0.47 in), length 185mm (7.28 in), max width 92mm (3.62 in), motor diameter 40mm (1.57 in)
• The RS775 is wider than an RS550, so the mounting holes are larger: measure your original gearbox first

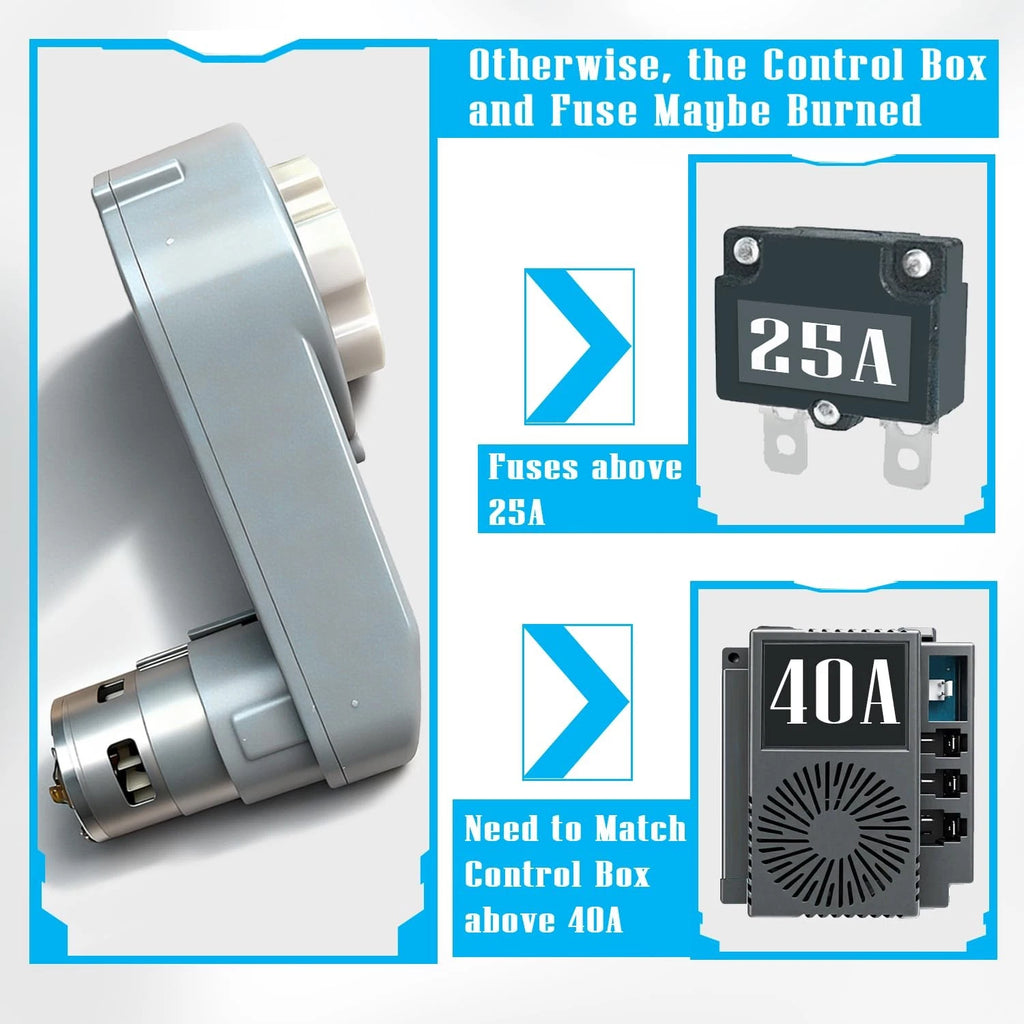

• Pair with a control box rated 40A or more and a fuse of 25A or more

The Magic Cars Difference

• Trusted by 1 Million+ Happy Families since 1999: we know what it takes to make a ride-on faster and keep it running.
• Send us your old gearbox measurements and we'll help you confirm the fit before you order.

Specs at a Glance

Frequently Asked Questions

• Will it work on my 12V ride-on?

  Yes. It's designed for 24V, and on 12V it runs at about half speed (180RPM output).

• Do I need a bigger fuse or control box?

  Yes. Use a control box rated 40A or more and a fuse of 25A or more, or you risk damaging the capacitor.

• Will it fit my gearbox?

  It fits gearboxes with the 6-point axle hole. Compare the size of your original unit: shaft hole 12mm, length 185mm, width 92mm.

• How many come in the kit?

  Two, one for each side.

What's In the Box

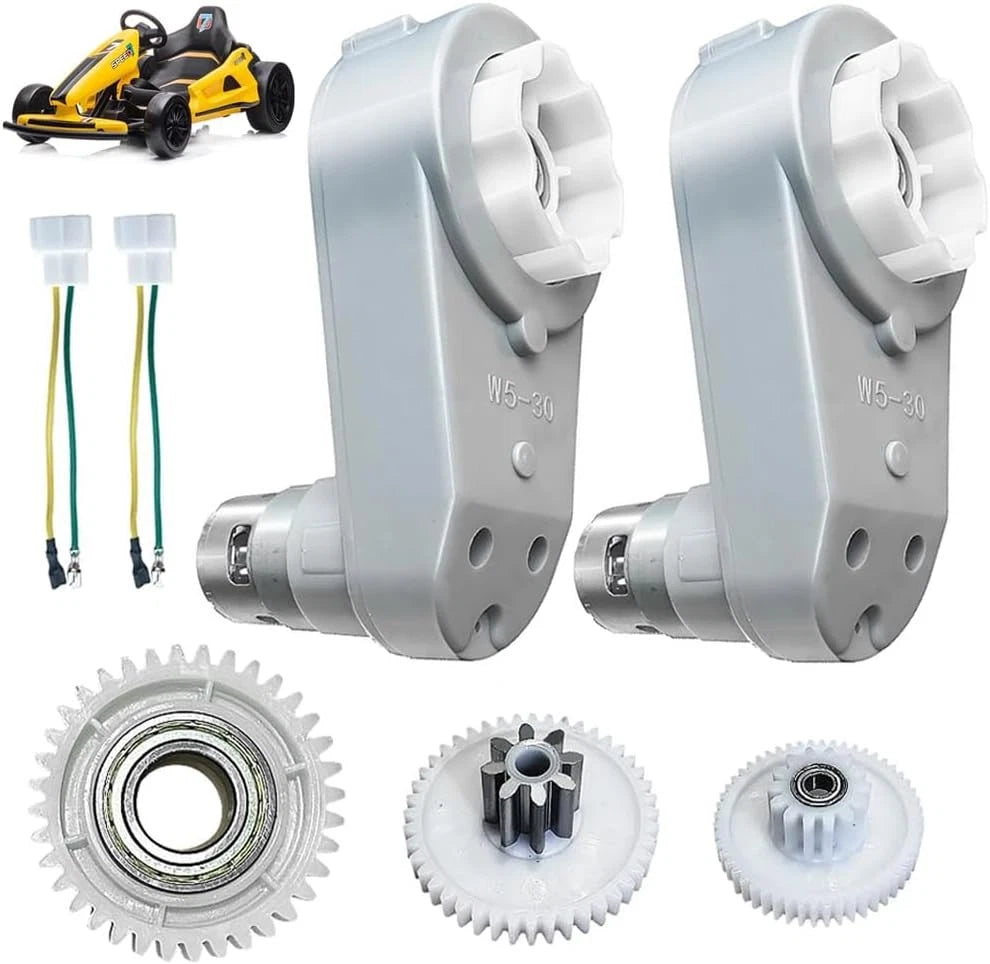

• 2x RS775 motors with gearboxes
