Description
This RS775 280W motor gearbox is one of the Power Wheels gearboxes we offer for upgrading ride-on vehicles. It is a brand-new, high-speed replacement built with a metal middle gear and a composite gearbox shell, designed for 18V to 24V kids' ride-on cars.
Key Features
- High power output: At 24V, the motor delivers 280W, with the gearbox outputting 360 RPM. At 18V, output is 200W at 270 RPM. At 12V, the gearbox outputs 180 RPM.
- Durable construction: The high-strength composite gearbox shell resists deformation, and the middle gear is metal for added strength.
- Reduced friction: Both the small and large gears include built-in bearings to reduce friction and extend service life.
- High-speed gear ratio: A 1:75 ratio supports higher output speed and strong torque from the 280W motor.

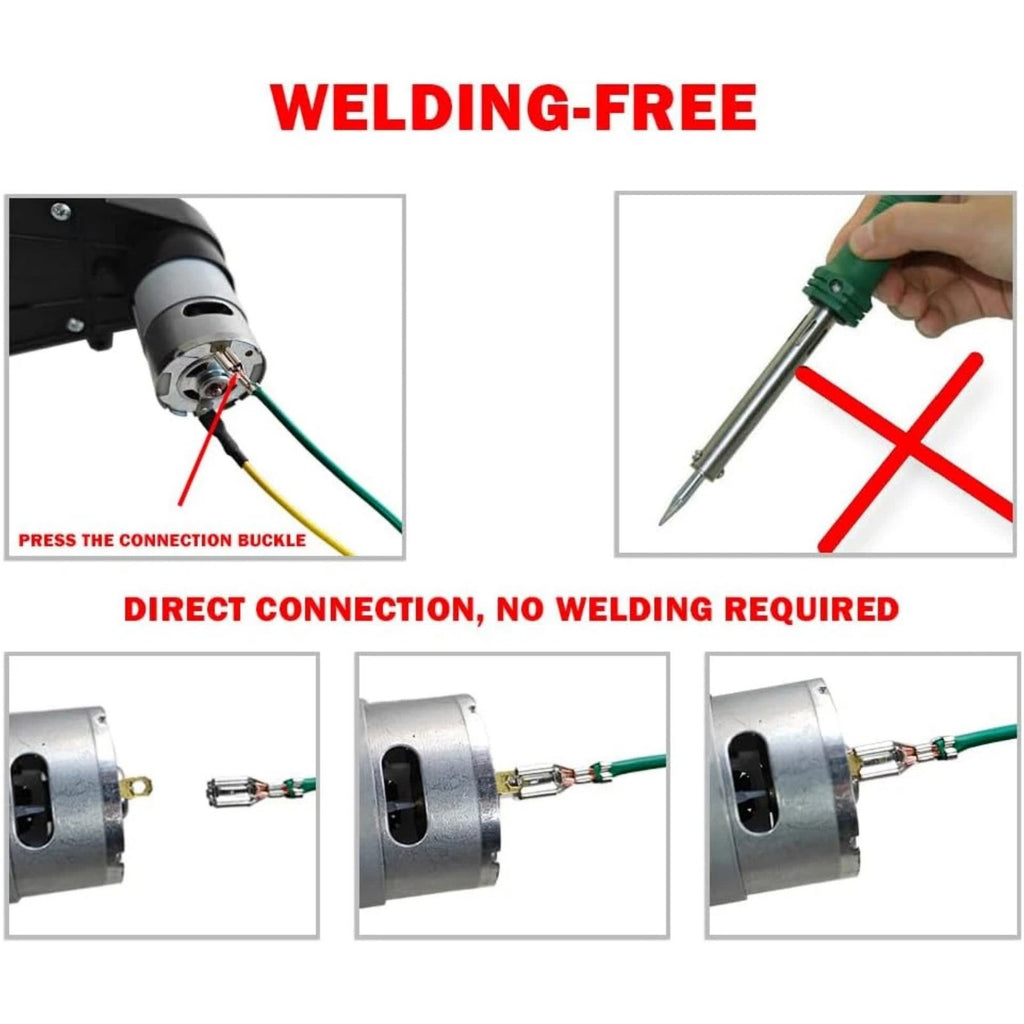

- Easy replacement: Wiring is designed for quick, one-click installation, making this an simple swap for a compatible ride-on car.
- Flexible voltage use: Designed for a 24V battery. On a 12V vehicle, it can run on a 12V battery, though speed is reduced by half.
Important Compatibility Notes
- Pair with a control box rated at 40A or higher and a fuse rated at 25A or higher. Without these, the capacitor could be damaged due to the motor's high power and torque.

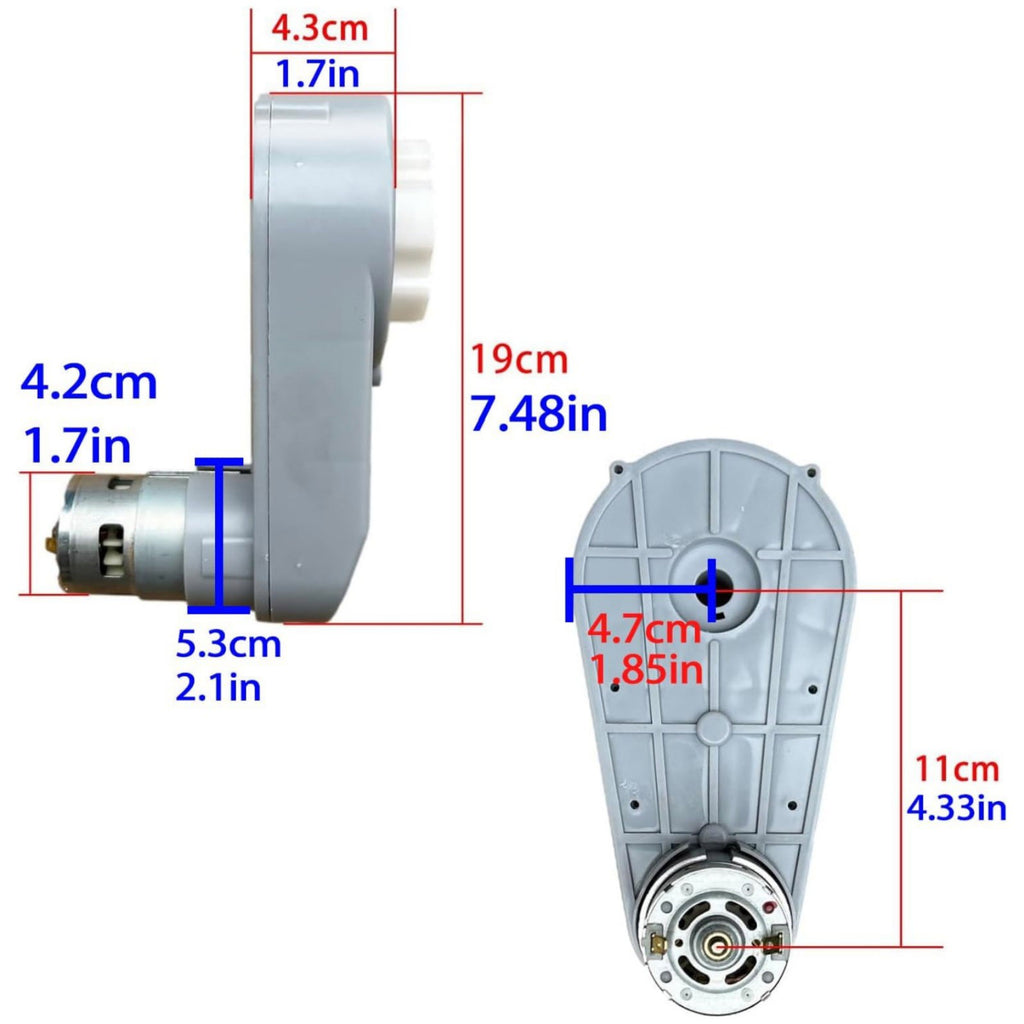

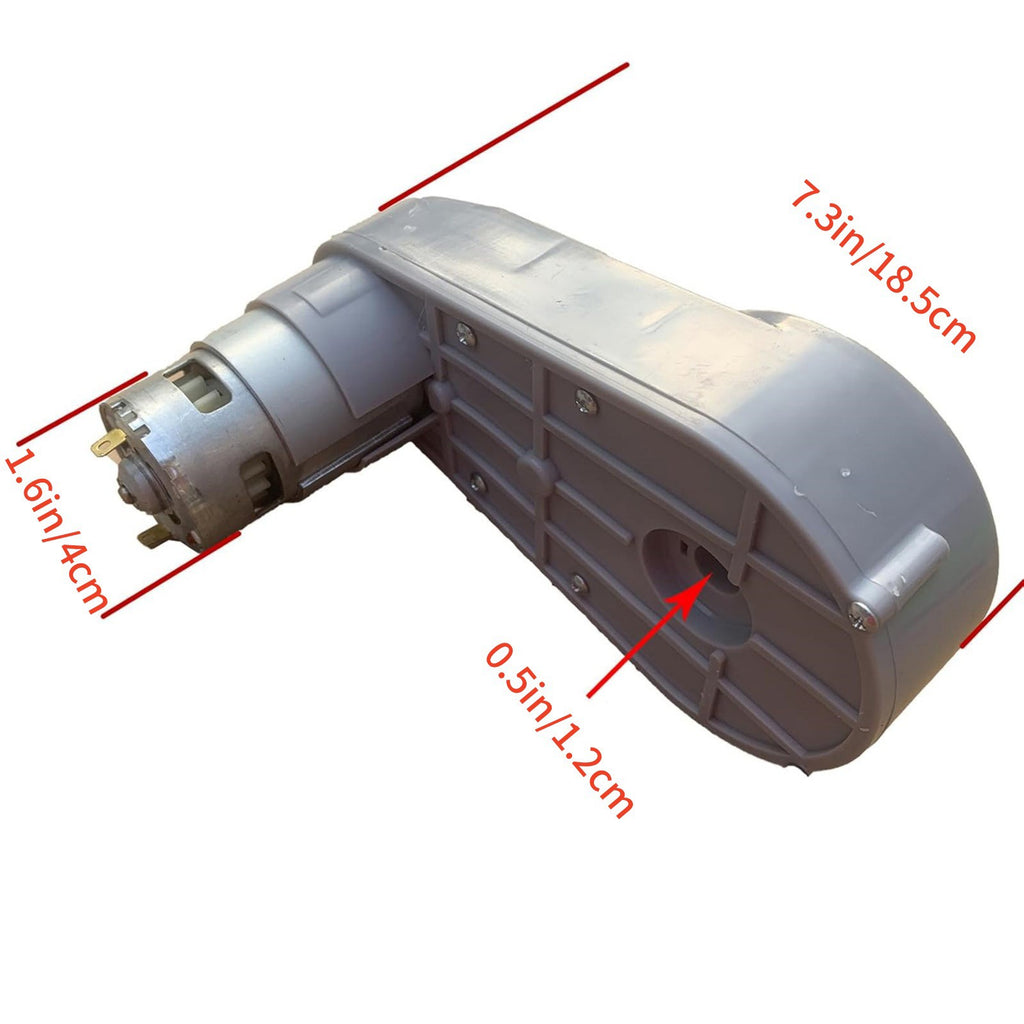

- Mounting holes are larger than those on RS550 motors because of the larger motor diameter. Measure your existing gearbox and mounting area before ordering to ensure a proper fit.
What's Included

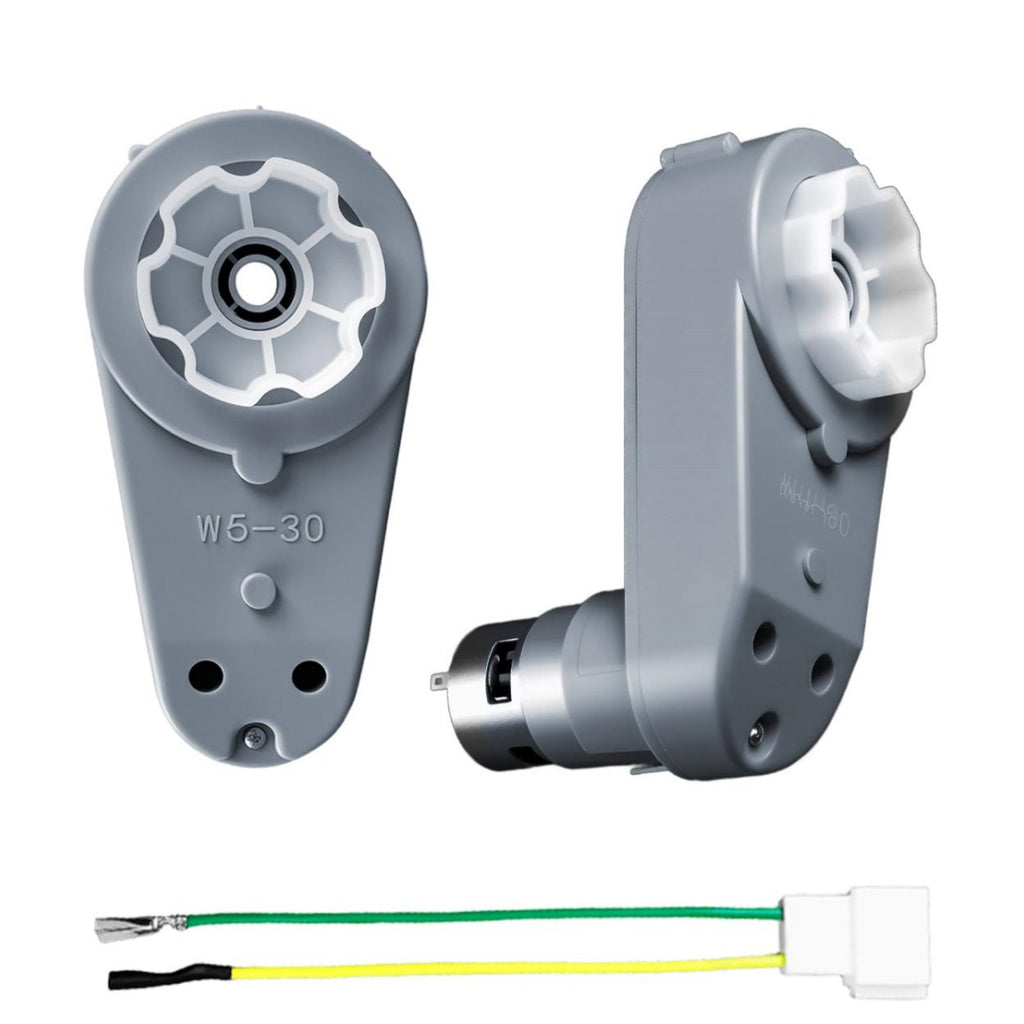

- 1 × High-speed motor gearbox
Specifications
- Material: Metal+Plastic
- Power And RPM: 12V-180RPM, 18V-270RPM-200W, 24V-360RPM-280W
