Razor RSF650 MX650 36V 650W Motor

Replacement Motor for Razor RSF650 and MX650

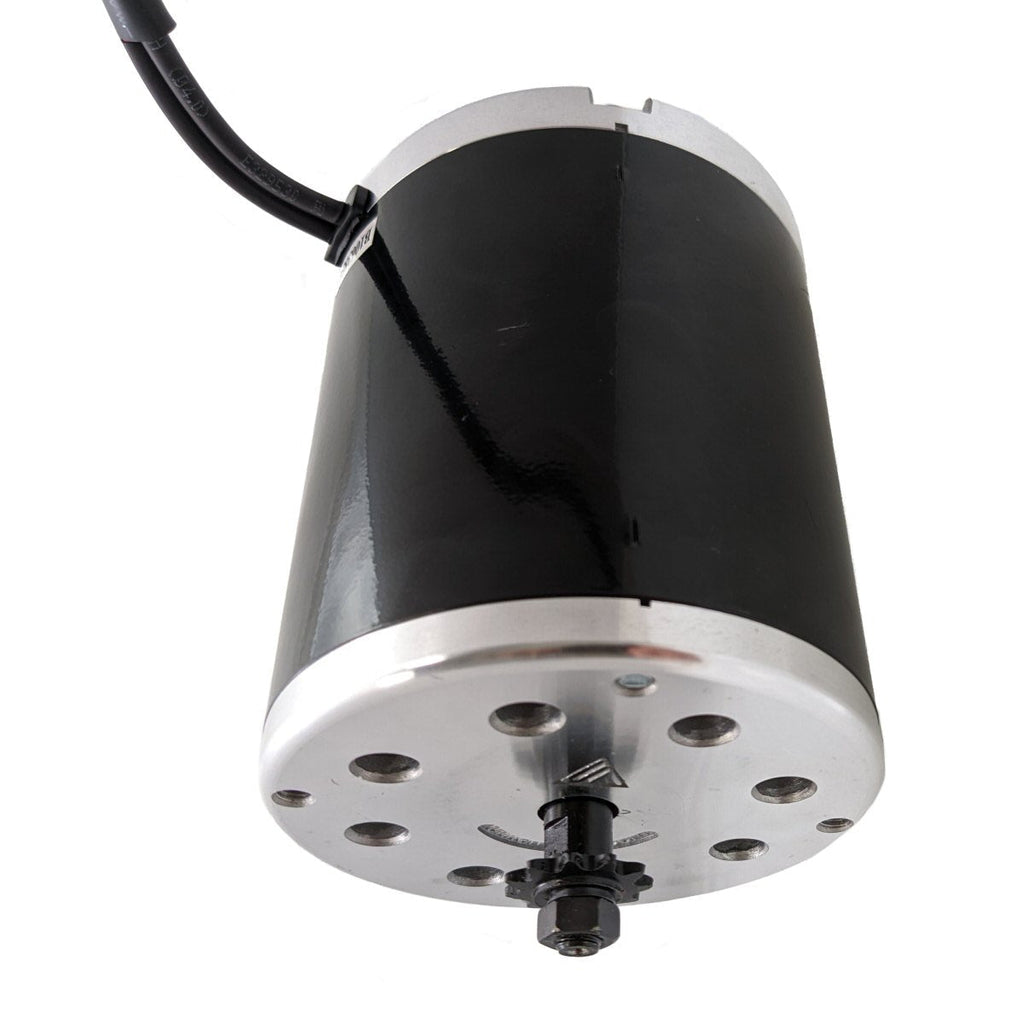

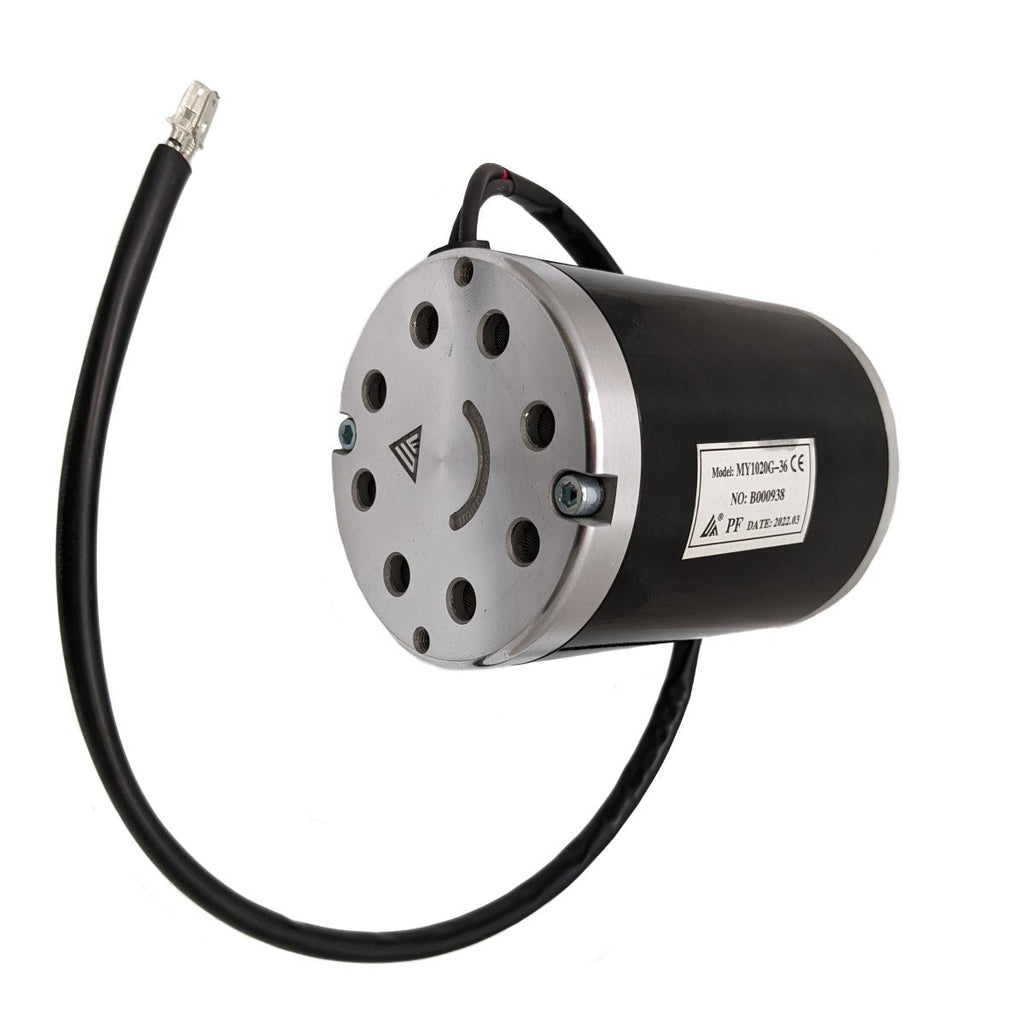

This MY1020G-36 chain-driven electric brush motor is designed to replace the original motor in the Razor RSF650 and MX650 models. With a voltage of 36V and a power output of 650W, it replicates the factory specifications and provides reliable performance. It is one of the Razor scooter parts that can be easily swapped out at home when the need arises. The motor operates using the same #25 chain and 11-tooth sprocket setup as the factory-installed version, ensuring compatibility and ease of installation.

Motor Details

The MY1020G-36 motor features a chain-driven design with a brush motor construction. This ensures consistent energy delivery and efficiency while operating. The overall dimensions include a diameter of 4.25 inches and a height of 6.25 inches, making it a direct fit for the specified Razor models. The power wire length, including connectors, measures 29 inches, providing ample length for installation without the need for extensions.

Installation and Usage

This motor is specifically designed for the Razor RSF650 and MX650, making it a straightforward replacement part. When replacing, the polarity of the power wires can be reversed to adjust the rotation direction. It's important to note that this motor is not compatible with the Razor MX500 model, so ensure correct identification of your scooter before purchasing.

Specifications

• Motor Model: MY1020G-36
• Voltage: 36V
• Power: 650W
• Drive Type: Chain drive (brush motor)
• Sprocket: 11-tooth
• Chain: #25
• Overall Diameter: 4.25"
• Overall Height: 6.25"
• Wire Length: 29"
• OEM Part Number: W15165070030

Fitment

This motor fits the following Razor models:

• Razor RSF650 Electric Sport Bike
• Razor MX650 / 650 Dirt Rocket

Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
