6-Pin Electrical Kit for Razor MX500, MX650, and SX500
This electrical kit is designed for use with various Razor models, including the MX500, MX650, Dirt Quad 500, SX500, and Eco Smart. It includes both the throttle and control module, which must be utilized together for proper functionality. This part is one of the Razor scooter parts that can help restore performance in your ride. Ensure you verify all measurements before ordering, as an additional mounting bracket might be necessary and can be requested from Razor.
Components Overview

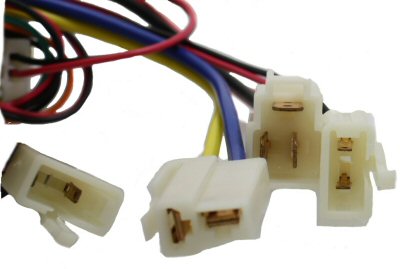

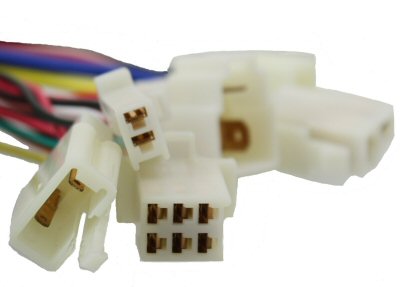

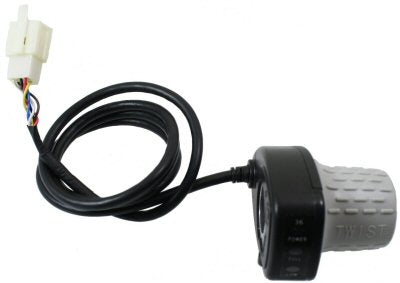

The kit features a 6-pin throttle and controller, ensuring a reliable connection for your electric system. It operates at 36V and 30A, providing adequate power for your scooter's performance needs. The throttle wire measures 57 inches, allowing for flexible placement during installation.
Installation Notes
When replacing the electrical components of your Razor vehicle, it is important to follow the correct installation procedures to avoid any electrical issues. Confirm the bolt hole spacing for the controller is 115mm (4.5 inches) for a proper fit during installation. Make sure to work carefully to ensure all connections are secure.
Specifications
- Voltage: 36V
- Current: 30A
- Pin Configuration: 6-Pin
- OEM Part Number: W13114501164
- Throttle Wire Length: 57 inches
- Bolt Hole Spacing: 115mm (4.5 inches)
- Model Number: HB3650-TYD6-FS-ROHS
Fitment
This electrical kit is suitable for the following Razor models:
- MX500
- MX650
- Dirt Quad 500
- SX500
- Eco Smart
Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
