Description
Motor for Razor E200, E225, and E275 Scooters
This 24V 200W Chain Drive Motor is designed to restore the original performance of your Razor electric scooter. It is compatible with the E200 and E225 models from version 5 onwards, as well as all versions of the E275. This motor is a reliable choice for those looking to maintain or improve their ride, making it one of the key Razor scooter parts to consider when repairs are needed.
Construction and Features

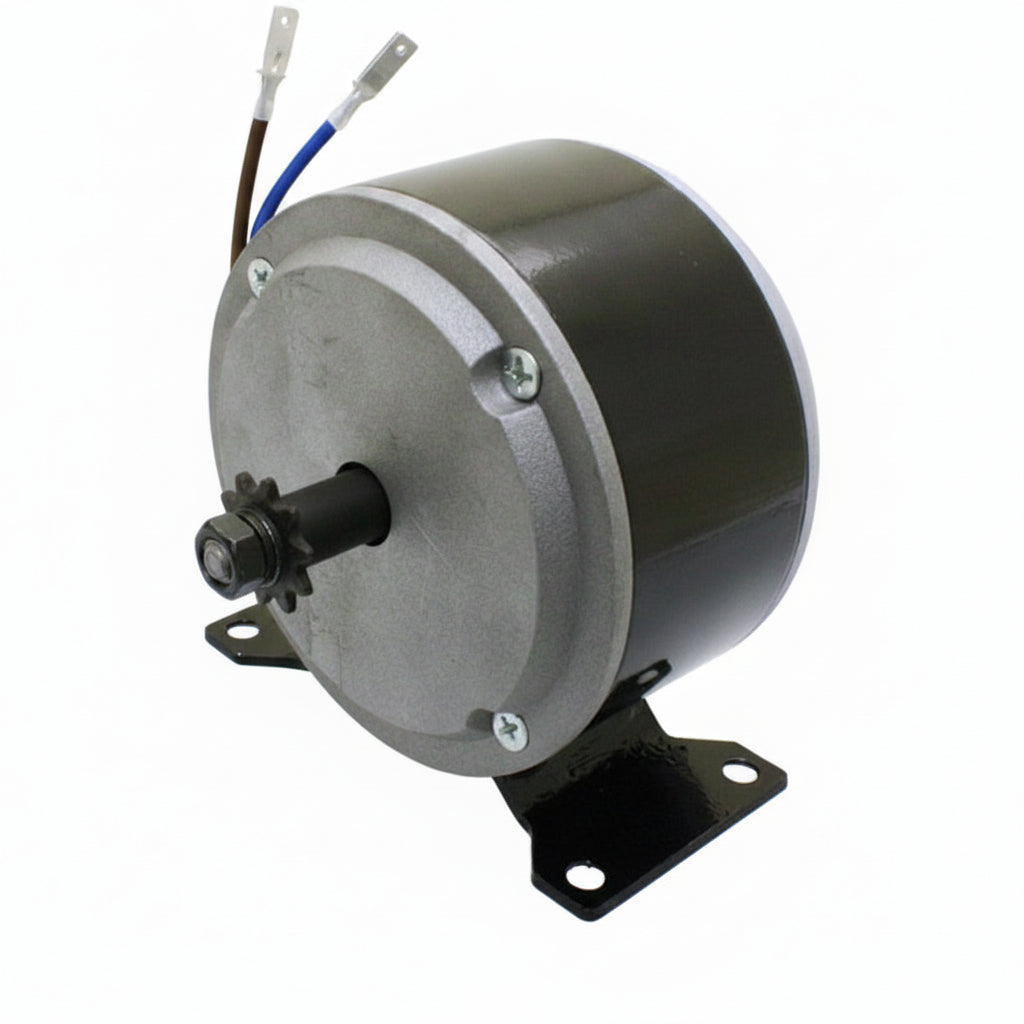

The MY1016 permanent magnet brushed motor is built with full ball-bearing construction, ensuring efficient operation with minimal heat generation. It features high-density carbon brushes that provide stable voltage delivery and extend the lifespan of the motor. The motor comes with a factory-installed 10-tooth sprocket designed for a #25 chain, eliminating the need for any modifications during installation.
Installation and Compatibility
This motor includes a left-hand-threaded 8mm shaft, aligning perfectly with the OEM Razor chain-drive setup. The 19-inch wire leads equipped with quick-connect terminals allow for straightforward connection to the controller block. When installing, ensure that the chain is properly aligned to prevent excess wear and potential damage to the motor.
Specifications

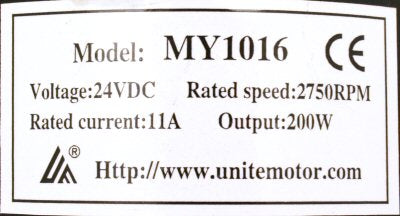

- Model: MY1016 / MY1016-II-1
- Voltage: 24V DC
- Output Power: 200W
- Rated Speed: 2750 RPM
- Rated Current: 11A

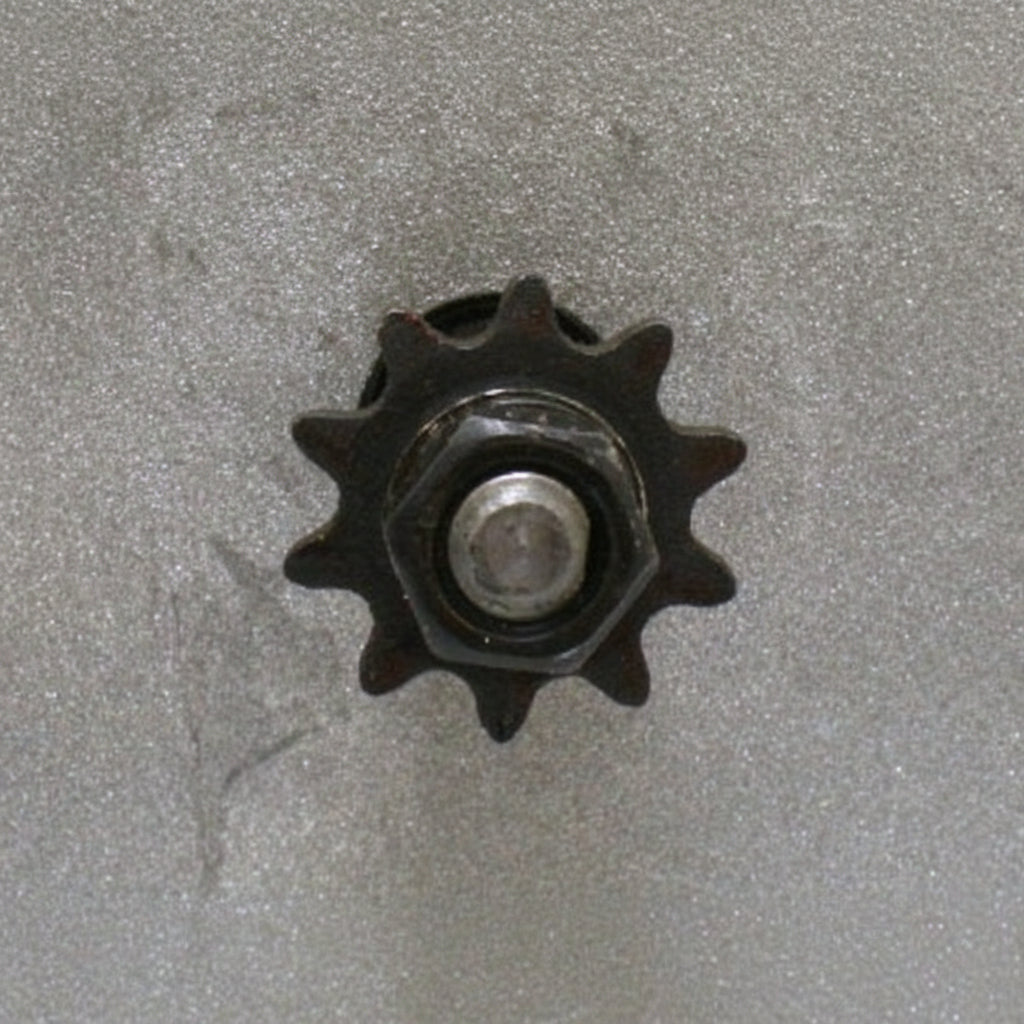

- Sprocket: 10-tooth, #25 chain
- Motor Body Diameter: 101mm (~4")

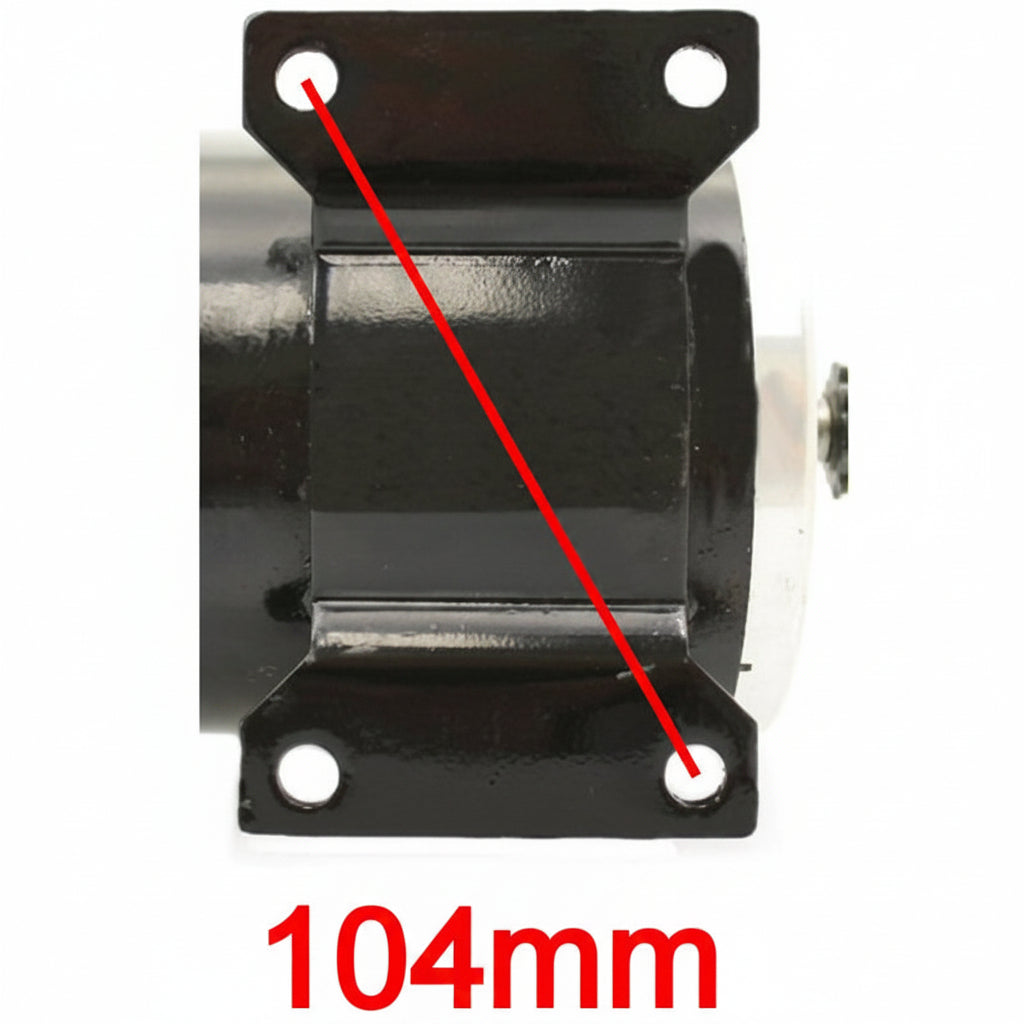

- Mounting Bracket Bolt Pattern: 104mm diagonal
- Shaft: 8mm diameter, 30mm length, left-hand thread

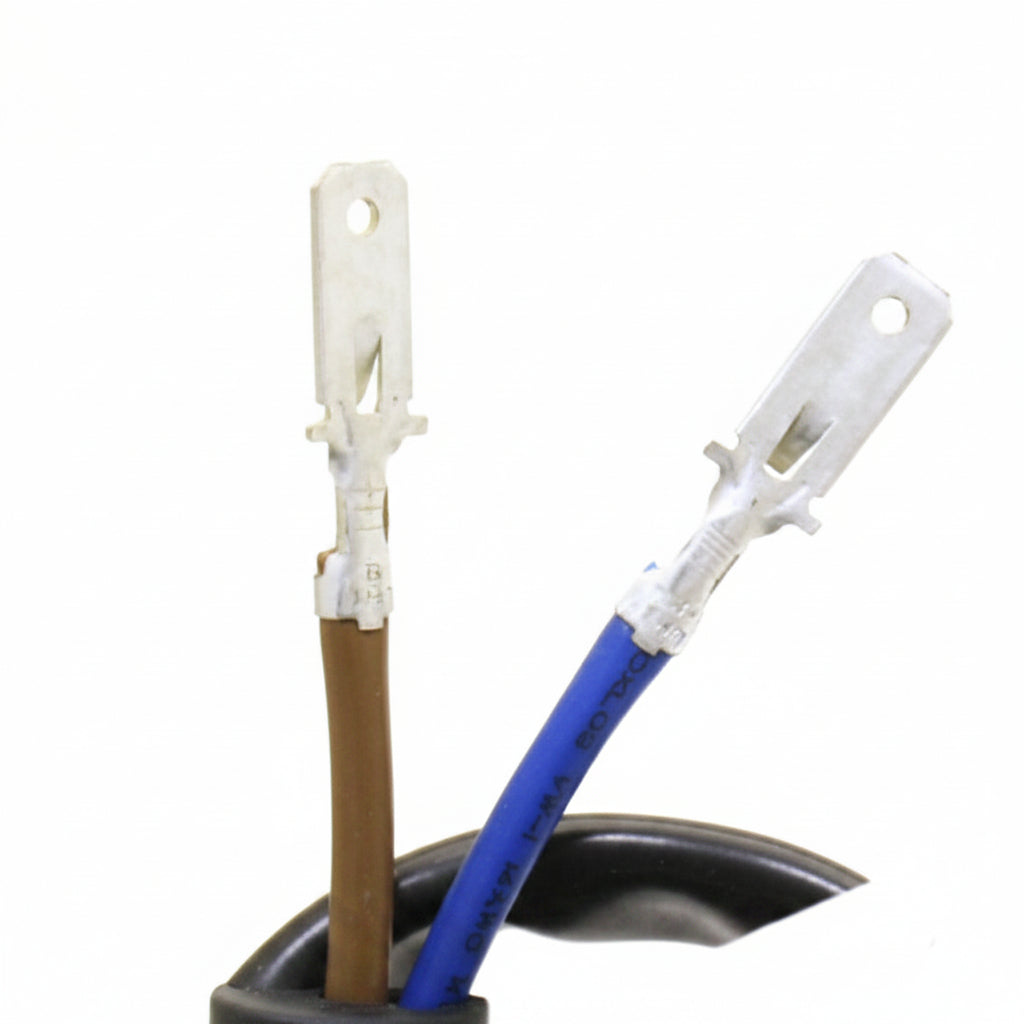

- Wire Leads: 19 inches, quick-connect terminals
Fitment
This motor is compatible with the following models:
- Razor E200 / E200S: Version 5 and up
- Razor E225 Cruise: Version 5 and up
- Razor E275: All versions
- Razor RX200 Rugged Terrain: All versions
Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
