Razor 24V 7-Connector Controller

24V Controller for Razor Chain-Driven Models

The 24V 7-Connector Controller is designed to replace the original control module in compatible chain-driven Razor scooters, ensuring reliable performance for your ride. This controller is important for restoring functionality when the original unit fails. It features a seven-connector wiring arrangement that connects effortlessly with the scooter's electrical system, battery, and motor. It is one of the Razor scooter parts that can be easily swapped out at home, making it a practical choice for maintenance.

Key Features

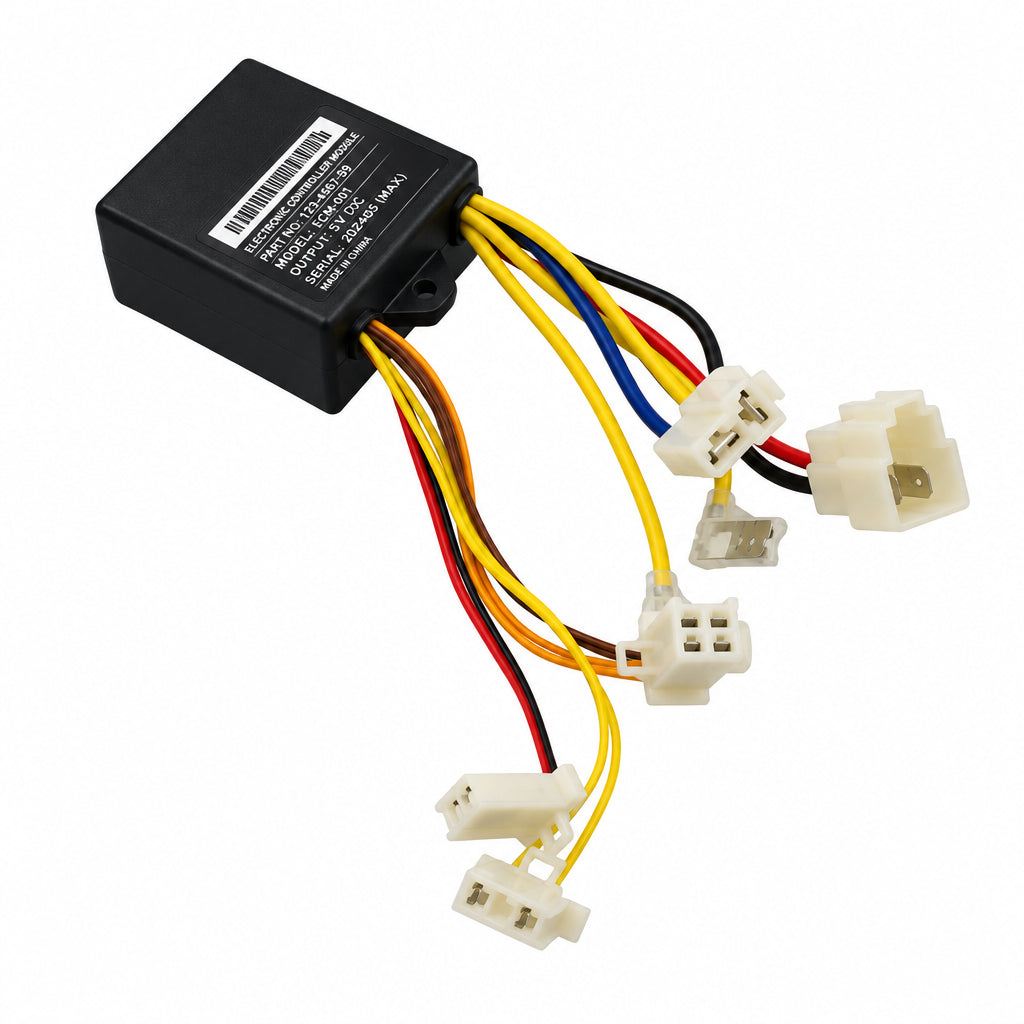

This replacement controller is engineered for 24-volt Razor electrical systems, providing a dependable solution for restoring operation. The seven connectors enable a straightforward connection to the vehicle's wiring harness. Its compact design includes a black enclosure with mounting tabs, ensuring a proper fit in the designated area.

When to Replace

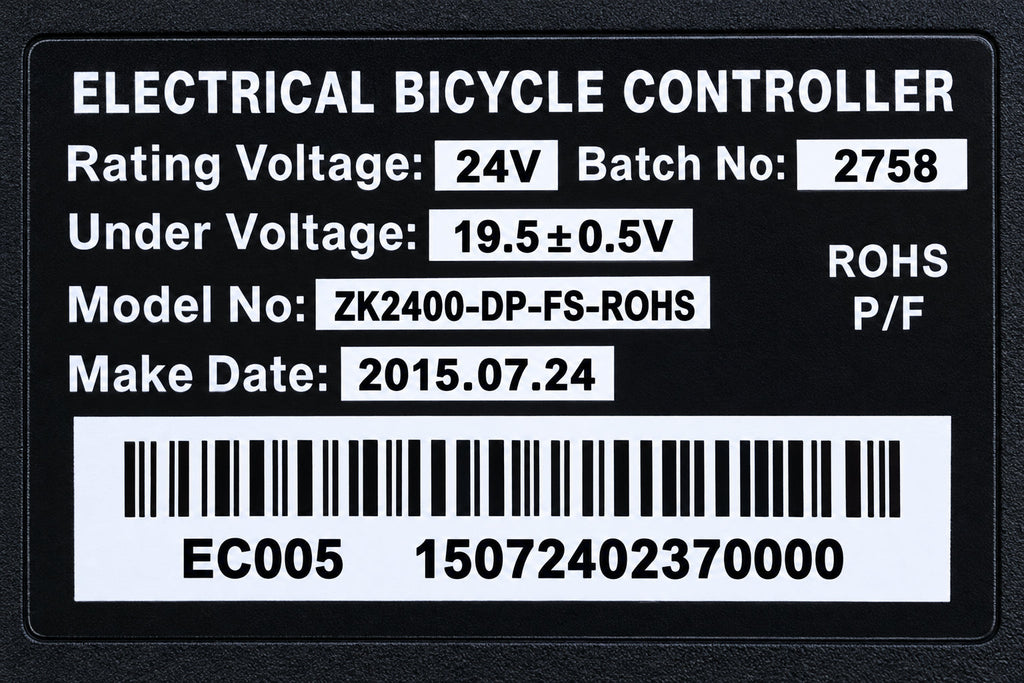

Consider replacing your controller if you notice performance issues or if the original unit has failed. Ensuring that the model and version of your scooter match the specifications of this controller is important for proper functionality. Before purchasing, check the controller label and connector arrangement to confirm compatibility.

Specifications

• Rated Voltage: 24V
• Under-Voltage Threshold: 19.5 ± 0.5V

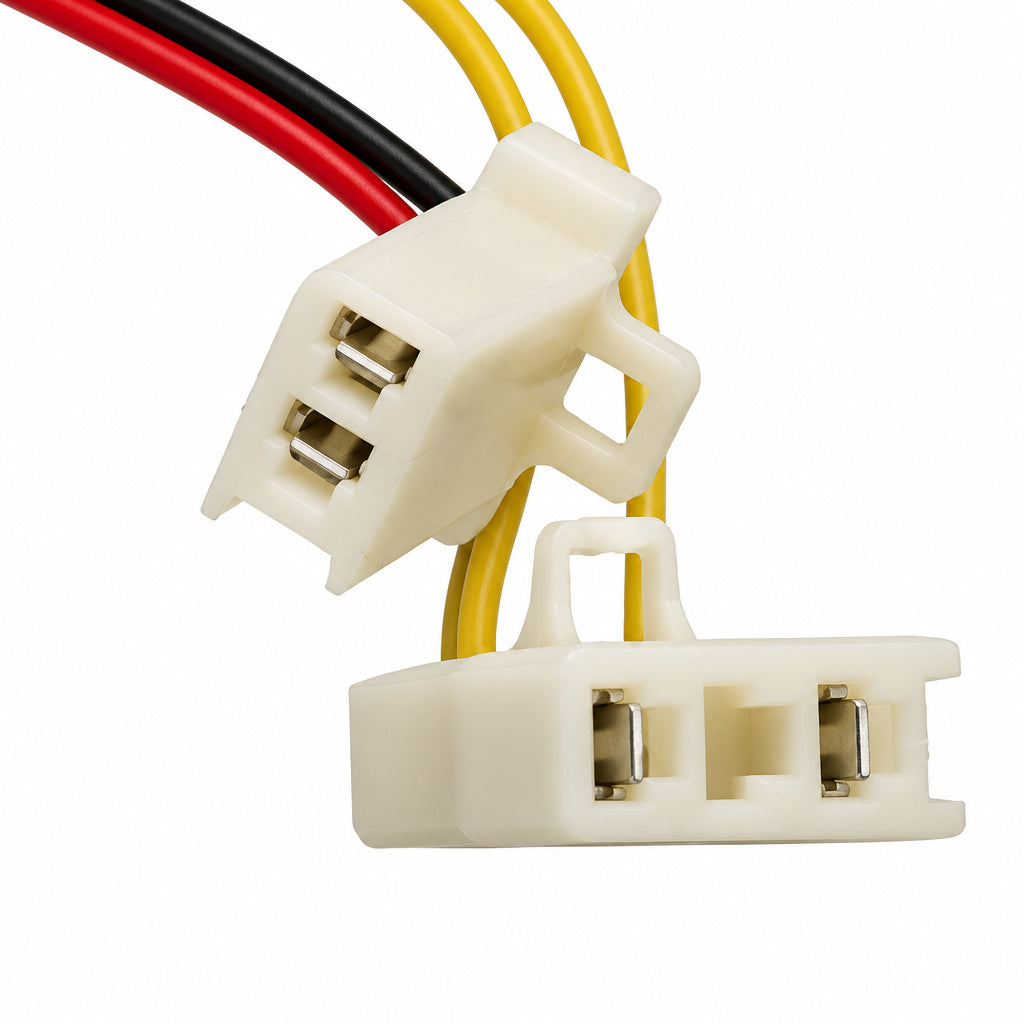

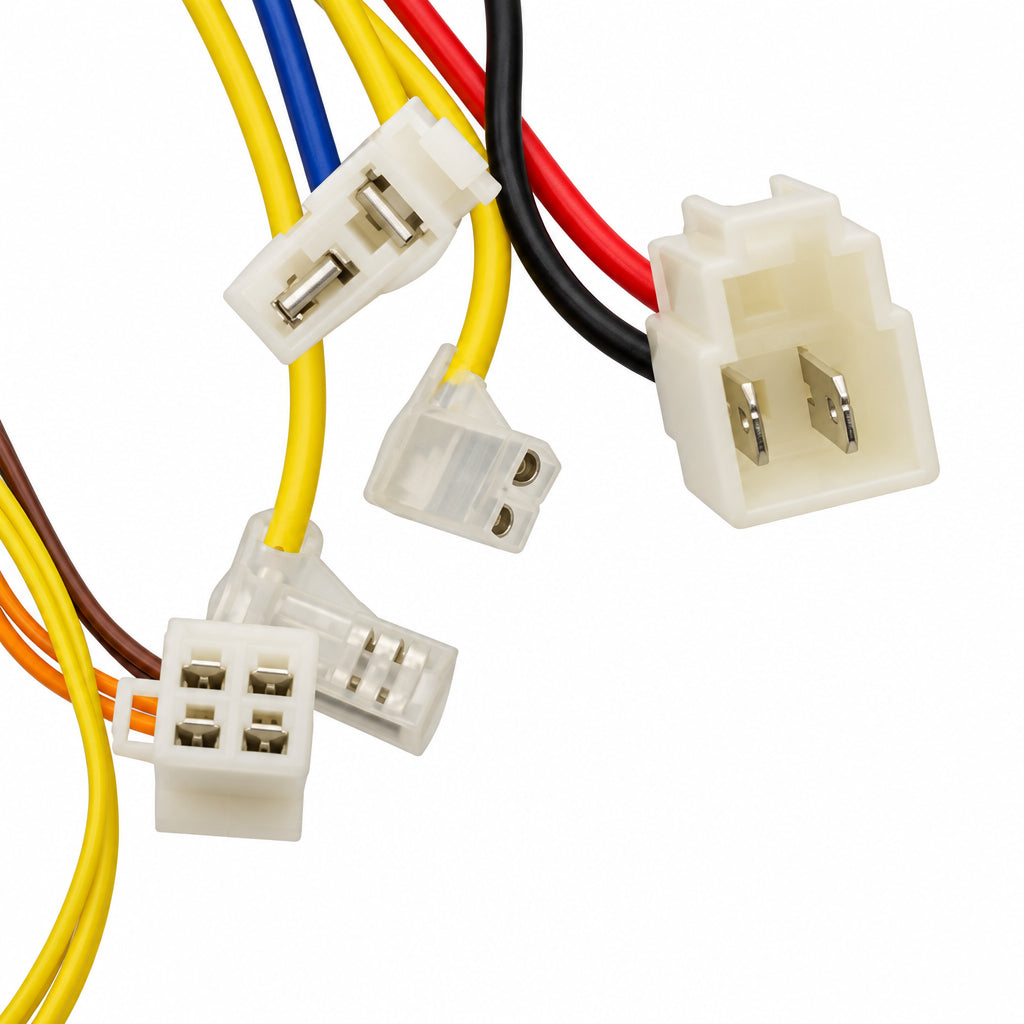

• Connector Count: 7 connectors
• Drive Application: Chain-driven models only
• OEM Part Number: W13111612015
• Controller Model: ZK2400-DP-FS-ROHS

Fitment

This controller is compatible with the following Razor models:

• E100 / E125: Version 10 and up
• E150: Version 1 and up
• E175: Version 19 and up
• eSpark: Version 41 and up
• Trikke E2: Version 1 and up

Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
