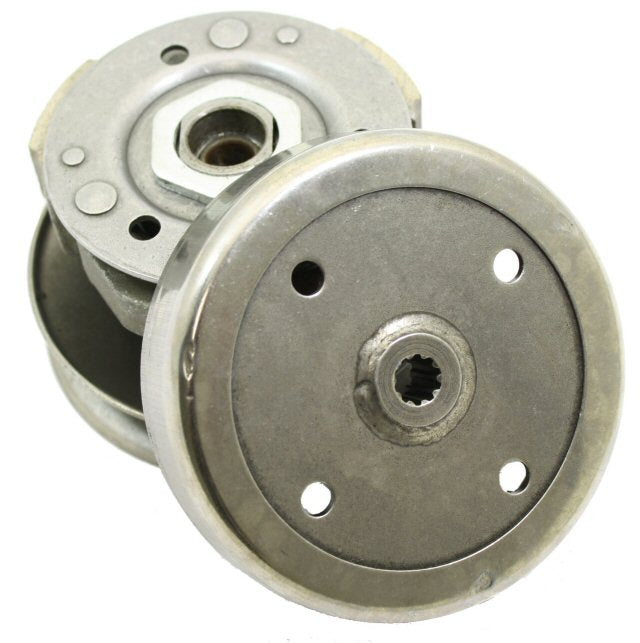

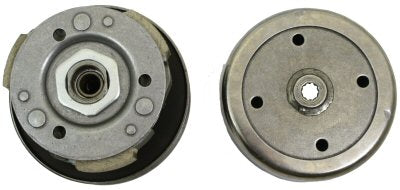

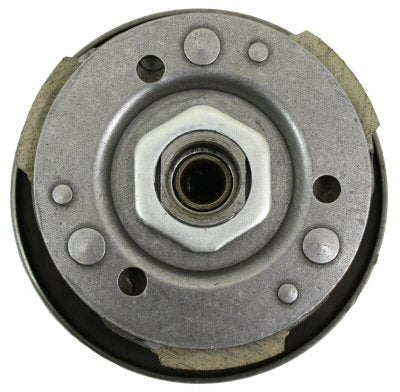

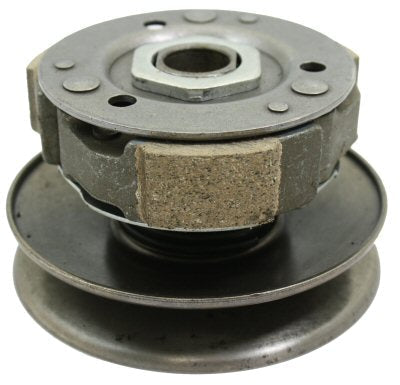

Morini AD50 Scooter Clutch Assembly

Morini AD50 Scooter Clutch Assembly for Hyosung, Suzuki, and TGB Scooters

The Morini AD50 Scooter Clutch Assembly is designed for use with Morini AD50 engines commonly found in various scooter models from manufacturers like Hyosung, Suzuki, and TGB. This assembly includes the clutch, pulley, and bell housing, making it a complete package for maintenance or repair. It is one of the scooter clutches & clutch springs that can be replaced to ensure proper performance of your scooter's transmission system. The engine features a 49cc displacement with a straightforward design that allows for reliable operation.

Engine Specifications

This clutch assembly is compatible with the Moto Morini and Franco Morini style 50cc engines, which typically feature a layout with a single cylinder that operates on 2-stroke principles and is cooled by air. The engine has a cylinder diameter of 41mm and a piston stroke length of 37.4mm, designed for efficiency. The transmission employs an automatic system that utilizes a V-belt for smooth power delivery, capable of starting via either electric or kick method.

Replacement Information

When performing maintenance on your scooter, checking the clutch assembly is important, particularly if you notice issues with acceleration or unusual noises. This part is integral to the scooter's performance, and replacing it can help restore functionality. Regular inspections are recommended to prevent unexpected failures.

Specifications

• Outer Diameter (Pulley): 123mm

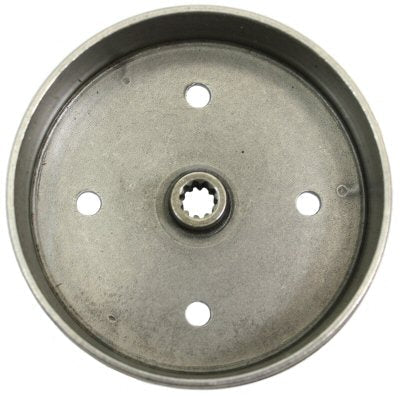

• Outer Diameter (Clutch Bell): 118mm
• Inner Diameter (Clutch Bell): 110mm
• Clutch Bell Inner Diameter (Peak to Peak): 10mm
• Clutch Bell Inner Diameter (Valley to Valley): 12mm
• Number of Splines: 10
• Inner Diameter (Clutch): 12mm
• Outer Diameter (Shoes): 106mm
• Bearing Used: 6902-RS

Fitment

This clutch assembly fits various models with Morini AD50 engines. Below are some of the compatible brands and models:

• Hyosung Scooters
• Suzuki Scooters
• TGB Street Scooters
• Other models using the Morini AD50 engine

Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
