Minarelli 2-Stroke Performance Intake Kit

Performance Reed Valve Intake for Horizontal Minarelli Engines

The Performance Reed Valve Intake kit is designed to improve the intake system of horizontal Minarelli 2-stroke 50cc engines. This upgrade boosts airflow and throttle response, making it a solid choice for performance-focused riders. It is one of the key Minarelli 50cc / Yamaha jog scooter parts that can be easily swapped to achieve better engine performance. The kit comes with important components that maximize compatibility with various carburetors.

Construction and Components

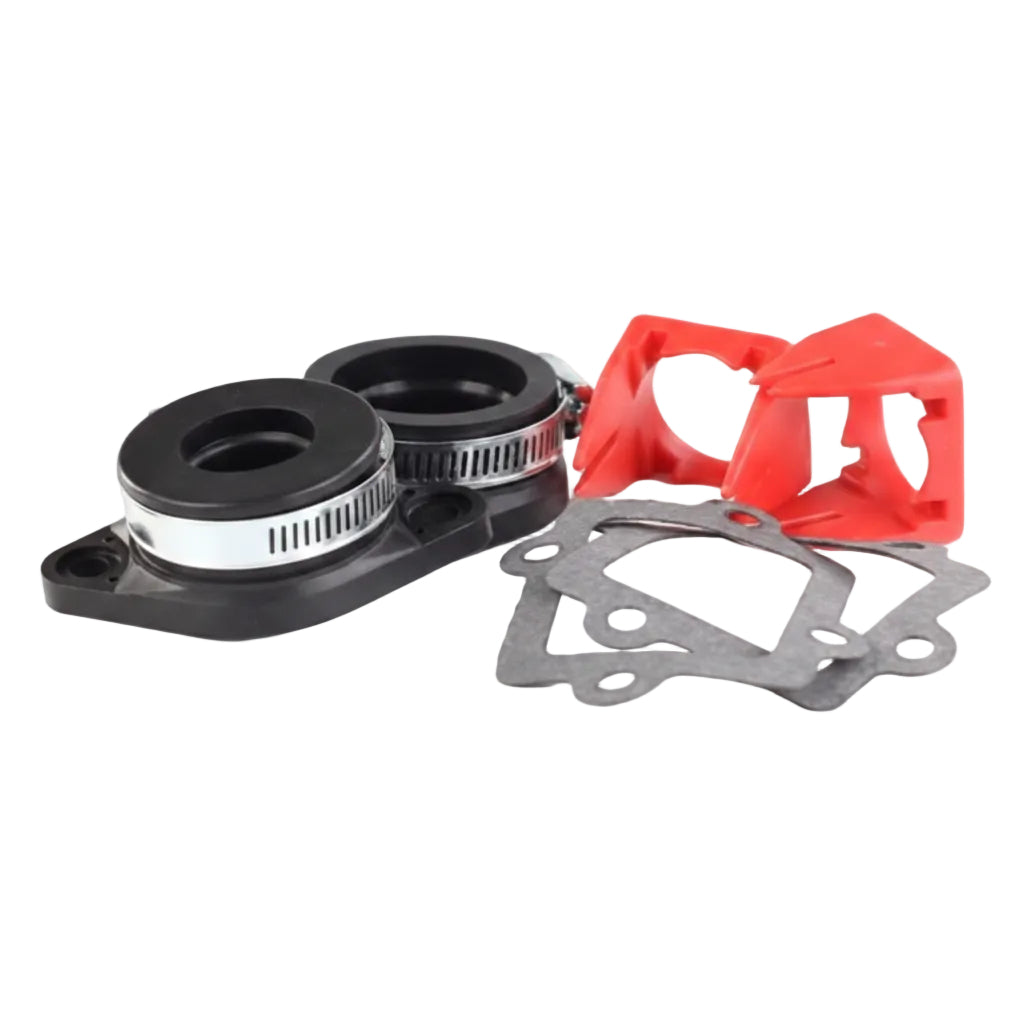

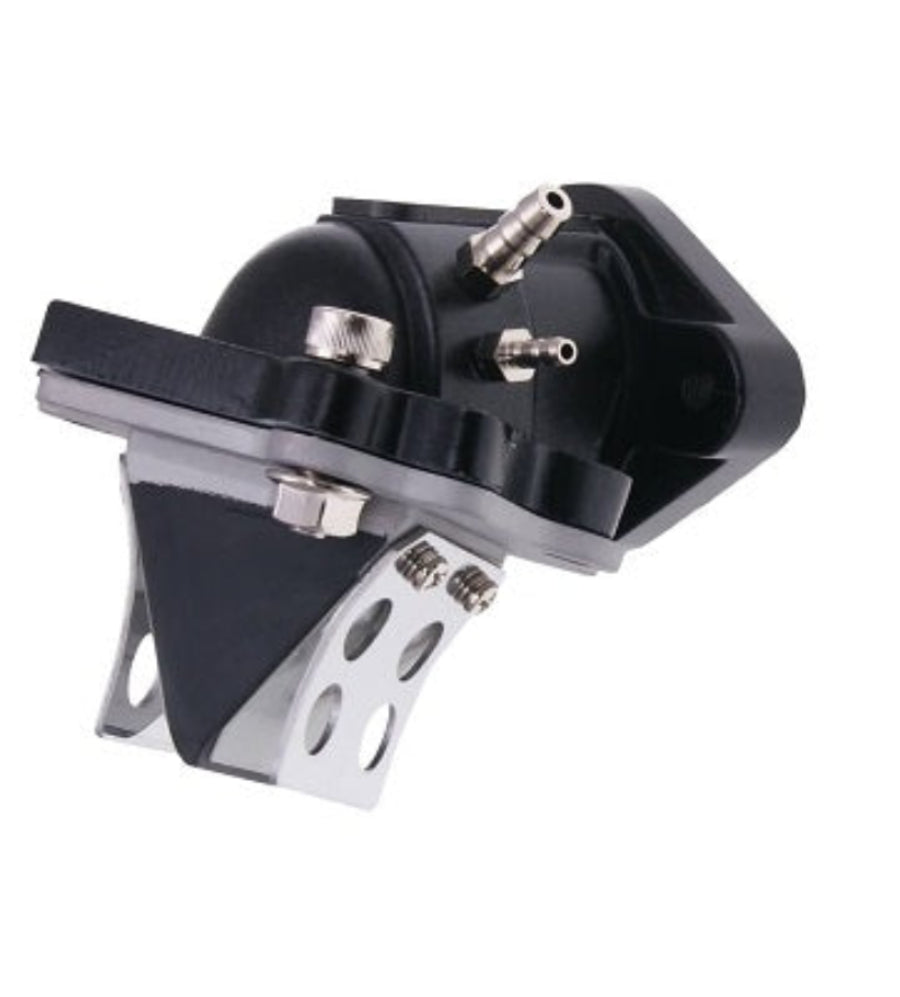

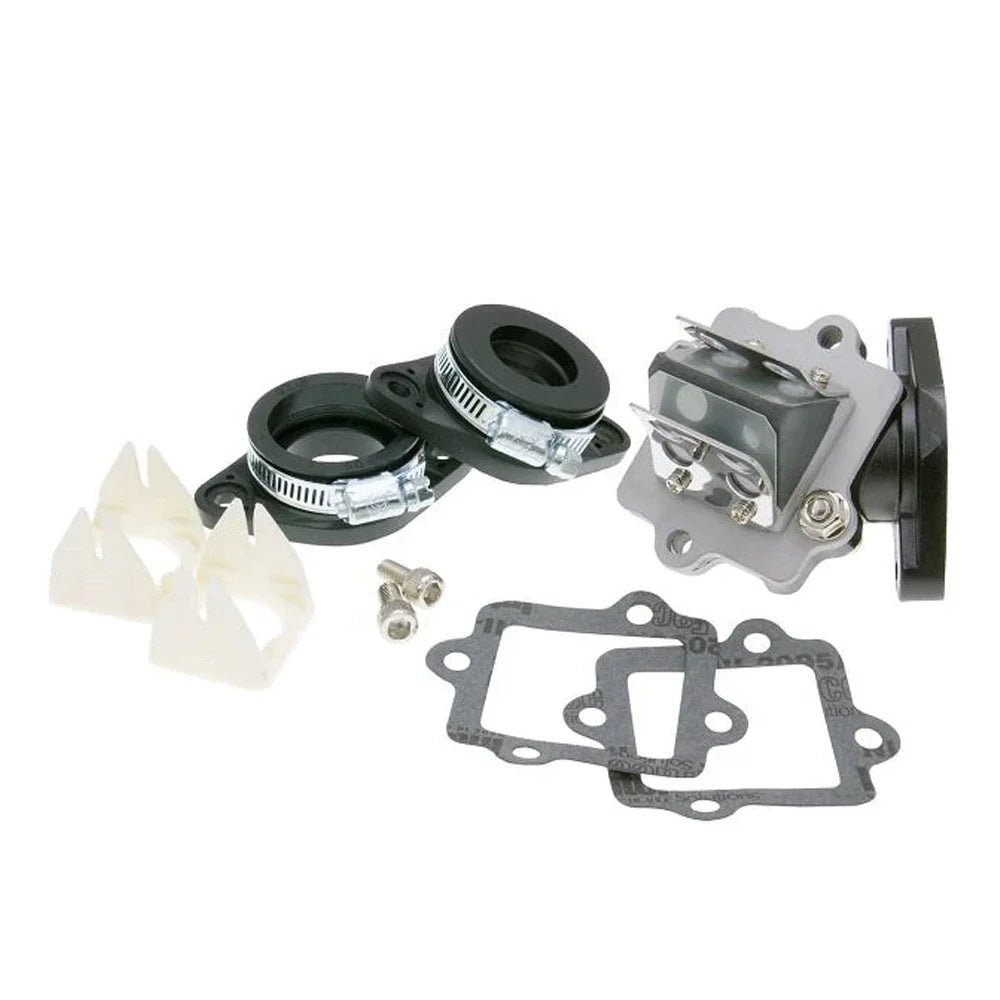

This intake kit features an aluminum reed valve body equipped with fiberglass reeds, which significantly increases airflow compared to the original unit. Included in the kit are two carburetor adapter boots: a 23mm boot suitable for Dellorto-style carbs with openings up to 21mm and Arreche carbs ranging from 17.5mm to 21mm, as well as a 32mm boot for PWK carbs with openings reaching 30mm. Additionally, it comes with optional air directors to further optimize airflow when using smaller diameter carburetors.

Installation and Compatibility

Installation of the Performance Reed Valve Intake is straightforward, with all necessary mounting hardware and gaskets provided. This kit is specifically designed for horizontal Minarelli 2-stroke engines, making it a direct replacement for stock intake systems. Riders looking to boost their scooter's performance will find this upgrade particularly beneficial during off-road and closed-course competitions.

Specifications

• Engine Type: Horizontal Minarelli 2-stroke (40QMB)
• Reed Material: Fiberglass
• Intake Side Inner Diameter: 27mm
• Flange Bolt Hole Spacing: 60mm
• Carb Adapters Included: 23mm (Dellorto/Arreche) and 32mm (PWK)
• Air Directors Included: 24mm and 26mm
• Country of Origin: Germany

Fitment

This intake kit is compatible with various models featuring horizontal Minarelli 2-stroke engines:

• Aprilia: Rally 50 (49cc); 2003–2004
• Aprilia: SR50 (50cc); 1997–2001
• Aprilia: Scarabeo 50 (49cc); 1993–2006
• Malaguti: Ciak 50 (49cc); 2002–2005
• Malaguti: F12 Phantom (49cc); 2002–2005
• Malaguti: F15 Firefox (49cc); 2002–2005
• Malaguti: Yesterday (49cc); 2001–2006
• Vento: Zip
• Yamaha: Jog
• Yamaha: Zuma 50 2T; 2002–2011
• Generic: 40QMB 50cc 2-stroke horizontal Minarelli engines

Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
