Description

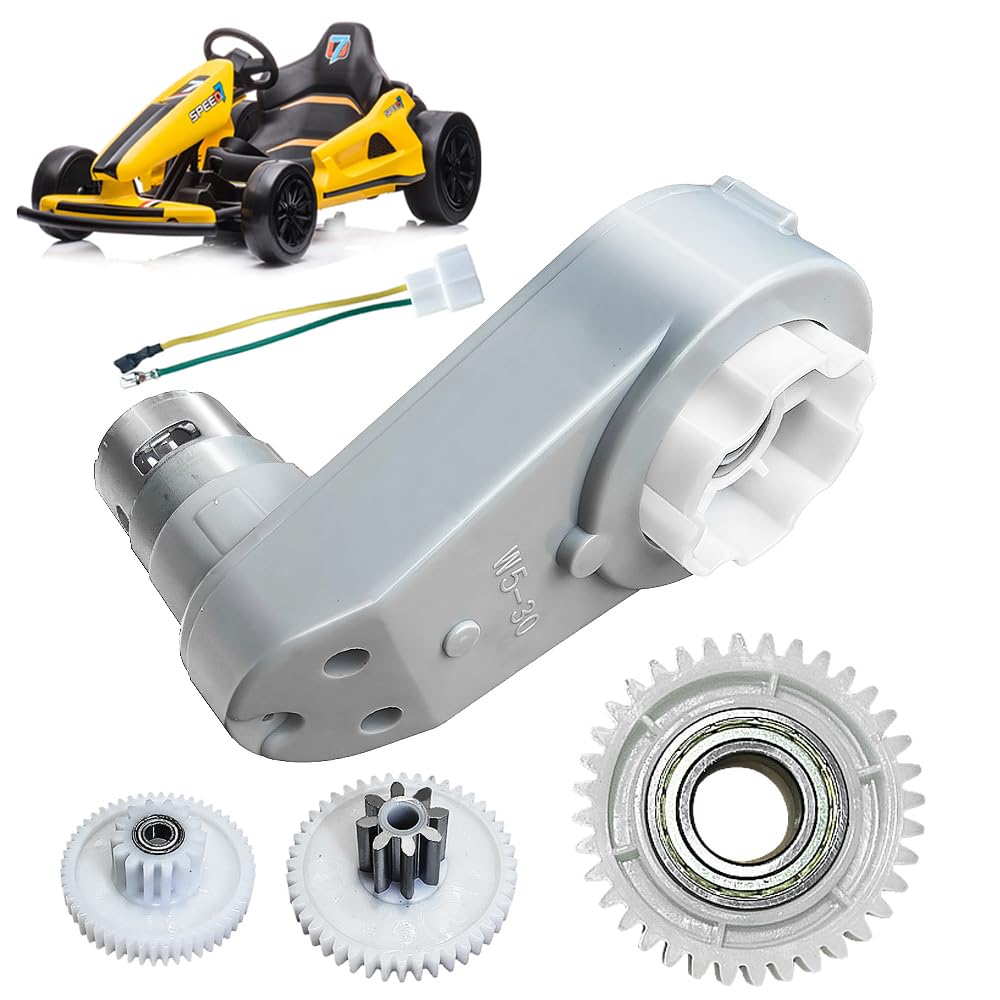

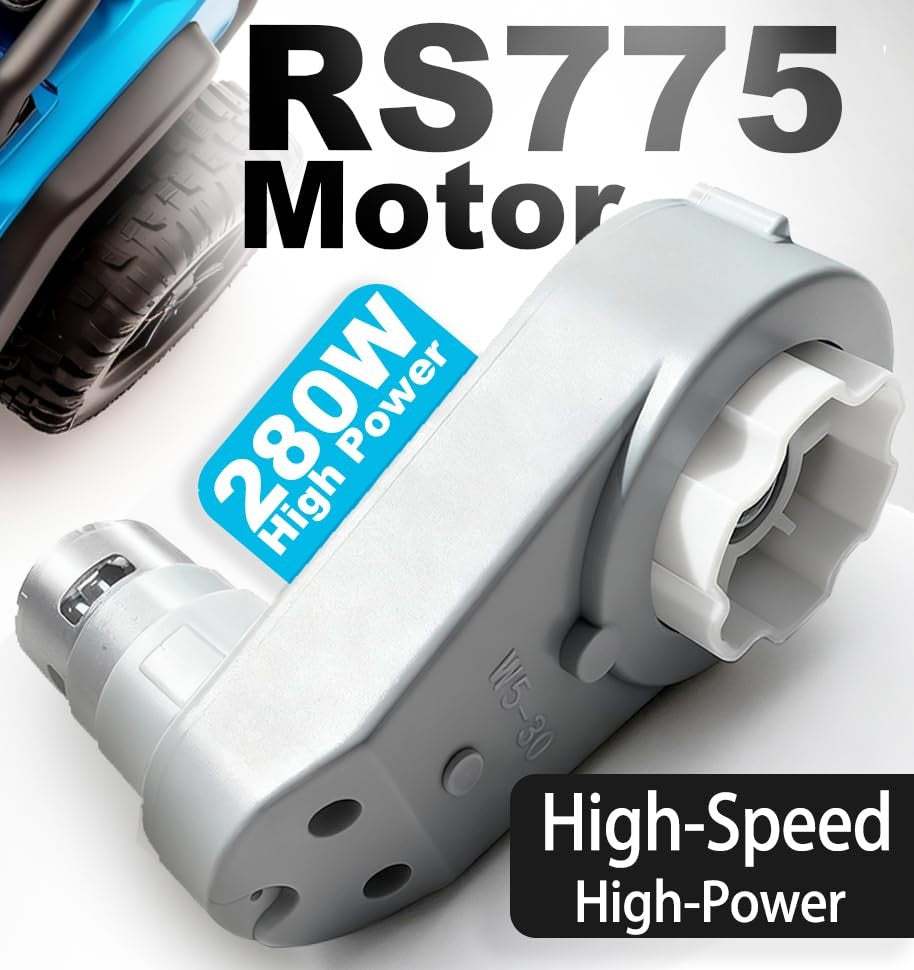

JRRXM 24 Volt RS775 High-Speed Motor Gearbox for Power Wheels Motor Upgrade

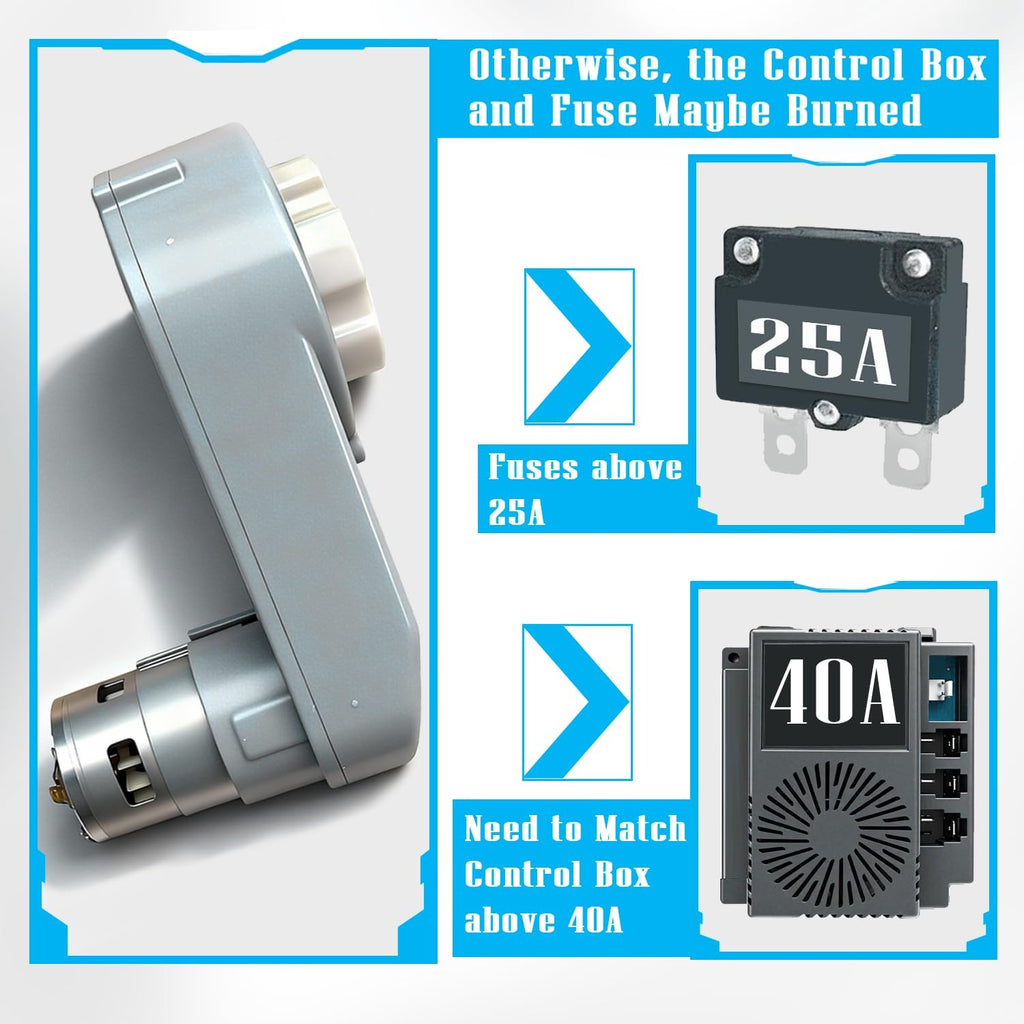

- W5-30 RS775 24 Volt 280 Watt Drive Engine with Gear Box for Power Wheel Motor Upgrade 18V. Requires matching with a control box of 40A or above and a fuse of 25A or above to avoid capacitor damage.

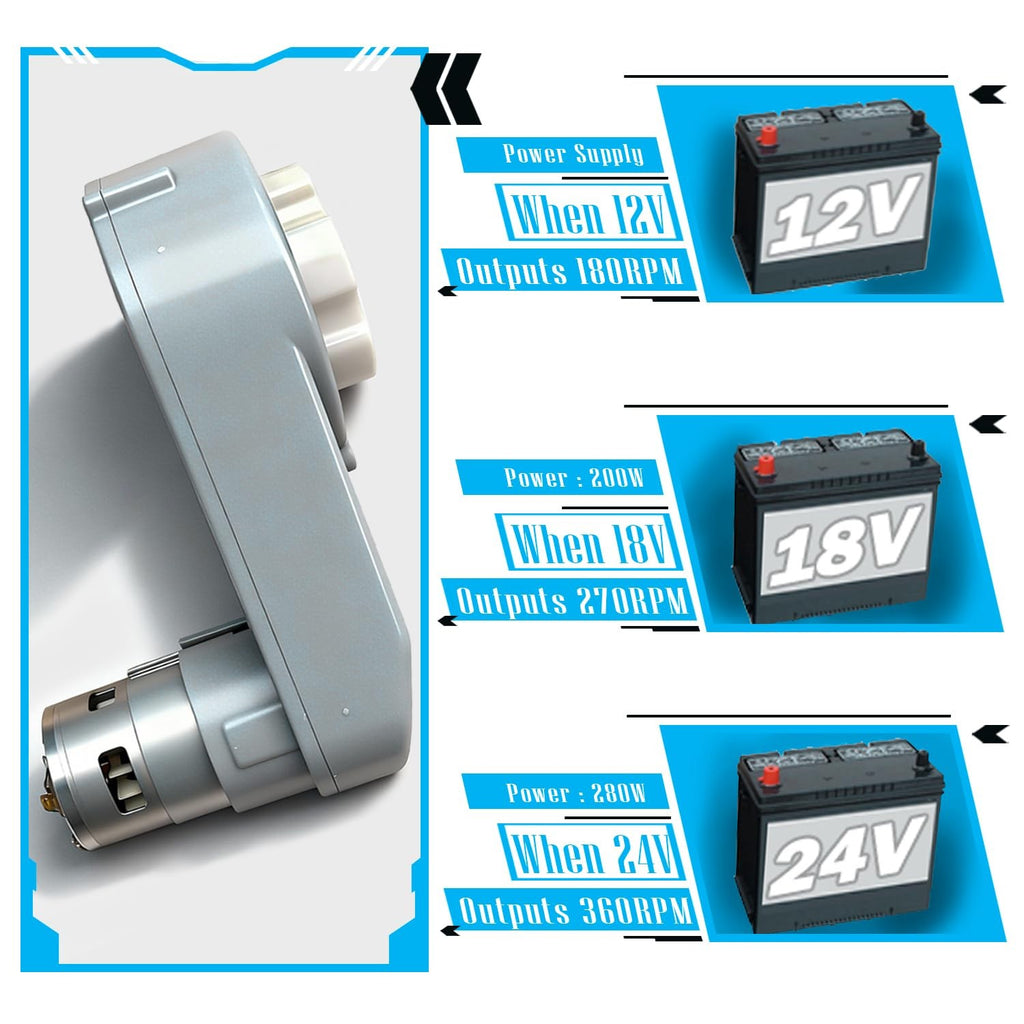

- Operating at 24V: 280W power, 360RPM output; at 18V: 200W power, 270RPM output; at 12V: 180RPM output.

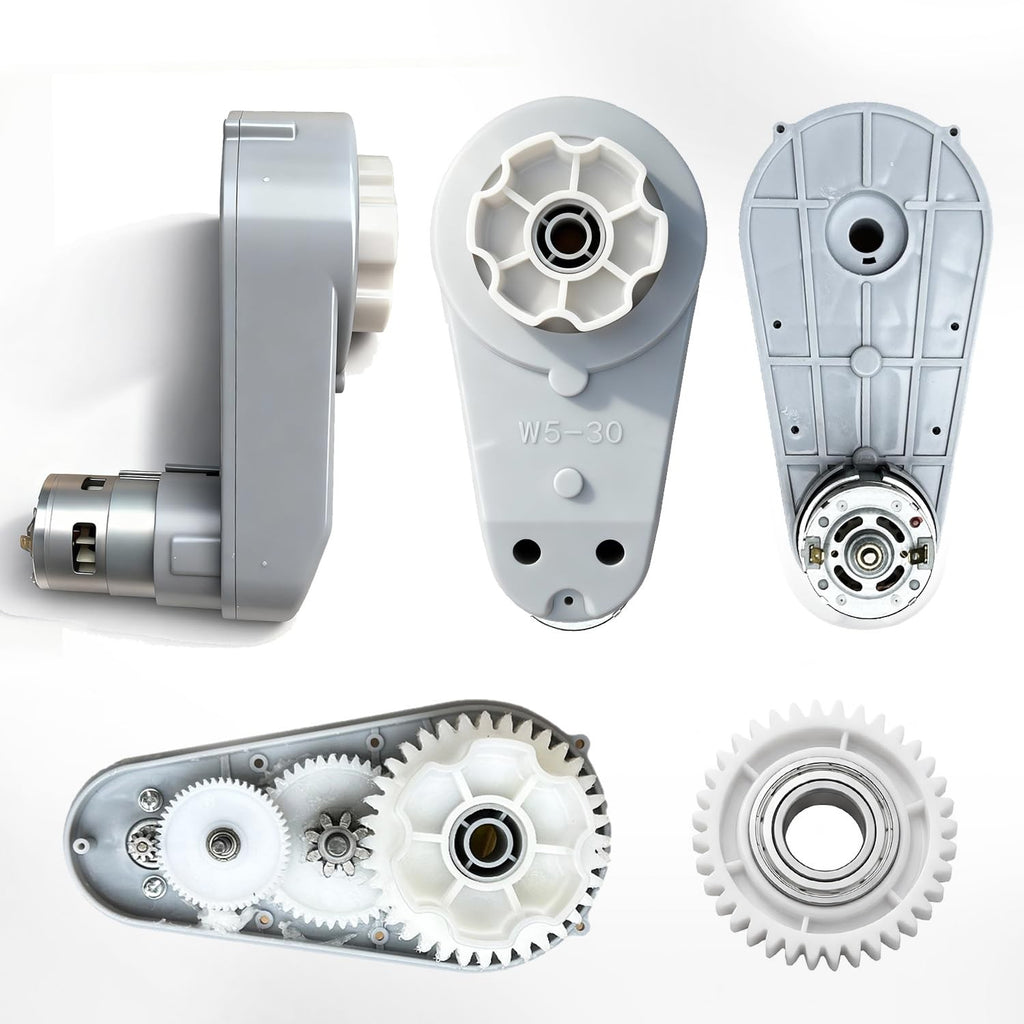

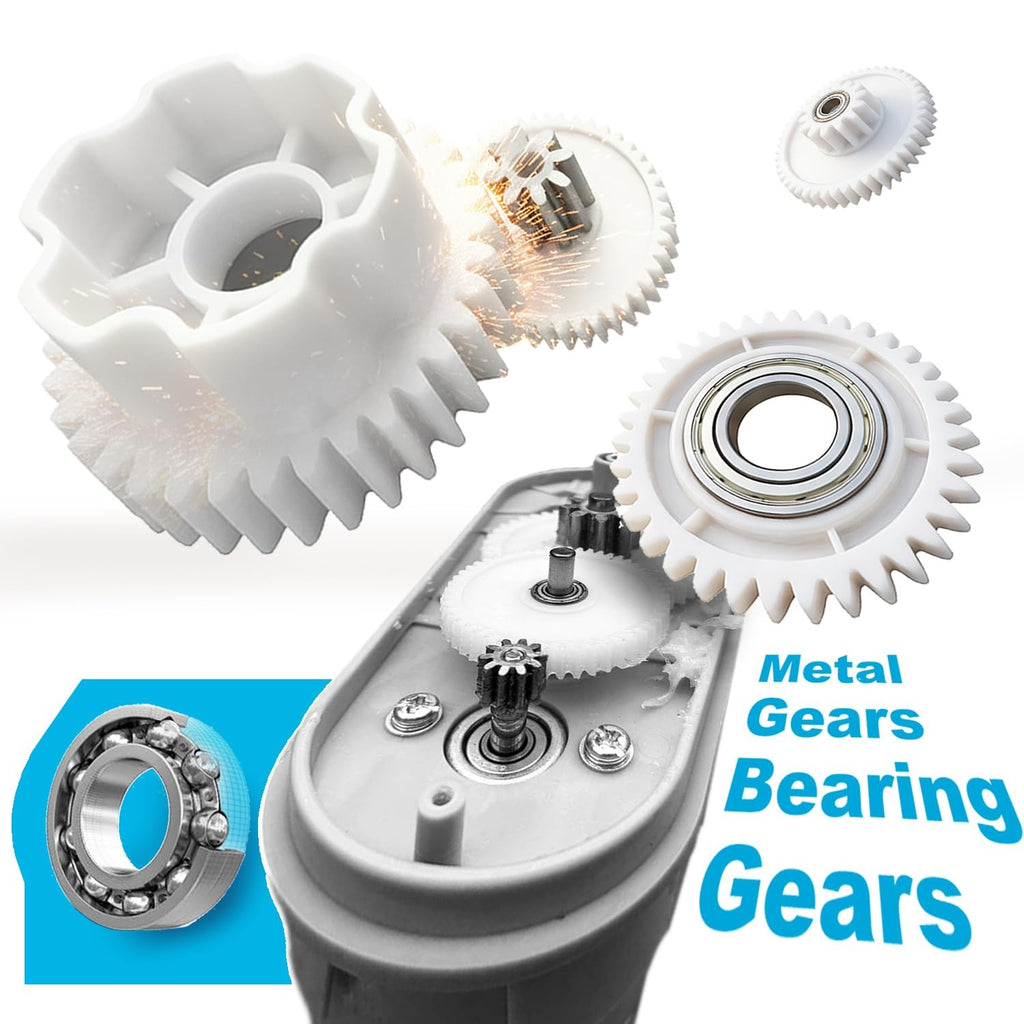

- High-strength composite material gearbox shell, with built-in bearings in both small and large gears to reduce friction and enhance durability.
- Gearbox speed ratio of 1:75 for higher output speed; motor power rated at 280W ensures superior torque.

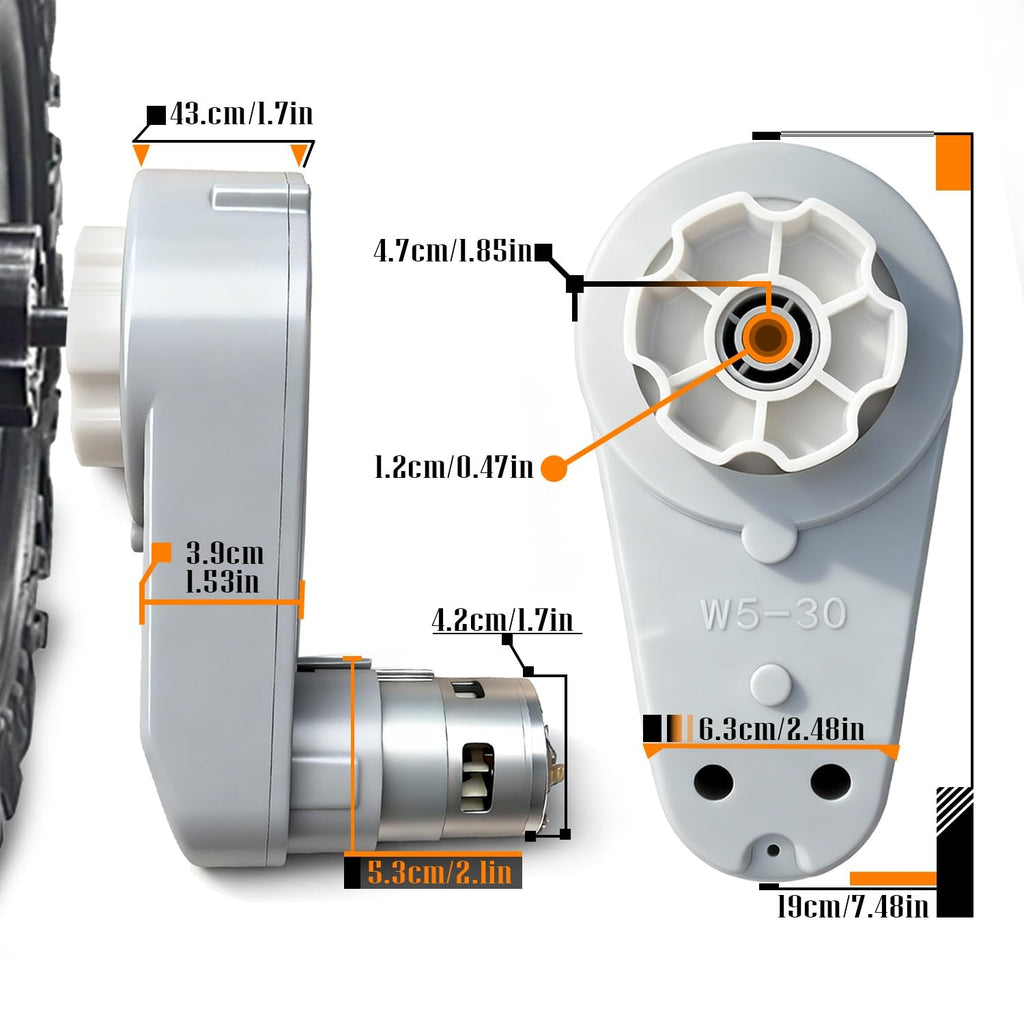

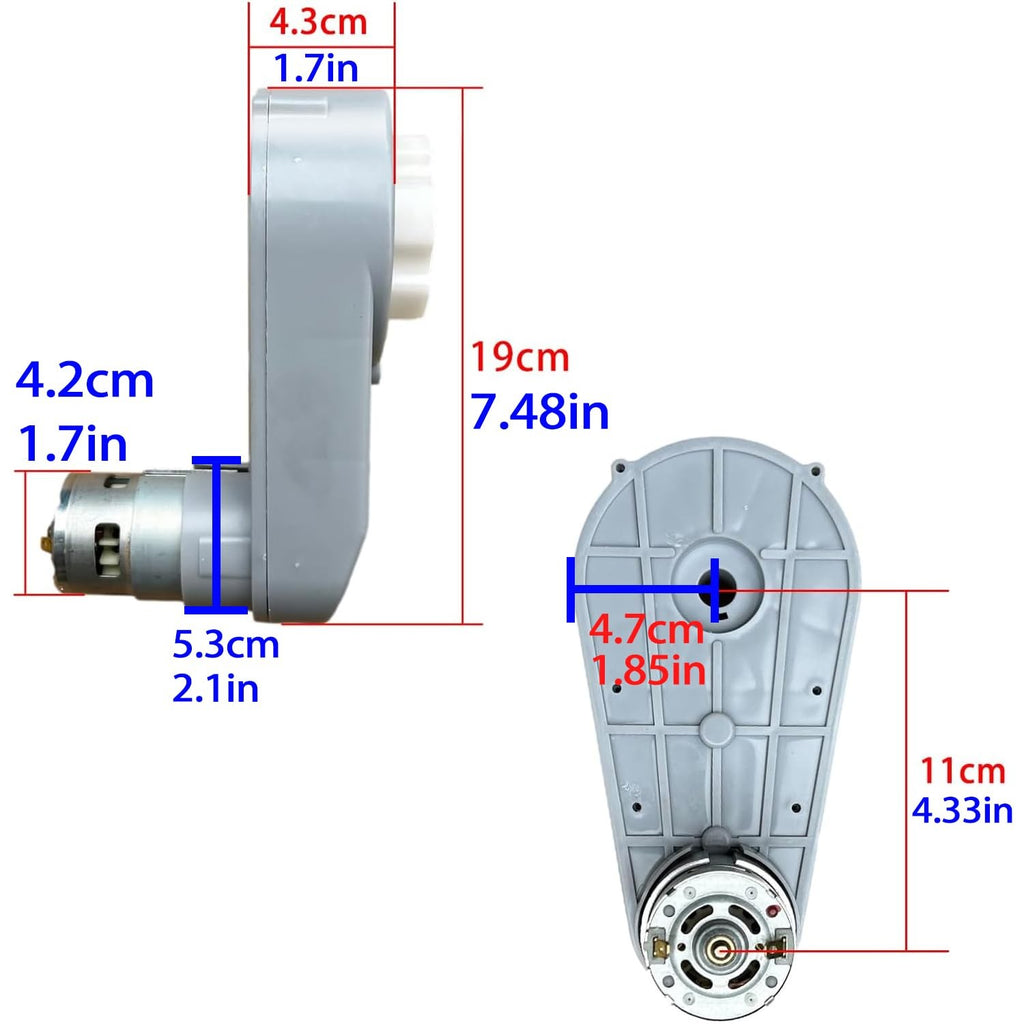

- Carefully compare original motor gearbox dimensions: Shaft hole diameter: 12mm; Length: 185mm; Max Width: 92mm; Motor Diameter: 40mm. One-click installation wires make replacement easy for kids' ride-on cars.
- Designed for 24V batteries, can also operate on 12V batteries with reduced speed.
- Installation holes are larger than those of RS550 due to the motor's larger diameter; measure all dimensions before purchasing for a perfect fit.
- Do not exceed 24V; RS775 motor is larger than RS550; install as a single unit, with cable order adjustable for steering correction.
Product Details
- Brand: JRRXM
- UPC: 765003454860
- Model Number: 24 Volt RS775
- Package Dimensions: 7.48 x 3.74 x 4.92 inches
- Size: Large, Small
- Color: Grey
- Theme: TOYS
- Set Name: 24V RS775 Motor GearBox Set (1 Piece)
- Unit Count: 1 Count
- Manufacturer: JRRXM
- Power Source: Battery Powered
- Material Type: Metal, Plastic
- Item Type Name: 24V power wheels motor
- Operation Mode: Automatic
- Subject Character: Power Wheels
- Included Components: Motor, Gearbox, Cable
- Educational Objective: DIY Electrical Project
- Supported Battery Types: 24V (12V with reduced speed)
- Manufacturer recommended age: 0 - 7 years
Description
Voltage is 12V, the motor speed is 13500RPM.
Voltage is 18V, the motor speed is 20250RPM.
Voltage is 24V, the motor speed is 27000RPM.
Recommended to use with a 40A high-power controller and a 25A fuse.
Voltage range: 12V-24V. Do not exceed 24V for optimal performance.
Suitable for DIY modifications or prototype replacements; careful measurement is essential.
No professional installation required; however, size comparisons are crucial.
Installation instructions: Match with a 40A controller and a 25A fuse. The motor does not require side distinction; adjust cable sequence for steering errors.
Designed for outdoor use; ideal for DIY electrical projects.
Customer feedback emphasizes the importance of size comparison; RS775 is larger than RS550.
Attention: Confirm size, voltage, and power before purchase.
