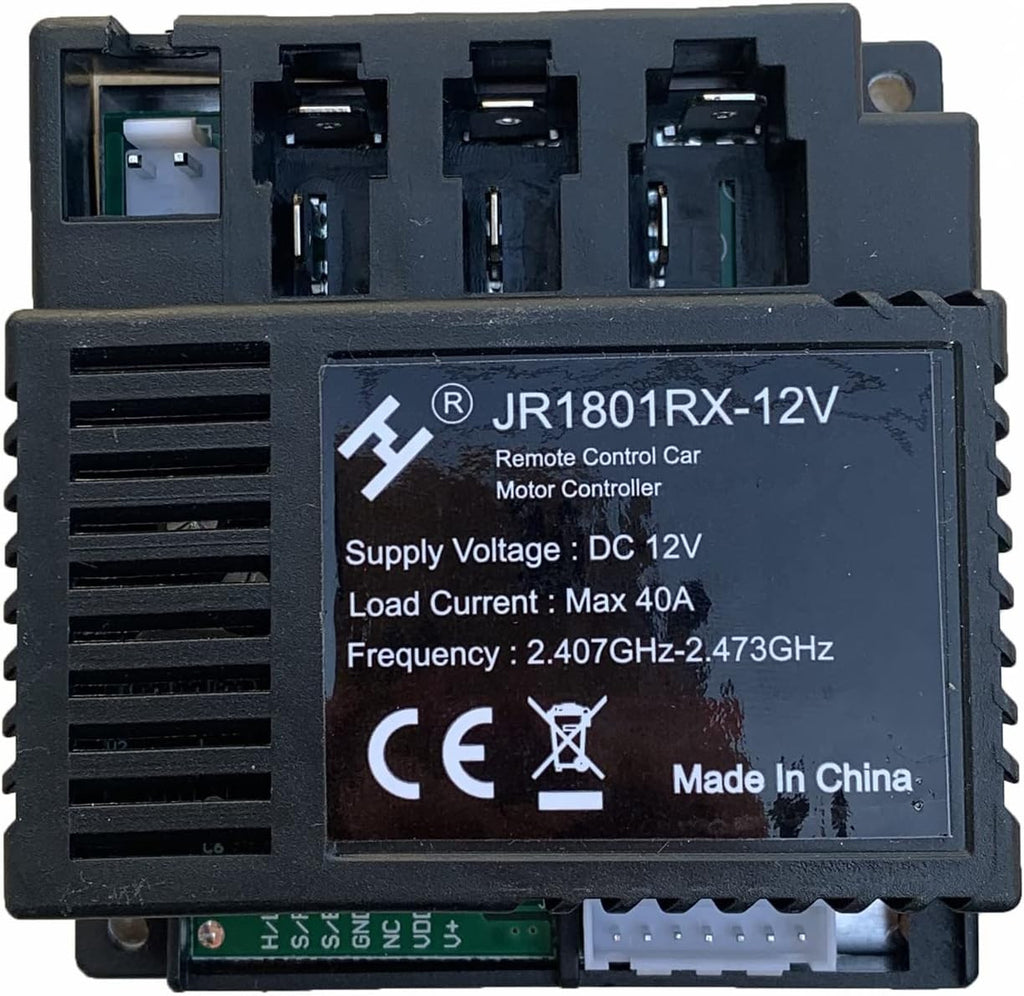

JR1801RX-12V Receiver for Child Ride-On Toy Car

Product Description:

Ensure compatibility with your electric ride-on car by checking the control box. If the appearance matches, this part will fit your vehicle.

Specifications:

• Model Number: JR1801RX-12V
• Voltage: DC 12V
• Package Content:
  • 1 Kids Electric Car Control Box Replacement
  • 2 4G Remote Control Instructions

Installation Instructions:

1. Load the Remote Controller with two AAA batteries.
2. Turn off the power switch on the vehicle.
3. Press and hold the “▲” and “▼” keys for 3 seconds to start code matching. The first LED will flicker. Now turn on the vehicle power switch. The red indicator light will stop flashing, indicating successful code matching.

Key Functions:

• S: Set speed - 1 LED lit is low speed, 2 LEDs lit is medium speed, 3 LEDs lit is high speed.
• ▲: Forward
• ▼: Back
• ◀: Left
• ▶: Right
• P: Press and hold for brake - All LEDs will flicker.

Additional Notes:

• Child Electric Ride-On Car JR1801RX-12V Receiver
• 2.4G JR1801RX-12V Control Box with slow start function; no additional installation required.
• Compatible with specific children’s riding toys; please ensure the purchased part matches the original appearance.
• Remote control is not included.
• After installation, the receiver must be re-linked; hold down “▲” and “▼” keys for 3-5 seconds to sync with your car.
