Product Specifications

• Brand: JIARUIXIN
• Dimensions: 11.9 x 7.6 x 3.8 cm
• Compatible Models: CSR-12T-1A, CSR-12T-1B, CSR-12T-2A, CSR-12T-2B, CSR-12T-3A, CSR-12T-3B

Key Features

• Designed for specific children's ride-on toys. Ensure the purchased part matches the original appearance.
• Includes 1 x CST-1A Remote Control. Batteries are not included.
• Refer to the linking instructions on the back of the remote before use.
• Ensure your car is functioning properly before use; check for battery damage.

Compatibility Note

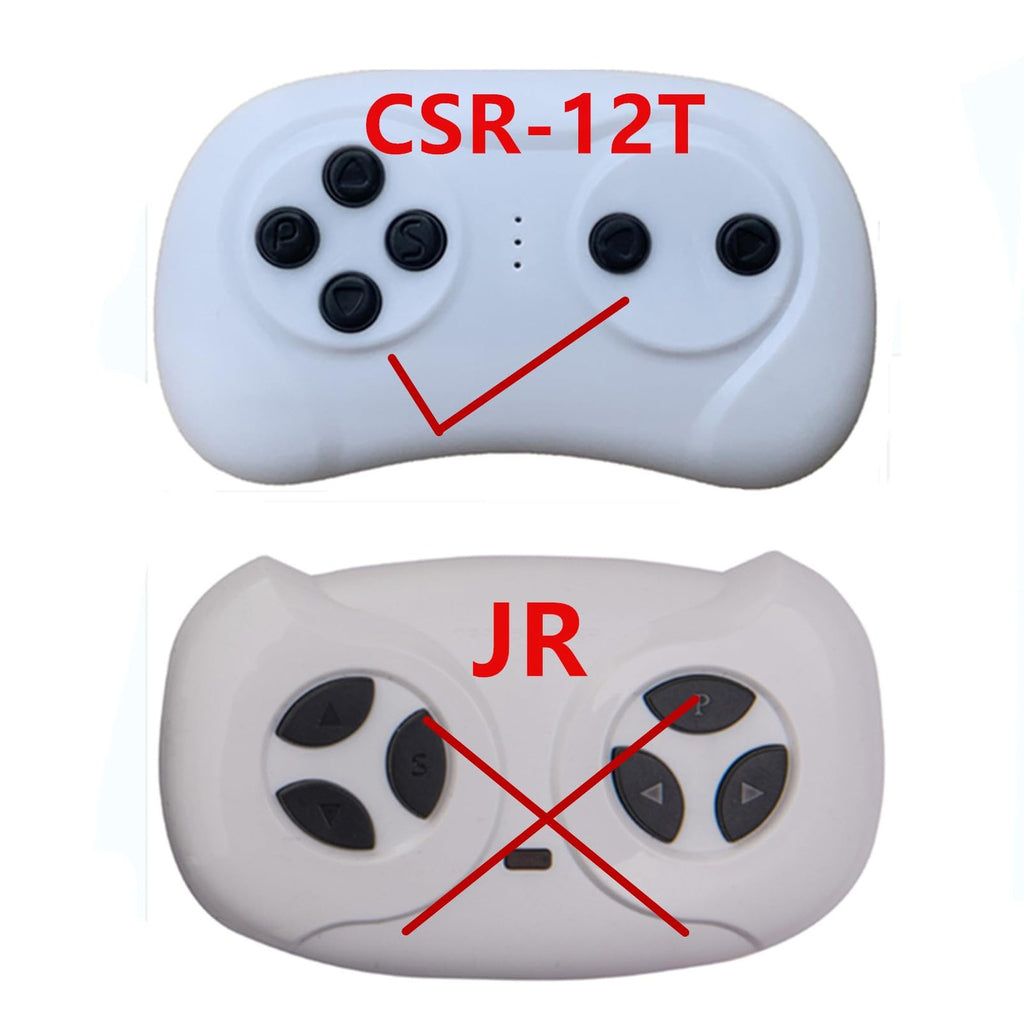

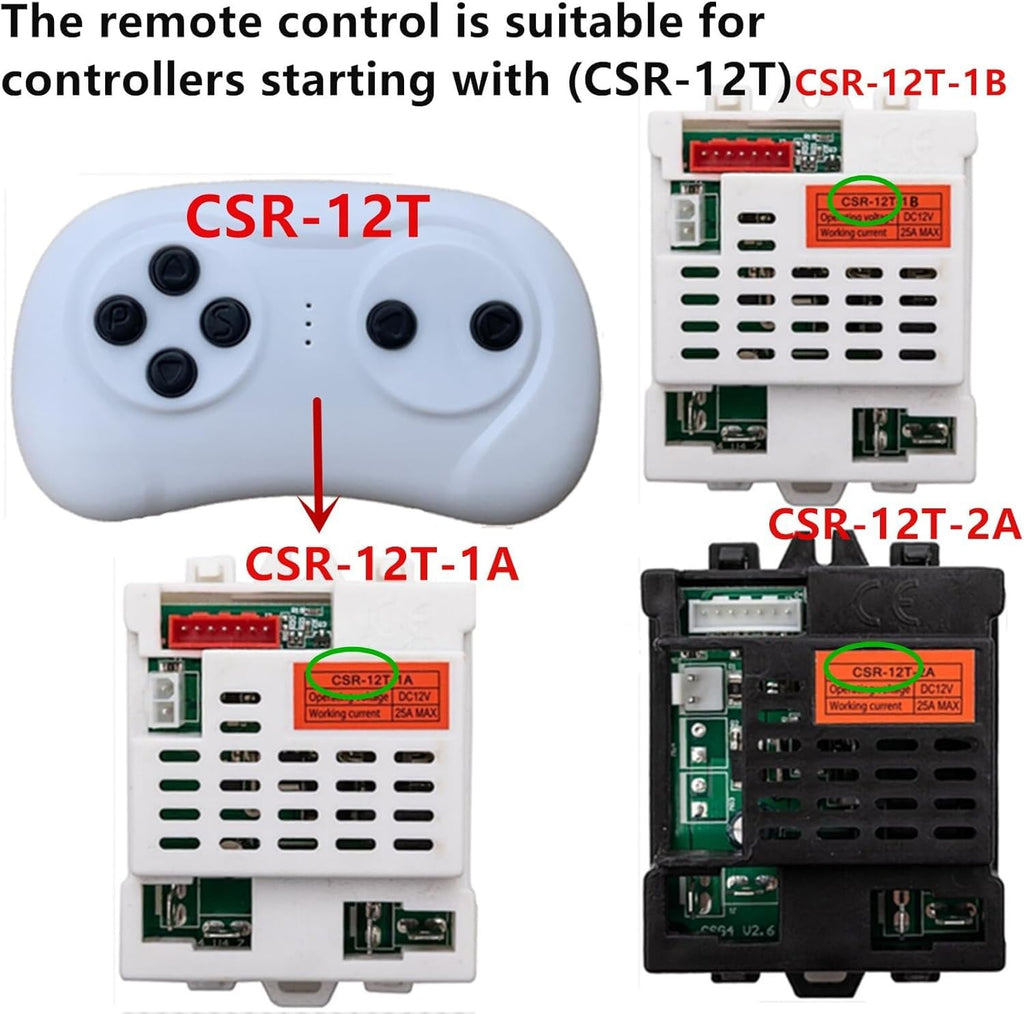

The CSR-12T white remote is not compatible with the JR white remote. Verify that the controller model on your electric car starts with CSR-12T to ensure compatibility.

Installation Instructions

To ensure compatibility with your ride-on car:

1. Open your broken electric ride-on car and inspect the control box to confirm it matches the appearance of this remote.
2. For first use or battery replacement, follow these steps to match the frequency:

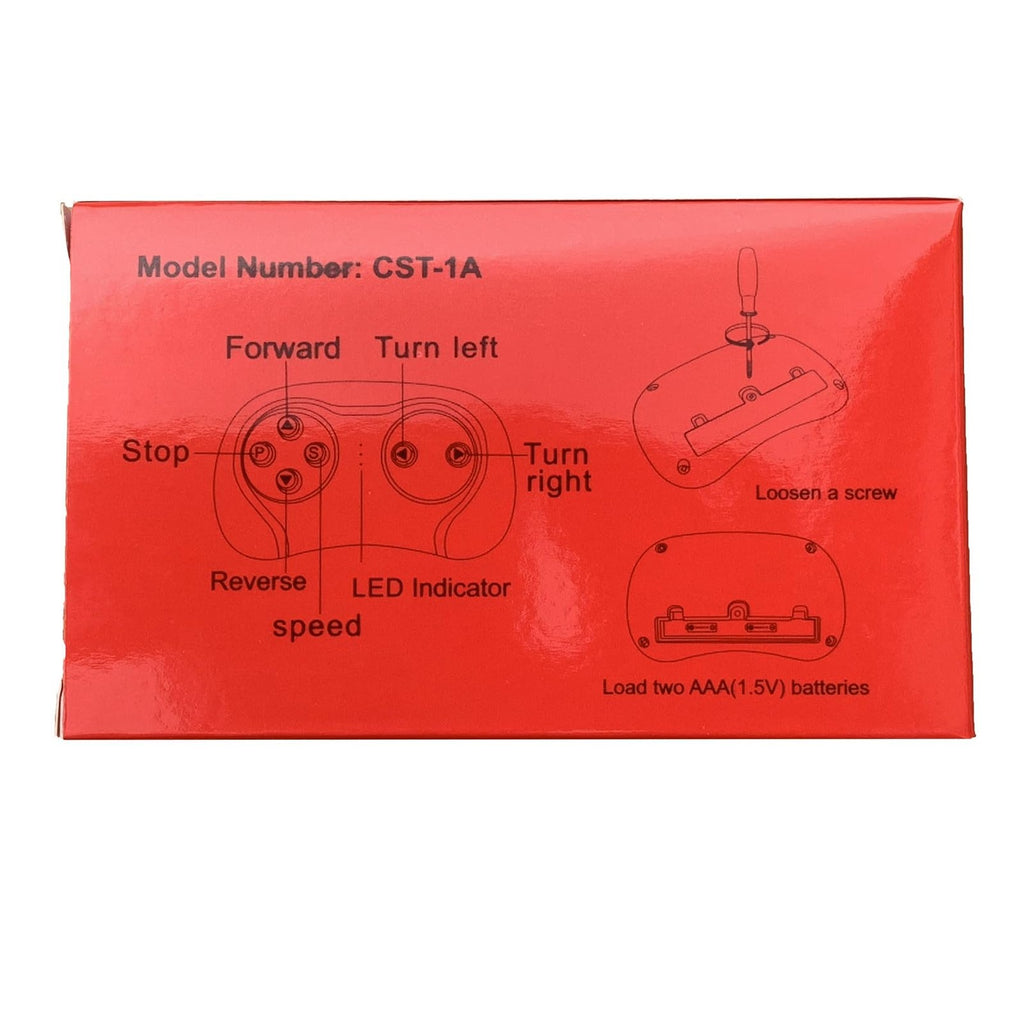

1. Install two AAA 1.5V batteries, ensuring correct polarity. Close the battery cover; the indicator will flash three times if installed correctly.
2. Press and hold the frequency key (car select) for about 2 seconds until the indicator flashes.
3. Turn on the power supply of the car; the indicator will turn off.
4. If the matching frequency fails (indicator does not turn off), turn off the power supply and repeat steps 2 and 3.
