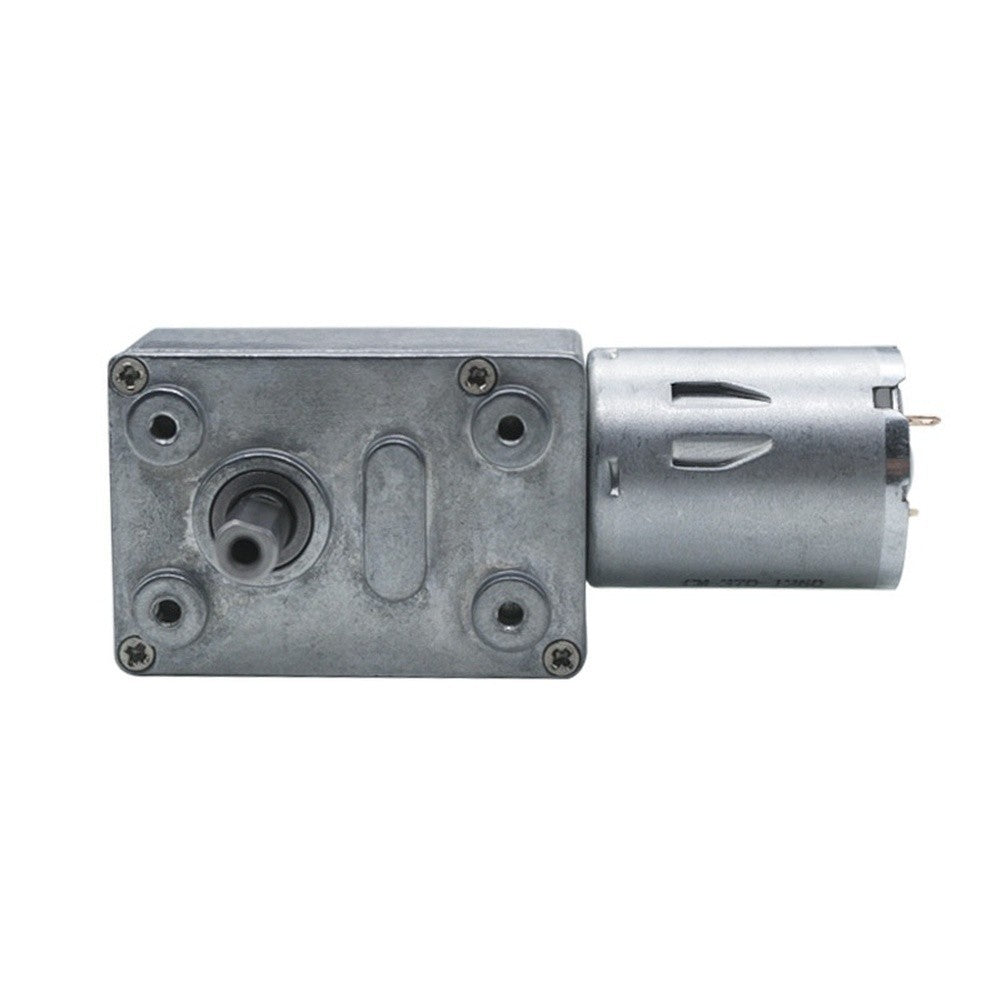

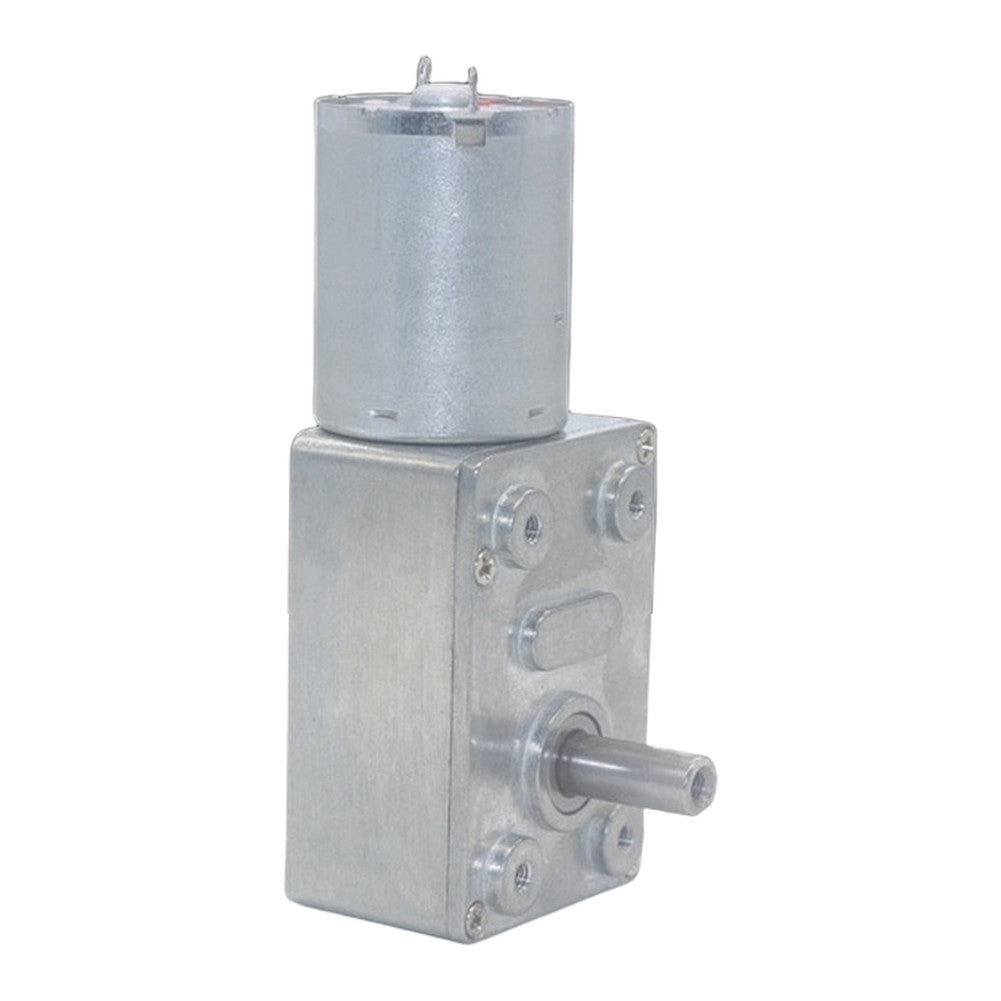

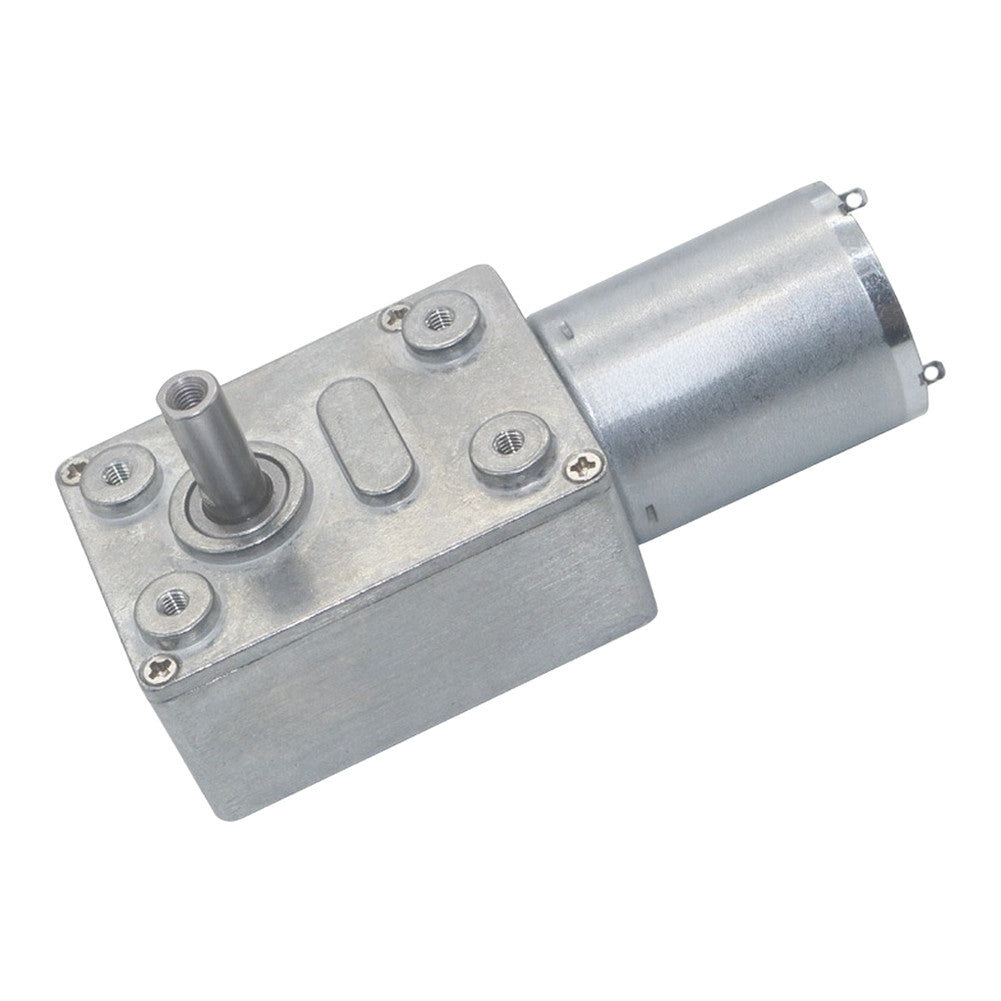

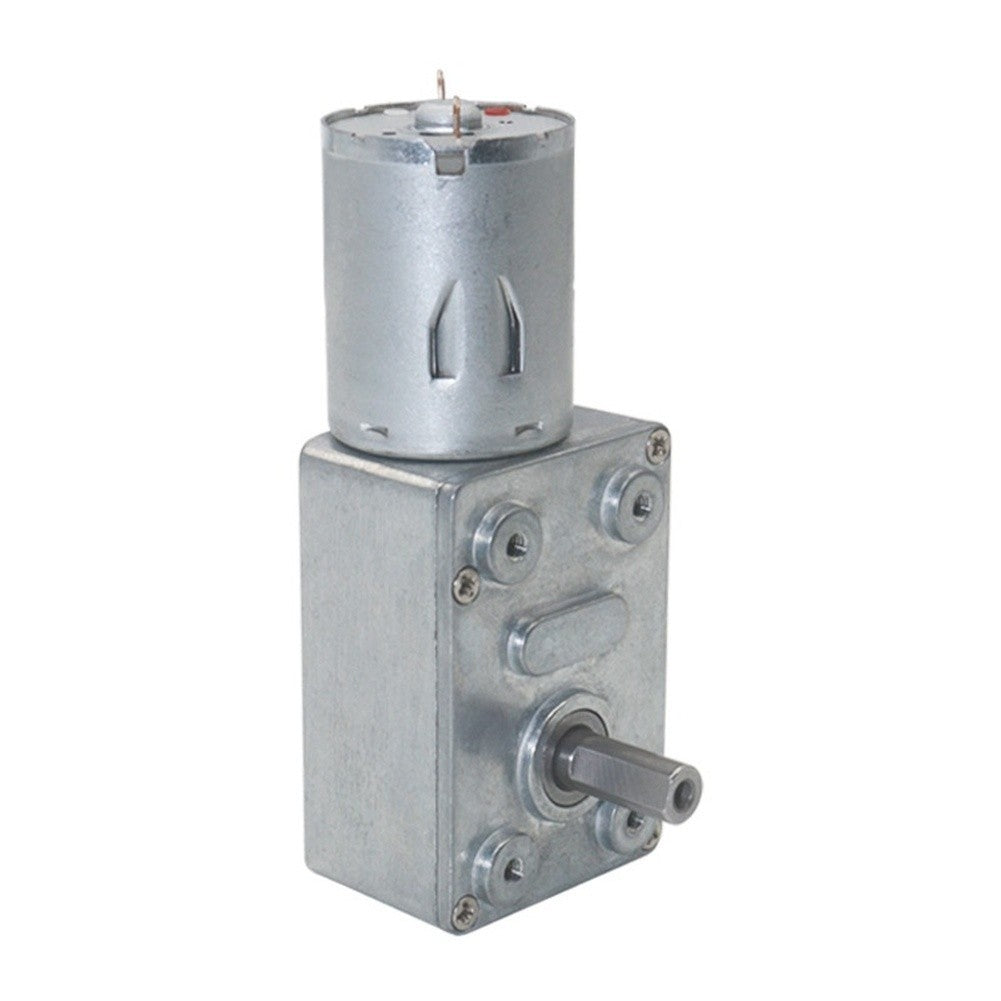

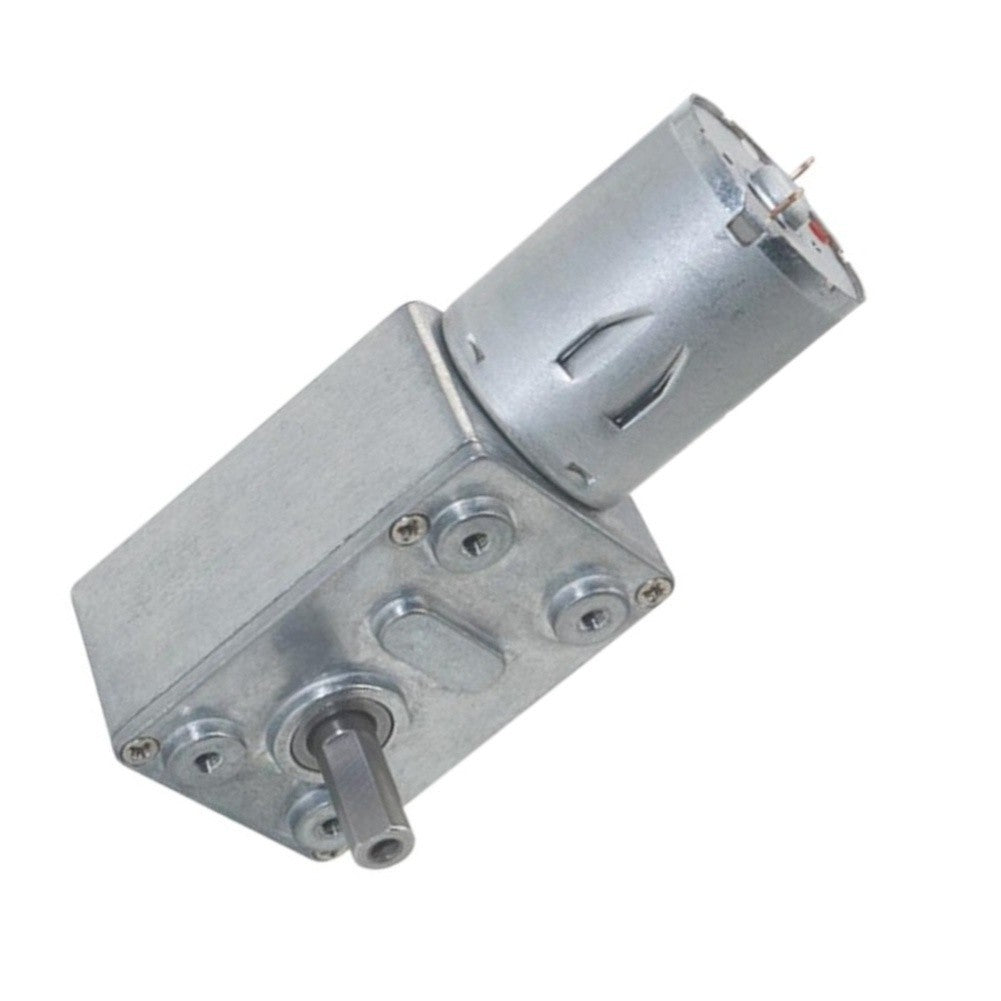

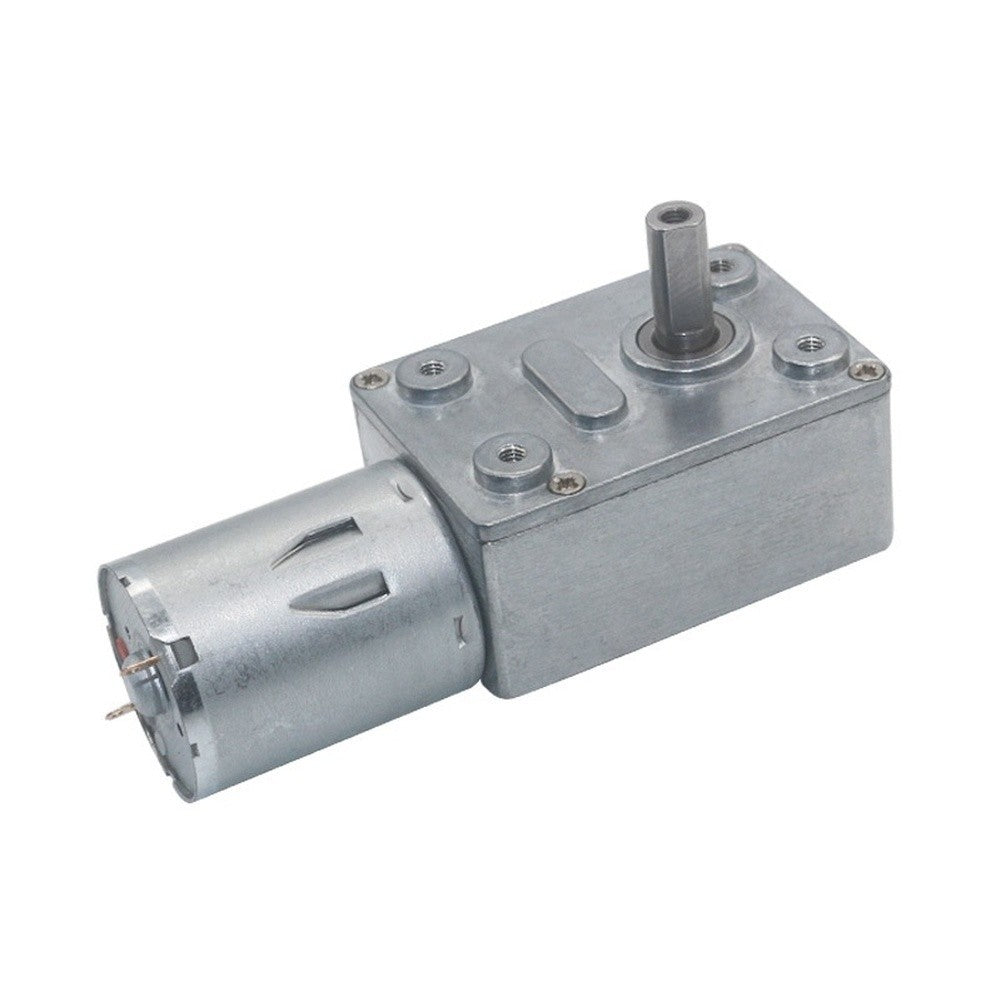

JGY370 DC Motor 12V 150rpm 40:1 Gear Ratio Metal Gears for Industrial Use

Features:

• High Torque Output: Delivers robust torque up to 30kg cm for demanding applications requiring strong rotational force.
• Self-Locking Function: Features a FOR worm gear design that prevents reverse rotation when power is off for safety and stability.

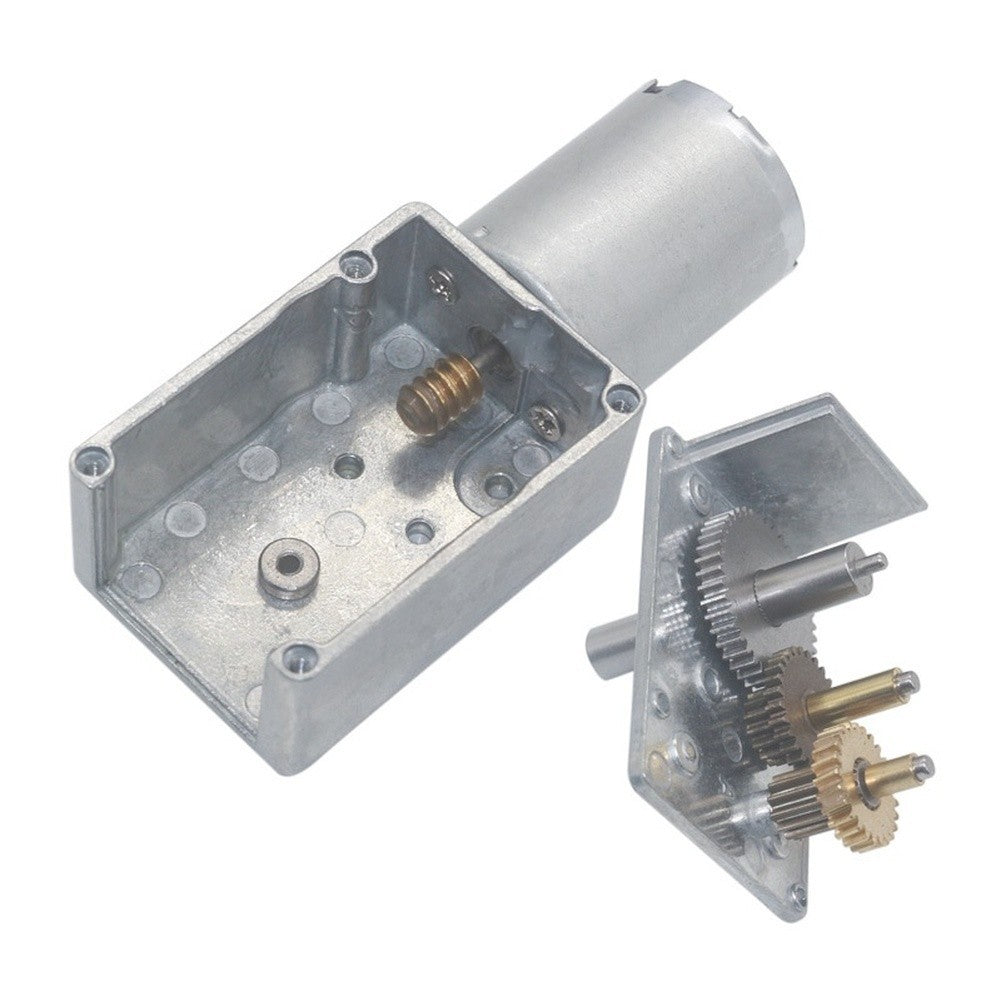

• All-Metal Gear Construction: Built with metal gears and a copper worm shaft to endure heavy loads and resist wear.
• Control Capability: Works with external controllers to adjust from 0 to the chosen no-load RPM for versatile use.
• Wide Voltage Compatibility: Operates efficiently at 12V with low current draw, suitable for continuous operation in smart devices.

Specifications:

• Product Name: Metal gear reduction motor
• Material: Metal
• Gear Ratio: 40
• No-load Current: ≤60 mA
• No-load Speed: 150 rpm
• Rated Torque: 1.2 kg·cm
• Rated Speed: 100 rpm
• Rated Current: 0.5 A
• Maximum Torque: 2.5 kg·cm
• Stall Current: 1.3 A
• Color: Silver
• Size: 28 x 15.5 x 4.5 cm
• Package Size: 37 x 29 x 6 cm

Package Content:

• 1 x Metal gear reduction motor

Note:

1. The real color of the item may be slightly different from the pictures shown on the website due to various factors such as display brightness.

2. Please allow slight manual measurement deviation for the data.
