Description

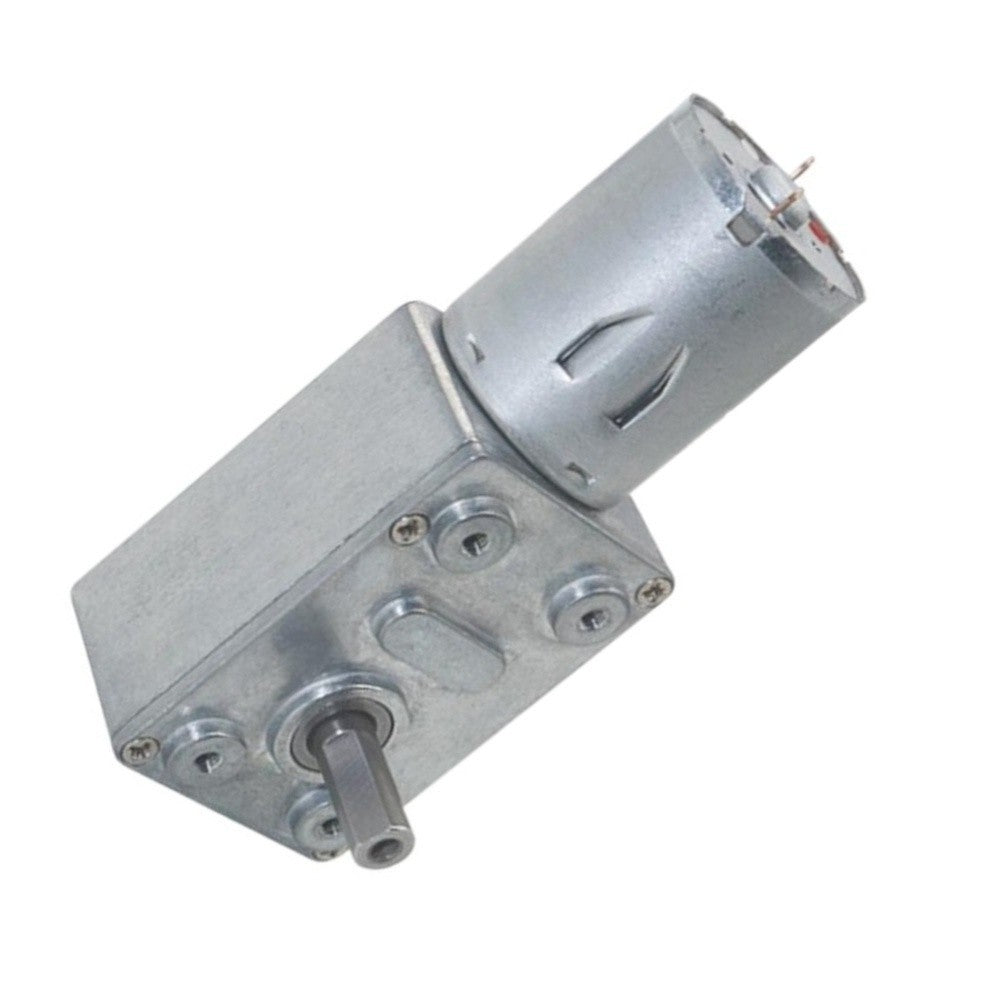

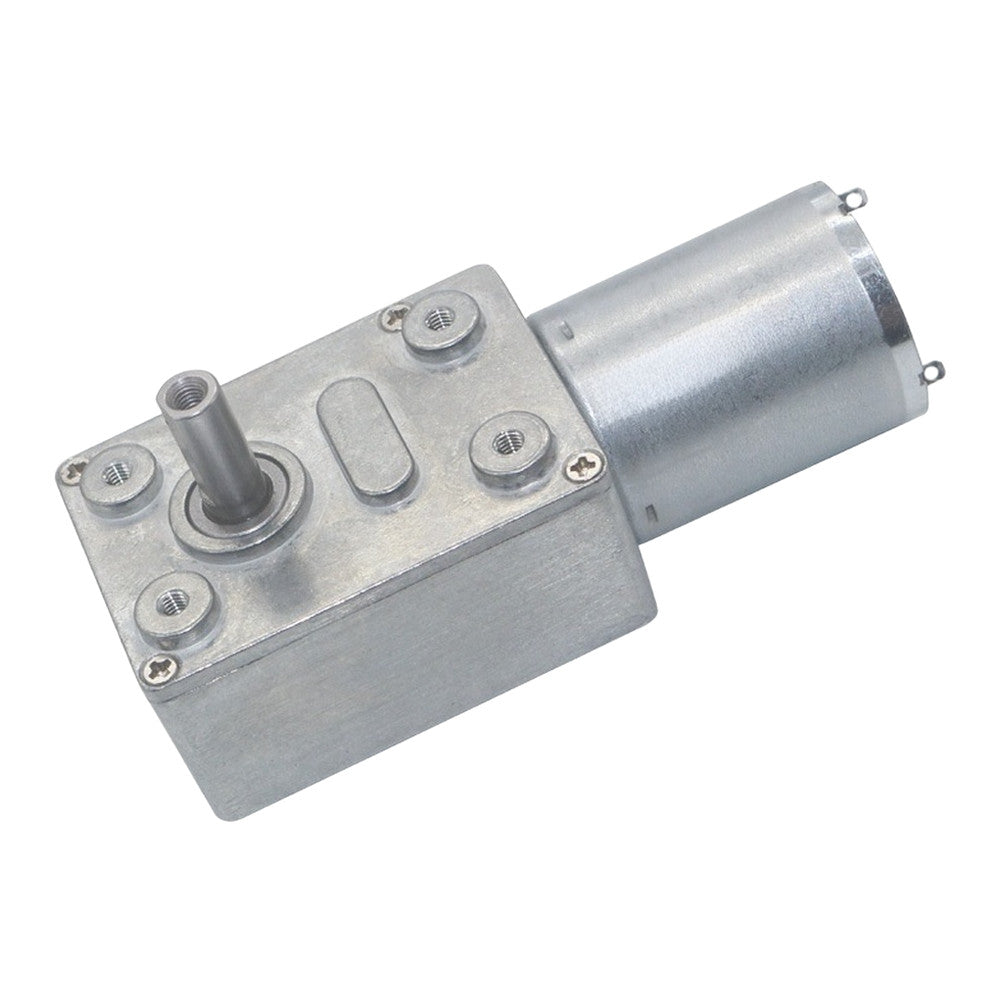

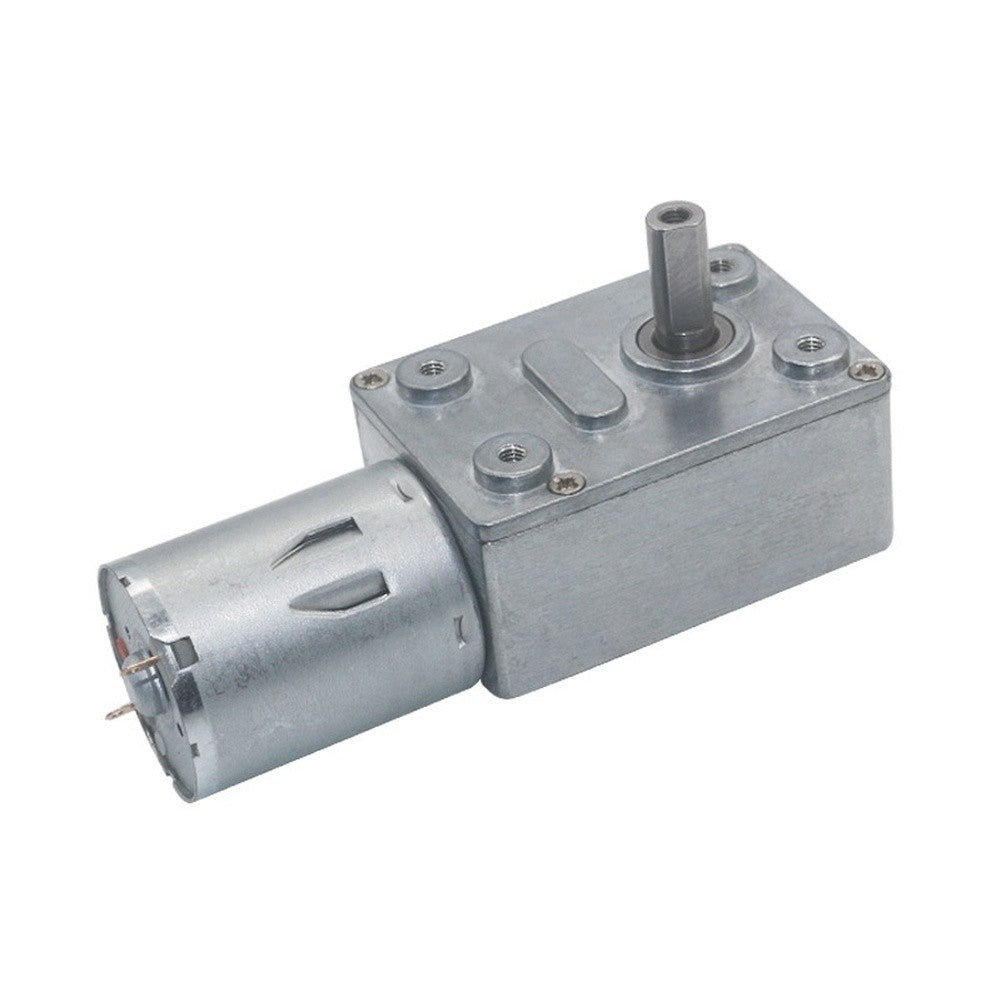

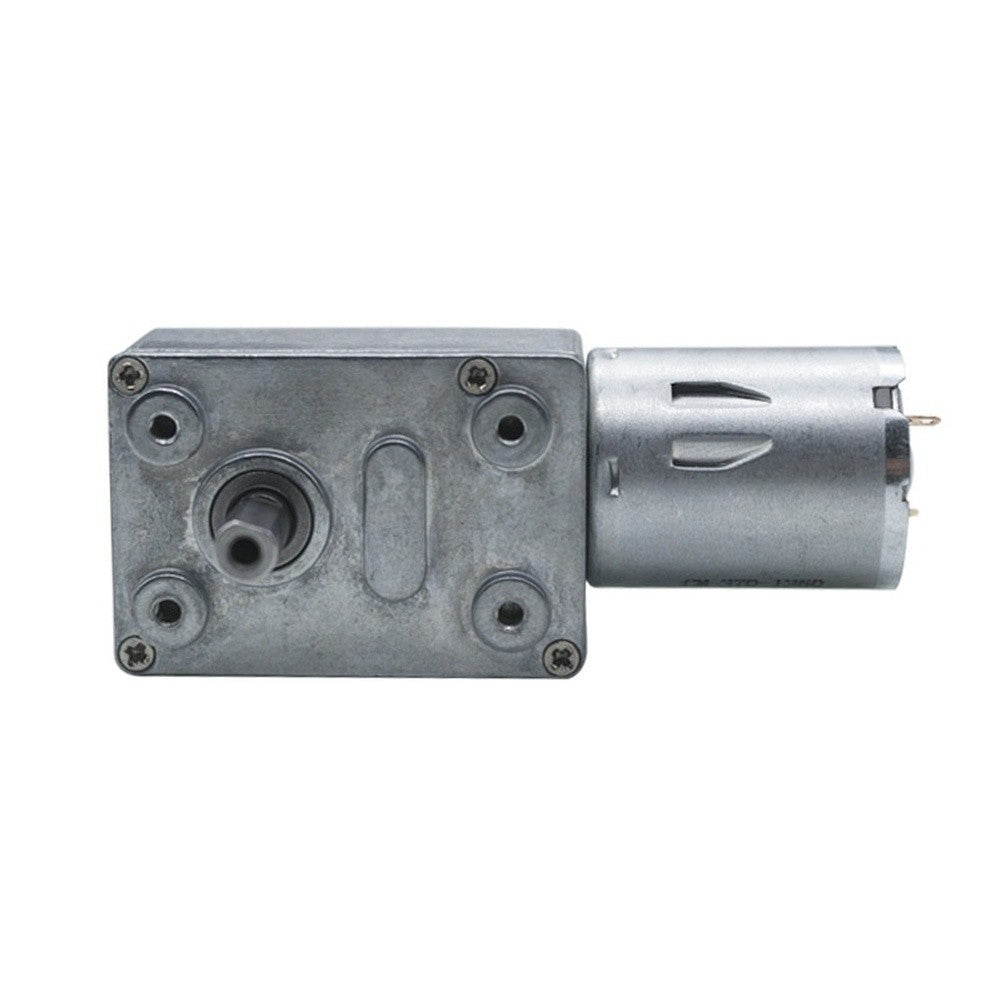

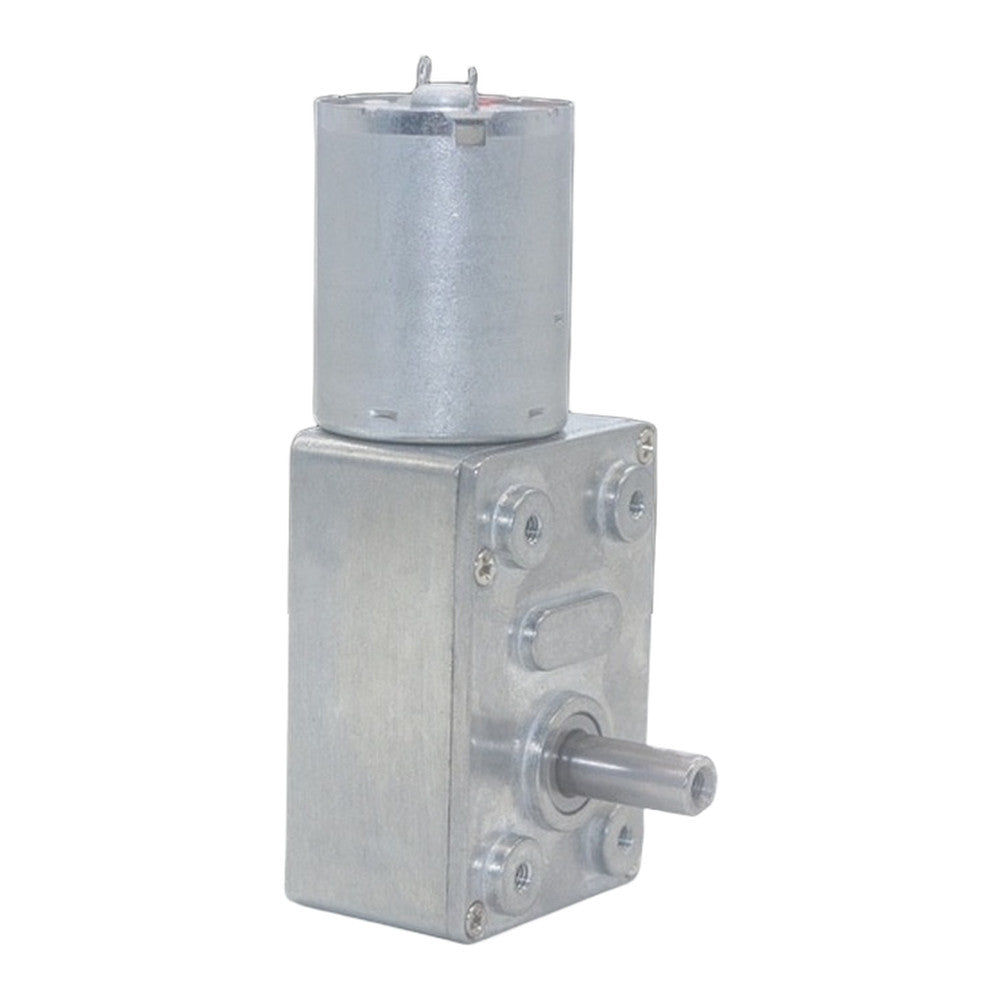

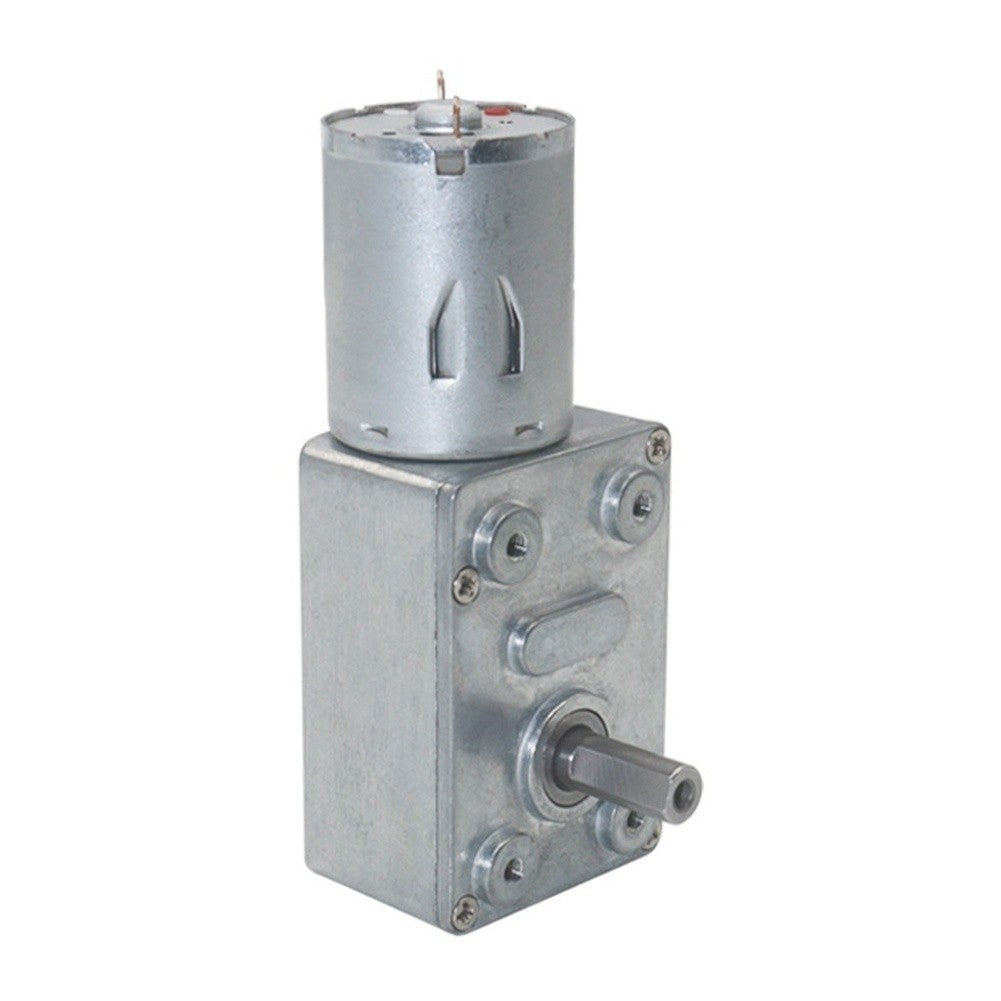

JGY370 12V Gear Reduction Motor 150rpm 40:1 Worm Reducer for Smart Devices
Features:
- High Torque Output: Delivers robust torque up to 30kg·cm for demanding applications requiring strong rotational force.
- Self-Locking Function: Features a FOR worm gear design that stops reverse rotation when power is off for safety and stability.

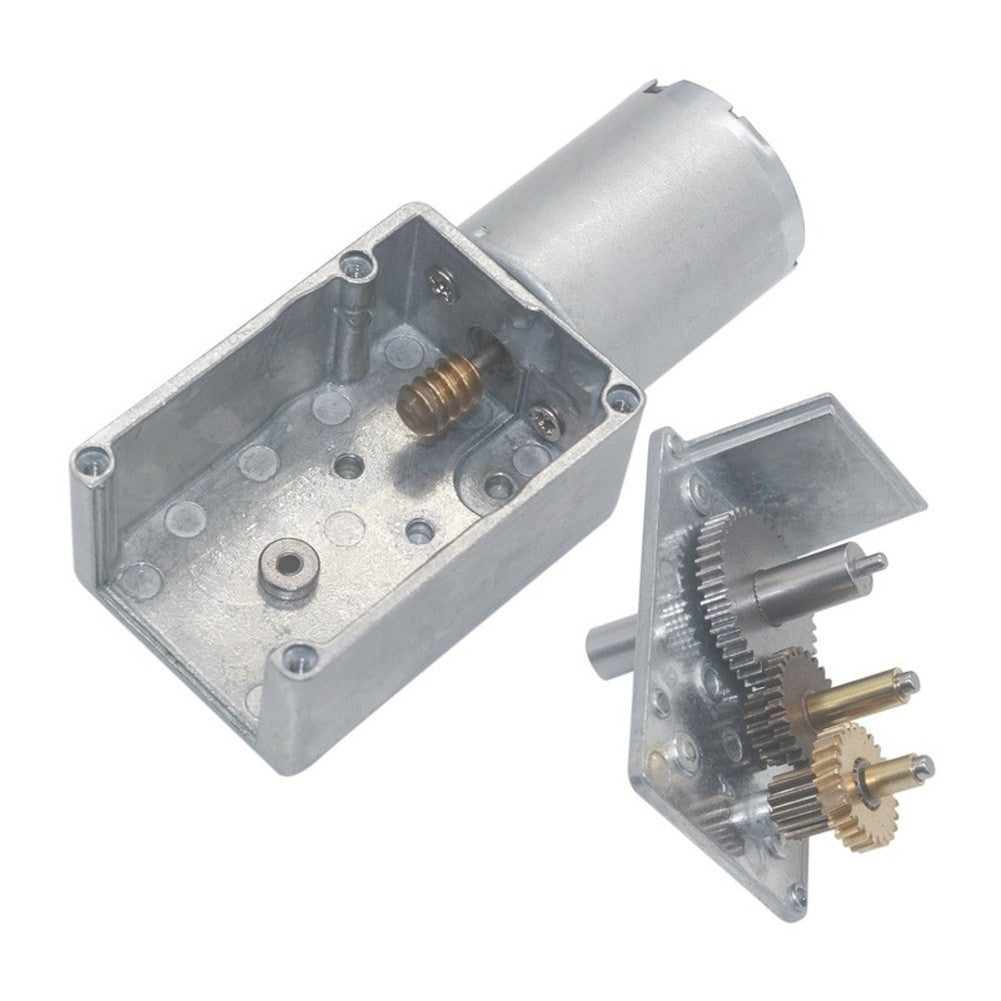

- All-Metal Gear Construction: Built with metal gears and a copper worm shaft to endure heavy loads and resist wear.
- Control Capability: Works with external controllers to adjust from 0 to the chosen no-load RPM for versatile use.
- Wide Voltage Compatibility: Operates efficiently at 12V with low current draw, suitable for continuous operation in smart devices.
Specifications:
- Product Name: Metal Gear Reduction Motor
- Material: Metal
- Gear Ratio: 40:1
- No-load Current: ≤60 mA
- No-load RPM: 150
- Rated Torque: 1.2 kg·cm
- Rated RPM: 100
- Rated Current: 0.5 A
- Maximum Torque: 2.5 kg·cm
- Stall Current: 1.3 A
- Color: Silver

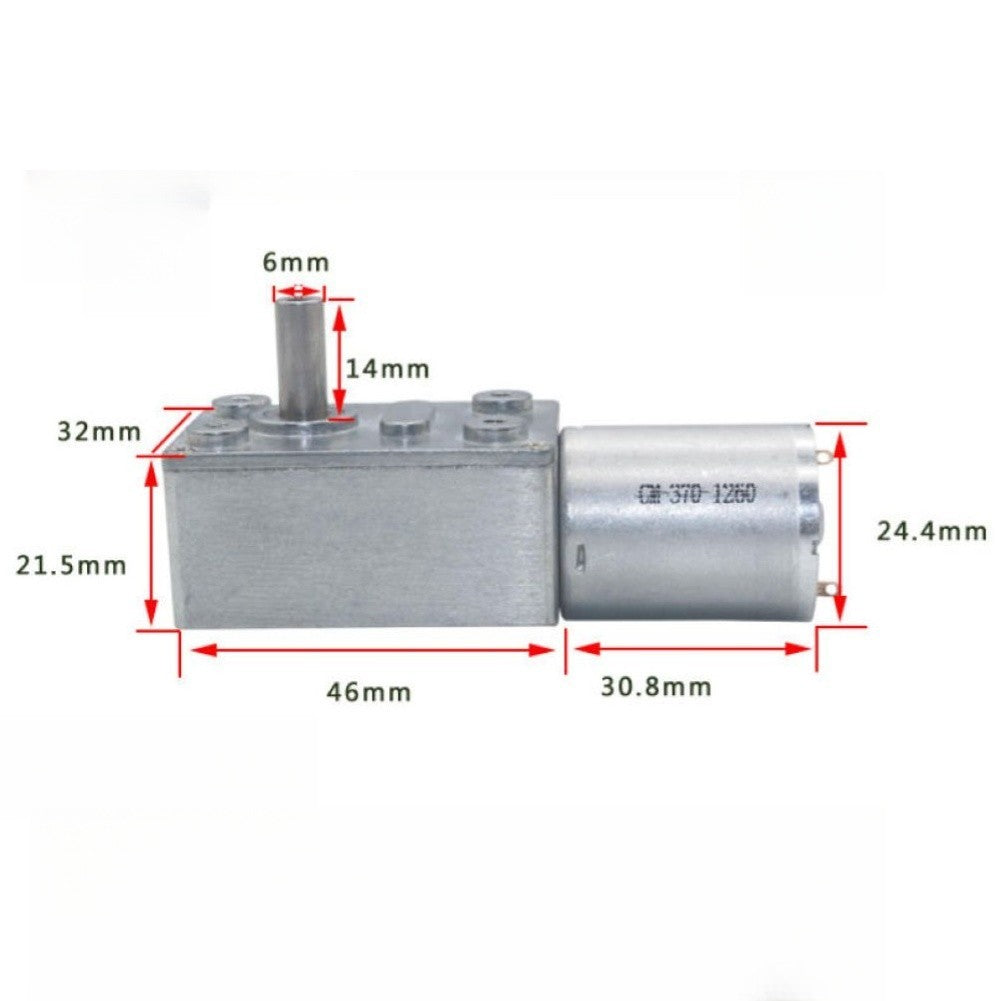

- Size: 28 x 15.5 x 4.5 cm
Package Content:
- 1 x Metal Gear Reduction Motor
Note:
1. The real color of the item may be slightly different from the pictures shown on the website due to factors such as display brightness and lighting.
2. Please allow slight manual measurement deviation for the data.
