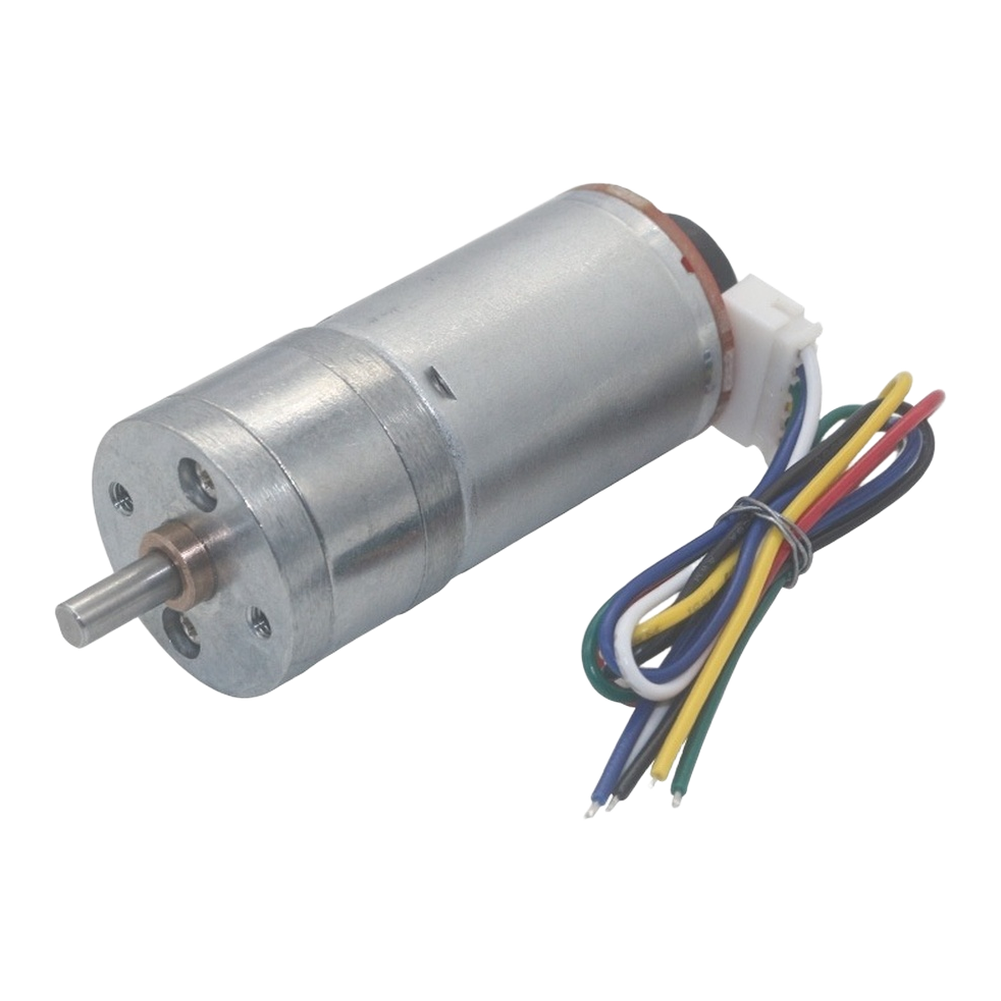

JGA25-370 Series DC12V Motor with Encoder for Precise Position Tracking

Features:

• Multiple Gear Ratio Options & Stable No-Load: This 12V JGA25-370-EN DC reduction motor provides multiple commonly used gear ratios. The 21.3K version delivers 260-280 RPM no-load; 34K runs at 150-180 RPM; 45K reaches 110-130 RPM; 75K offers 70-85 RPM. Diverse specifications meet various torque demands, making it a preferred drive motor for self-balancing trolley projects.
• Built-in Encoder: Equipped with an encoder for real-time rotational detection, enabling precise closed-loop control and position tracking. This greatly improves motion control accuracy for smart vehicles, robotic arms, and automated equipment, facilitating PID algorithm development and motion program debugging.
• High Torque & Reliable Gear Structure: Features a mature 25GA370 gear reduction structure with a sturdy metal gear set. It outputs strong continuous torque and maintains stable performance during prolonged use. Optimized gear meshing design reduces vibration and noise, achieving high power and large torque output at DC12V.
• DC 12V Standard Working Voltage & Wide Compatibility: Designed for standard DC 12V power supply input, compatible with common lithium battery packs, DC adapters, and mobile robot power systems. Compact 25mm housing saves installation space and is easy to assemble, suitable for electronic enthusiasts, student competitions, DIY projects, and laboratory motion control experiments.
• Extensive Applications: Ideal for self-balancing cars, smart tracked vehicles, small robotic arms, rotating monitoring brackets, automatic conveyor models, toy modifications, and various small automated control equipment, serving as a power drive component for diverse motion control projects.

Specifications:

• Product Name: JGA25-370 Series DC Geared Motor
• Rated Voltage: DC12V
• No-load Current: 0.07 A
• Rated Current: 0.3 A
• Stall Current: 1.8 A
• Motor Weight: 83g - 90g
• Gear Ratio 21.4K: No-load 280RPM, Rated 215RPM, Rated Torque 0.4Kg.cm, Stall Torque 2Kg.cm, Length: 19mm
• Gear Ratio 34K: No-load 170RPM, Rated 131RPM, Rated Torque 0.69Kg.cm, Stall Torque 3.3Kg.cm, Length: 21mm
• Gear Ratio 45K: No-load 130RPM, Rated 100RPM, Rated Torque 0.9Kg.cm, Stall Torque 4.4Kg.cm, Length: 21mm
• Gear Ratio 74.8K: No-load 77RPM, Rated 59RPM, Rated Torque 1.5Kg.cm, Stall Torque 5.5Kg.cm, Length: 23mm
• Material: Iron, Aluminum Alloy
• Color: Silver
• Size: 31 x 24.4 x 24.4 mm

Package Content:

1 motor + 1 encoder

Note:

1. The actual color of the item may vary slightly from the images due to factors such as display brightness and lighting conditions.
2. Please allow slight manual measurement deviation for the data.
