Description

Features:

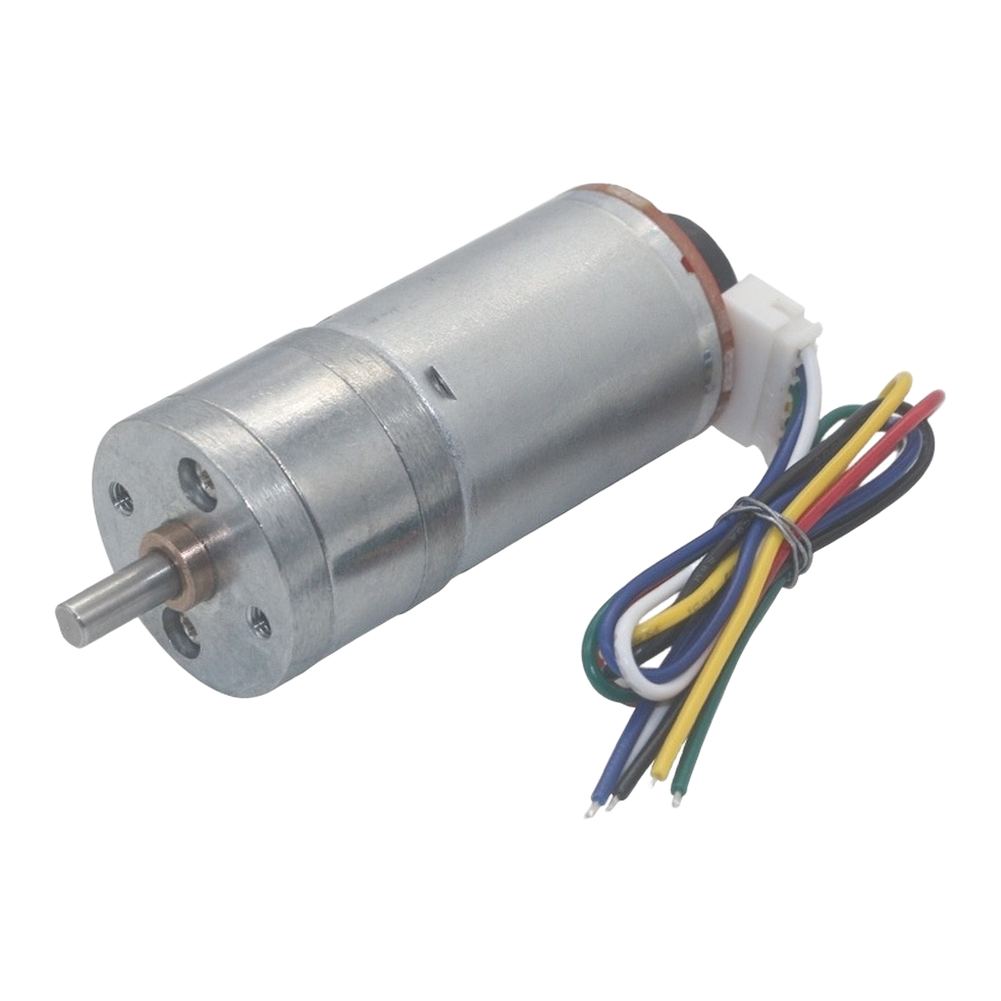

• Multiple Gear Ratio Options & Stable No-load: This 12V JGA25-370-EN DC reduction motor offers various gear ratios, delivering speeds ranging from 70 RPM to 280 RPM based on the chosen ratio.
• Built-in Encoder: Equipped with an encoder for real-time rotational detection, supporting precise closed-loop control and position tracking.
• High Torque & Reliable Gear Structure: Features a 25GA370 gear structure with a sturdy metal gear set, providing strong continuous torque and reducing vibration and noise.
• DC 12V Standard Voltage: Designed for standard DC 12V input, compatible with common lithium batteries and DC adapters.
• Extensive Applications: Ideal for self-balancing cars, smart tracked cars, robotic arms, and various small automated control equipment.

Specifications:

• Product Name: JGA25-370 Series DC Geared Motor
• Rated Voltage: DC12V
• No-load Current: 0.07 A
• Rated Current: 0.3 A
• Stall Current: 1.8 A
• Motor Weight: 83g - 90g
• Gear Ratios:
  • 21.4K: No-load 280RPM, Rated 215RPM, Rated Torque 0.4Kg.cm, Stall Torque 2Kg.cm, Length: 19mm
  • 34K: No-load 170RPM, Rated 131RPM, Rated Torque 0.69Kg.cm, Stall Torque 3.3Kg.cm, Length: 21mm
  • 45K: No-load 130RPM, Rated 100RPM, Rated Torque 0.9Kg.cm, Stall Torque 4.4Kg.cm, Length: 21mm
  • 74.8K: No-load 77RPM, Rated 59RPM, Rated Torque 1.5Kg.cm, Stall Torque 5.5Kg.cm, Length: 23mm
• Material: Iron, Aluminum Alloys
• Color: Silver
• Size: 31*24.4*24.4mm

Package Content:

1 motor + 1 encoder

Note:

1. The actual color of the item may vary slightly from the pictures due to display brightness and lighting conditions.
2. Please allow slight manual measurement deviation for the data.
