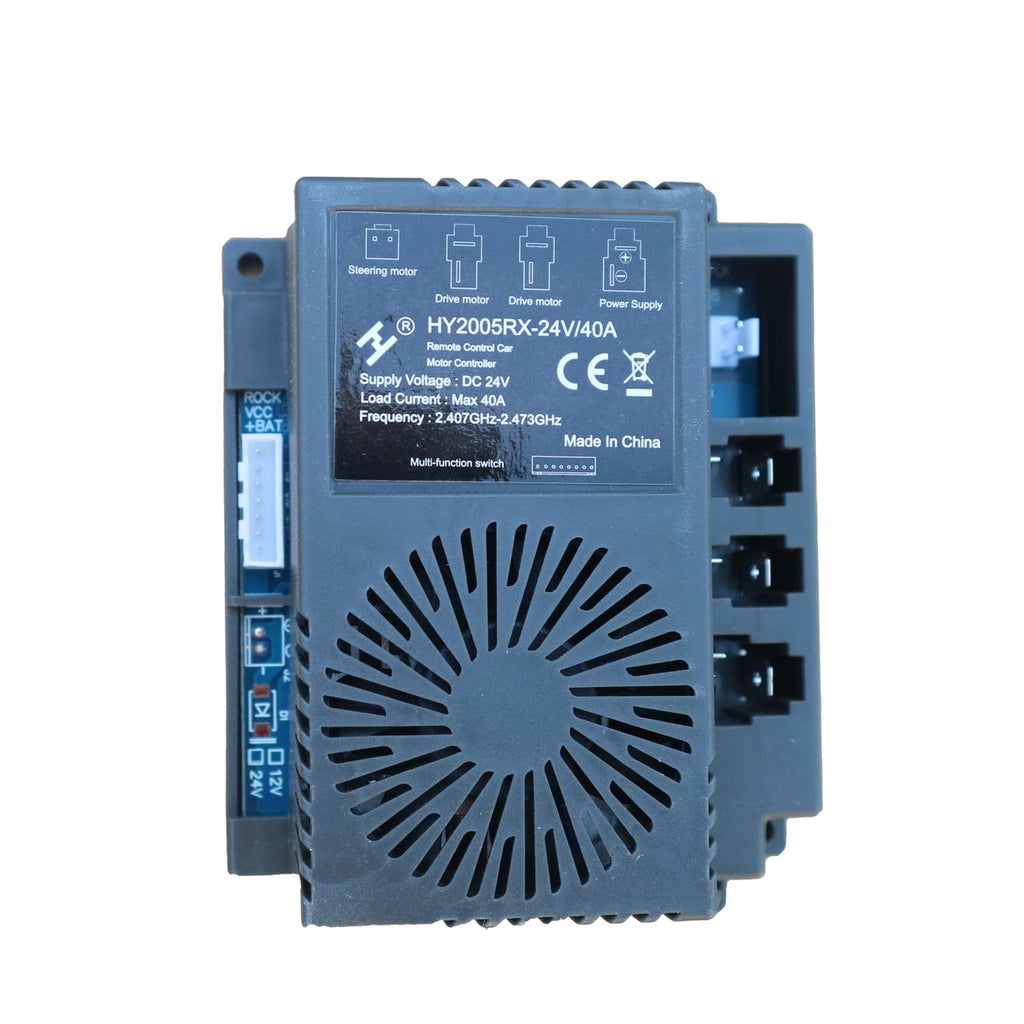

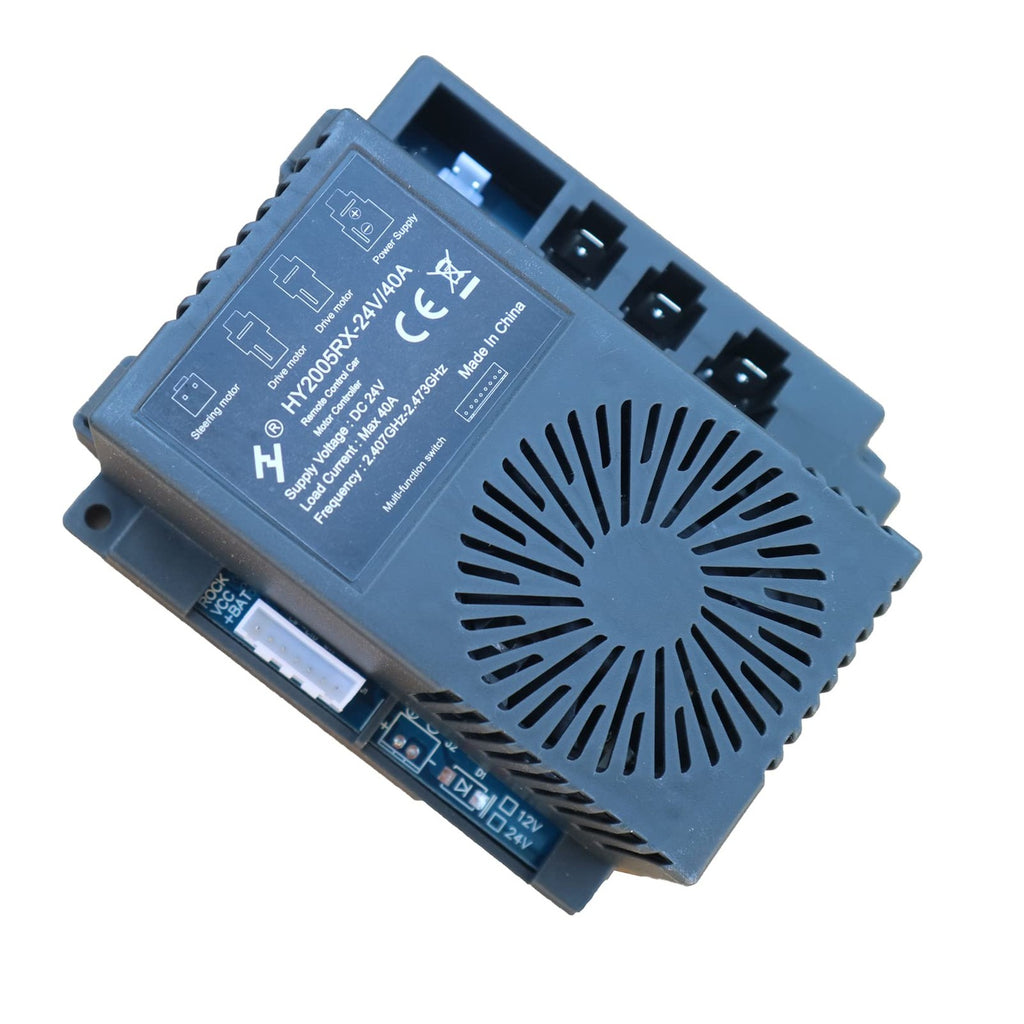

HY2005RX-24V Control Box Receiver with 2.4G Bluetooth Remote Control

Key Specifications:

• Model: HY2005RX-24V
• Bluetooth Frequency: 2.4G
• Power Supply: Requires two AAA 1.5V batteries (not included)

Features:

1. Bluetooth remote control with a slow start function.
2. Emergency stop button to halt vehicle movement instantly.
3. Automatic battery power cut-off after 15 seconds of inactivity.
4. Compatible with kids' powered ride-on cars.
5. 7-pin four-sided socket; both versions are interchangeable.

Instructions for First Use:

1. Install two AAA 1.5V batteries, ensuring correct polarity. Close the battery cover; the indicator will flash three times to confirm correct installation.
2. Press and hold the frequency key (car select) for about 2 seconds; the indicator will flash.
3. Turn on the power supply of the car; the indicator will turn off.
4. If pairing fails (indicator does not turn off), turn off the power supply and repeat steps 2 and 3.

Normal Use:

1. The frequency key must be operated once upon initial use or battery replacement.
2. Avoid exposing the remote control to moisture to ensure optimal performance.

Warnings:

1. Do not mix old or different types of batteries.
2. Install the battery according to the positive and negative markings in the battery compartment.
3. Remove batteries when the remote control is not in use for an extended period.
4. Dispose of used batteries responsibly to prevent environmental pollution.

Note: The product includes a slow start function, eliminating the need for an additional slow starter. To use the remote control after installing the receiver, follow the remote control instructions and re-pair the frequency.
