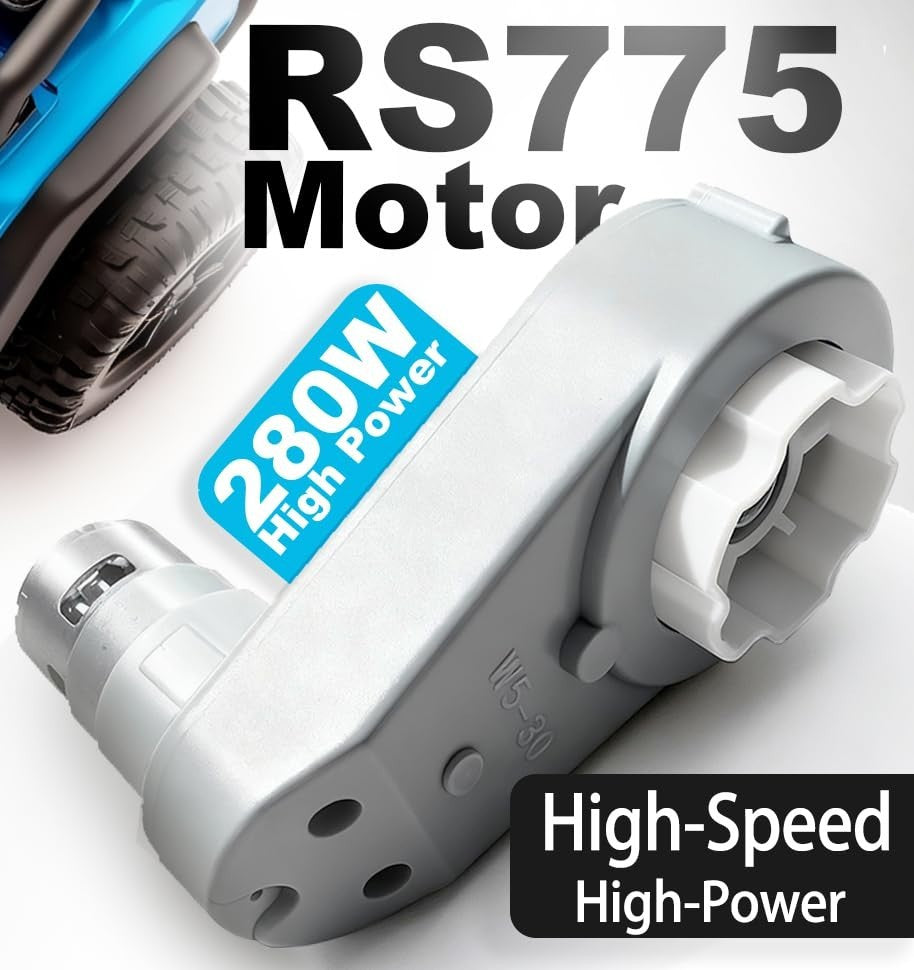

High-Speed 24V RS775 Gearbox Motor Upgrade for Power Wheels
Enhance your power wheel ride-on cars with the W5-30 RS775 24 Volt 280 Watt Drive Engine. This ultra high power and torque motor is engineered for peak performance, requiring a compatible control box of 40A or higher and a fuse rated at 25A or above to avoid any damage.
Key Features:
-
Power Output:
- 280W at 24V - 360 RPM
- 200W at 18V - 270 RPM
- 180 RPM at 12V

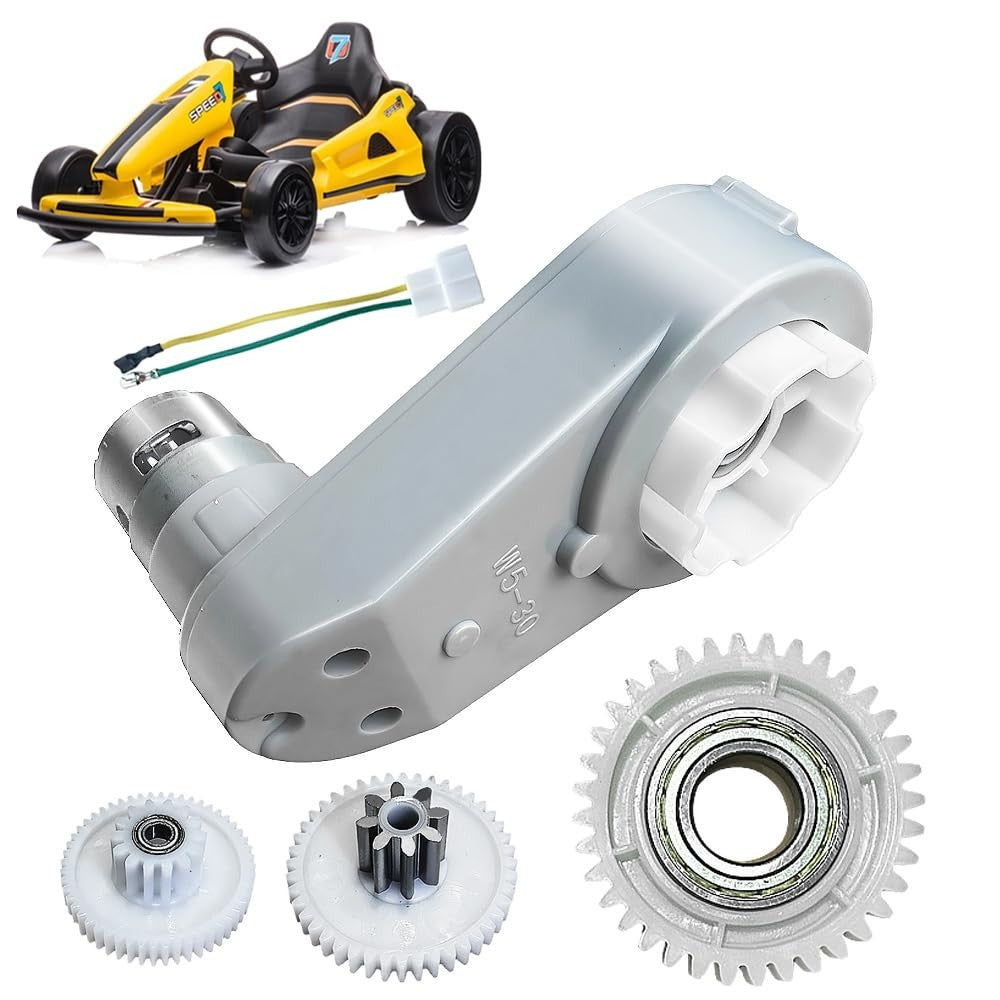

- Durable Gearbox: Made from high-strength composite materials, providing exceptional strength and resistance to deformation.
- Efficient Design: Features built-in bearings in both small and large gears to minimize friction and extend lifespan.
- Metal Middle Gear: Ensures enhanced strength and durability.
- High Speed Ratio: Gearbox speed ratio of 1:75 for improved output speed.

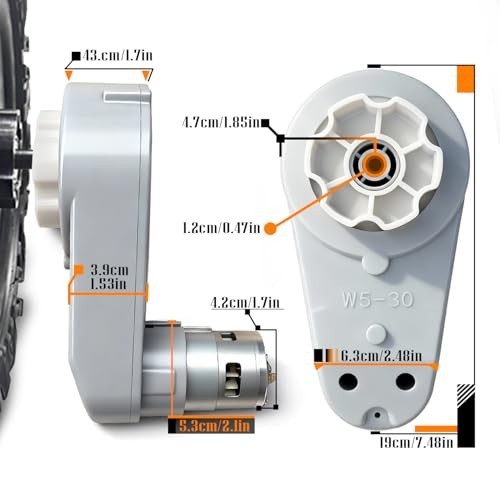

Specifications:
- Shaft Hole Diameter: 12mm (0.47")
- Length: 185mm (7.28")
- Max Width: 92mm (3.62")
- Motor Diameter: 40mm (1.574")
Easy Installation:
Designed for straightforward installation, this motor is perfect for replacing components in kids' ride-on cars. It is compatible with gearboxes featuring six plum blossoms.
Compatibility:
This motor is optimized for use with a 24V battery. It can also function with a 12V battery, though speed will be halved while maintaining impressive performance due to the gearbox design.
