GY6 Front Hydraulic Brake Assembly

GY6 Front Hydraulic Brake Assembly for Various Scooters

The GY6 Front Hydraulic Brake Assembly is designed for a range of scooters, providing a reliable solution for front braking needs. This assembly comes pre-bled from the factory, eliminating the hassle of bleeding during installation. It is one of the GY6 scooter parts that improves the braking system's efficiency, making it an excellent choice for owners looking to replace worn components.

Construction and Design

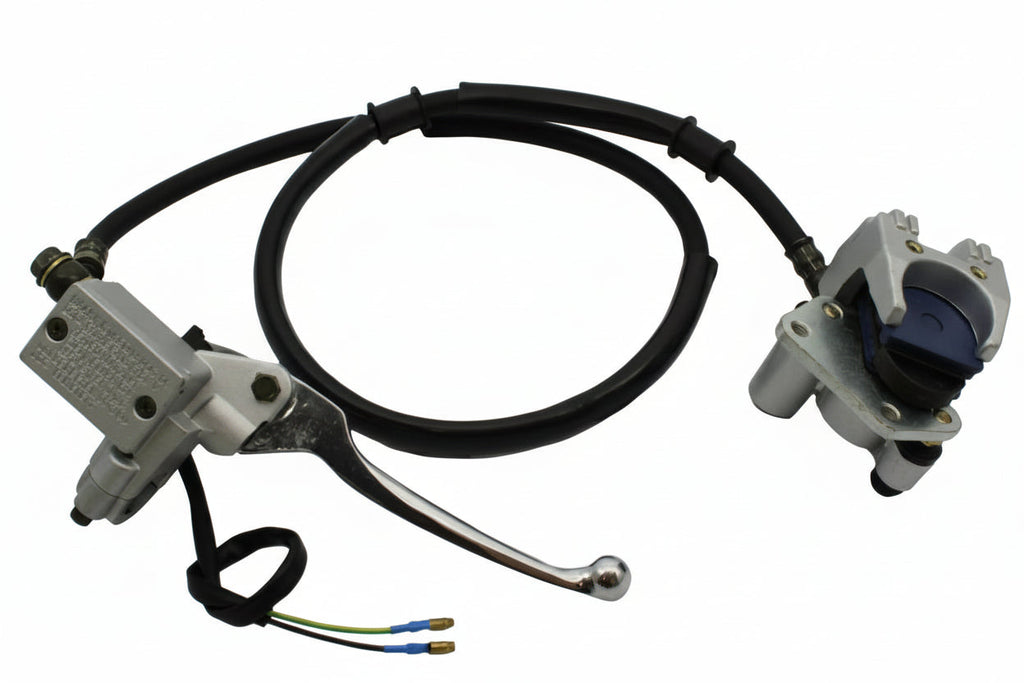

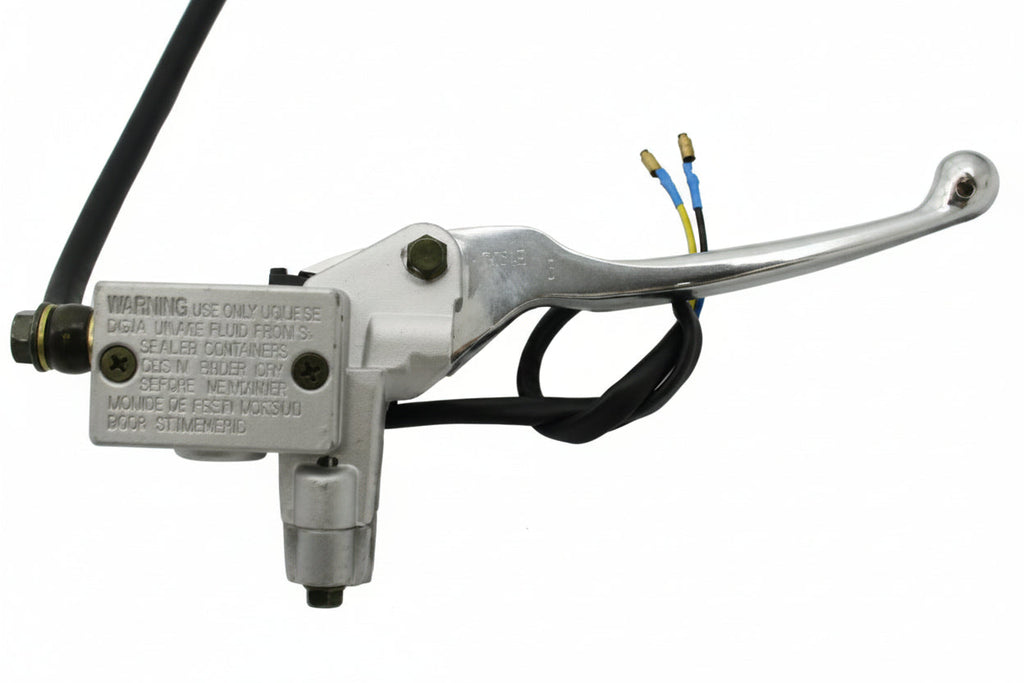

This brake assembly features a die-cast aluminum master cylinder equipped with a polished brake lever and a blue-capped fluid reservoir. The integrated brake light switch includes a wiring harness with green, blue, and yellow spade connectors. The setup is designed for straightforward mounting on standard 7/8" (22mm) handlebars without any modifications.

Performance and Compatibility

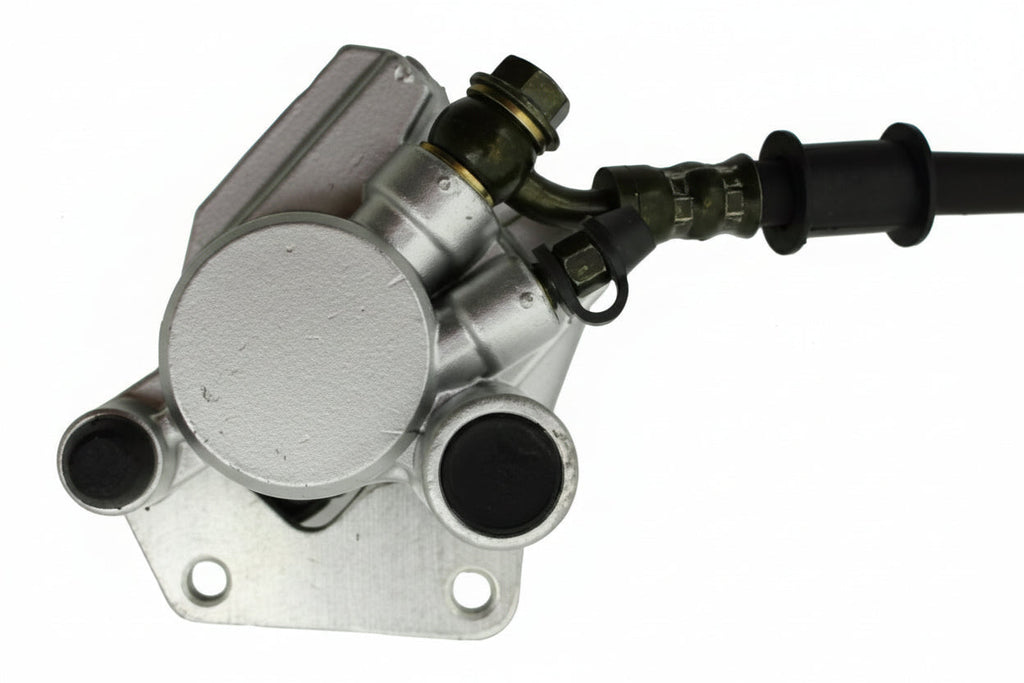

With a 39" (990mm) rubber hydraulic hose reinforced for high pressure, this assembly ensures consistent performance under various conditions. The single-piston caliper is constructed from silver aluminum and fitted with a rubber-booted piston. Make sure to verify that your current caliper's mounting bolt spacing is 44mm center-to-center before purchasing to ensure proper fitment.

Specifications

• Material: Die-cast aluminum, rubber
• Size: 39" (990mm) brake line length
• Position: Front, right-hand side
• Color: Polished lever with blue reservoir cap
• Caliper Type: Single-piston
• Caliper Bolt Hole Spacing: 44mm center-to-center
• Handlebar Clamp Diameter: 7/8" (22mm)
• Brake Light Switch: Included

Fitment

This brake assembly is compatible with several scooter models:

• Baja SC150
• Roketa Cayman, Maui, Capri 150cc series
• JM Star Tomahawk II 125 / 150
• SUNL SL150-21B, Tank Sporty 150, Viaggio 150
• Vento Phantom, X-Treme XM-150
• Other: Qingqi, Jonway, Peace Sports, TaoTao, and various GY6 Sport body variants

Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
