61mm Big Valve Cylinder Head for GY6 171cc Engines
The 61mm big valve cylinder head is designed to improve the performance of your 171cc GY6 engine. It pairs perfectly with the 61mm big bore kit (1100-1288) for increased airflow. This component is important for boosting acceleration and overall engine response. It is one of the GY6 scooter parts that can significantly improve your engine's capabilities.
Improved Airflow with Larger Valves

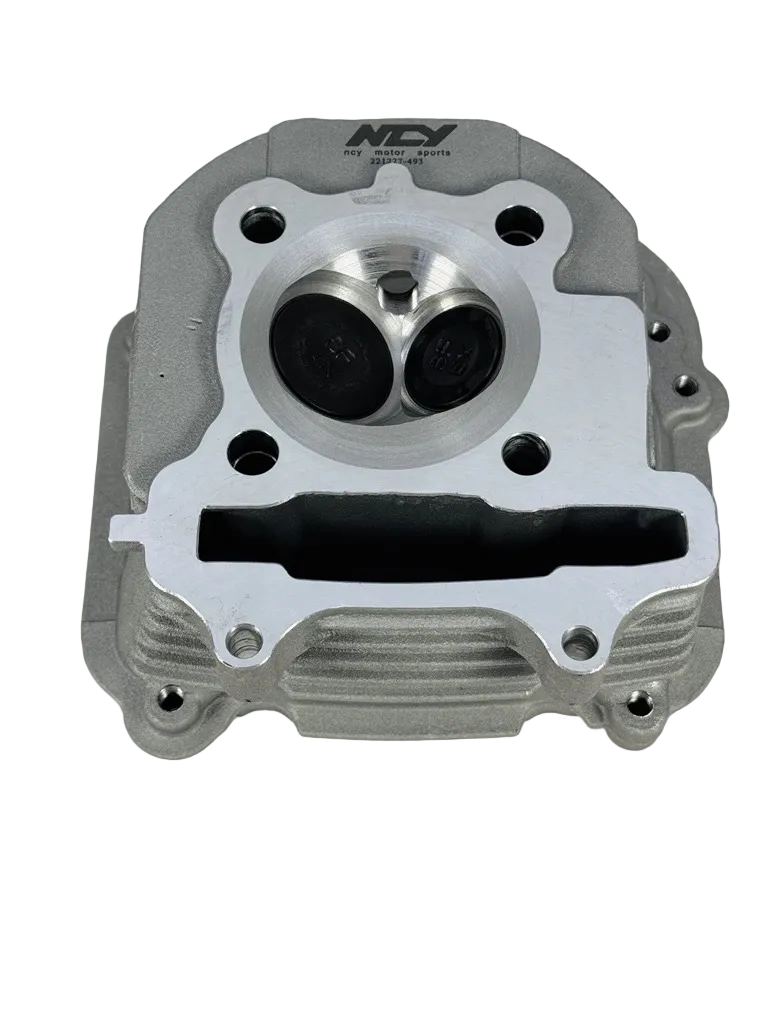

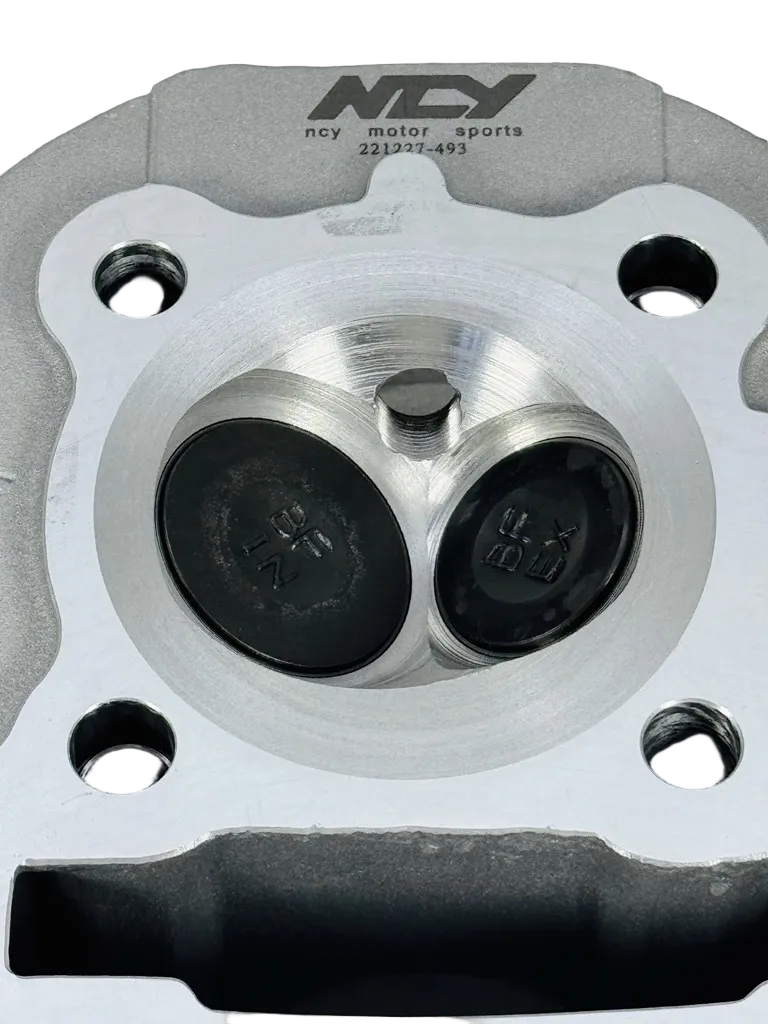

This cylinder head features larger intake and exhaust valves, measuring 27.8 mm and 22.9 mm respectively. The two-valve combustion chamber and finely machined mating surface maximize airflow, allowing your engine to breathe better. The heat-dissipating design also ensures efficient operation during intense use.
Installation and Compatibility

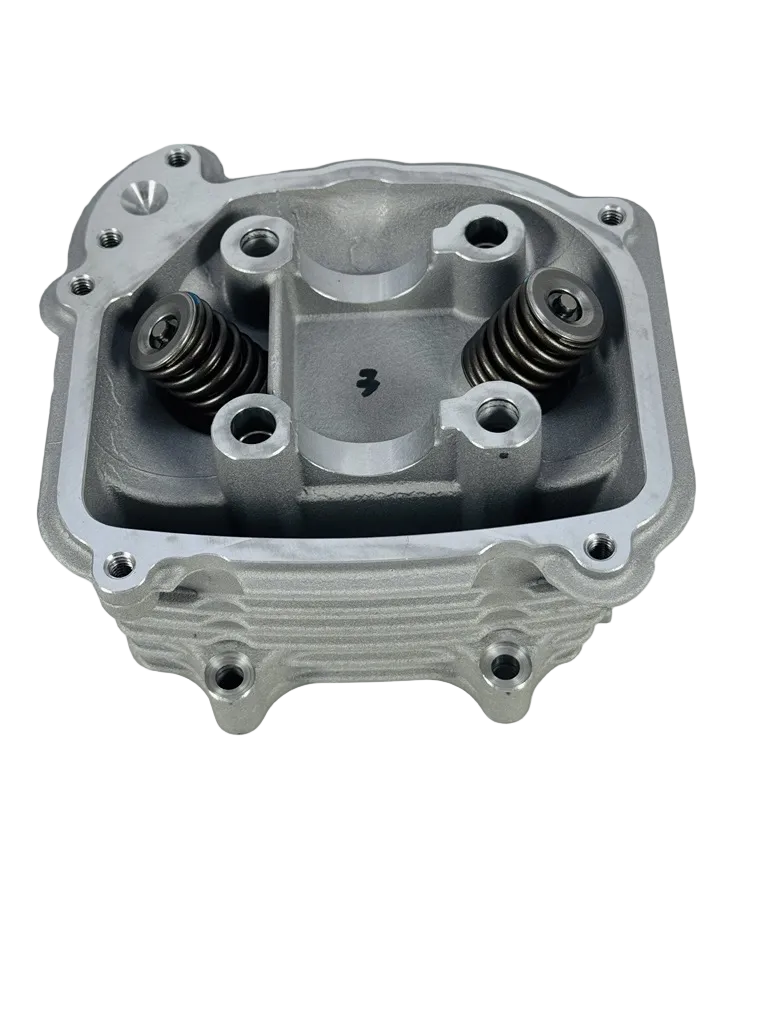

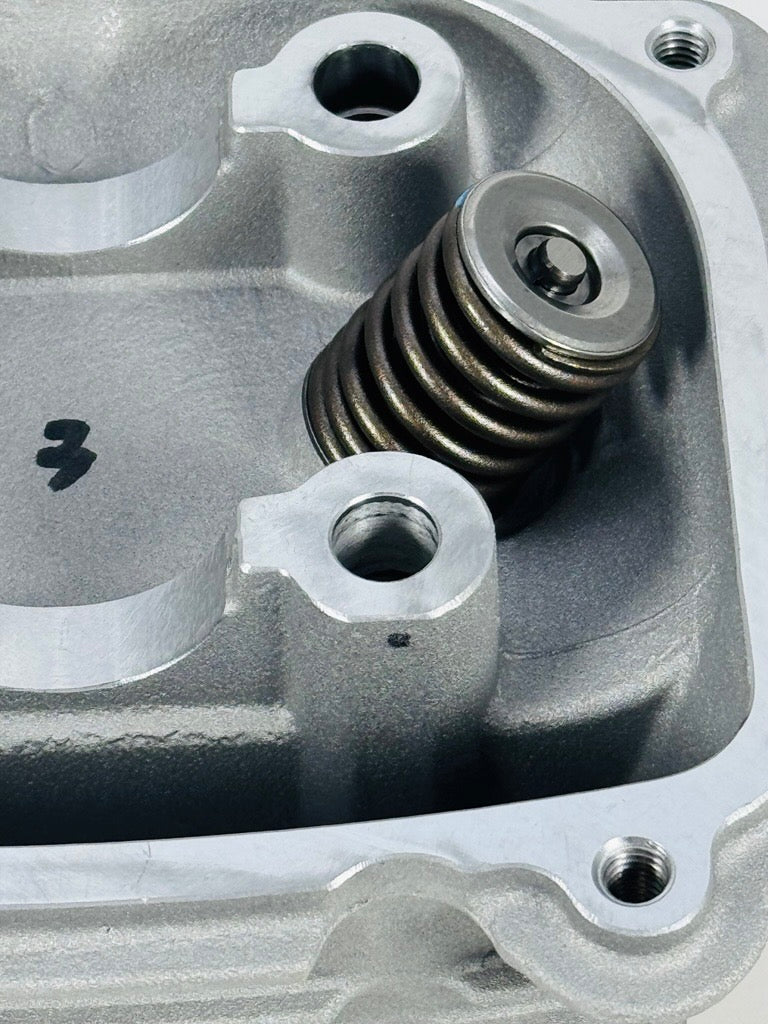

This head comes with pre-installed valves and valve springs for straightforward assembly. However, the engine components such as the camshaft, rocker arm assembly, and cylinder set are sold separately. Ensure compatibility with GY6-A engines by matching the cylinder stud spacing of 54 mm and 76 mm diagonally.
Specifications
- Part Number: 622C03GY661
- Target Cylinder: 61 mm / 171cc kit 1100-1288
- Cylinder Stud Spacing: 54 mm, 76 mm diagonal
- Intake Valve Diameter: 27.8 mm
- Exhaust Valve Diameter: 22.9 mm
- Exhaust Thread: 8 mm
- Country of Origin: Taiwan
Fitment
This cylinder head is compatible with a variety of GY6 engines, specifically designed for use with the 61 mm / 171cc big bore kit 1100-1288. Ensure that the dimensions match your existing setup.
- Buddy 125
- Buddy 150
- Blur 150
- Other compatible scooters and karts include select models from TaoTao, Wolf, Ice Bear, Bintelli, Peace Sports, ZNEN, SSR, SYM, Hammerhead 150, Trailmaster 150, Yerf-Dog, and Carter Talon.
Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
