Description

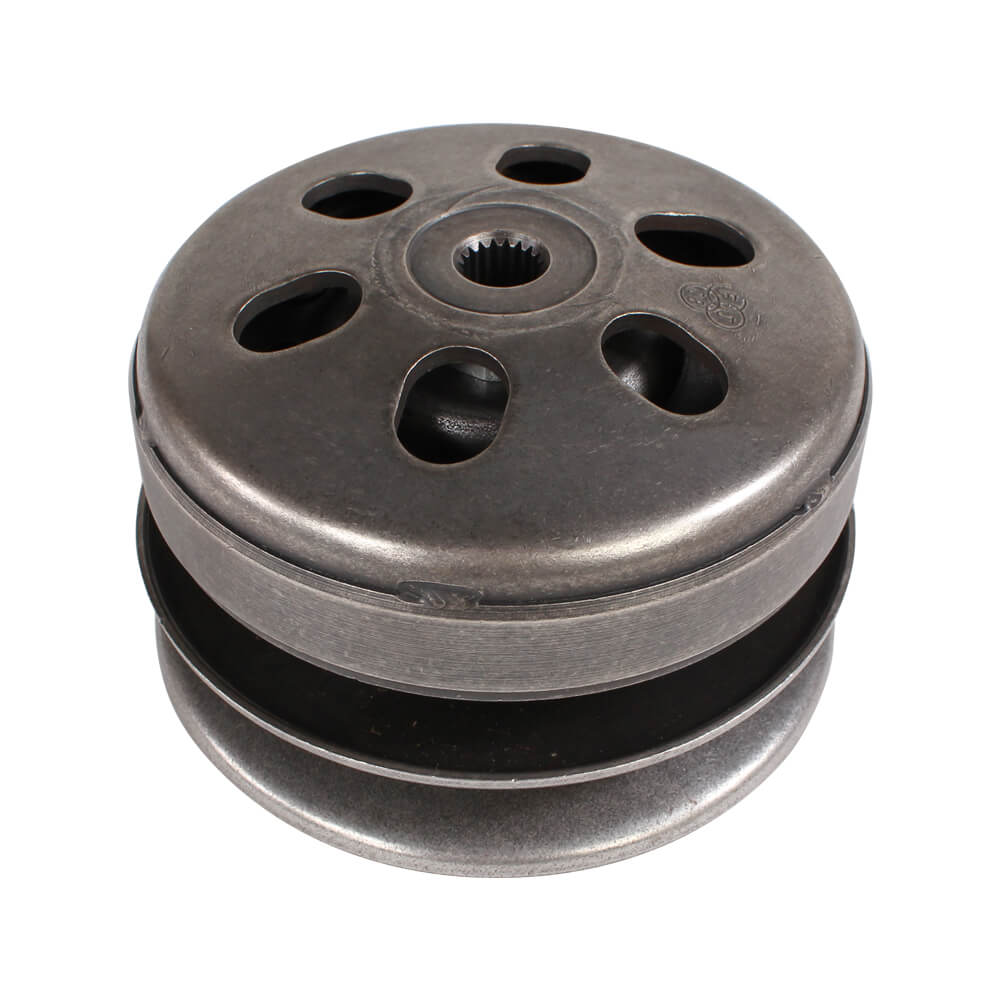

Complete Clutch Drive Assembly for GY6 125/150/169cc Scooters
This complete clutch drive assembly is designed for GY6 125, 150, and 169cc scooters. It includes a clutch bell, shoe carrier, and driven pulley. This assembly is one of the GY6 150cc scooter parts that offers a straightforward replacement solution for worn or damaged components. It ships fully assembled, making installation hassle-free.
Assembly Details

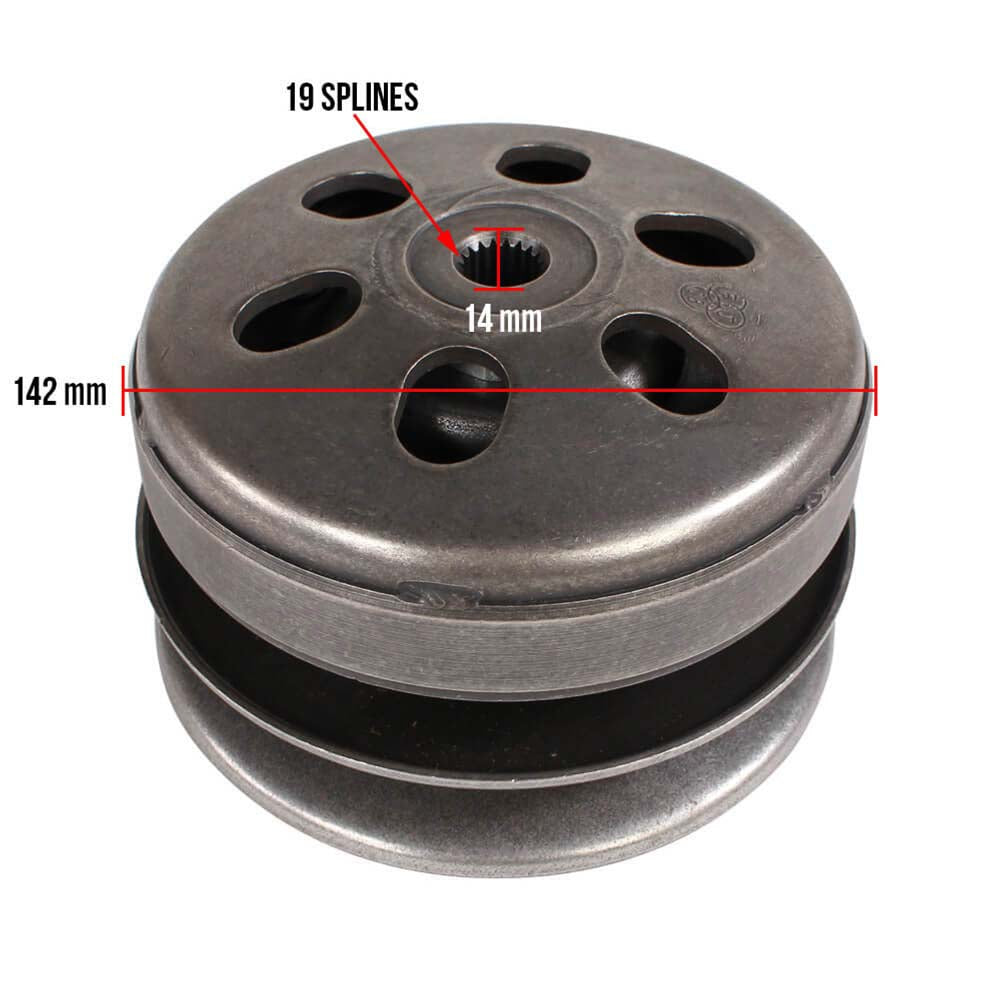

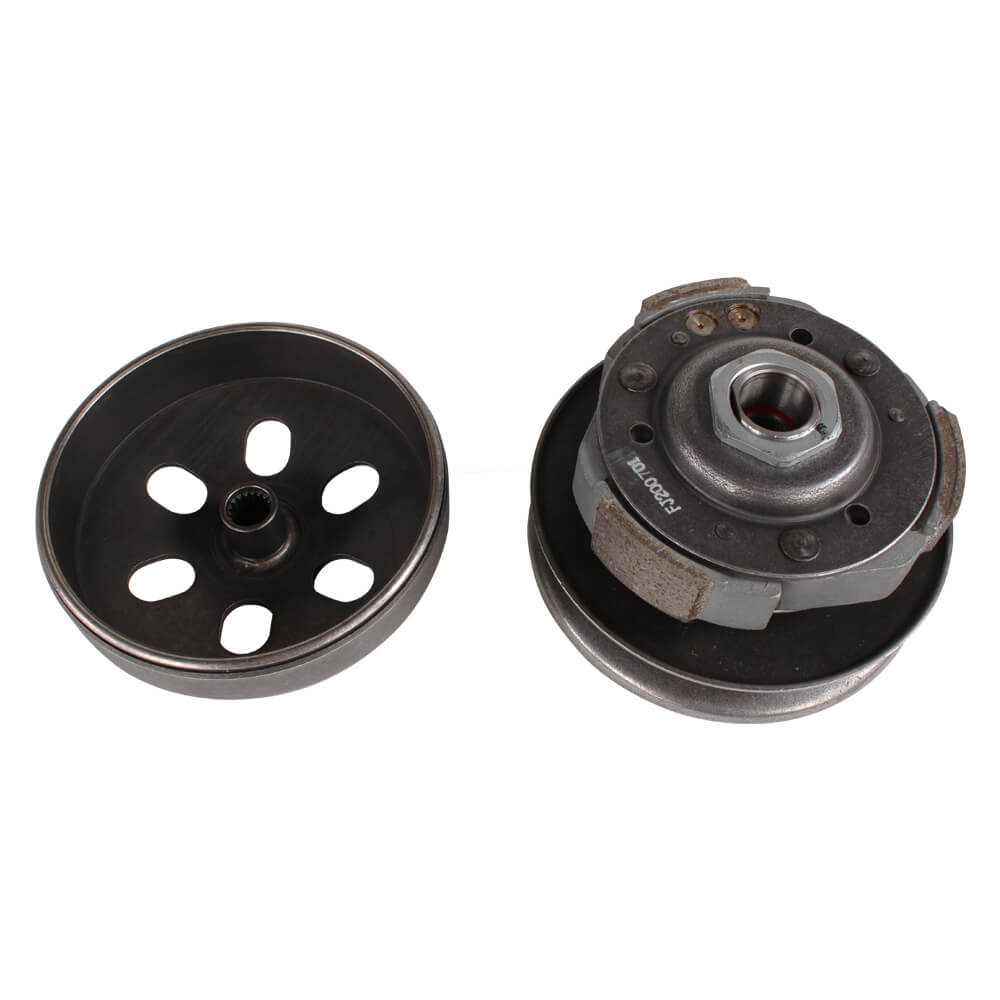

The clutch bell features a round bare metal design with six oval ventilation holes. It has an outer diameter of 142mm and an inner diameter of 125mm. The centrifugal clutch includes three friction material shoes with return springs and a center bearing hub for reliable performance. With a total of 19 splines, the assembly also has a spline bore of 14mm and an inner diameter of 13.6mm.
Compatibility Information
This assembly is compatible with various engines that have "QM" or "FM" in the engine code. It serves as a drop-in replacement for many scooters, ensuring a reliable fit without needing additional hardware. Check the compatibility list below to confirm fitment with your specific engine.
Specifications
- Bell Inner Diameter: 125mm
- Bell Outer Diameter: 137mm
- Pulley Outer Diameter: 142mm (5.6")
- Splines: 19
- Spline Inner Diameter: 13.6mm (peak to peak)
- Spline Bore: 14mm
- Ships: Fully assembled with bearings and seals
Fitment
This clutch drive assembly is designed for the following engine models:
- 157QMJ
- 161QMK
- 152QMI
- 1P61QMK
- YN1P57QMJ
- 1P52FMI
- 154FMI
- JJ157QMJ
- 1P57QMJ
- BN157QMJ
- BN161QMK-A
Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
