GY6 125/150cc 8-Coil AC Stator

AC Stator for GY6 125cc and 150cc Engines

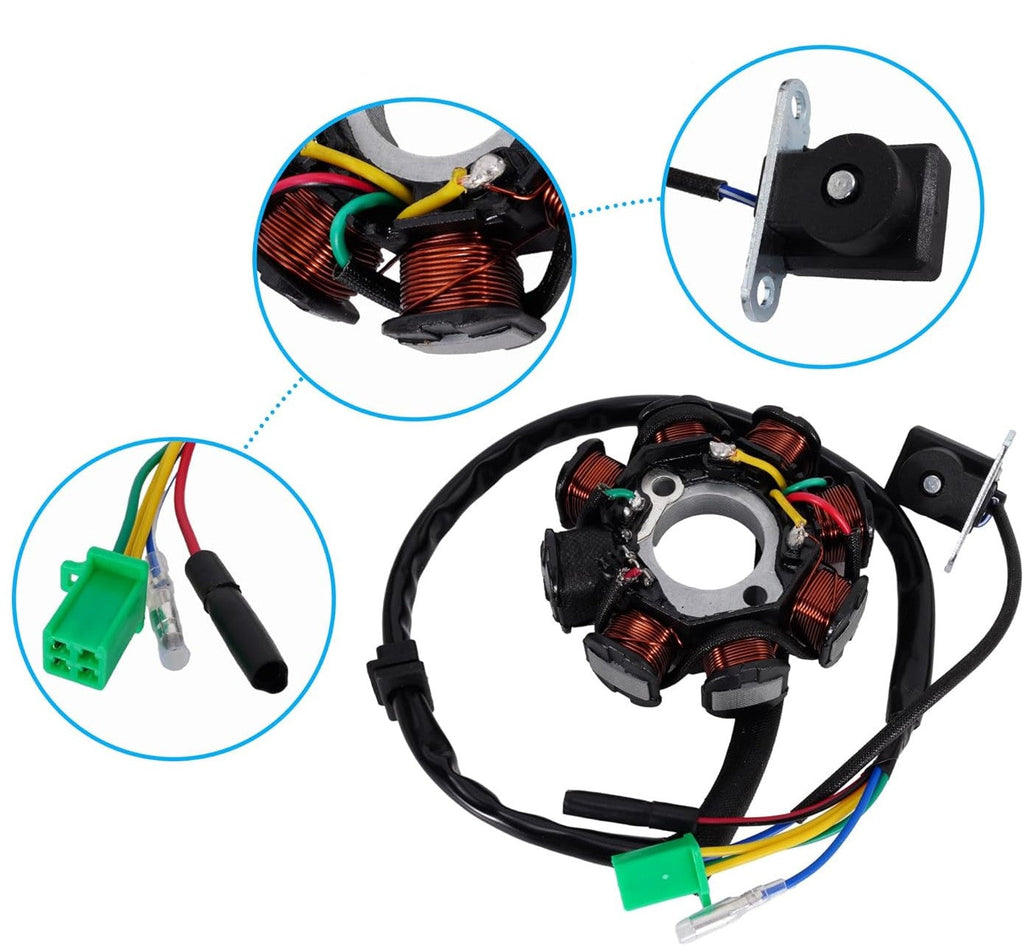

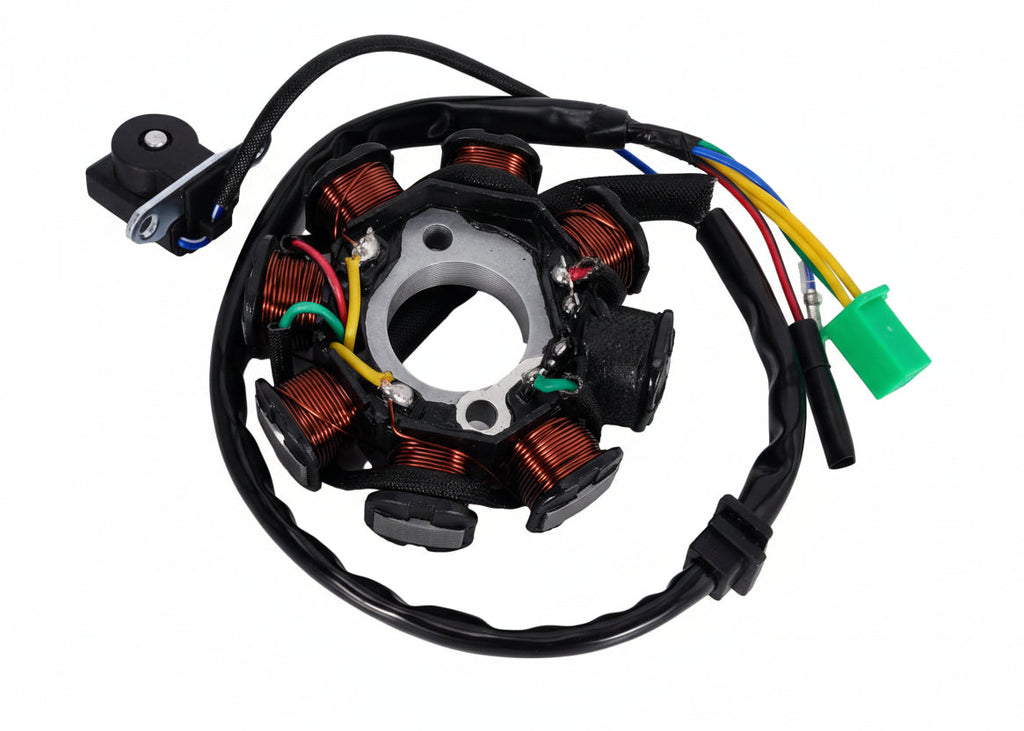

This 8-coil AC stator is designed for GY6 125cc and 150cc engines, offering reliable performance and efficiency. It ensures stable voltage output and maintains the correct electrical load for your scooter. This stator features a pre-installed magnetic pulse generator that provides accurate CDI timing signals. It is one of the GY6 150cc scooter parts that plays a key role in effective scooter maintenance.

Advanced Design Features

The stator boasts an 8-coil configuration, which improves heat dissipation compared to standard 6-coil models. This design supports full-wave AC performance, ensuring your scooter maintains the correct electrical load. Its plug-and-play wiring includes a 4-pin female connector and two bullet connectors for straightforward installation.

Dimensions and Fit

Measuring 88mm in diameter and 30mm in width, this stator fits both long-case and short-case GY6 engines. The mounting bolt spacing is 41mm center-to-center, with a bolt hole diameter of 6mm. It also features a wire length of 534mm (21 inches), providing ample reach for various scooter setups.

Specifications

• Stator Diameter: 88mm
• Width: 30mm
• Mounting Bolt Spacing: 41mm center-to-center
• Bolt Hole Diameter: 6mm
• Wire Length: 534mm (21 inches)
• Ignition Type: AC
• Plug Style: 4-pin female (3 pins used) + two bullet connectors

Fitment

This stator is compatible with the following vehicles:

• GY6 125cc (152QMI): TaoTao, Wolf, Ice Bear, Bintelli, Vitacci, Peace Sports
• GY6 150cc (157QMJ): Jonway, Roketa, Kazuma, SunL, Tank, TNG, Vento
• Genuine Scooters: Buddy 125, Buddy 150, Hooligan 170i (verify AC/DC first)

Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
