GY6 125/150cc 6-Coil 5-Wire AC Stator

6-Coil, 5-Wire AC Stator for GY6 125/150cc Engines

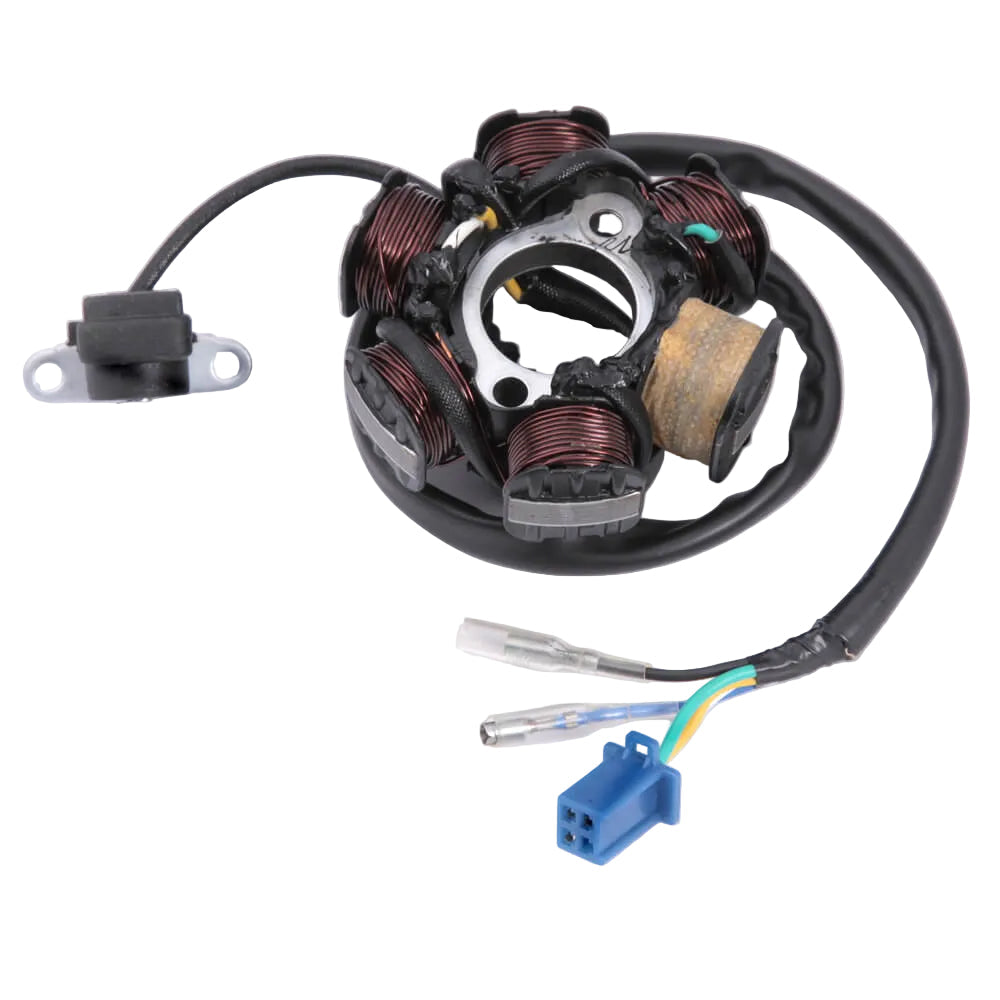

This 6-coil, 5-wire AC stator is designed for GY6 125/150cc engines, providing a reliable replacement for failed stators. If your scooter isn't functioning due to electrical issues, this aftermarket part is the ideal solution. It is one of the GY6 150cc scooter parts that effectively refreshes your engine's electrical system. The assembly incorporates six coils and an external pickup, ensuring compatibility with your existing setup.

Stator Assembly Overview

This replacement stator assembly is tailored specifically for GY6 electrical systems. It features a six-coil design, which is necessary for matching applications that require such a configuration. The five-wire setup includes an attached harness, simplifying the process of connecting to your scooter's wiring system.

Specifications and Dimensions

The stator is constructed for half-wave AC systems and includes an external pickup. Its dimensions—84 mm in diameter, 30 mm in width, and with a mounting-hole spacing of 41 mm—allow for accurate fitment to your scooter. It also comes with a coil wire length of 20 inches, facilitating easier connections.

Specifications

• Part Number: 164-217
• System: Half-wave AC
• Coils / Wires: Six / Five
• Diameter: 84 mm
• Width: 30 mm
• Mounting-Hole Spacing: 41 mm
• Mounting-Hole Diameter: 6 mm
• Coil-Wire Length: 20 inches
• Included: Stator, external pickup, attached wiring

Fitment

This stator fits GY6 125/150cc scooters and compatible 169cc configurations. It is specifically designed for engines like:

• 157QMJ
• 152QMI
• 161QMK
• 1P61QMK
• YN1P57QMJ
• 1P52FMI
• 154FMI
• JJ157QMJ
• 1P57QMJ
• BN157QMJ
• BN161QMK-A

Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
