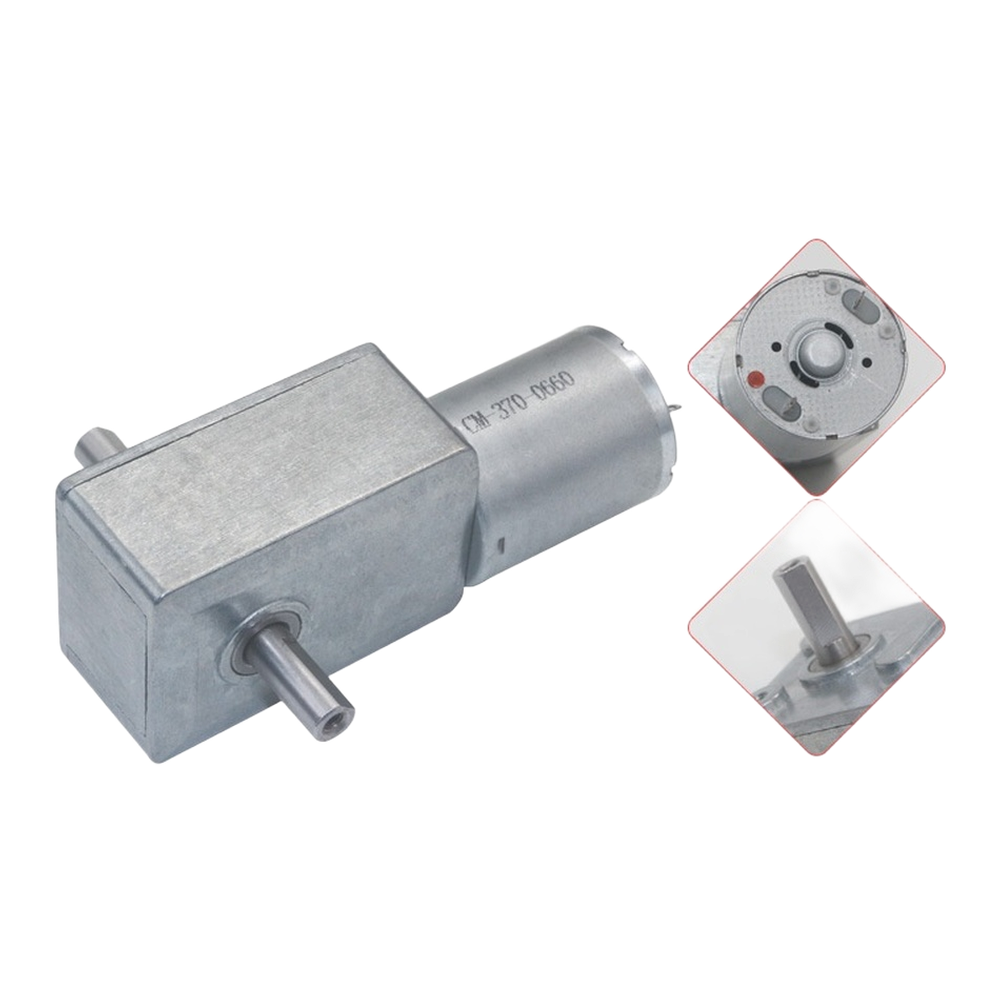

Dual Shaft JGY370 12V DC Worm Gear Motor

Dimensions: 76.8 x 32 x 33.5 mm

Features:

• Dual-Shaft Output: Provides simultaneous power transmission on both ends for versatile mechanical applications.
• Turbo Worm Gear System: Delivers high torque with excellent self-locking performance to prevent back-driving.
• Broad Voltage Options: Supports 12V inputs to match diverse power supply setups.
• Sturdy Metal Gears: Offers robust construction that withstands heavy loads up to 30KG for reliable operation.
• Reversible Rotation: Allows easy direction control by swapping terminal polarity for flexible motion design.

Specifications:

• Product Name: Gear Motor
• Material: Iron Alloy
• Operating Voltage: DC 12V
• No-load Current: ≤ 60mA
• Rated Current: ≤ 0.6A
• Stall Current: 1.7A
• Available No-load Options: 6, 10, 18, 23, 30, 40, 90, 150
• Rated Speed: 4 ~ 120 RPM, stable output for drive
• Rated Torque Range: 0.2 ~ 26.5 Kg.cm; Max Torque Range: 0.9 ~ 45 Kg.cm
• Color: Silver
• Size: 76.8 x 32 x 33.5 mm

Package Content:

1 x Reduction Motor

Note:

1. The actual color of the item may vary slightly from the pictures due to display and lighting factors.
2. Please allow slight manual measurement deviations for the data.
