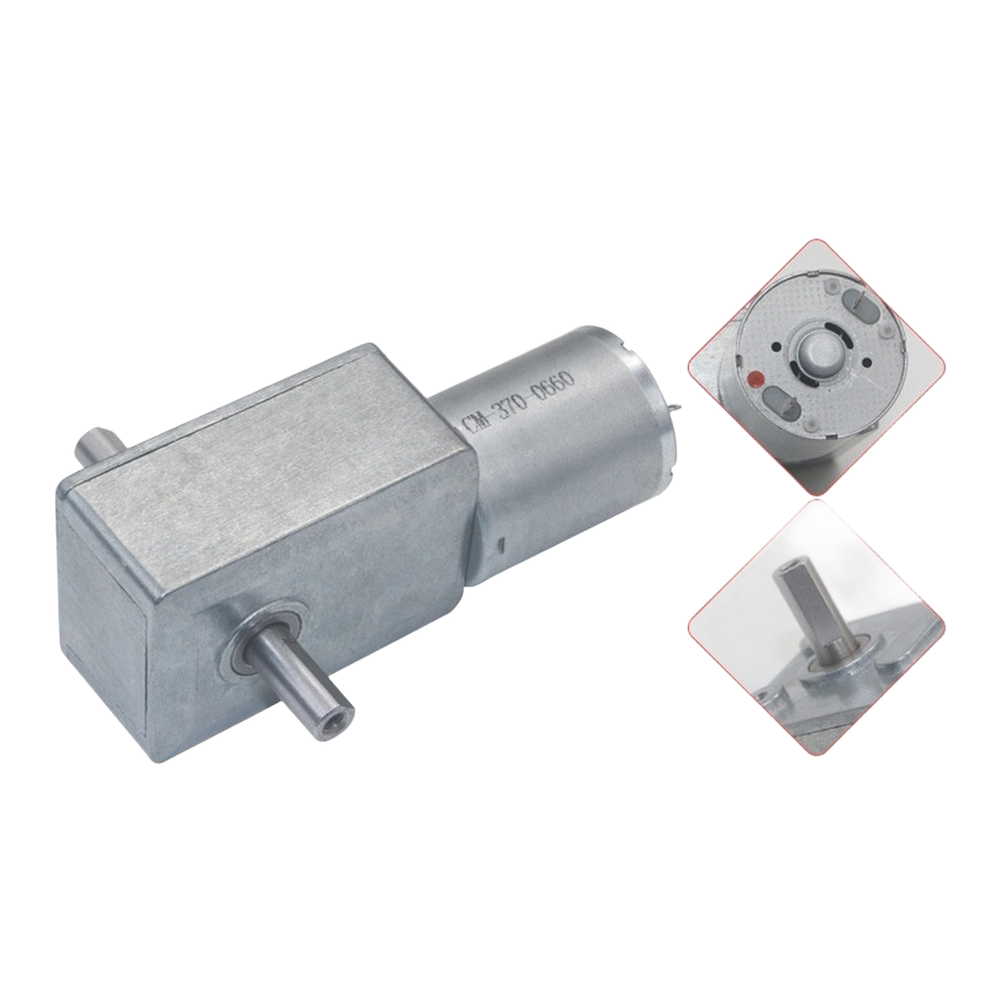

JGY370 Dual Shaft 12V DC Worm Gear Motor - Dimensions 76.8x32x33.5mm

Product Description

Features:

• Dual-Shaft Output: Provides simultaneous power transmission on both ends for versatile mechanical applications.
• Turbo Worm Gear System: Delivers high torque with excellent self-locking performance to prevent back-driving.
• Broad Voltage Options: Supports 12V inputs to match diverse power supply setups.
• Sturdy Metal Gears: Offers robust construction that withstands heavy loads up to 30KG for reliable operation.
• Reversible Rotation: Allows easy direction control by swapping terminal polarity for flexible motion design.

Specifications:

• Product Name: Gear Motor
• Material: Iron Alloy
• Operating Voltage: DC 12V
• No-load Current: ≤60mA
• Rated Current: ≤0.6A
• Stall Current: 1.7A
• Multiple No-load Options: 6, 10, 18, 23, 30, 40, 90, 150
• Rated Range: 4~120rpm, stable output for drive
• Rated Torque Range: 0.2~26.5 Kg.cm, Max Torque Range: 0.9~45 Kg.cm, strong load capacity
• Color: Silver
• Size: 76.8 x 32 x 33.5 mm

Package Content:

• 1 x Reduction Motor

Note:

• The actual color of the item may vary slightly from the pictures due to factors such as display brightness and lighting.
• Please allow slight manual measurement deviation for the data.
