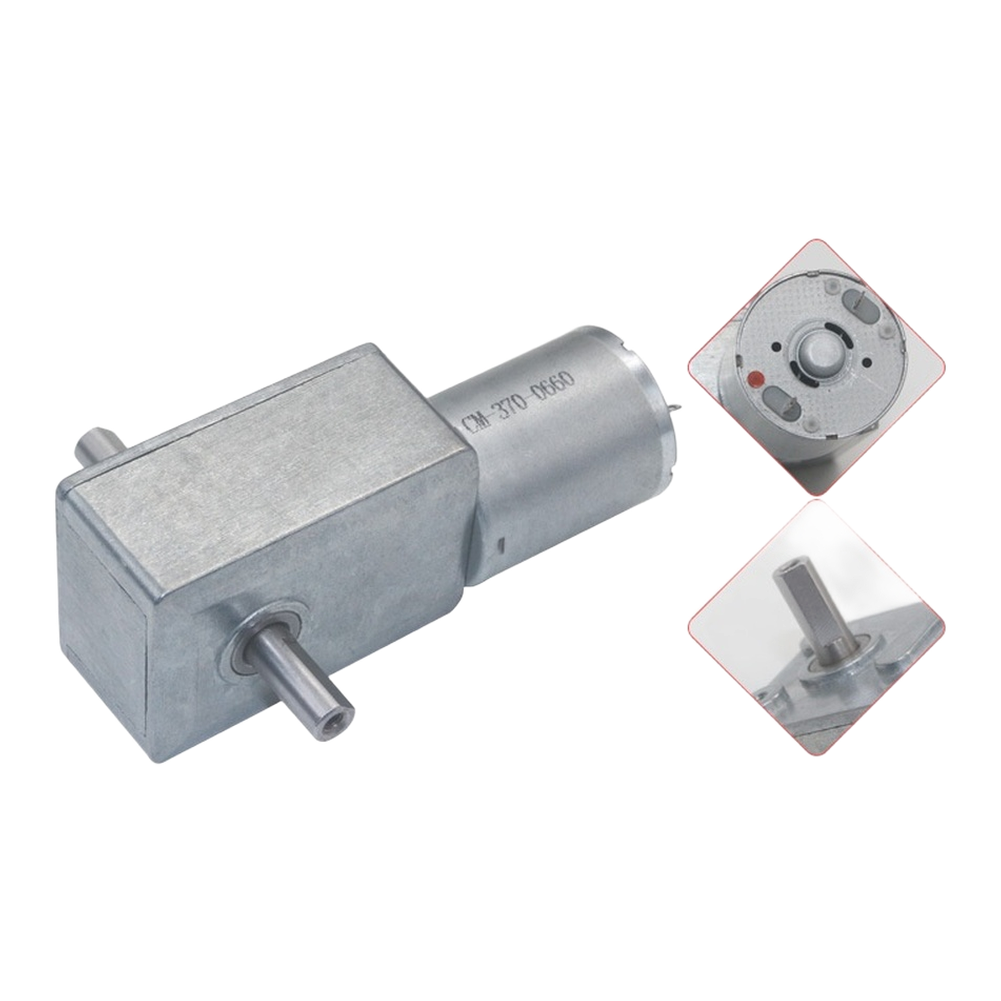

Dual Shaft Worm Gear Motor JGY370 12V DC for Engineering Applications

Product Description

Features:

• Dual-Shaft Output: Provides simultaneous power transmission on both ends for versatile mechanical applications.
• Turbo Worm Gear System: Delivers high torque with excellent self-locking performance to prevent back-driving.
• Broad Voltage Options: Supports 12V inputs to match diverse power supply setups.
• Sturdy Metal Gears: Offers robust construction that withstands heavy loads up to 30KG for reliable operation.
• Reversible Rotation: Allows easy direction control by swapping terminal polarity for flexible motion design.

Specifications:

• Product Name: Gear motor
• Material: Iron alloy
• Operating Voltage: DC 12V
• No-load Current: ≤ 60mA
• Rated Current: ≤ 0.6A
• Stall Current: 1.7A
• Multiple No-load Options: 6, 10, 18, 23, 30, 40, 90, 150
• Rated Range: 4~120rpm, stable output for drive
• Rated Torque Range: 0.2~26.5 Kg.cm, Max torque range: 0.9~45 Kg.cm, strong load capacity
• Color: Silver
• Size: 76.8 x 32 x 33.5mm

Package Content:

• 1 x Reduction motor

Note:

1. The real color of the item may vary slightly from the pictures shown due to various factors, including display brightness and lighting conditions.

2. Please allow slight manual measurement deviation for the data.
