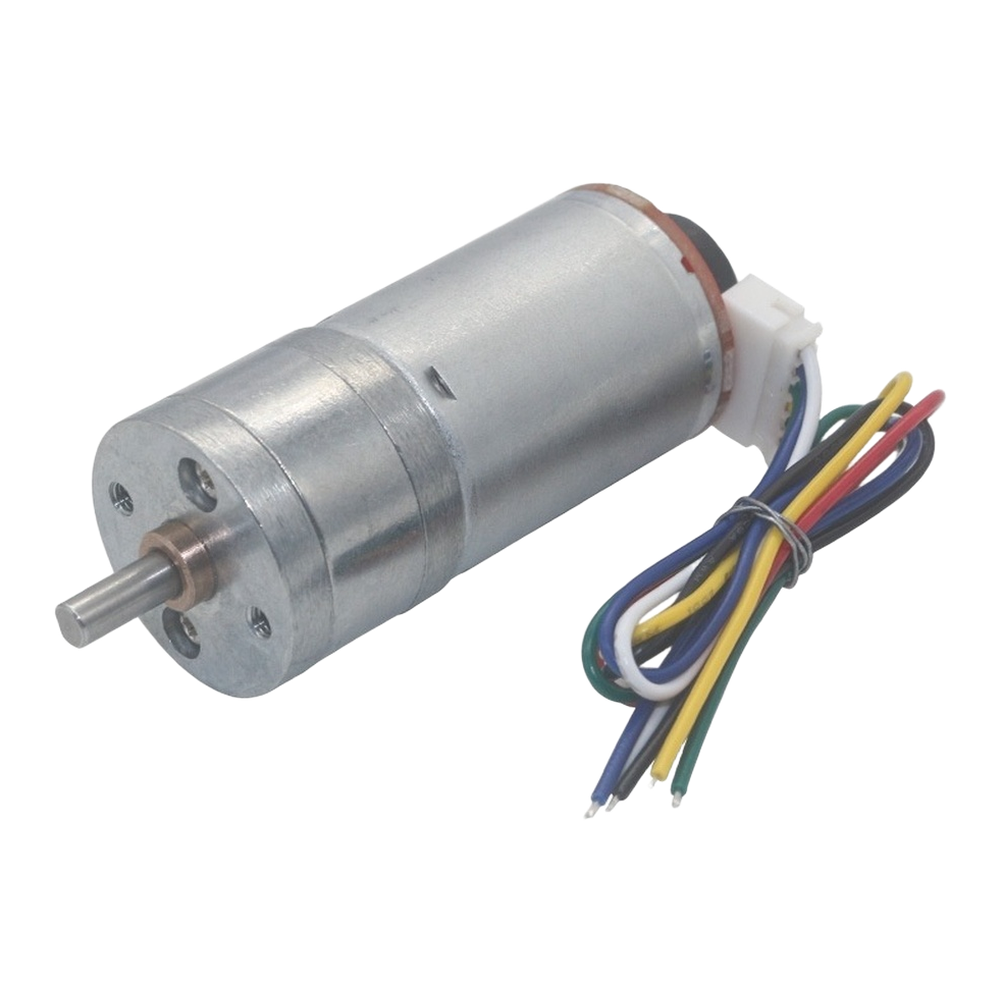

12V JGA25-370 Gear Motor with Encoder for Automated Conveyor Systems

Product Description

Features:

• Multiple Gear Ratio Options & Stable No-Load: This 12V JGA25-370-EN DC reduction motor provides various gear ratios for selection:
  • 21.3K: 260-280 RPM no-load
  • 34K: 150-180 RPM no-load
  • 45K: 110-130 RPM no-load
  • 75K: 70-85 RPM no-load
  Perfect for satisfying different torque demands and widely recognized for self-balancing trolley projects.
• Built-in Encoder for Real-time Detection: Equipped with an encoder for real-time rotational detection, supporting precise closed-loop control and position tracking. Enhances motion control accuracy for smart vehicles, robotic arms, and automated equipment, compatible with PID algorithms.
• High Torque & Reliable Gear Structure: Utilizes a mature 25GA370 gear reduction structure with a sturdy metal gear set, providing strong continuous torque and stability during prolonged operation while minimizing vibration and noise.
• DC 12V Standard Working Voltage: Designed for standard DC 12V power supply, compatible with common lithium batteries and DC adapters, ideal for enthusiasts, student projects, and laboratory experiments.
• Extensive DIY & Automated Equipment Applications: The encoder gear motor is ideal for self-balancing cars, smart tracked vehicles, robotic arms, and various small automation projects.

Specifications:

• Product Name: JGA25-370 series DC geared motor
• Rated Voltage: DC12V
• No-load Current: 0.07 A
• Rated Current: 0.3 A
• Stall Current: 1.8 A
• Motor Weight: 83g - 90g
• Gear Ratios:
  • 21.4K: No-load 280 RPM, Rated 215 RPM, Rated Torque 0.4 Kg.cm, Stall Torque 2 Kg.cm, Length: 19 mm
  • 34K: No-load 170 RPM, Rated 131 RPM, Rated Torque 0.69 Kg.cm, Stall Torque 3.3 Kg.cm, Length: 21 mm
  • 45K: No-load 130 RPM, Rated 100 RPM, Rated Torque 0.9 Kg.cm, Stall Torque 4.4 Kg.cm, Length: 21 mm
  • 74.8K: No-load 77 RPM, Rated 59 RPM, Rated Torque 1.5 Kg.cm, Stall Torque 5.5 Kg.cm, Length: 23 mm
• Material: Iron, Aluminum Alloys
• Color: Silver
• Size: 31 x 24.4 x 24.4 mm

Package Content:

• 1 Motor + 1 Encoder

Note:

1. The actual color of the item may differ slightly from the pictures due to various factors such as display brightness.
2. Please allow slight manual measurement deviations for the data.
