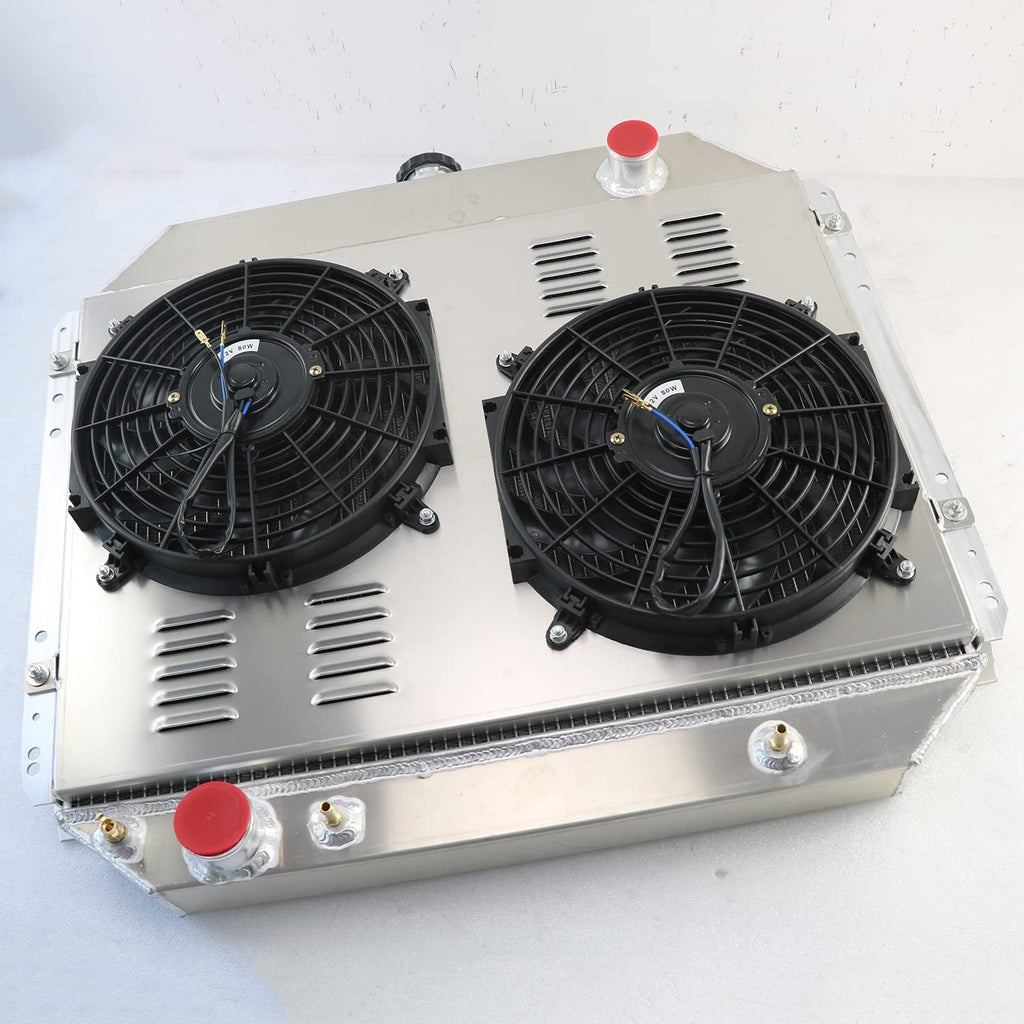

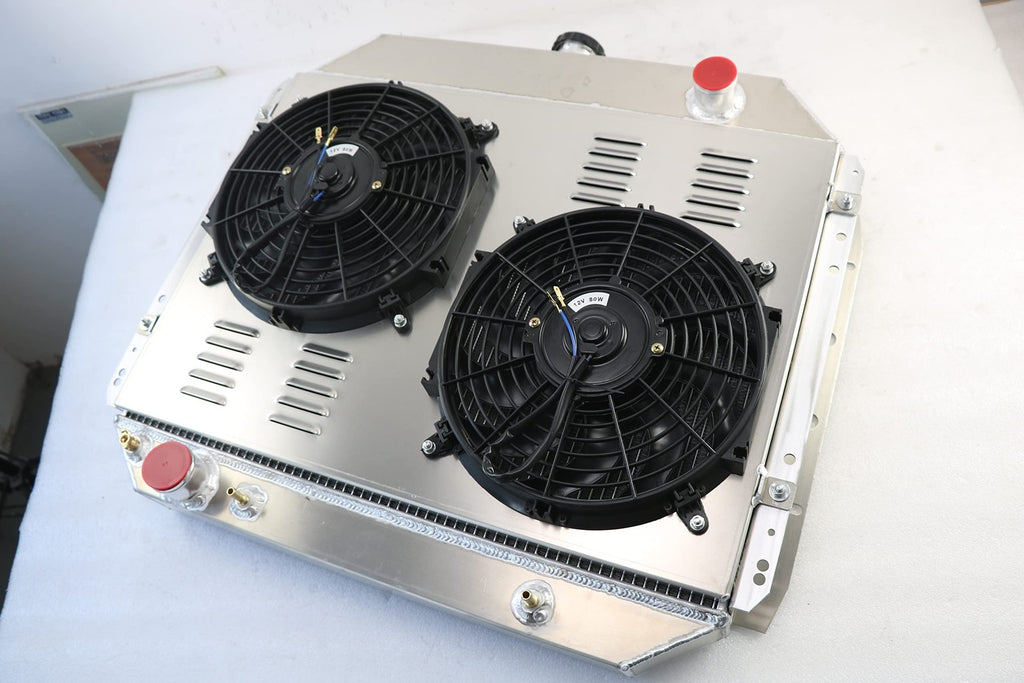

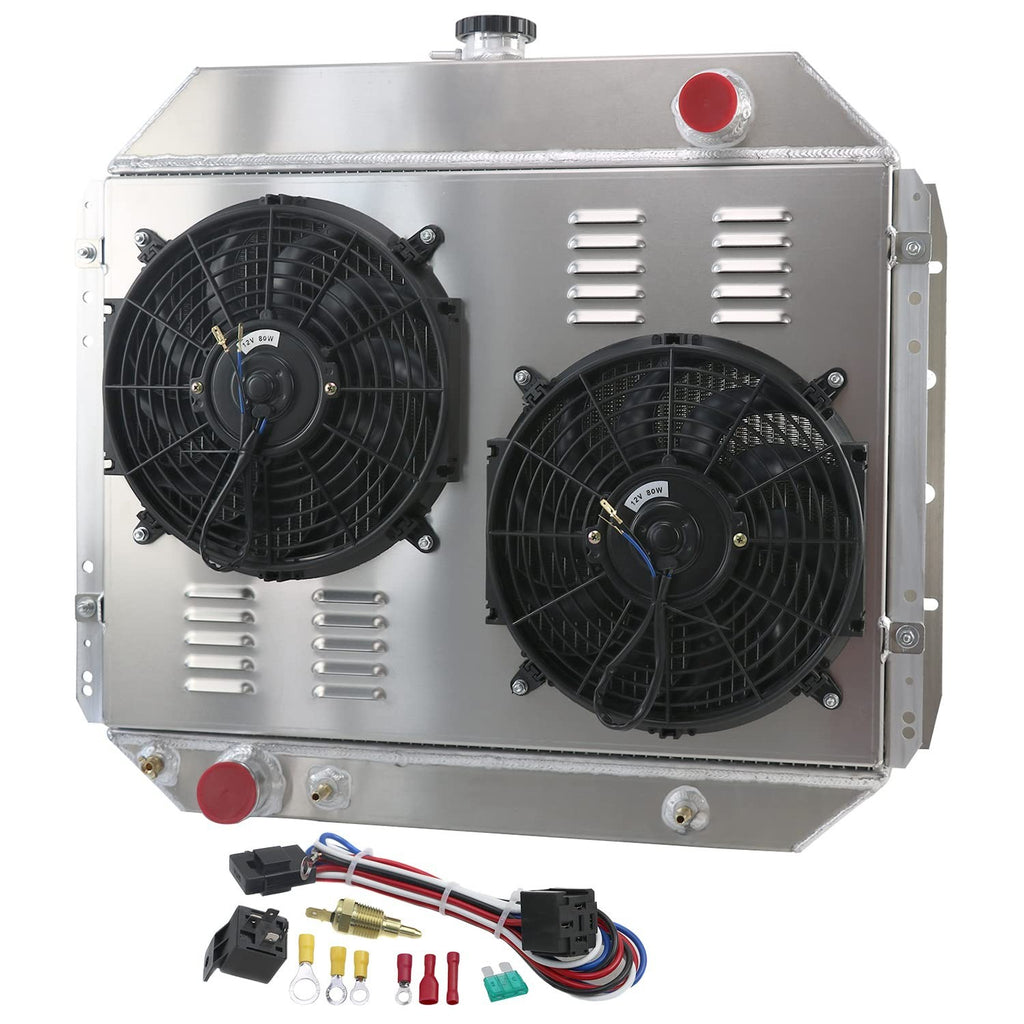

CoolingCare Radiator for Classic Ford Bronco and F-Series Trucks (1966-1979)

CoolingCare Radiator for 1966-1979 Ford Bronco & F-Series Trucks

Product Details

• Core Size: 18.9 x 25.9 x 1.73 inches
• Overall Size: 26.2 x 29.5 x 6.5 inches
• Core Design: All aluminum 3 row core

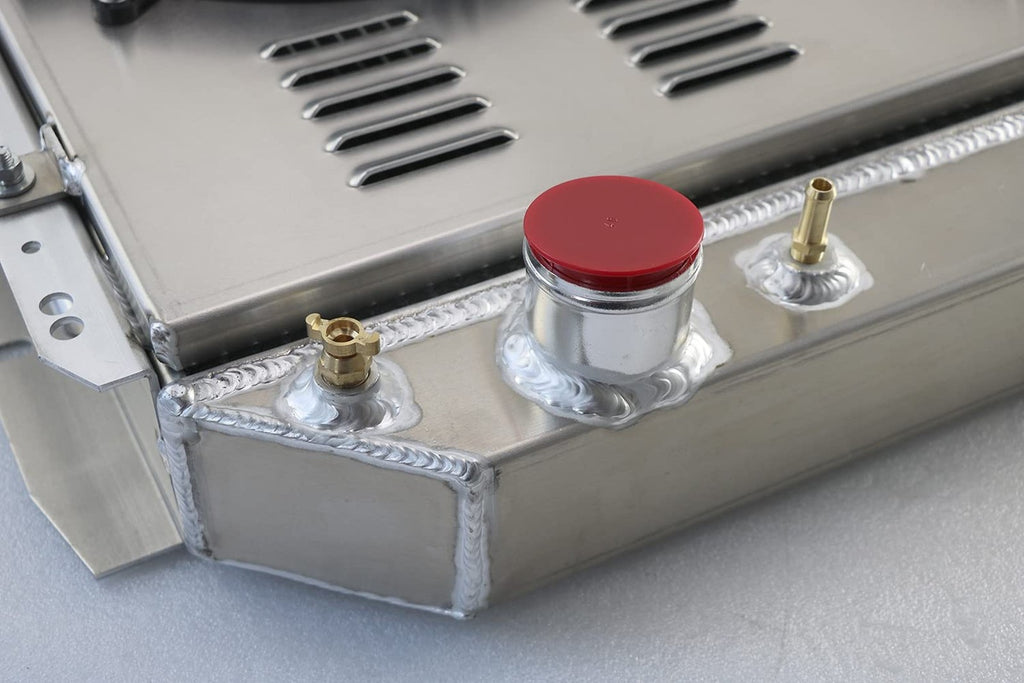

• Inlet/Outlet: 1.75 inch top inlet at passenger side; 2 inch bottom outlet at driver side
• Internal Transmission Oil Cooler: 1/8-27 NPT
• Durability: 100% leak tested; no drilling or modifications needed for installation
• Construction: All aluminum for enhanced heat and pressure tolerance
• Performance: 30-35% increased flow

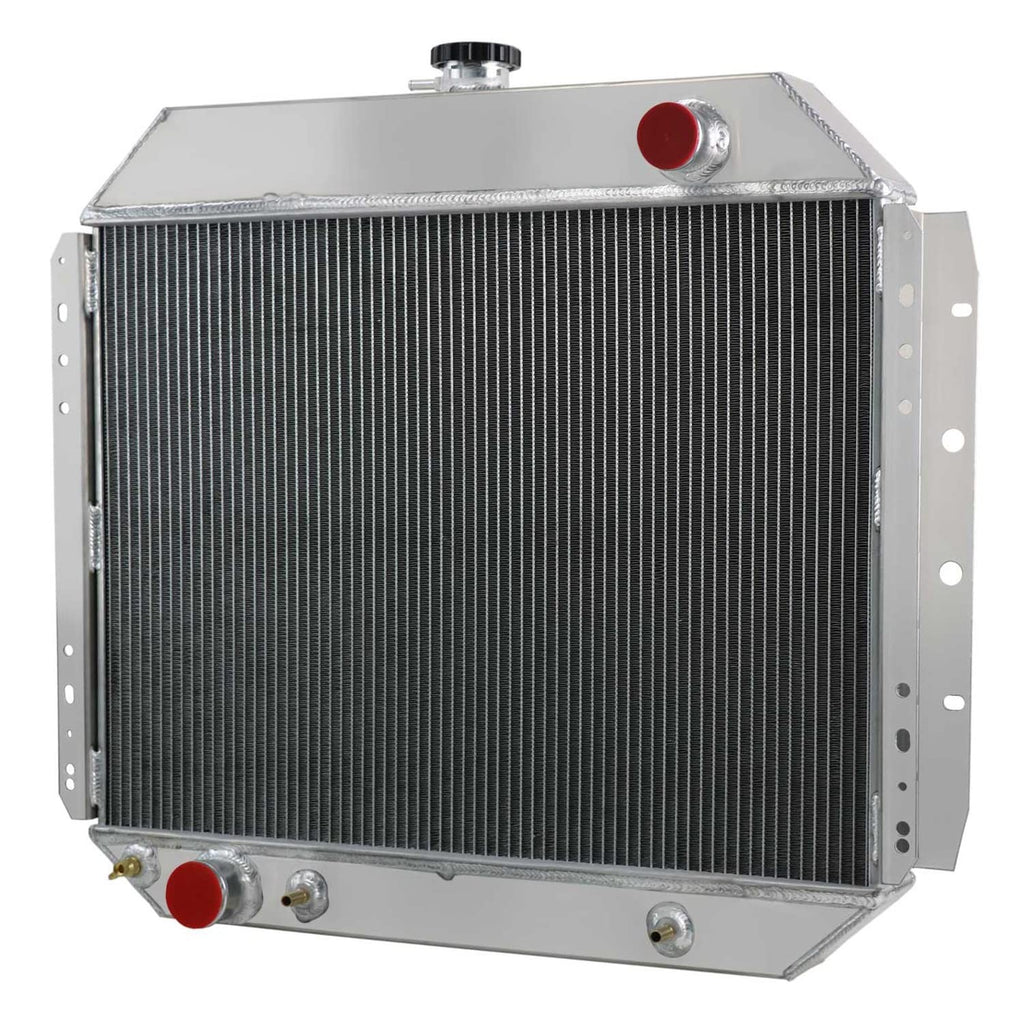

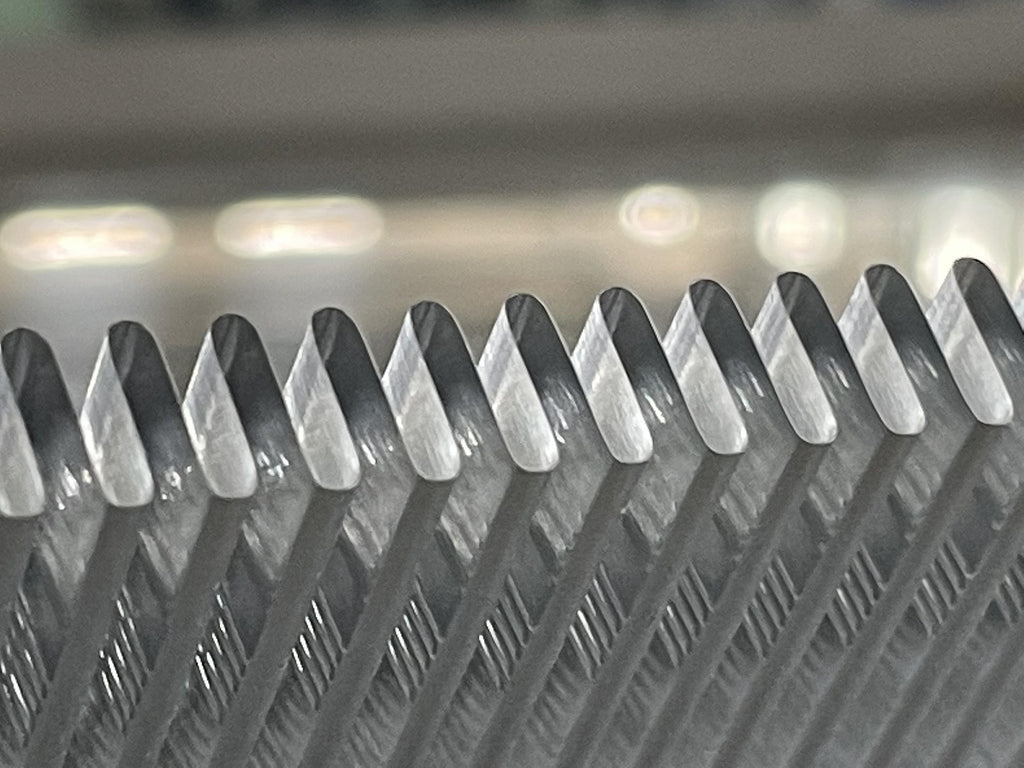

• Core Type: 100% brazed aluminum core with polished end tanks
• Fitment: Crafted to OE standards for precise fit
• Note: Please double-check sizes and images to avoid ordering errors

Radiator Specifications:
Core Material: Aluminum
Tank Material: Aluminum
Core Size: 18.9" x 25.9" x 1.73"
Overall Size: 26.2" x 29.5"
Inlet/Outlet: 1.75" / 2"
Engine Oil Cooler: No
Transmission Oil Cooler: Included
Flow Type: Downflow
Mounting Type: Bracket

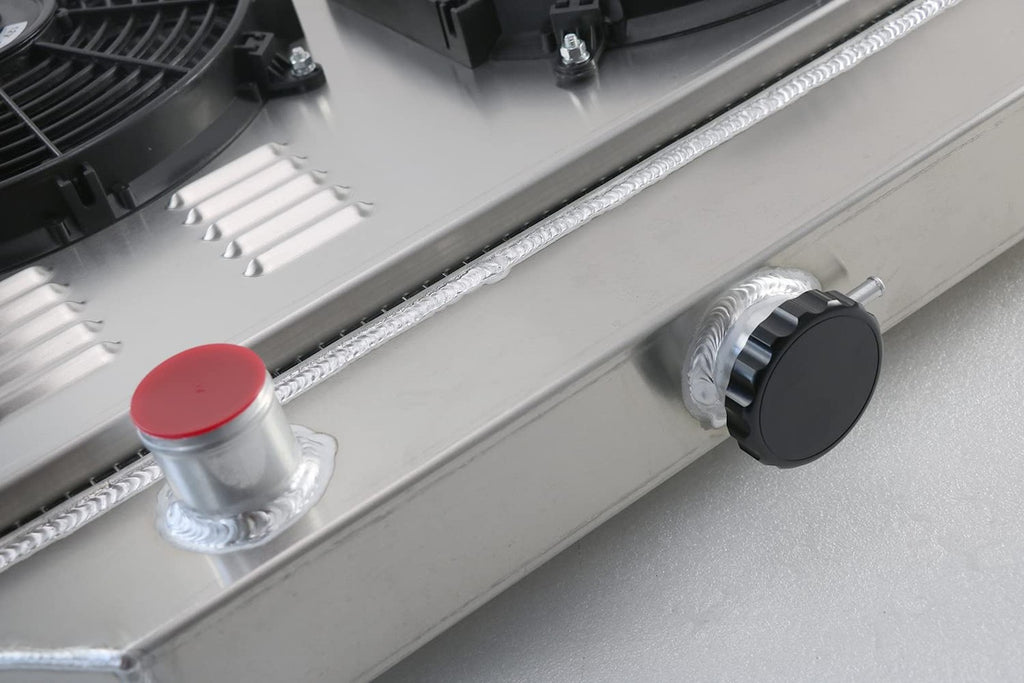

Radiator Cap: Included

Fan Specifications:
Maximum CFM: 2300 ± 200
Diameter: 12.05" x 12.05" x 2.5"
Number of Blades: 10 (Plastic)
Amp Draw: 12.70 amps
Maximum RPM: 2,250 rpm

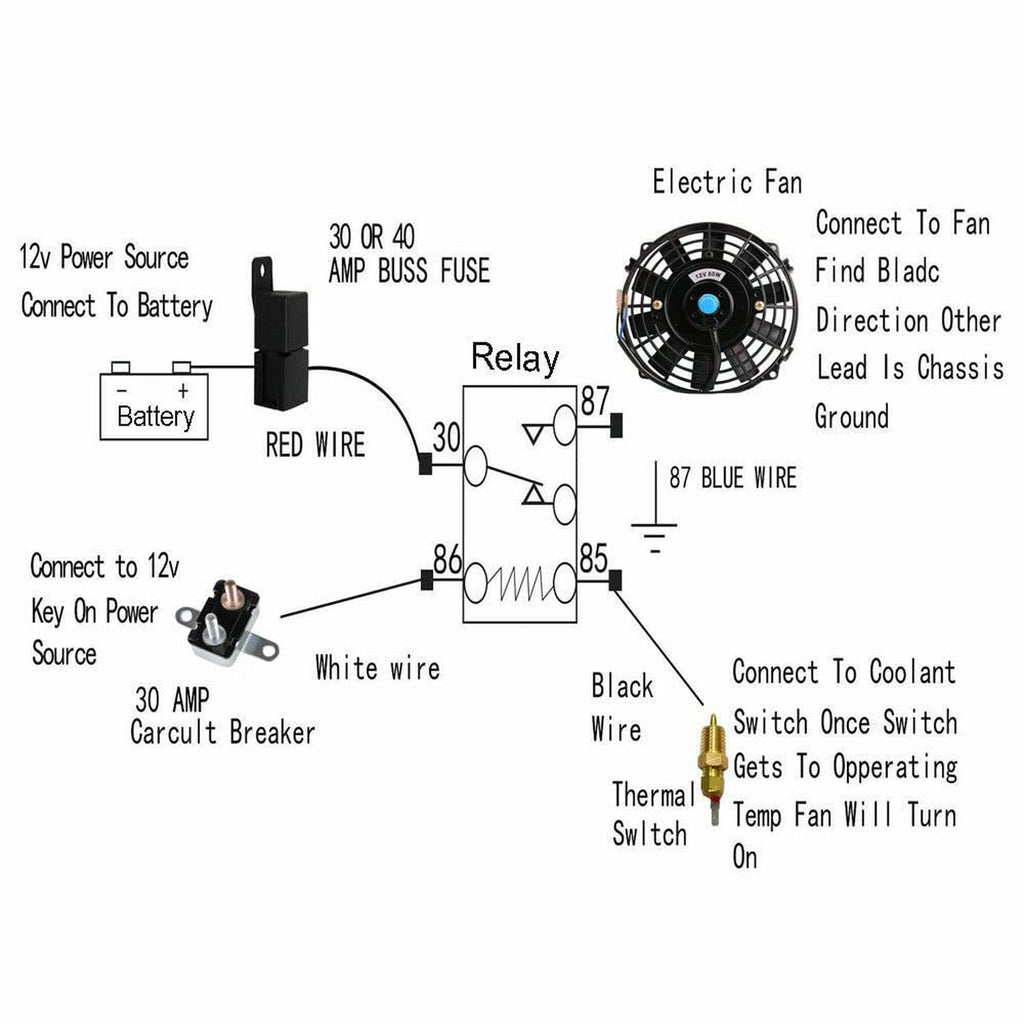

Relay Instruction: RED + connect directly to battery; WHITE to ignition switch power source; BLACK to thermos switch; BLUE to the fans.

Vehicle Fitment:
Compatible with:
- Ford Bronco 2.8L L6 (1966-1972)
- Ford Bronco 3.3L L6 (1973-1974)
- Ford Bronco 3.9L L6 (1966-1967)
- Ford Bronco 4.7L V8 (1966-1968)
- Ford Bronco 5.0L V8 (1968-1977)
- Ford Bronco 5.8L/6.6L V8 (1978-1979)
- Ford F100/F250/F350 3.9L L6 (1966-1974)
- Ford F100 4.7L V8 (1966-1972)
- Ford F100/F250/F350 4.9L L6 (1966-1979)
- Ford F100 5.0L V8 (1969-1979)
- Ford F100/F250/F350 5.8L V8 (1966-1967, 1977-1979)
- Ford F100/F250/F350 5.9L V8 (1966-1976)
- Ford F100/F250/F350 6.4L V8 (1968-1976)
- Ford F100/F150/F250/F350 6.6L V8 (1977-1979)
- Ford F100 7.5L V8 (1973-1974, 1979)
- Ford F150 4.9L L6 (1975-1979)
- Ford F150 5.0L/7.5L V8 (1975-1979)
- Ford F150 5.8L V8 (1977-1979)
- Ford F150 5.9L/6.4L V8 (1975-1976)
- Ford F250 5.0L V8 (1969-1974, 1977-1978)
- Ford F250/F350 7.5L V8 (1973-1979)
- Ford F350 5.0L V8 (1966-1979)
- Ford F500 6.4L V8 (1976)
