Aluminum Radiator for 1966-1979 Ford F-Series Trucks

Aluminum Radiator for 1966-79 Ford F150, F250, F350, F550 & 1978-79 Bronco V8 Pickup Truck

Product Details

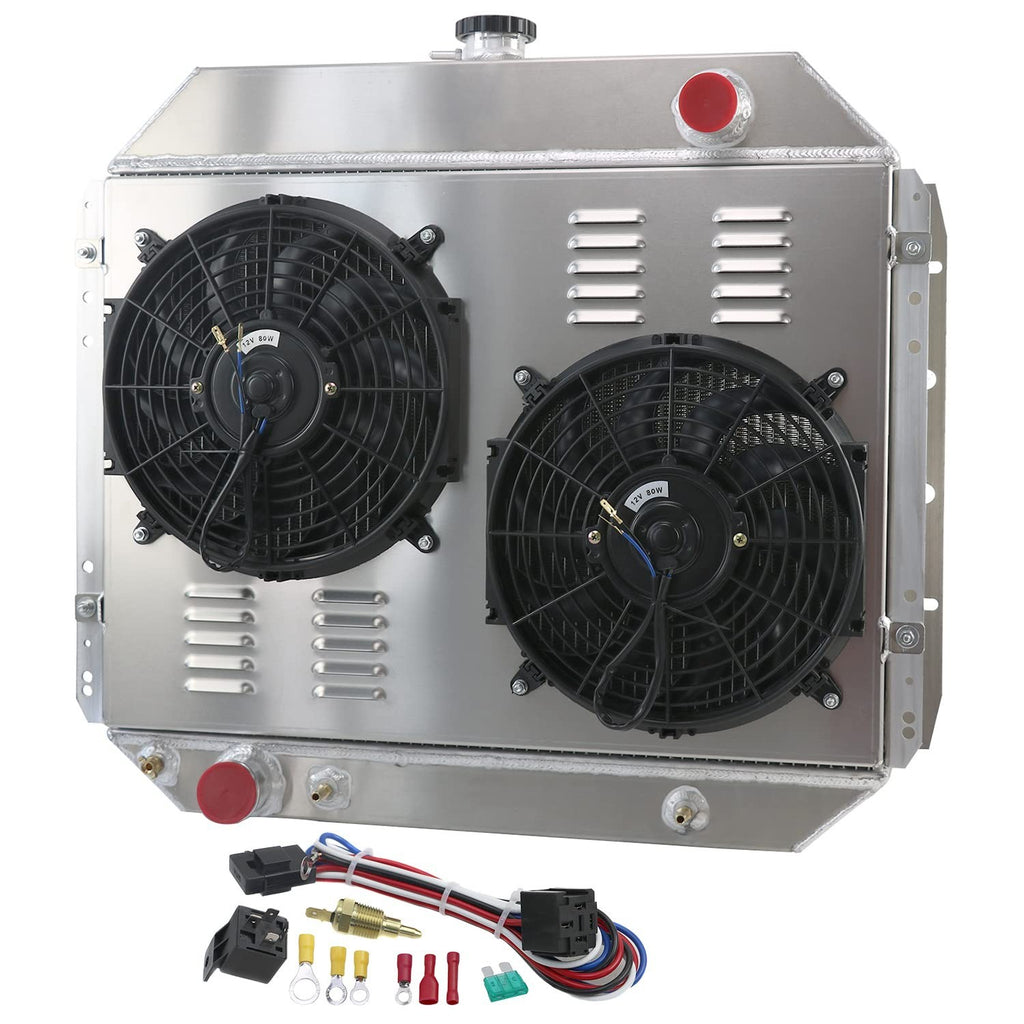

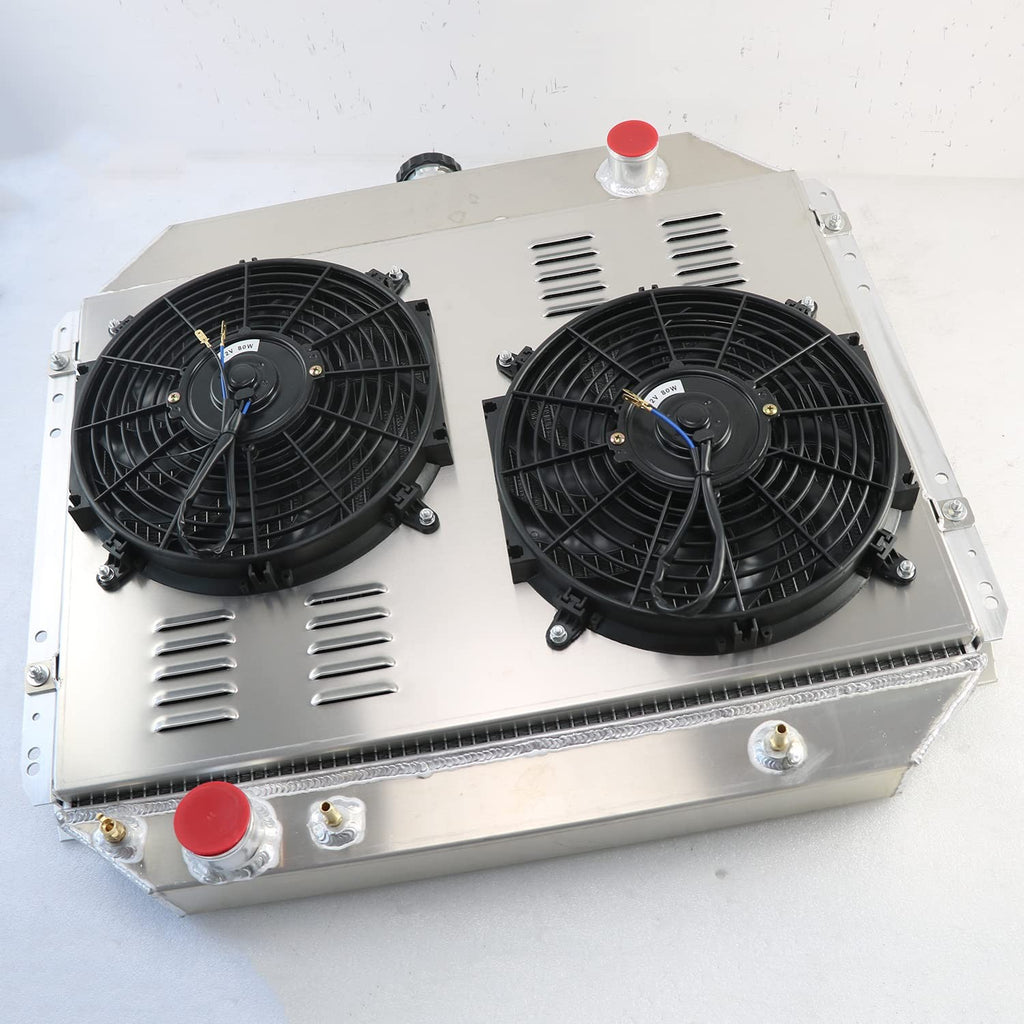

This listing includes:

• 1 x 3-row aluminum radiator
• 1 x aluminum shroud
• 2 x 12" fans (including mounting kits)
• 1 x thermostat relay kit

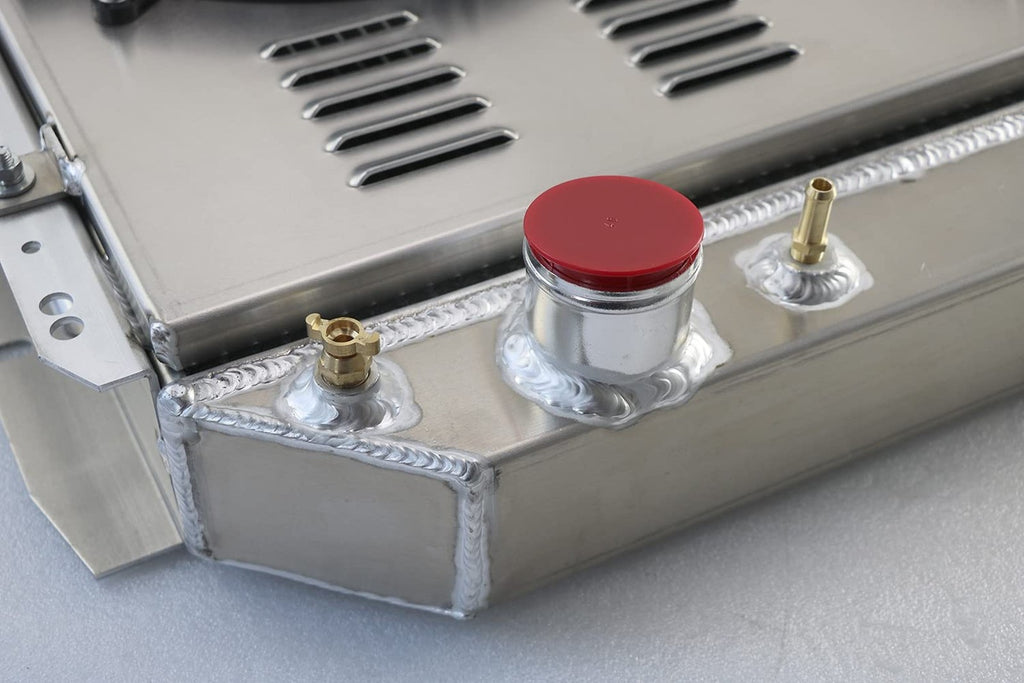

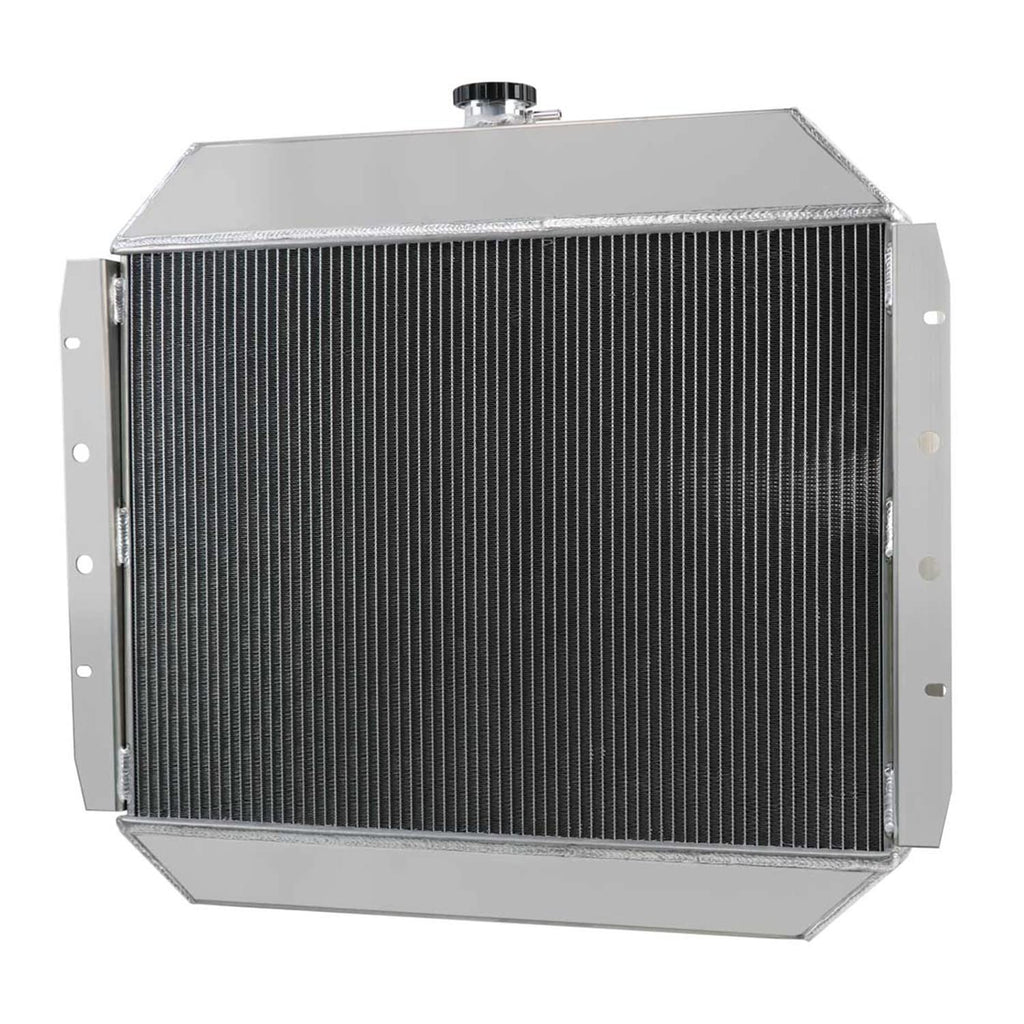

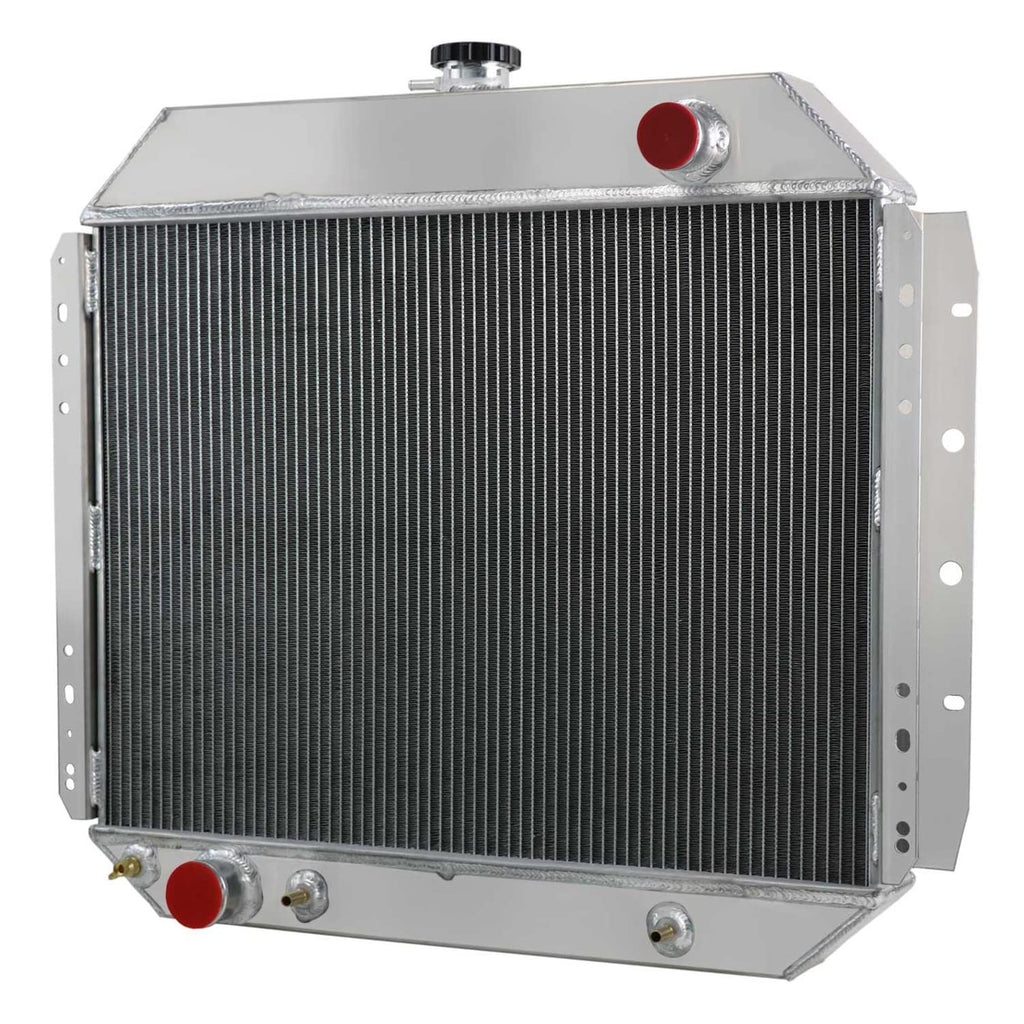

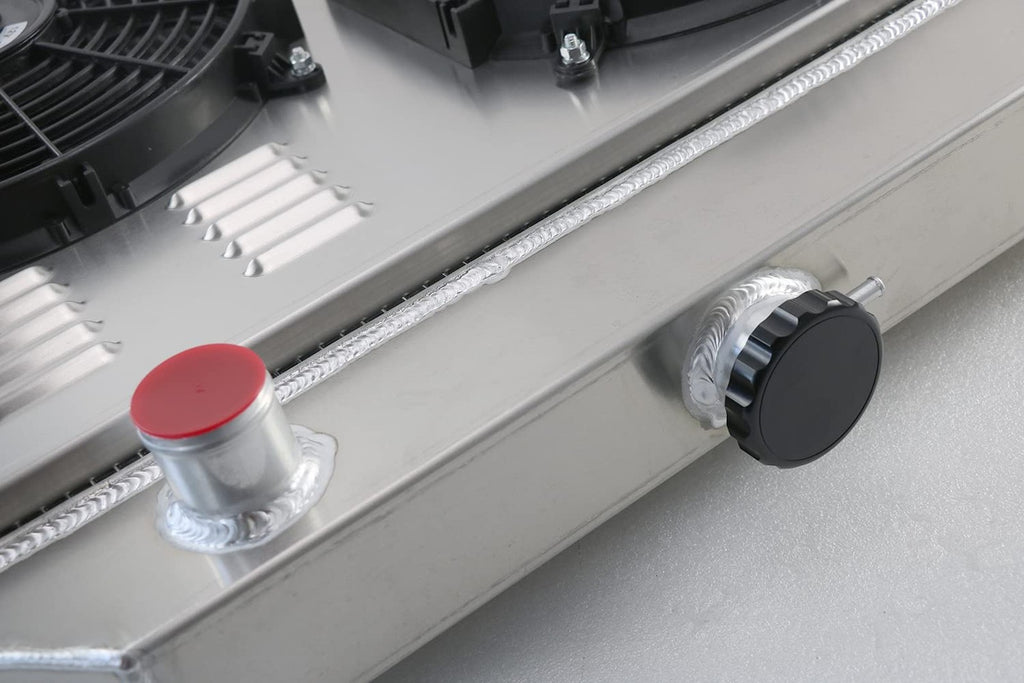

Radiator Specifications:

• Core Material: Aluminum
• Tank Material: Aluminum
• Core Size: 18.9” x 25.9” x 1.73”
• Overall Size: 26.2” x 29.5”
• Inlet/Outlet: 1.75” / 2”
• Engine Oil Cooler: No
• Trans Oil Cooler: Included
• Flow Type: Downflow
• Mounting Type: Bracket
• Radiator Cap: Included

Fan Specifications:

• Maximum CFM: 2300 ± 200
• Diameter: 12.05" x 12.05" x 2.5"
• Number of Blades: 10 (Plastic)
• Amp Draw: 12.70 amps
• Maximum RPM: 2,250 rpm

Relay Instructions:

• RED: Connect directly to battery
• WHITE: To ignition switch power source
• BLACK: To thermos switch
• BLUE: To the fans

Vehicle Fitment:

• Ford Bronco 2.8L L6 (1966-1972)
• Ford Bronco 3.3L L6 (1973-1974)
• Ford Bronco 3.9L L6 (1966-1967)
• Ford Bronco 4.7L V8 (1966-1968)
• Ford Bronco 5.0L V8 (1968-1977)
• Ford Bronco 5.8L/6.6L V8 (1978-1979)
• Ford F100/F250/F350 3.9L L6 (1966-1974)
• Ford F100 4.7L V8 (1966-1972)
• Ford F100/F250/F350 4.9L L6 (1966-1979)
• Ford F100 5.0L V8 (1969-1979)
• Ford F100/F250/F350 5.8L V8 (1966-1967, 1977-1979)
• Ford F100/F250/F350 5.9L V8 (1966-1976)
• Ford F100/F250/F350 6.4L V8 (1968-1976)
• Ford F100/F150/F250/F350 6.6L V8 (1977-1979)
• Ford F100 7.5L V8 (1973-1974, 1979)
• Ford F150 4.9L L6 (1975-1979)
• Ford F150 5.0L/7.5L V8 (1975-1979)
• Ford F150 5.8L V8 (1977-1979)
• Ford F150 5.9L/6.4L V8 (1975-1976)
• Ford F250 5.0L V8 (1969-1974, 1977-1978)
• Ford F250/F350 7.5L V8 (1973-1979)
• Ford F350 5.0L V8 (1966-1979)
• Ford F500 6.4L V8 (1976)

Note: Please check core/overall/inlet/outlet size carefully before you order.
