CN250 Complete Scooter Variator Kit

Variator Kit for 250cc 4-Stroke Water-Cooled Engines

The CN250 Complete Scooter Variator Kit is designed for 250cc four-stroke water-cooled engines, making it a reliable replacement or upgrade for your scooter. This kit includes components that ensure your scooter runs smoothly and efficiently. It is one of the Chinese scooter parts that can be easily swapped at home, providing a straightforward solution for riders looking to improve performance or maintain their vehicle. With proper installation, this variator kit supports the overall functionality of your scooter's transmission system.

Roller Weights and Assembly Details

This variator kit comes with 21g roller weights that are pre-greased from the factory. It is important to inspect the roller weights before installation to ensure they are correctly seated in the ramps. Proper assembly is important for the performance and longevity of your scooter's transmission system.

Dimensions and Compatibility

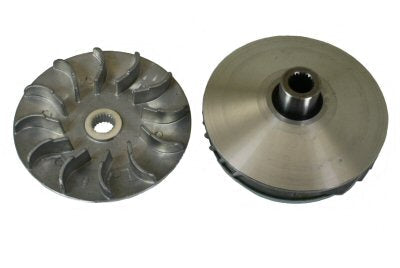

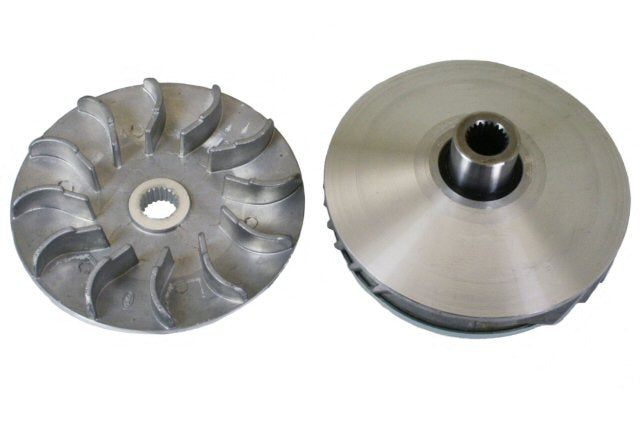

The variator assembly features a drive face with 21 splines and an inner diameter of 15mm, while the outer diameter measures 128mm. The variator itself also has 21 splines, with the same diameter specifications. This ensures that it fits a range of compatible scooters, allowing for straightforward integration into various models.

Specifications

• Roller Weight: 21g
• Number of Splines (Drive Face): 21
• Inner Diameter (Drive Face): 15mm
• Outer Diameter (Drive Face): 128mm
• Number of Splines (Variator): 21
• Inner Diameter (Variator): 15mm
• Outer Diameter (Variator): 128mm

Fitment

This variator kit is compatible with a range of scooters powered by 250cc 172mm 4-stroke engines, including:

• Boreem (BMS)
• CFmoto V3/V5
• Honda
• Kazuma
• Roketa
• SUNL
• Tank

Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
