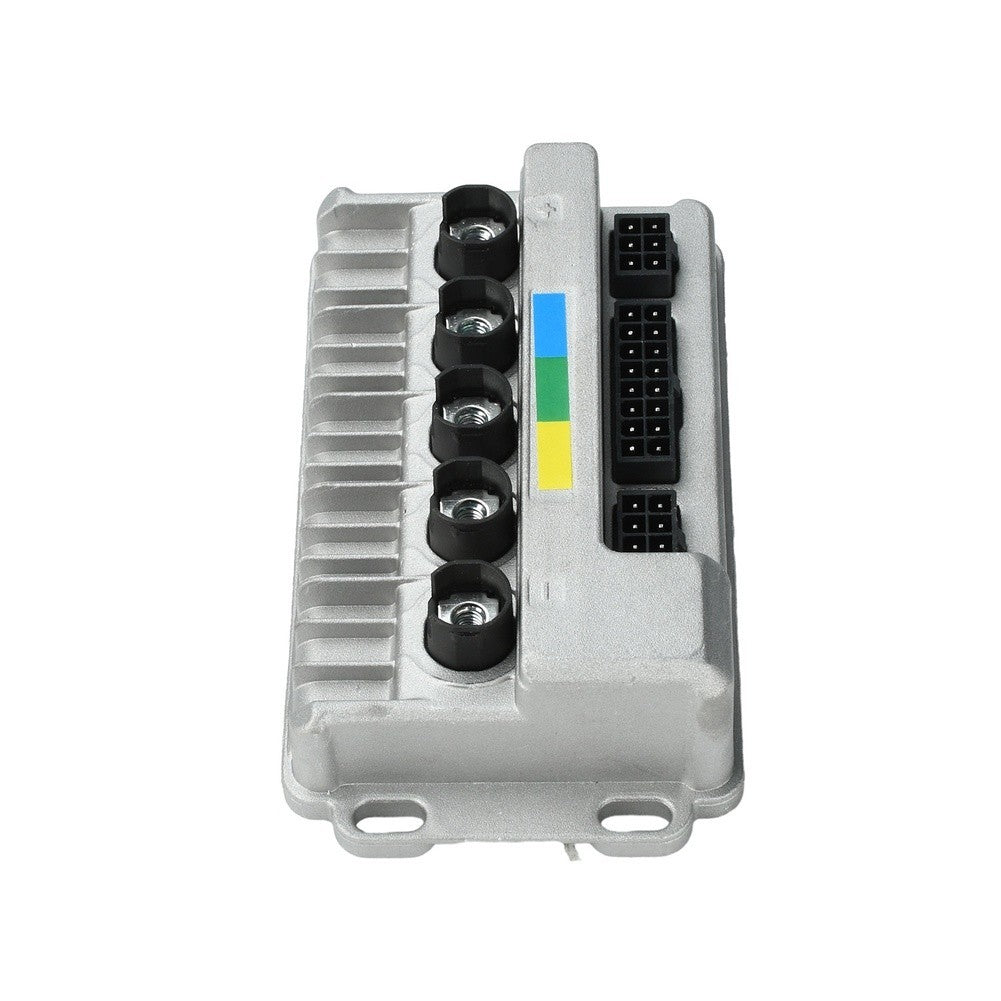

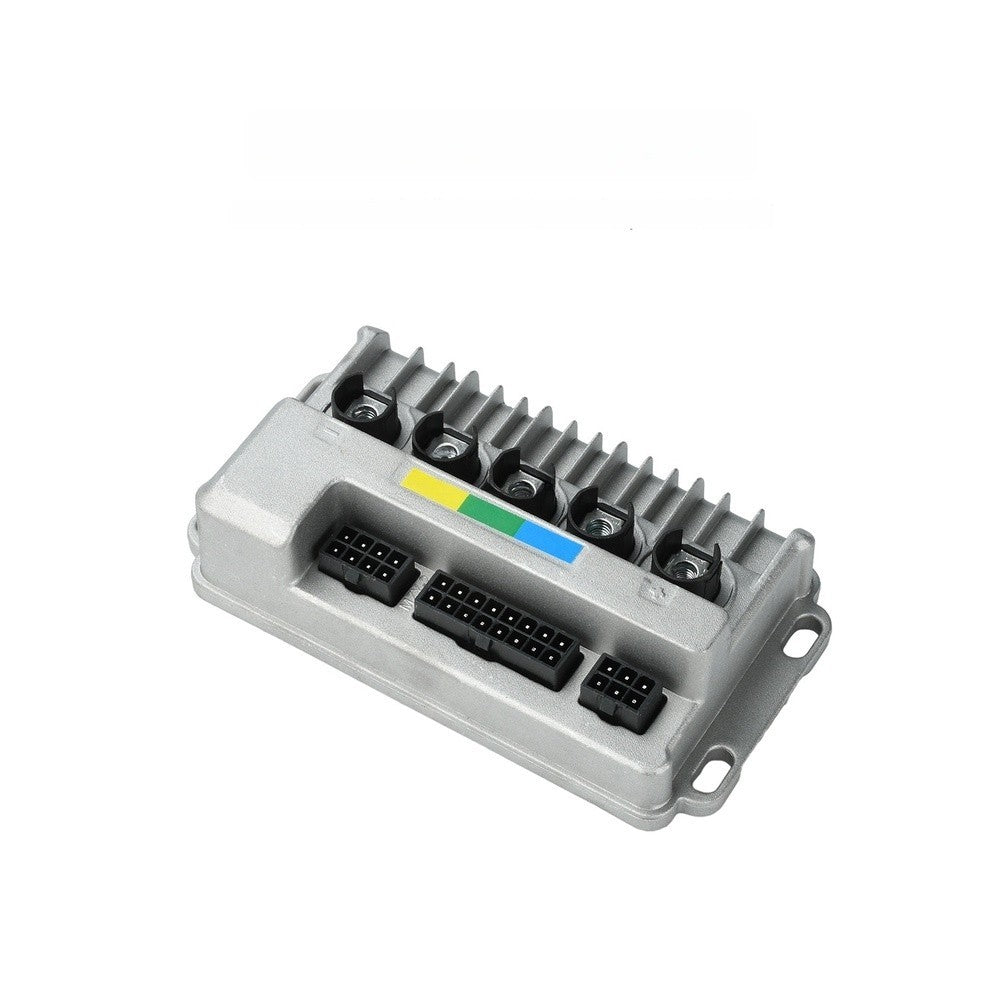

Brushless Motor Controller 36V to 64V Sine Wave for Electric Scooters

Features:

• Sine Wave Control: Ensures smooth and silent motor operation, eliminating vibration and providing a refined riding experience.
• High Current Output: Offers 25-30A output for swift start-up and strong hill-climbing capability.
• Multi-Voltage Compatibility: Supports 36V, 48V, 60V, and 64V systems for diverse electric bikes and scooters.
• Smart Chip with Three Modes: Includes variable settings, cruise control, and anti-theft alarm for versatile operation.

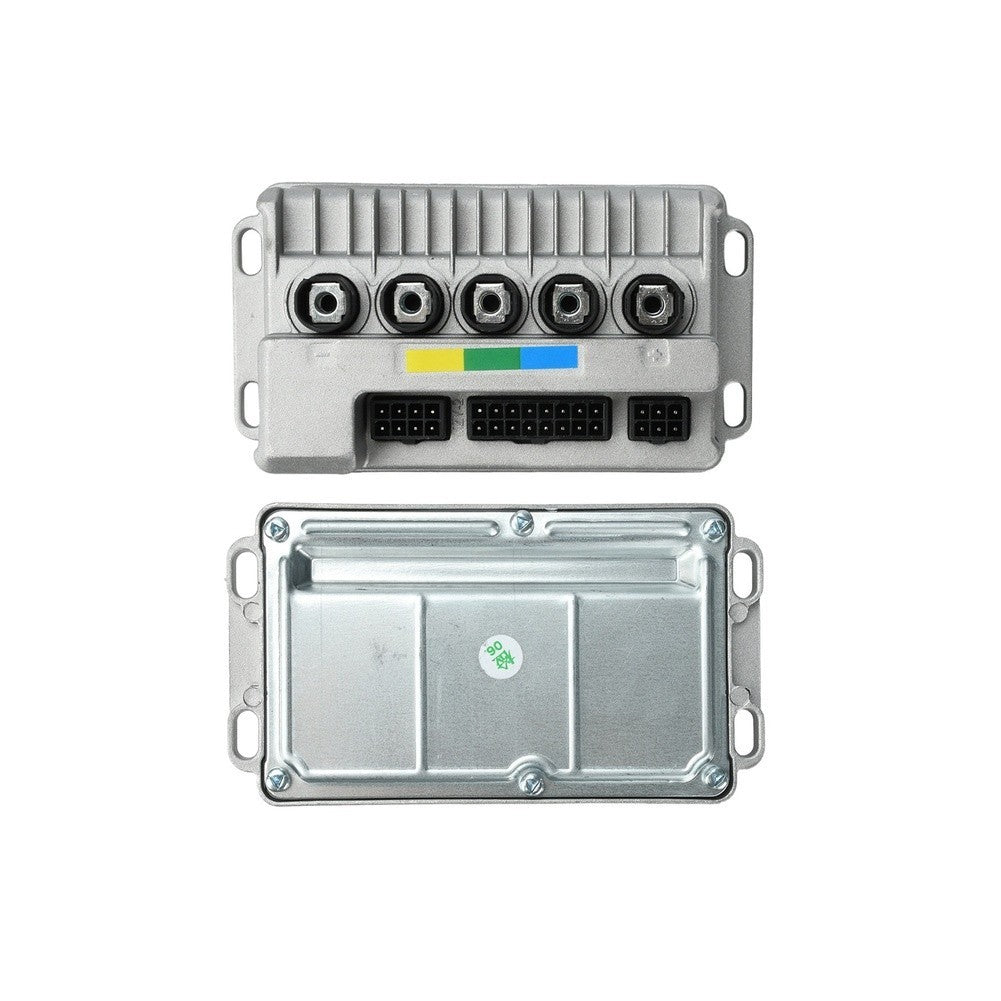

• Durable Aluminum Alloy Housing: Features a sturdy shell with high-density cooling fins for efficient heat dissipation and long-lasting performance.

Specifications:

• Product Name: E-bike Controller
• Material: Aluminum Alloy
• Color: Silver
• Size: 10 x 10 x 15 cm
• Model: Tri-mode, 6-MOSFET, 25A–30A, 500–1000W
• Rated Voltage: 36V/48V/60V/64V
• Low-Voltage Cutoff: 32V/40V/50V ±0.5V
• Rated Power: 500–1000W
• Peak Current: 32A
• MOSFET Model: HYG053N10NS3P (135A, 100V)

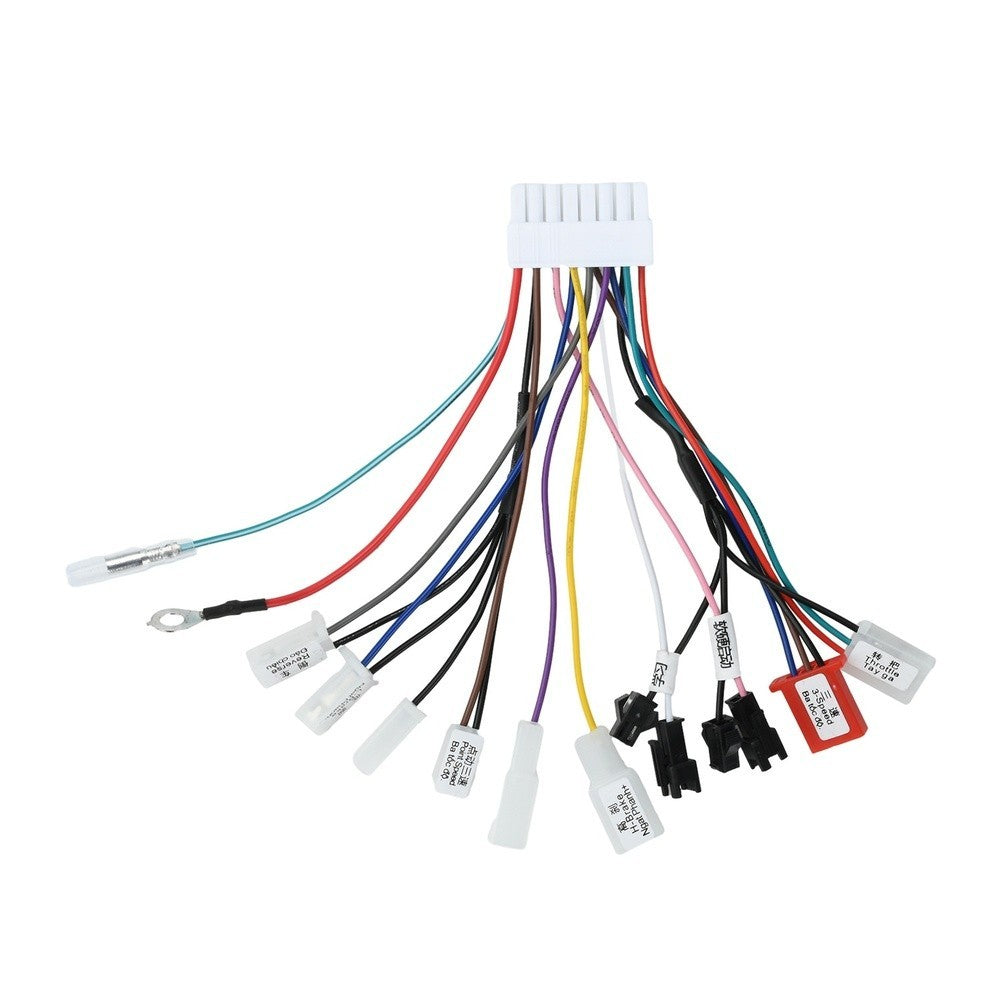

• Key Functions: 3 control modes, self-learning wire, reverse gear wire, high-level brake, low-level brake, soft/hard start selection, analog/LCD display support, 2-wheel/3-wheel mode selection, momentary 3-speed switch, anti-theft alarm, P-gear (parking) selection, cruise control.

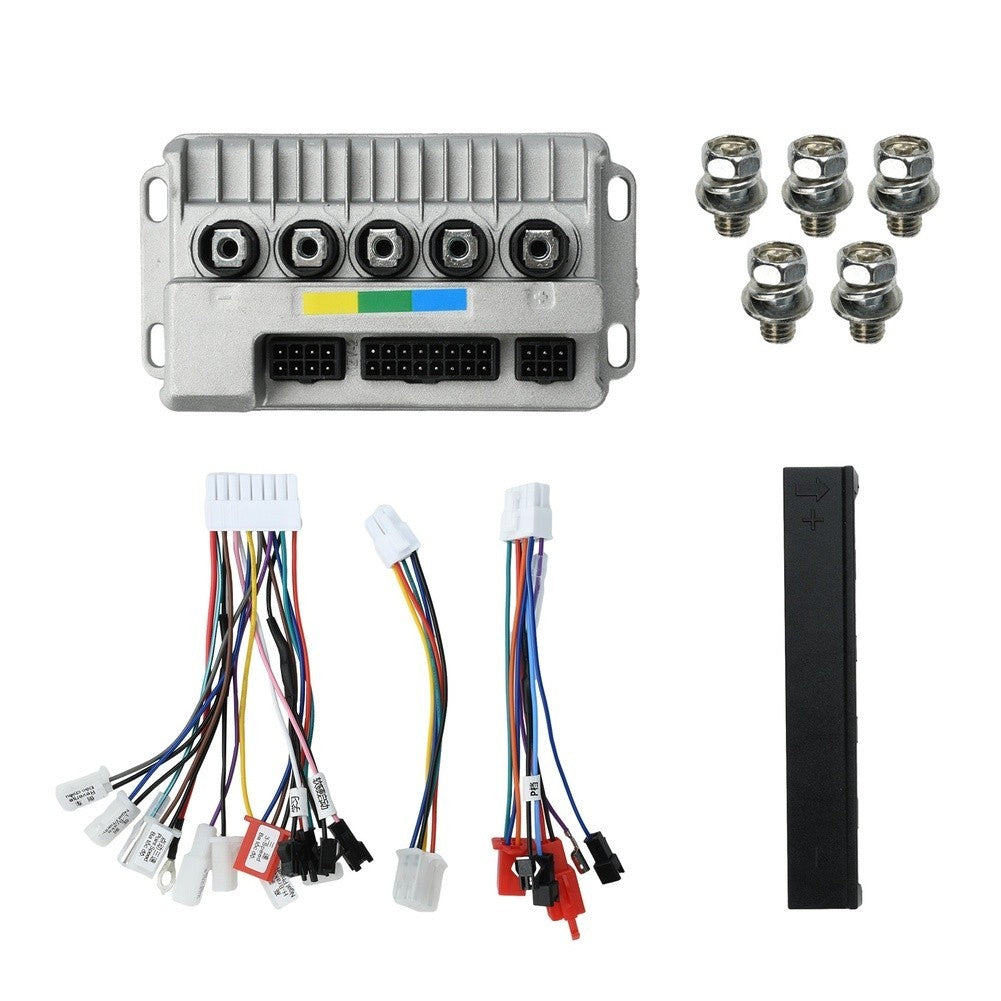

Package Content:

• 1 x Motor Controller

Note:

1. The actual color of the item may differ slightly from the pictures shown due to factors such as screen brightness and lighting.

2. Please allow slight manual measurement deviation for the data.
