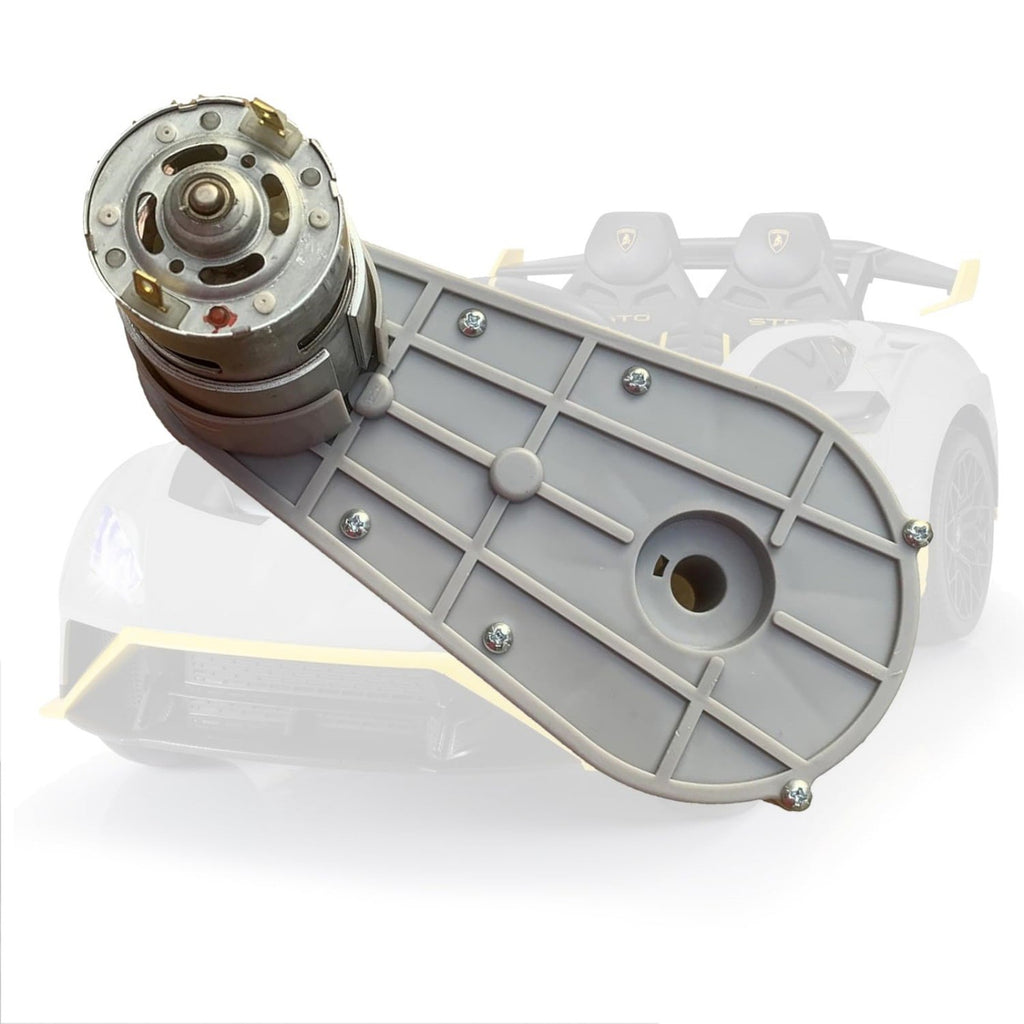

RS775 High-Speed 24V Motor Gearbox for Power Wheels Electric Rides

You May Also Like

• Back Cover Glass Remover Tool for iPhone 14 13 11 12 XS 8 Phone Repair Rear Glue

  9.99 USD

• 28X Golf Shoe Soft Spikes Replacement Cleat Fast Twist Stud For Footjoy

  16.55 USD

• Alloy Watch Movement Balance Wheel Hairspring For Seiko NH35 NH36 Movement Parts

  12.91 USD

• 18 Different Sizes Silver Mini Steel Screws For Watch Back Case Or Eyeglasses

  9.88 USD

• Double Mesh Stainless Steel Pour Over Coffee Dripper 304 Filter No Grounds

  12.58 USD

• 1Pc Center Locking Cord Shutter Release Cable Auto Lock 40cm/70cm/100cm

  10.0 USD

Features:

• RS775 24 Volt 280 Watt Drive Engine with Gearbox for Power Wheel Motor Upgrade from 18V. Requires matching with a control box of 40A or above and a fuse of 25A or above to avoid damaging the capacitor.
• 18V DC Motor Engine for Power Wheel Ride-On Cars Upgrade. At 24V, power is 280W, with gearbox output of 360RPM/min. At 18V, power is 200W, gearbox output is 270RPM/min. At 12V, gearbox output is 180RPM/min.
• Gearbox shell made from high-strength composite materials for durability. Both small and large gears feature built-in bearings to reduce friction, enhancing service life. The middle gear is constructed from metal.
• Gearbox speed ratio is 1:75, resulting in higher output speeds. The motor power is 280W, ensuring high torque output.

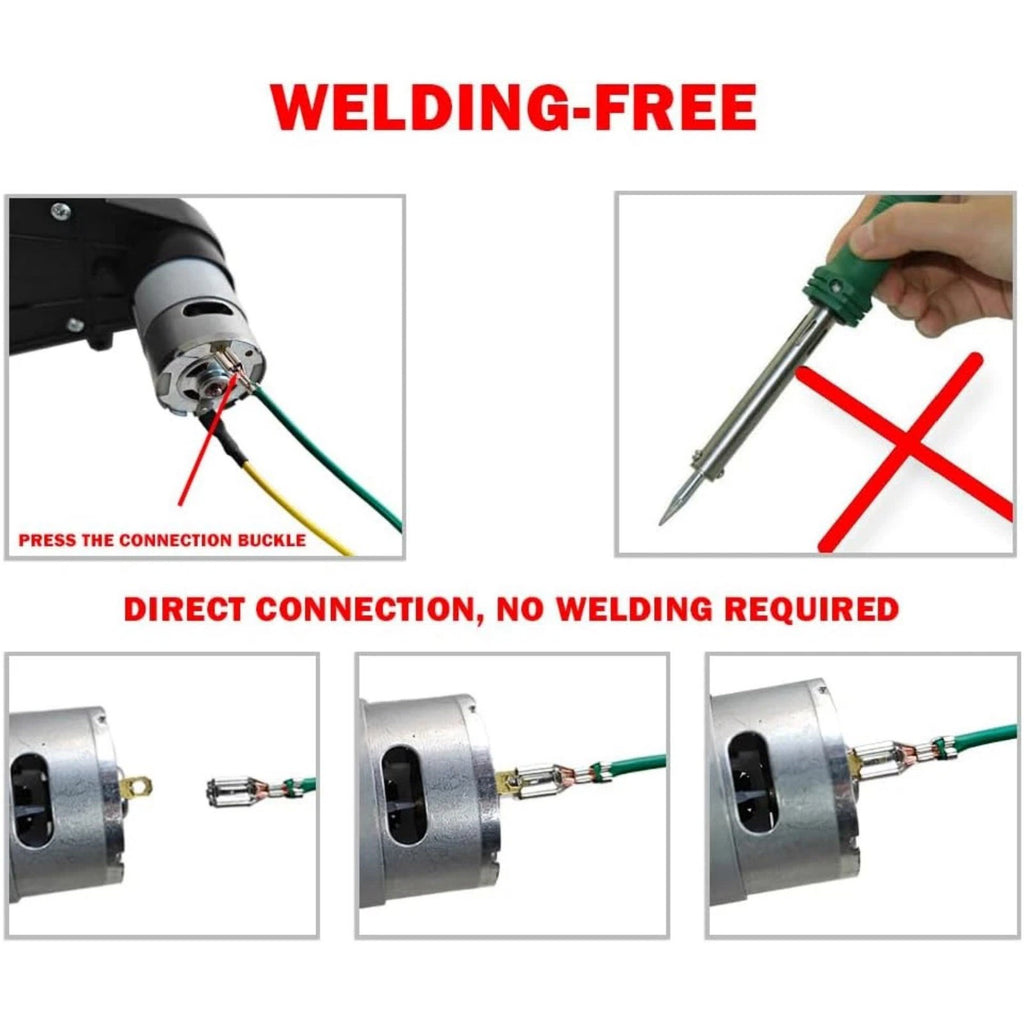

• Easy one-click installation. Please compare the size of the original motor gearbox before replacement. Suitable for kids' ride-on cars, designed for replacing gearboxes with 6 plum blossoms.
• Designed for use with a 24V battery. Can be used with a 12V battery, but speed will be halved while still providing fast performance due to gearbox design.

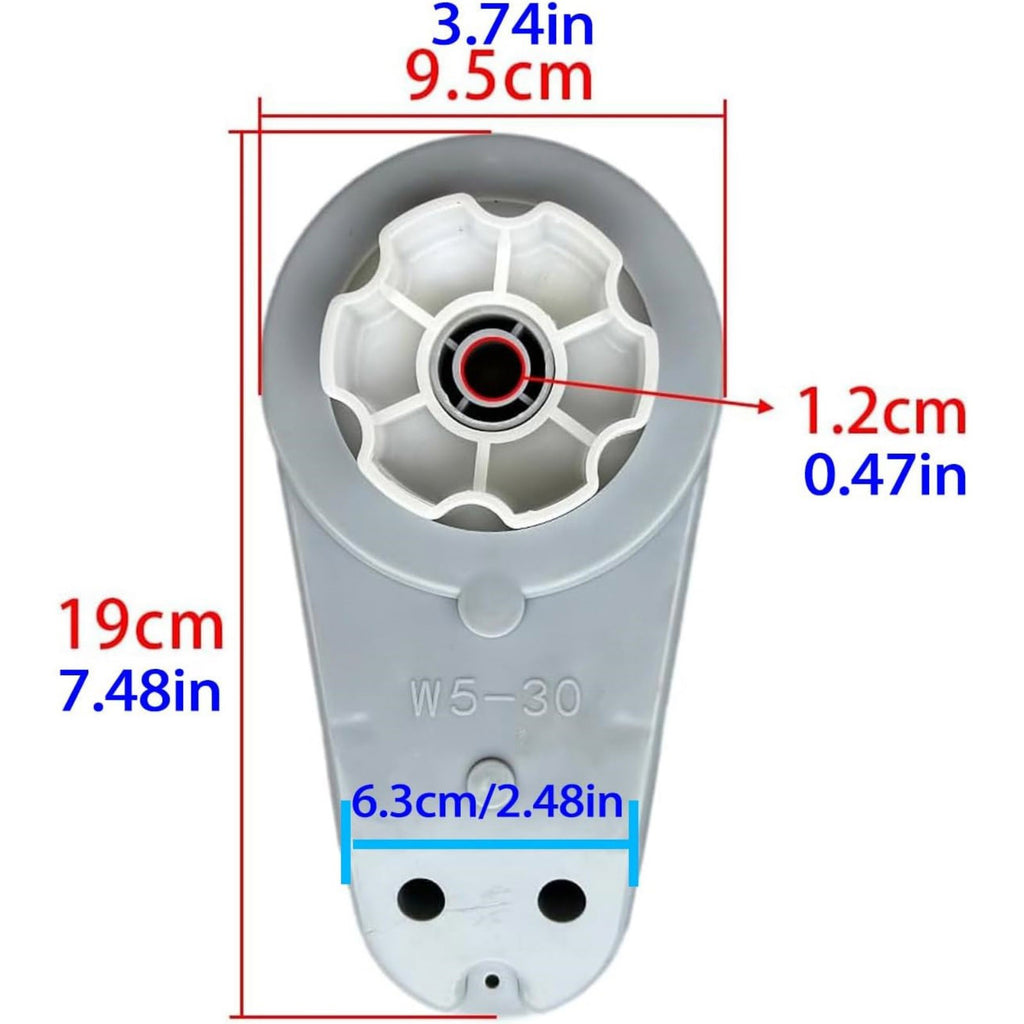

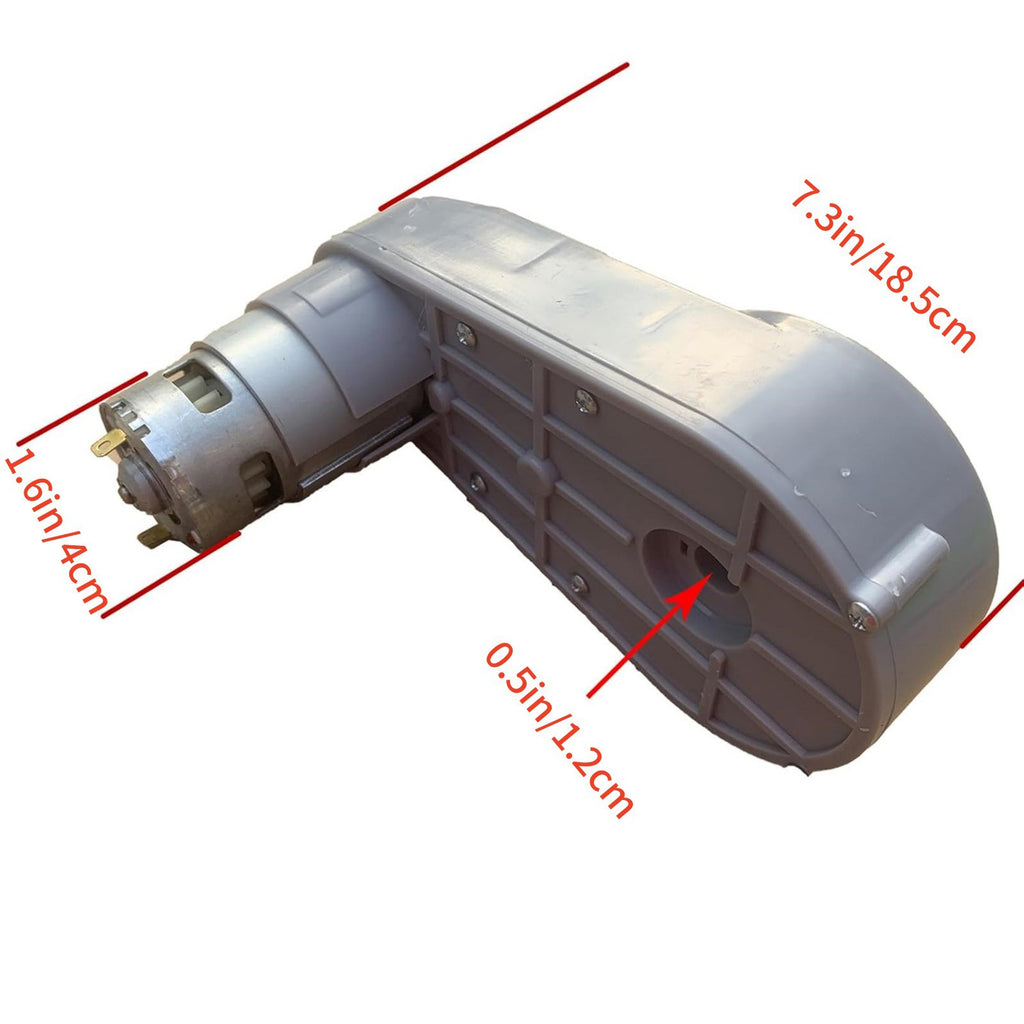

• Installation holes for this motor gearbox are larger than those of the RS550 due to the motor's larger diameter. Please measure all dimensions before purchasing for a proper fit.

Specifications:

• Type: High-Speed Motor Gearbox
• Condition: 100% New
• Material: Metal + Plastic
• Power and RPM: 12V - 180RPM, 18V - 270RPM - 200W, 24V - 360RPM - 280W
• Model: W5-30-RS775

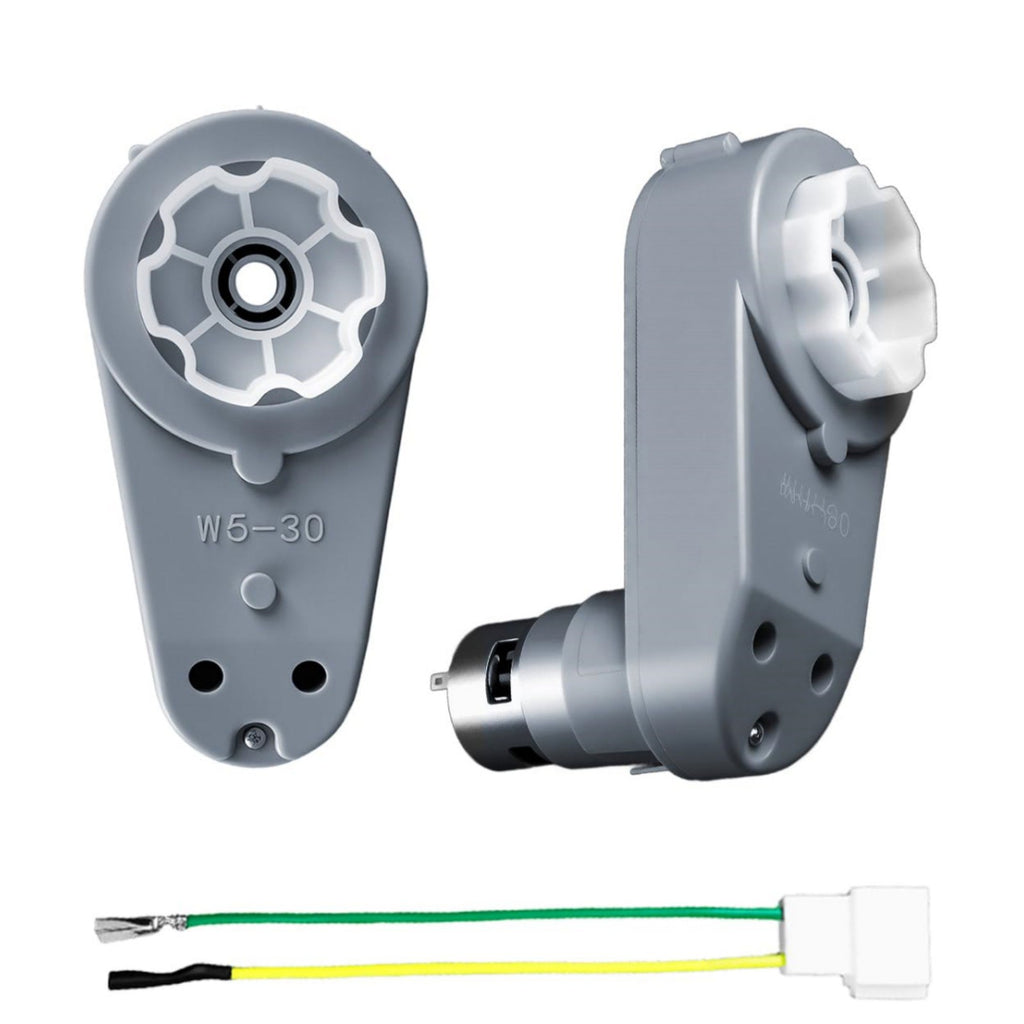

Packaging Includes:

• 1 x High-Speed Motor Gearbox

Our products have been sent to the US warehouse. All items will be shipped via WINIT CORPORATION. Thank you and have a nice day. If you have any questions about us or items, please contact us, and we will reply as soon as possible.

1. 30 days warranty from the purchase date. Please contact us via email before returning the defective item.
