Brand New RS775 High-Speed Motor Gearbox 24V For Power Wheels Electric Vehicles

Features:

• RS775 24 Volt 280 Watt Drive Engine with Gear Box for Power Wheel Motor Upgrade to 18V. Requires a matching control box of 40A or above and a fuse of 25A or above to prevent capacitor damage.
• 18V DC Motor Engine for Power Wheel Ride-On Cars Upgrade. At 24V, power is 280W with a gearbox output of 360RPM per minute. At 18V, power is 200W with 270RPM. At 12V, gearbox outputs 180RPM.

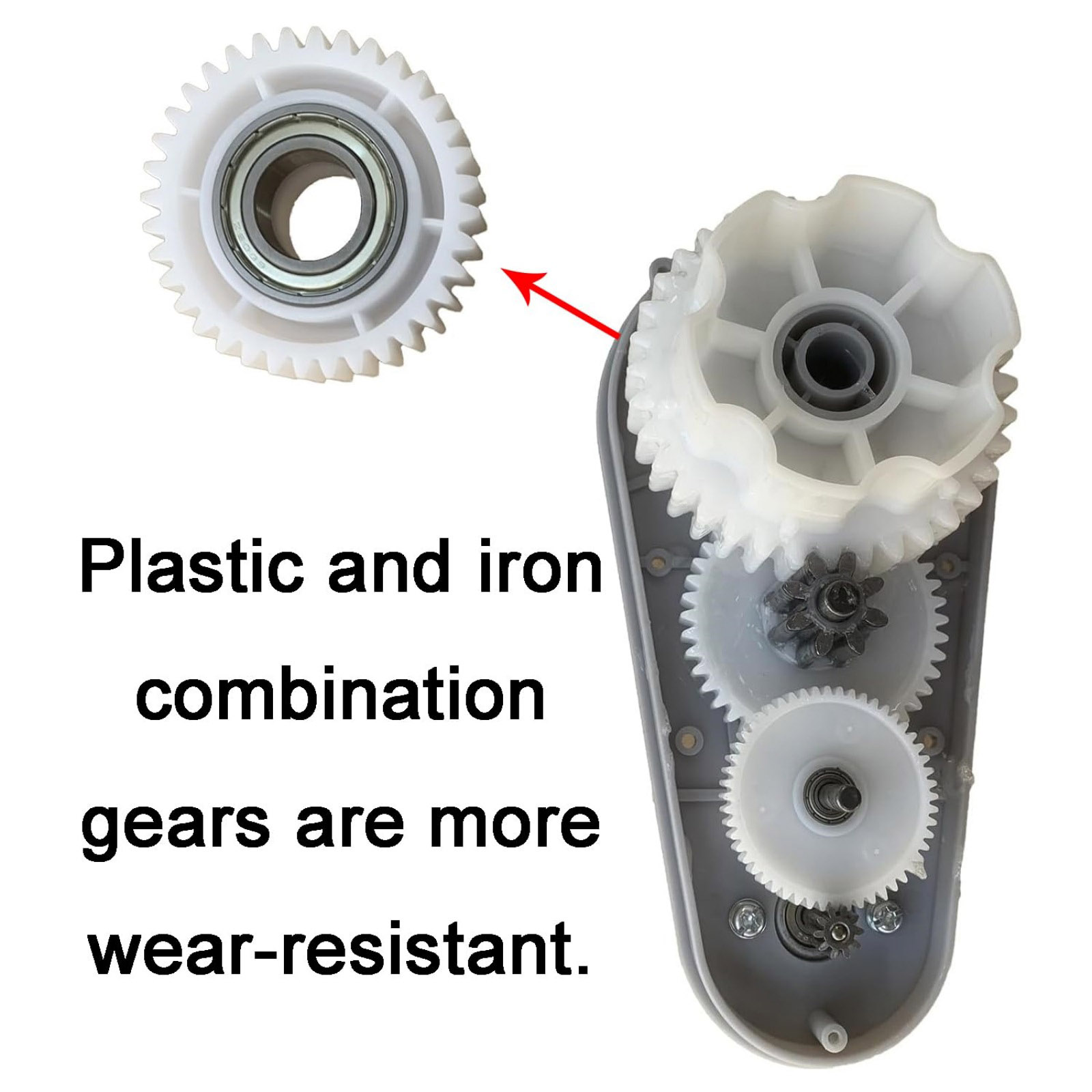

• Gearbox shell made from high-strength composite materials for durability. Built-in bearings in both small and large gears reduce friction and enhance service life.
• Gearbox speed ratio of 1:75 for higher speed output. High-power motor ensures higher torque output with 280W power.
• Easy one-click installation. Designed for kids' ride-on cars, suitable for replacing the gearbox with 6 plum blossoms.
• Compatible with 24V battery. Can also be used with 12V battery, though speed will be halved. The gearbox design ensures fast speeds even at lower voltage.
• Installation holes for the motor gearbox are larger than those of RS550 due to motor diameter. Measure all dimensions before purchase for a perfect fit.

Specifications:

• Type: High-Speed Motor Gearbox
• Condition: 100% New
• Material: Metal + Plastic
• Power and RPM: 12V - 180RPM, 18V - 270RPM - 200W, 24V - 360RPM - 280W
• Model: W5-30-RS775

Packaging Includes:

• 1 x High-Speed Motor Gearbox

Product Images:
