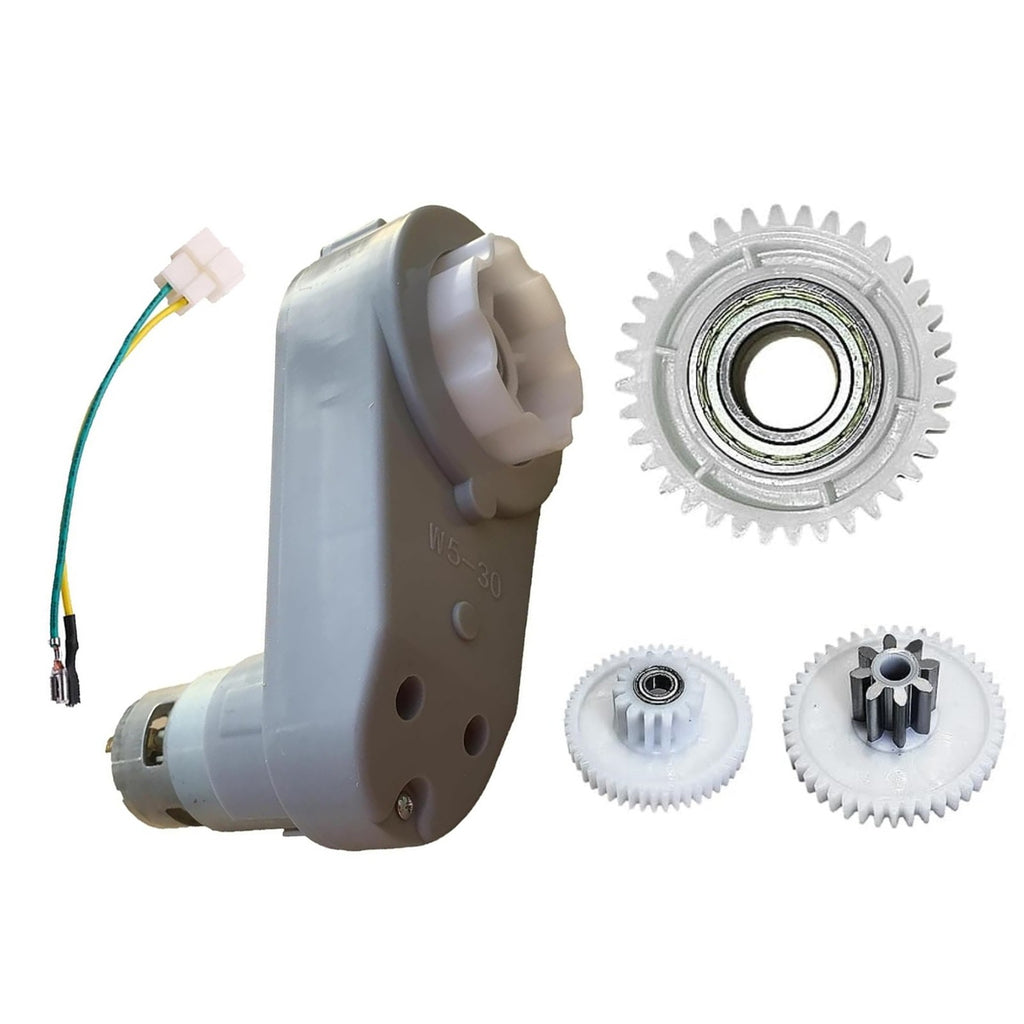

RS775 High-Speed Motor Gearbox for 24V Power Wheels Electric Vehicles
This RS775 high-speed motor gearbox is one of the Power Wheels gearboxes built to upgrade the drive system in kids' ride-on cars. It pairs a high-power RS775 motor with a geared output, delivering strong power and torque for a noticeably quicker ride. The gearbox is brand new and fits as a direct replacement for the original motor gearbox.
Key Features
- Designed for 24V: Built to run on a 24V battery for full power output. It can also run on 12V or 18V, though speed drops at lower voltages.
- High Power and Torque: The high-power motor provides increased torque for demanding rides.
- Durable Construction: The gearbox shell is made from high-strength composite material that resists deformation. Its metal middle gear adds durability.
- Reduced Friction: Built-in bearings in both the small and large gears reduce friction and help extend service life.
- Easy Installation: Pre-wired with one-click wire connections, so the gearbox is simple to swap in place of the original.
Before You Install
- Controller and Fuse Requirements: Use with a control box rated 40A or above and a fuse rated 25A or above. Using an undersized control box or fuse can damage the capacitor.
- Mounting Holes: The installation holes are larger than those on RS550 gearboxes because of the motor's bigger diameter. Measure your existing mounting points before ordering to confirm a proper fit.
- Speed on 12V: When used on a 12V battery, the vehicle's speed is roughly cut in half.
What's Included
One (1) high-speed motor gearbox.
Specifications
- Material: Metal+Plastic
- Power And RPM: 12V-180RPM, 18V-270RPM-200W, 24V-360RPM-280W
