Description

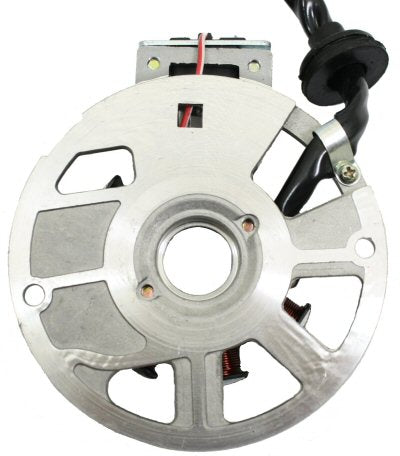

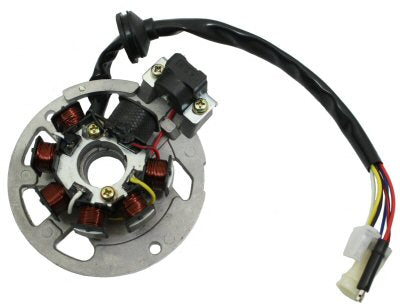

Stator Assembly for 50cc 2-Stroke Engines
This Stator Assembly Type-3 is designed for 50cc 2-stroke Minarelli 1PE40QMB Jog engines. It provides necessary electrical components required for engine operation, making it a key replacement part for your scooter. As one of the Minarelli 50cc / Yamaha jog scooter parts, it ensures your engine runs smoothly and reliably. With various compatible models, this assembly is a practical choice for maintenance or repair tasks.
Coil Configuration

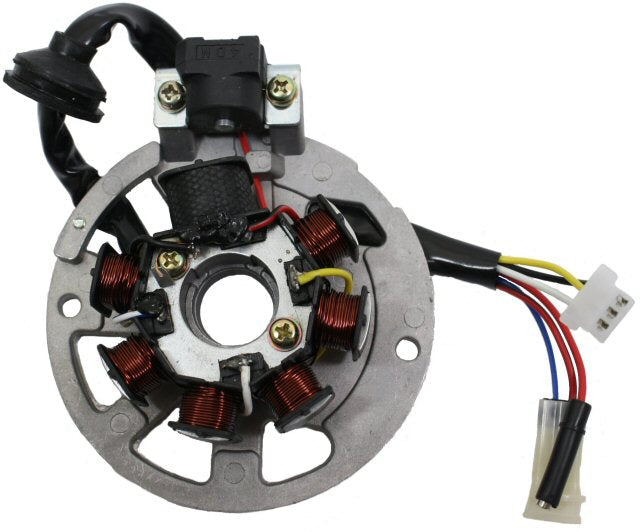

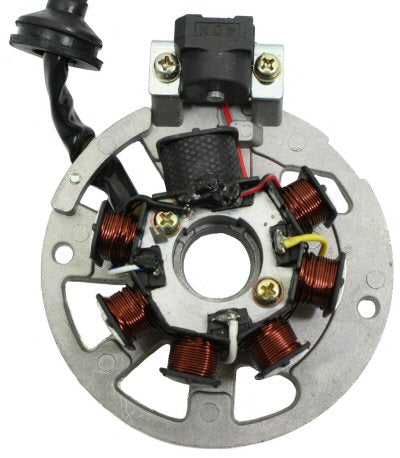

The stator features a configuration of 7 coils, which are important for generating the electrical power necessary to run the scooter's ignition and lighting systems. The overall wire length, including plugs, measures 12 inches, offering ample reach for installation. This assembly is designed to fit securely with specific bolt hole spacing of 104mm, ensuring a proper fit in the engine housing.
Plug Types

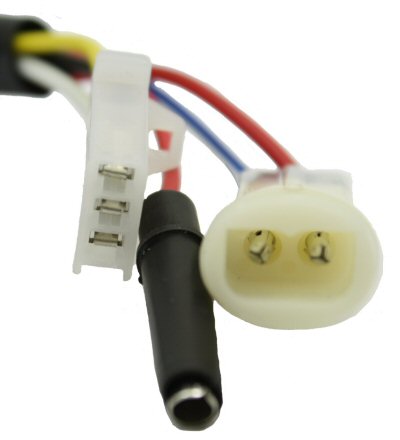

This stator assembly includes a variety of plug types for versatile compatibility: a 3-pin female plug, a 2-pin male plug, and a 1-pin female plug. These connections facilitate the integration of the stator with the existing electrical system of your scooter. When replacing this part, ensure that all connections are properly secured to maintain performance.
Specifications
- Coil Count: 7 Coil Stator
- Overall Wire Length: 12 inches
- Bolt Hole Spacing: 104mm
- Plug Configuration: 3-pin female, 2-pin male, 1-pin female
Fitment
This stator assembly is compatible with various 50cc 2-stroke models, specifically designed for Minarelli engines. It fits the following makes and models:
- Avanti
- Baja
- Baotian
- Baron
- Bashan
- Boreem (BMS)
- Boss
- Bravo
- CFMoto
- Dotera
- Eton
- Geely Model 18
- Geely X-1
- Geely X-8
- JM Star Tomahawk II
- Jalon Jetstar 15
- Jalon Jetstar 18
- Jalon X8 Retro 50cc
- Kazuma
- Kymco
- Lifan
- PGO
- Peugeot
- Piaggio
- Qingqi
- Redcat
- Roketa
- SUNL
- SYM
- TGB
- Tank
- Terminator
- Vento
- Verucci
- Wildfire
- Yamaha
Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
