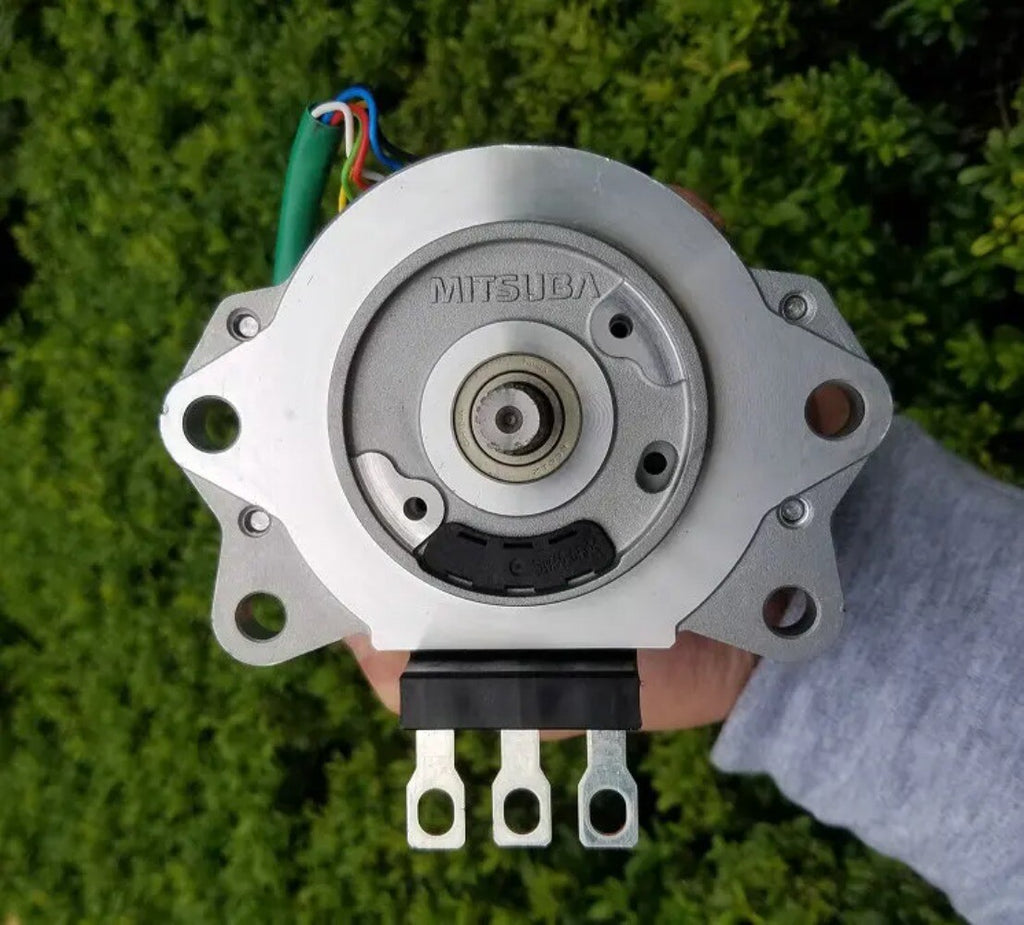

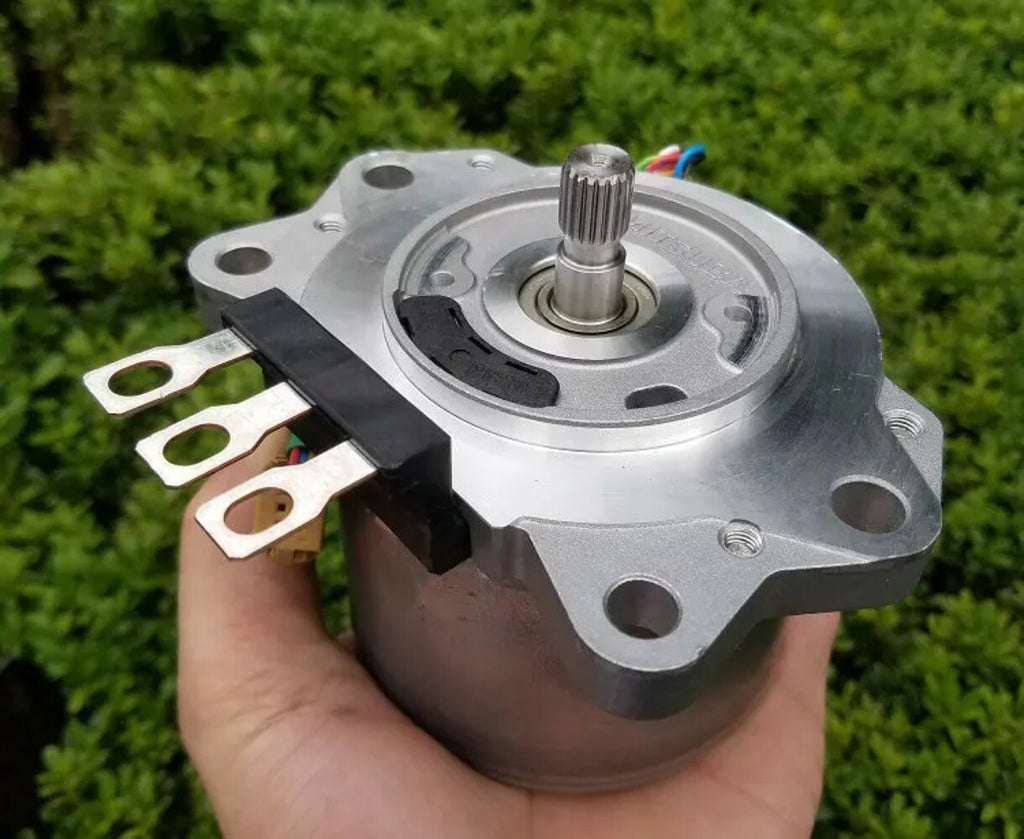

500W Brushless Magnetic Motor for Automotive Steering Systems

Imagine the roar of adventure at your fingertips, the thrill of speed and power beneath your child’s hands—introducing our Ultimate Ride-On Powertrain Kit, featuring a premium brushless motor once reserved for top-tier automotive steering systems. Crafted with precision, this motor transforms any ride-on car or truck into an exhilarating high-performance playground vehicle. Whether you’re a DIY enthusiast or a proud parent seeking the ultimate gift, this kit delivers heart-pounding fun and reliable durability.

Unmatched Motor Engineering for Peak Performance

• 500W Peak Power Output – Feel the surge as your ride-on accelerates with 500 watts of pure brushless electric power. Perfect for tackling slopes, grass, gravel, and more without breaking a sweat.
• 3.5 N·m Maximum Torque – Instant, decisive acceleration means smooth takeoffs and powerful hill-climbing capability. No more stalling or slow starts—just pure momentum and excitement.
• High-Precision Resolver Sensor – A top-end resolver senses the rotor’s exact position, ensuring ultra-smooth throttle response and precise speed control. Say goodbye to jerky movements and hello to silky acceleration.
• Advanced NSK Double Bearings – Two high-quality NSK bearings reduce friction and heat, extending motor life and providing whisper-quiet operation. Your ride-on stays cool even in extended play sessions.
• Sturdy Rare-Earth Magnet Rotor – Eighteen diagonal-strip rare-earth magnets encased in stainless-steel riot-proof housing guarantee uncompromising reliability, delivering consistent performance lap after lap.

Built to Last: Rugged, Reliable, Ready for Adventure

Weighing in at just 4 pounds, this brushless motor boasts a compact design that fits snugly into most ride-on car and truck chassis. With three-phase 9N6P winding and robust 1.5mm copper rows, it stands up to muddy fields, sandy beaches, and backyard obstacle courses alike. The solid internal rotor is a fortress against wear, while the stator’s high-grade coil ensures efficient power delivery for hours of uninterrupted play.

DIY-Friendly Installation for Creative Tinkerers

Whether you’re building a custom go-kart for your aspiring racer or upgrading a factory ride-on, our powertrain kit simplifies the process:

• Standard Mounting Flange – Fits most 3-inch bolt patterns to seamlessly replace existing drive motors in popular ride-on models.

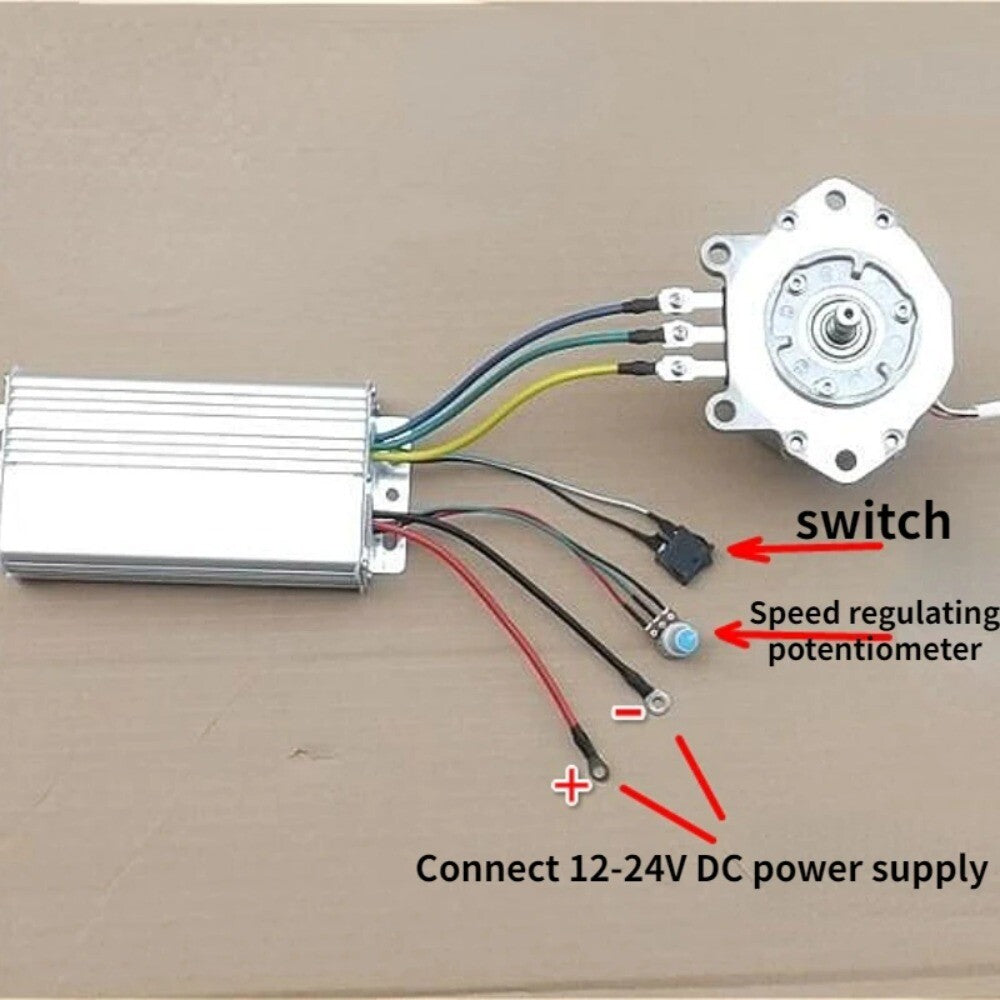

• High-Current Motor Leads – Pre-wired with 7-to-24V brushless controller compatibility for plug-and-play ease. Just connect to your controller, and you’re ready to ride.
• Detailed Wiring Diagram – Step-by-step instructions guide you through sensor cabling and phase connections, ensuring you harness every inch of performance.

Versatile Performance Across Multiple Applications

Though designed for ride-on cars and trucks, this brushless powerhouse moonlights as an efficient generator when spun at high RPMs. Owners have harnessed it to power lawn mowers, water pumps, workshop tools like mini lathes and drill presses, and even small marine propulsors. Flip it into generator mode, and with a simple three-phase rectifier and filter, you can tap DC outputs ranging from 5.6V at 1A up to 11.8V at 9A. It’s the Swiss Army knife of motors—adaptable, high-efficiency, and adventure-ready.

Specifications at a Glance

• Rated Voltage: 7–24V DC
• No-Load Speed at 12V: 2,400 RPM (1.5A draw)
• No-Load Speed at 24V: 4,800 RPM
• Maximum No-Load Speed: 5,580 RPM at 28V
• Power Rating: 500W continuous
• Torque: 3.5 N·m
• Weight: 4.0 lbs

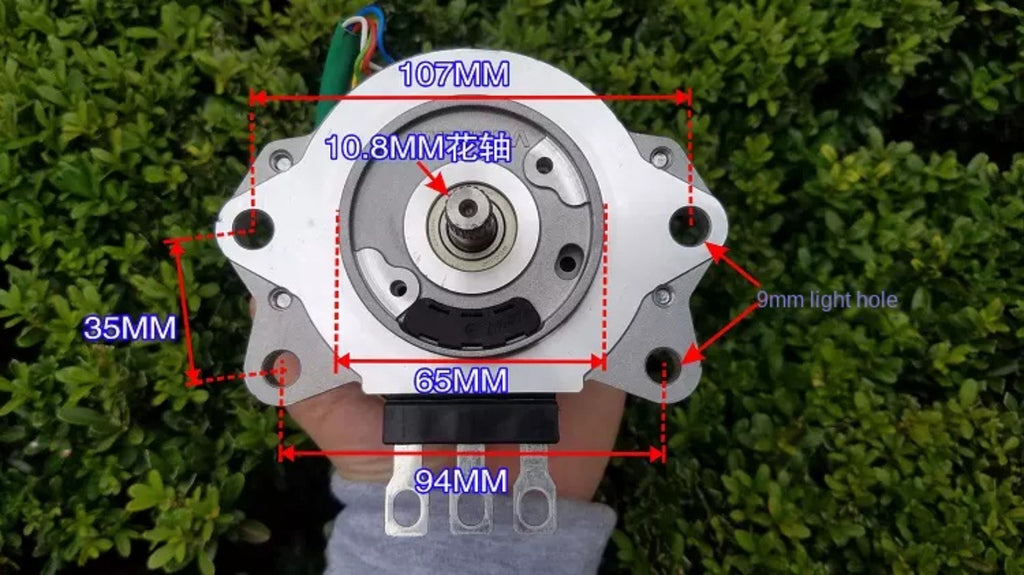

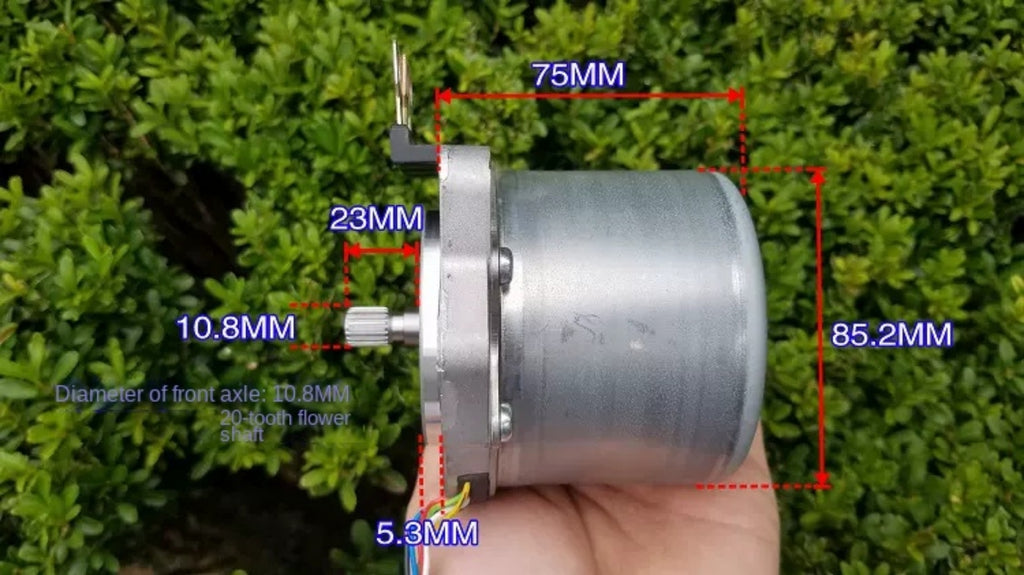

• Dimensions: 4.3 in (diameter) × 5.1 in (length)
• Bearings: Double NSK sealed
• Rotor: 18-section rare-earth magnets
• Sensor: High-resolution resolver

Why You’ll Love It:

• Instant Torque: Launch your ride-on with confidence—no lag, no fuss.
• Superior Durability: Heavy-duty bearings and stainless-steel rotor housing stand up to rough play.
• Quiet Operation: Reduced noise means more focus on fun and less on buzzing motors.
• Adaptable Power: From leisurely neighborhood cruises to backyard rally races, this motor scales to your needs.
• Easy Conversion: Turn your ride-on car or truck into a high-speed thrill machine in just an afternoon.

Elevate your child’s playtime to a whole new level with the Ultimate Ride-On Powertrain Kit. Whether building from scratch or upgrading an existing ride-on vehicle, this brushless motor delivers the performance, reliability, and ease of installation you demand. Give the gift of adventure and watch their eyes light up as they take the wheel of power, speed, and imagination.

Ready to transform ordinary play into an epic journey? Equip your ride-on car or truck with our premium brushless motor kit today and unleash boundless fun!
