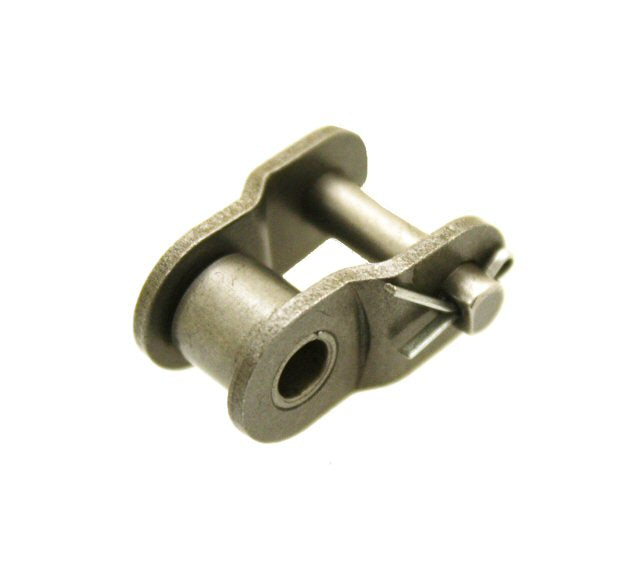

#428 Chain Offset Half Link for Scooters & Mopeds (Standard)

#428 Chain Offset Half Link for Scooters & Mopeds. Chains and sprockets transfer power to the rear wheel on chain-drive scooters, mini bikes and pocket bikes.

Replace them together when the chain stretches or the teeth hook. Match the chain size (for example #25, #35, #41, #420) and tooth count.

Product details

Fine-tune your chain length with the #428 Offset Half Link. Also called a half link, this component lets you adjust chain length by a single pitch instead of the standard two — the perfect solution when your chain adjusters are maxed out or your drive base is fixed. Built from treated high-tensile steel with an ultimate tensile strength of 18.0 kN (4,091 lbs), it's a reliable fit for dirt bikes, ATVs, go-karts, mini-bikes, and pocket bikes running a #428 pitch chain.

• Pitch: 12.70mm
• Roller diameter: 8.51mm
• Pin diameter: 4.45mm
• Width between inner plates: 7.75mm
• Pin length: 16.70mm (L) / 18.2mm (Lc)
• Inner plate depth: 11.80mm
• Plate thickness: 1.60mm
• Ultimate tensile strength: 18.0 kN / 4,091 lbs
• Average tensile strength: 20.1 kN
• Weight per meter: 0.70 kg/m

Compatible Applications:

• Dirt bikes & pit bikes — 110cc, 125cc, 150cc (Chinese and Japanese models)
• ATVs & quads using #428 final drive
• Go-karts — Trailmaster, Hammerhead, and custom predator-engine builds
• Mini-motos, pocket bikes, and small-bore street-legal bikes

Installation note: Always seat the cotter pin or clip fully and orient it facing away from the direction of travel.

Specifications

• Part type: Chains & Sprockets
• Condition: New
• Fits: #428 pitch chains on dirt bikes, pit bikes, ATVs, go-karts, mini-motos and pocket bikes

Fitment

Fits:

• Dirt bikes and pit bikes (110cc, 125cc, 150cc; Chinese and Japanese models)
• ATVs and quads using #428 final drive
• Go-karts (Trailmaster, Hammerhead, custom predator-engine builds)
• Mini-motos, pocket bikes and small-bore street-legal bikes

How to choose: Use it only on a #428 pitch chain, the 12.70mm pitch printed on your chain's side plates.
