#420 Offset Link for Scooters & Mopeds

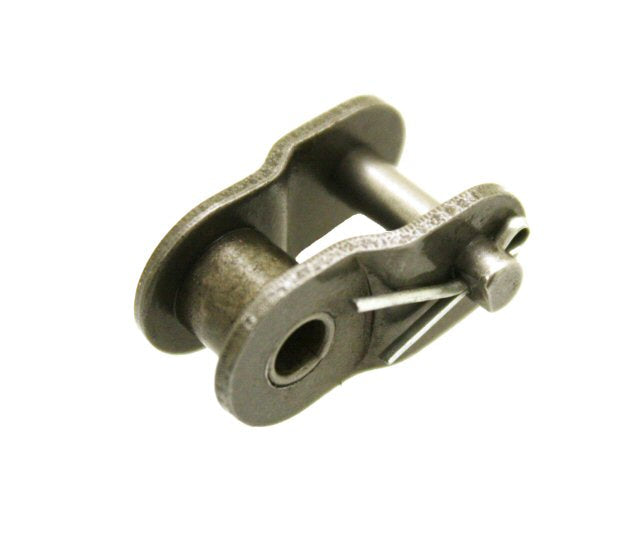

420 Offset Link for Scooters, Mopeds, and Mini Bikes

This offset link is designed for 420 pitch chains commonly used in scooters, mopeds, pocket bikes, and ATVs. It serves as a reliable replacement for worn or damaged links, ensuring proper chain performance. It is one of the important mini bike & pocket bike parts that riders turn to for maintenance and repairs. With its precise dimensions and strength specifications, this part is a key component for keeping your vehicle running smoothly.

Construction and Specifications

The offset link is built to meet the demands of various small engine vehicles. Its dimensions include a pitch of 12.70 mm and a roller diameter of 7.77 mm. The inner plate depth measures 12.00 mm, while the plate thickness is 1.50 mm, providing a solid construction to withstand rigorous use. The pin diameter is 3.96 mm, with a pin length of 14.70 mm and an extended length of 16.1 mm.

Performance Characteristics

This part is engineered for strength, boasting a tensile strength of 16.00/3636 kN/LB and an average tensile strength of 18.1 kN. These specifications ensure that the link can handle the stress of high-performance riding, making it a dependable choice for maintaining your chain's integrity.

Specifications

• Pitch: 12.70 mm
• Roller Diameter: 7.77 mm
• Width Between Inner Plates: 6.25 mm
• Pin Diameter: 3.96 mm
• Pin Length: 14.70 mm (L), 16.1 mm (Lc)
• Inner Plate Depth: 12.00 mm
• Plate Thickness: 1.50 mm
• Tensile Strength: 16.00/3636 kN/LB
• Average Tensile Strength: 18.1 kN

Fitment

This offset link is compatible with a variety of vehicles, including scooters, mopeds, and mini bikes. It can be utilized in models that require a 420 pitch chain.

• Pocket Bikes
• ATVs
• Motorcycles

Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
