4-Pin Relay for Malaguti and Yamaha Scooters

4-Pin Relay for Malaguti and Yamaha Scooters

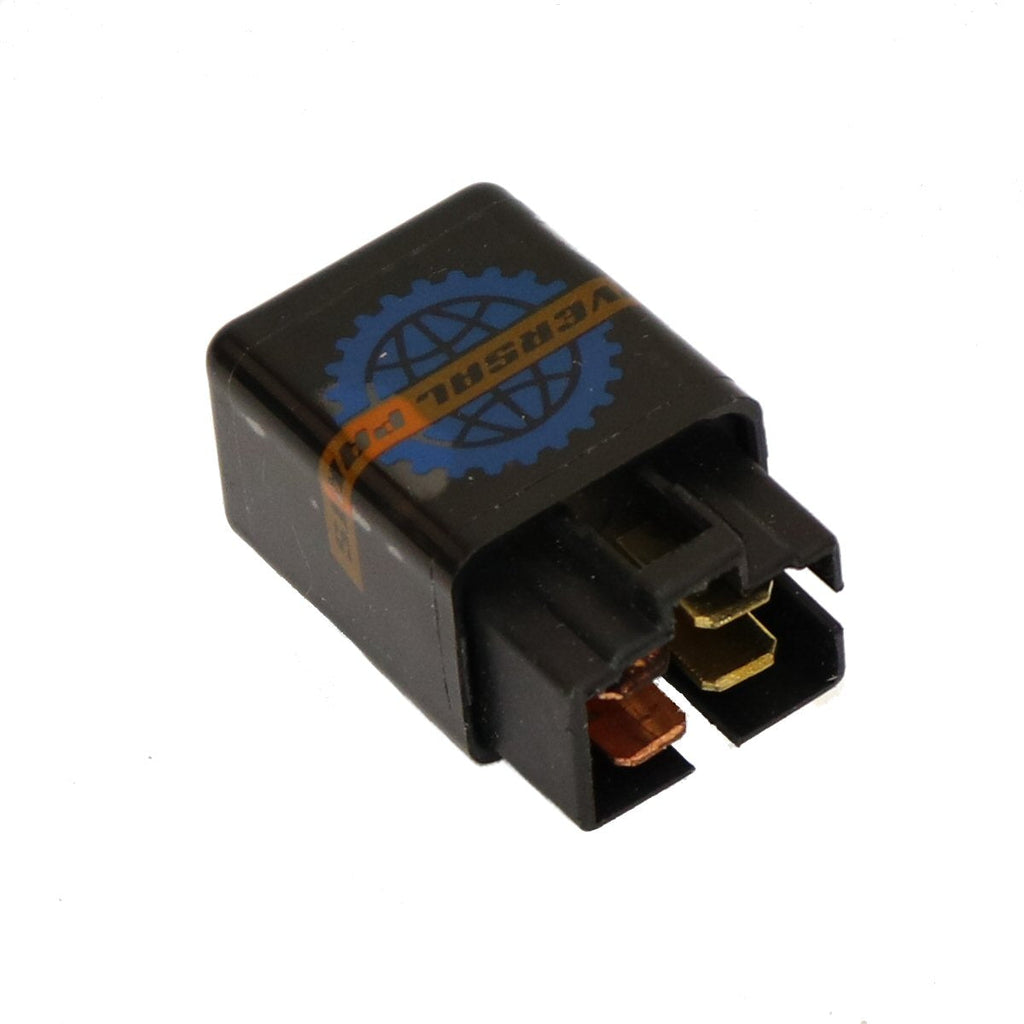

This 4-pin relay is designed as an aftermarket solution for Malaguti and Yamaha scooters, helping to restore functionality to your electrical system. It features a compact black housing with a recessed connection, ensuring compatibility across various models. If your scooter is experiencing electrical failures, this relay can be a reliable replacement option. It is one of the useful Yamaha scooter parts that makes repairs straightforward and accessible for DIY enthusiasts.

Relay Construction and Compatibility

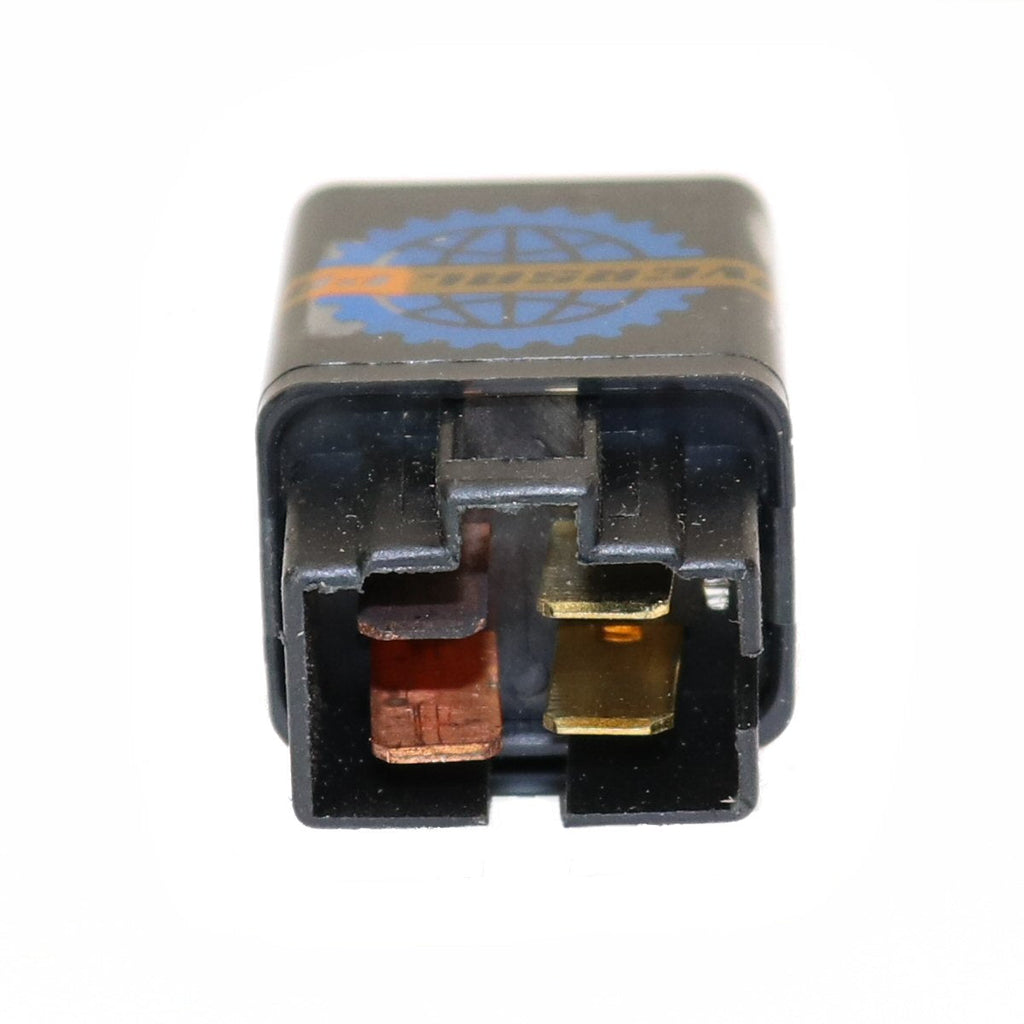

The relay is constructed with a compact black body that houses a four-terminal connection, allowing for a secure fit with compatible scooters. This part serves as a reliable replacement for faulty relays, ensuring that your scooter operates smoothly. It is important to verify that your original relay matches the specifications to ensure proper installation.

When to Replace Your Relay

Consider replacing your relay if you experience electrical issues with your scooter, such as starting failures or intermittent power loss. A malfunctioning relay can disrupt the electrical flow, leading to broader system failures. By replacing it, you can restore your scooter’s electrical integrity and avoid further complications.

Specifications

• Part Type: Electrical relay
• Terminal Count: 4
• Color: Black
• OEM Part Number: SSR-4PIN-A
• Malaguti OEM Reference: 02501500
• Yamaha OEM Reference: 1NT-H1940-00
• MBK OEM Reference: 29U-81950-93

Fitment

This relay is compatible with various Malaguti and Yamaha scooters. Ensure you check the specific models listed below to confirm fitment.

• Malaguti: Ciak 50 (49cc); 2002–2005
• Malaguti: F12 Phantom (49cc); 2002–2005
• Malaguti: F15 Firefox (49cc); 2002–2005
• Malaguti: Yesterday (49cc); 2001–2006
• Yamaha: Jog; Compatible versions matching relay reference and connector
• Yamaha: Vino 50cc; Compatible versions matching relay reference and connector
• MBK: Reference-based fitment; match the OEM reference, electrical specifications, and terminal layout

Not sure it fits? Contact us with your scooter's make, model and year and we'll confirm the fit before you order.
