Description
24V RS775 High-Speed Motor Gearbox for Power Wheels Motor Upgrade, 2-Pack
| Model Name | 24V RS775 Motor Gearbox |

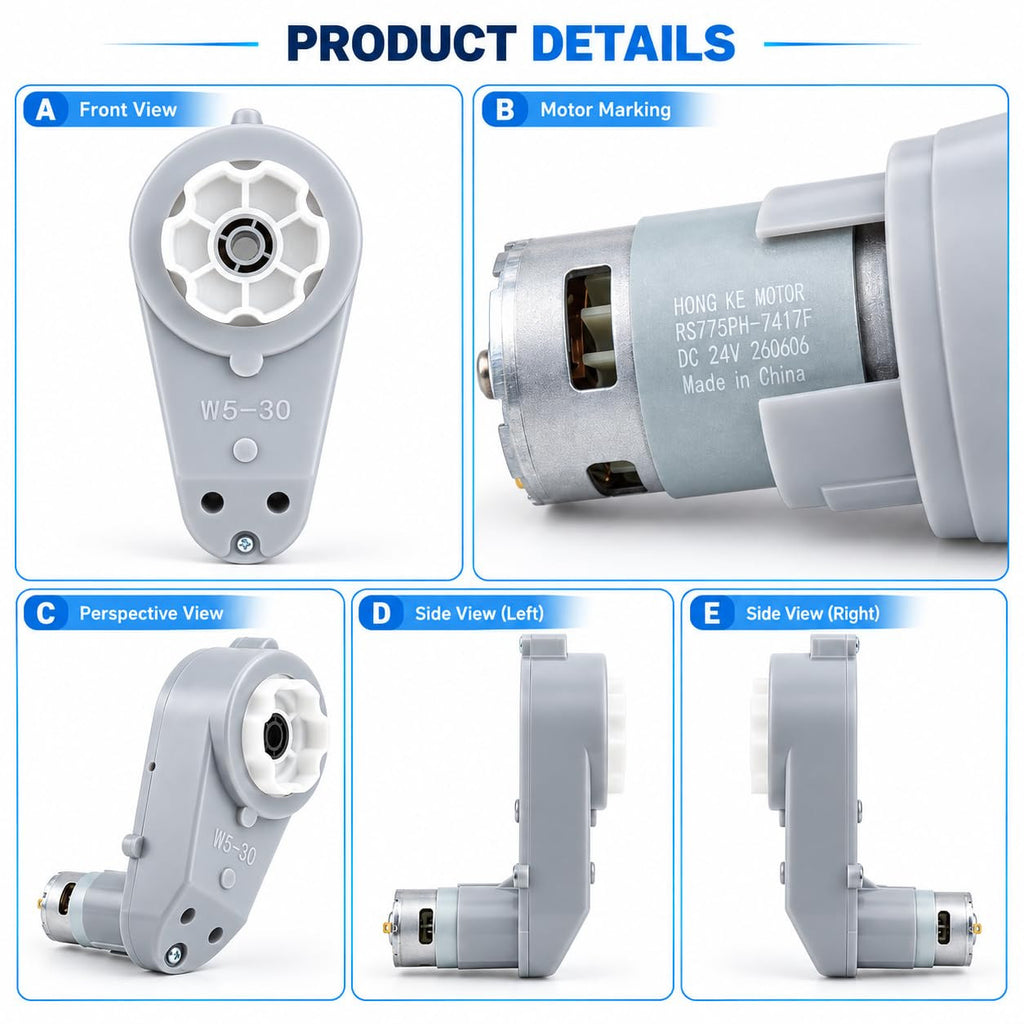

| Model | RS775PH-7417F |
| Number of Items | 2 |
| Item Highlight | High Torque 775 DC Motor Replacement for Kids Ride-On Cars, 18V-24V, 280W 360 RPM, Includes 2 Wiring Harnesses |
| Unit Count | 2 Count |
| Number of Packs | 2 |
| Included Components | 2 × RS775 Motor Gearboxes |
| Part Number | Auto016 |
| Material Type | Metal, Plastic |
Upgrade Your Kids Ride-On Car with ALVOTREX RS775 Power
Power Your Ride with Reliable RS775 Performance

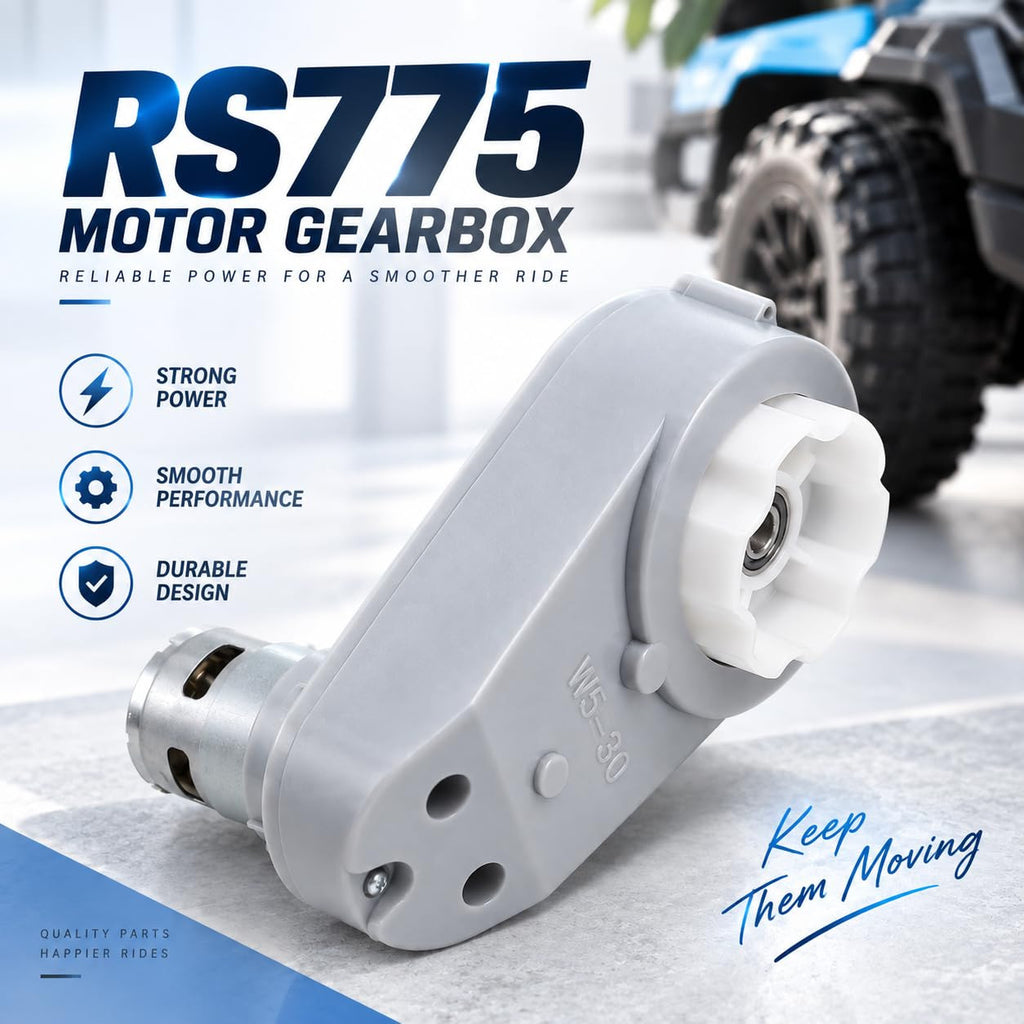

The ALVOTREX RS775 motor gearbox is designed for compatible kids ride-on cars, combining a high-power RS775 DC motor with a 1:75 reduction gearbox for smooth, reliable power transfer.

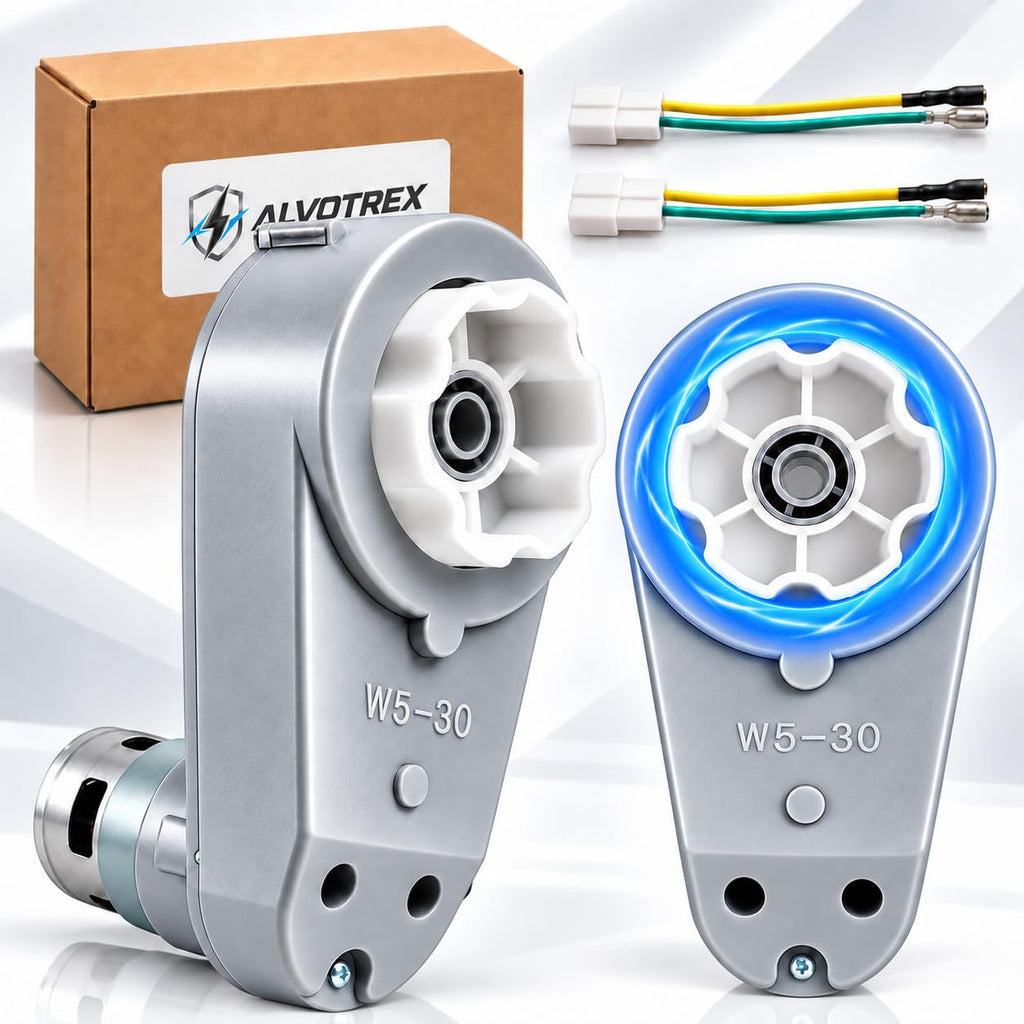

Package Includes: 2 RS775 Motor Gearboxes + 2 Wiring Connectors

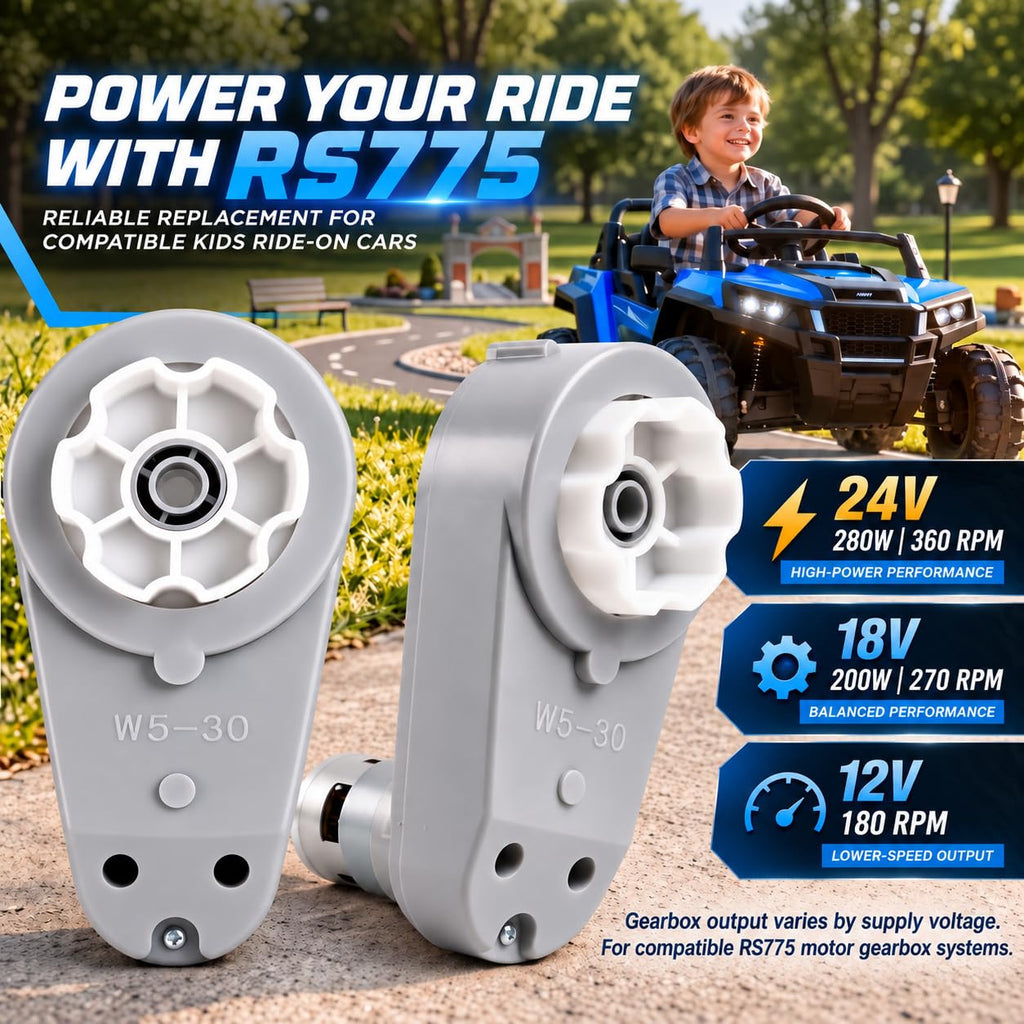

Designed for 12V–24V compatible RS775 systems, with gearbox output varying by supply voltage:
- 12V — Approx. 180 RPM
- 18V — Approx. 270 RPM
- 24V — Approx. 360 RPM / Up to 280W
Actual vehicle performance may vary depending on battery condition, controller capacity, vehicle weight, wheel size, terrain, and load.

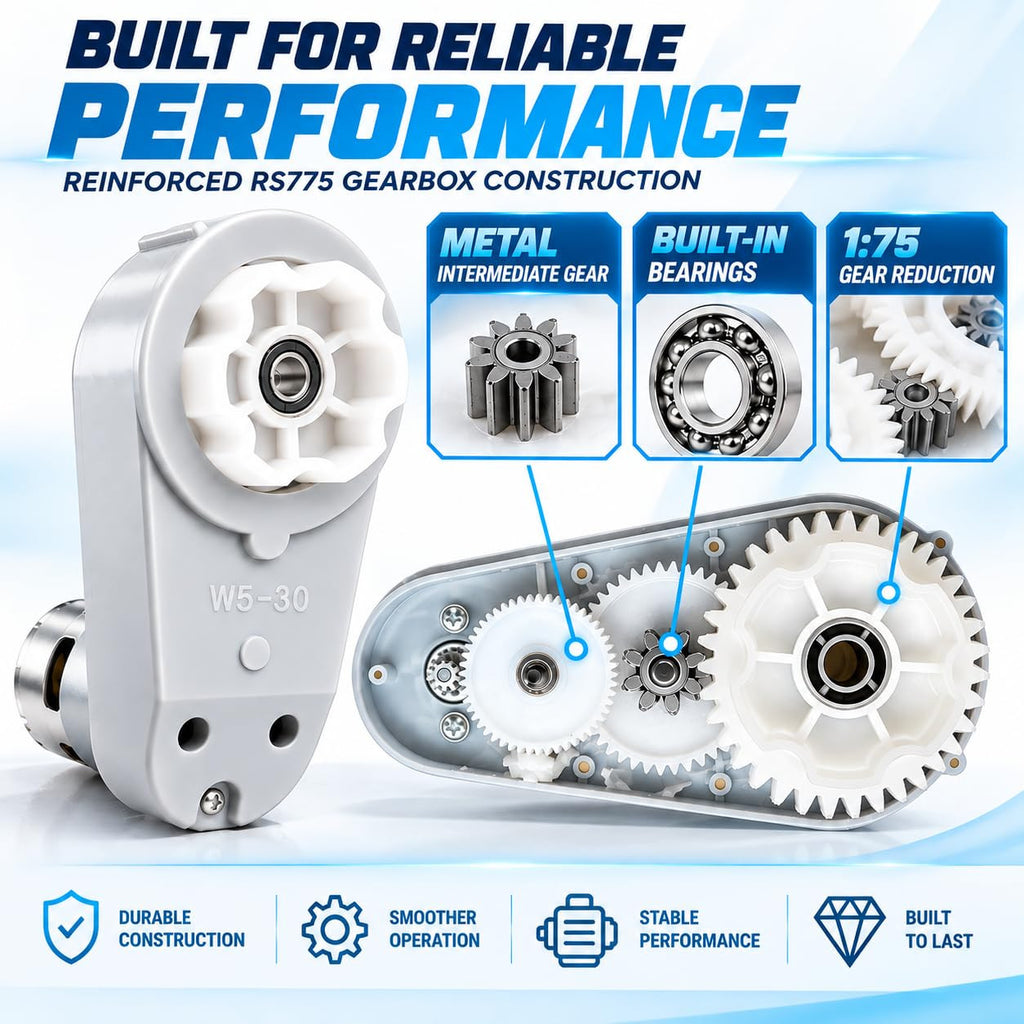

A multi-stage gearbox combines key components for stable everyday operation:
- 1:75 Gear Reduction: Converts high motor speed into controlled gearbox output.
- Metal Intermediate Gear: Positioned at a key transmission stage for durability.
- Built-In Bearings: Support smooth rotation at key gearbox points.

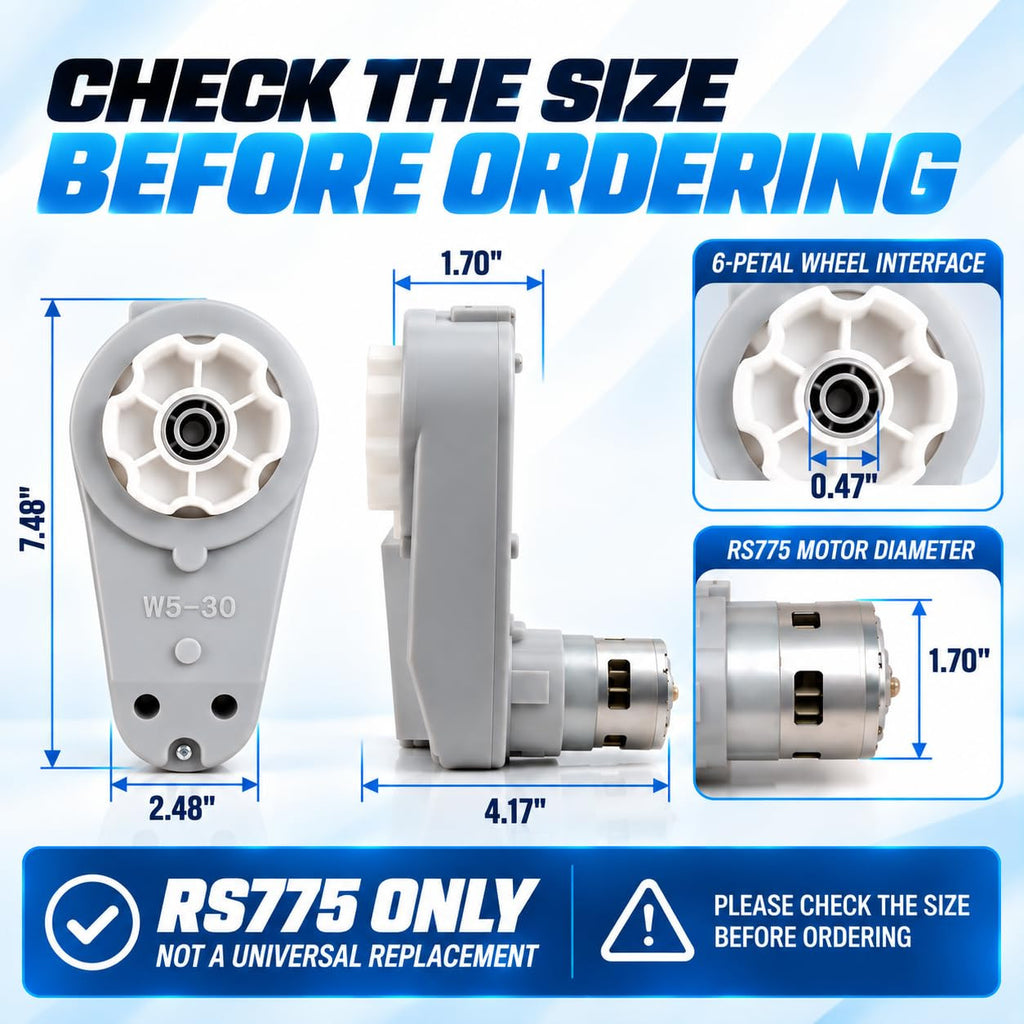

RS775 ONLY — NOT A UNIVERSAL REPLACEMENT
RS775 motors are larger than many standard RS550 and RS555 motors. Before ordering, compare your original part with the product images and verify:
- Motor Type
- Gearbox Size
- Mounting Space
- 6-Lobe Drive Interface
Drive Interface Opening: Approx. 0.47"

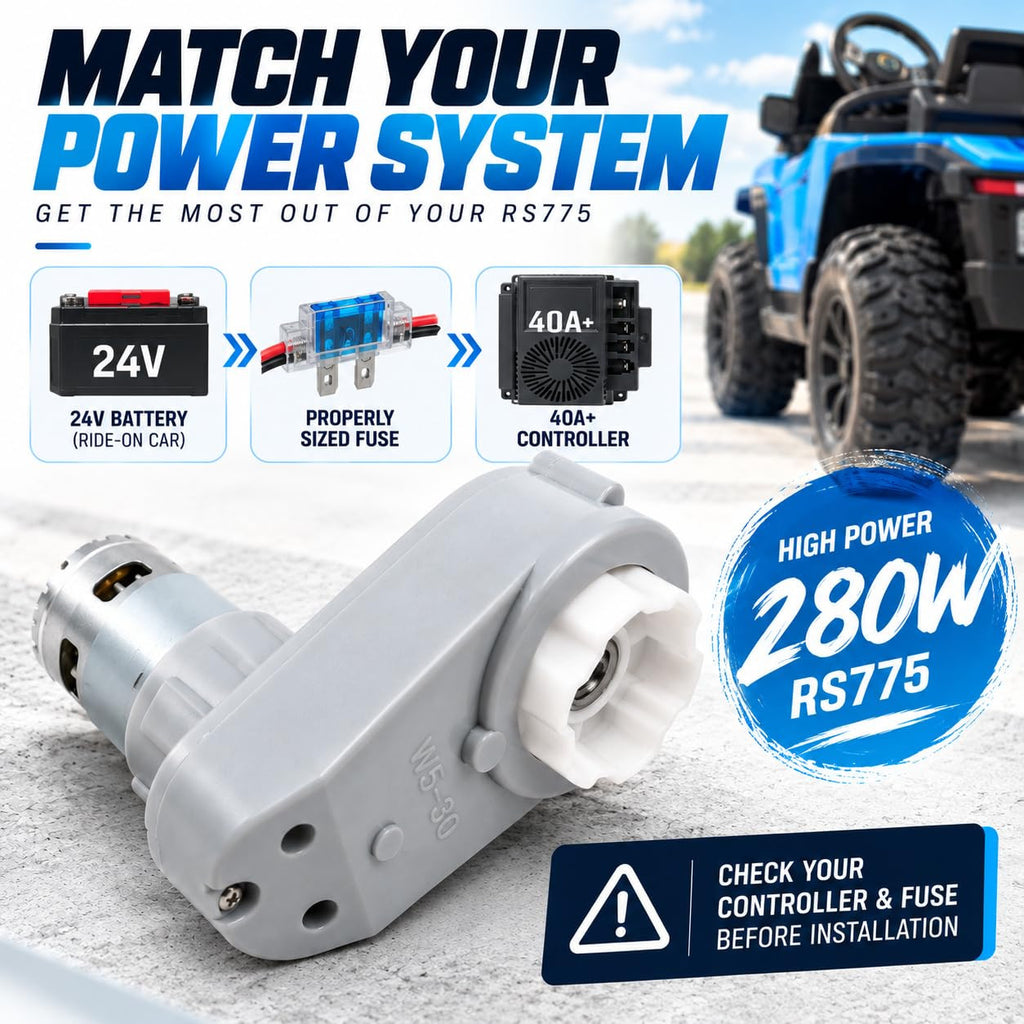

High-power RS775 motors may require more current than standard ride-on car motors. Before installation, verify that your:
- Battery
- Controller
- Fuse
- Wiring
are properly matched to your vehicle and motor system.
Recommended Voltage: 24V
Operating Range: 12V–24V
Do Not Operate Above: 24V
Designed for compatible ride-on car replacement, repair, and motor upgrade projects. Please disconnect the battery before installation. Adult installation is recommended, and verify motor rotation direction before operating the vehicle.
- 24V RS775 HIGH-POWER MOTOR UPGRADE: Each RS775 DC motor delivers up to 280W at 24V with approximately 360 RPM gearbox output, providing strong torque and smooth power for compatible kids ride-on cars.
- 12V–24V PERFORMANCE OPTIONS: Designed for compatible RS775 motor gearbox systems, with approximately 180 RPM gearbox output at 12V, 270 RPM at 18V, and 360 RPM at 24V.
- CHECK SIZE & FITMENT BEFORE ORDERING: RS775 motors are larger than standard RS550 motors. Please compare the gearbox dimensions, motor diameter, mounting space, and 6-lobe drive interface with your original part before purchase.
- 1:75 GEAR REDUCTION & METAL INTERMEDIATE GEAR: Built with a 1:75 reduction gearbox and metal intermediate gear for smooth power transfer and stable gearbox operation.
- 2-PACK WITH WIRING HARNESSES: Package includes 2 RS775 motor gearboxes and 2 wiring harnesses for compatible kids ride-on car replacement and upgrade projects.
