24V RS550 12000RPM Electric Motor for Power Wheels Motor Replacement Parts

Specifications

• Model: 24V RS555 12000RPM
• Power: 180W

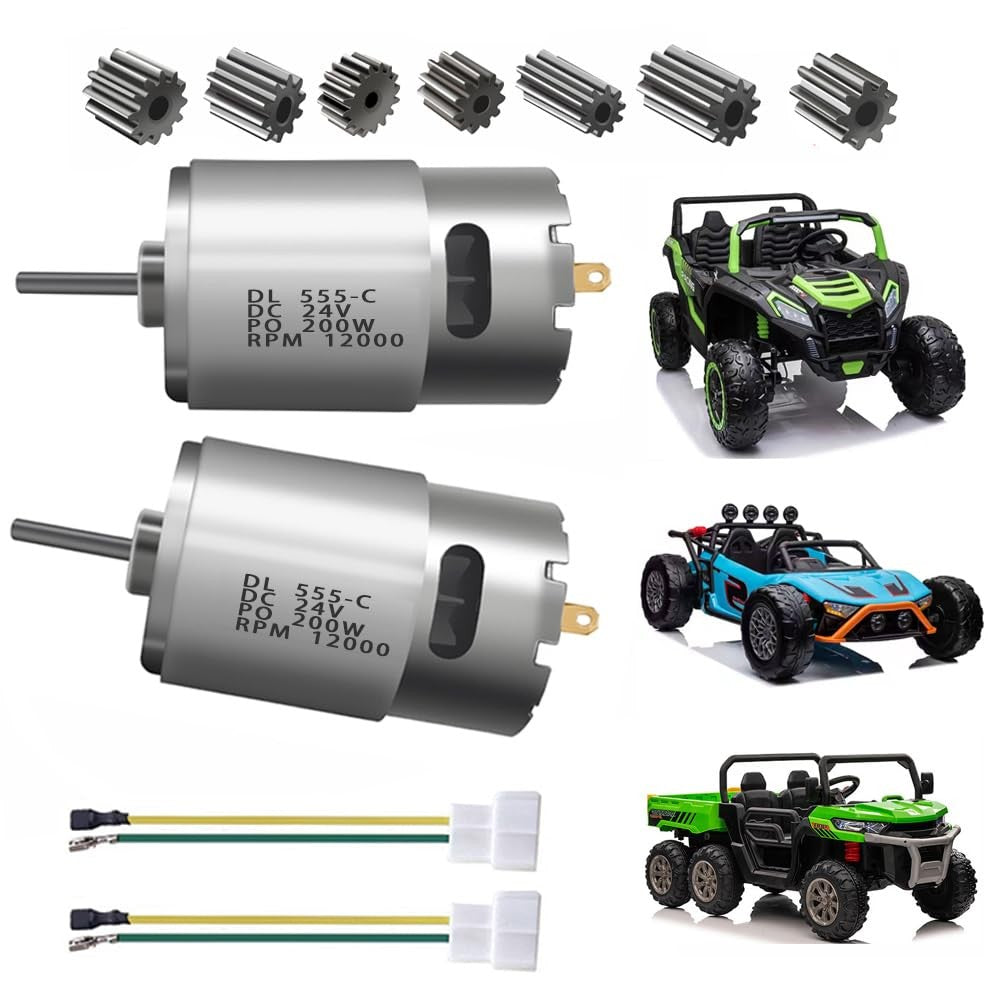

• Includes: 2 motors, 2 cables, 7 different motor teeth (10T, 8T, 9T, 12T, 16T)

Key Features

1. Constructed with pure copper winding coils and high-quality fans for exceptional quality and stable operation.
2. Speed specifications based on voltage:
   • 12V: 5500RPM (suitable for swing or steering motor)
   • 24V: 12000RPM
   • 30V: 15000RPM
   • 36V: 18000RPM
3. Recommended voltage: 24V-36V (do not exceed 36V).
4. High torque performance, providing 4 times more power and 3 times longer service life compared to conventional 550 motors.

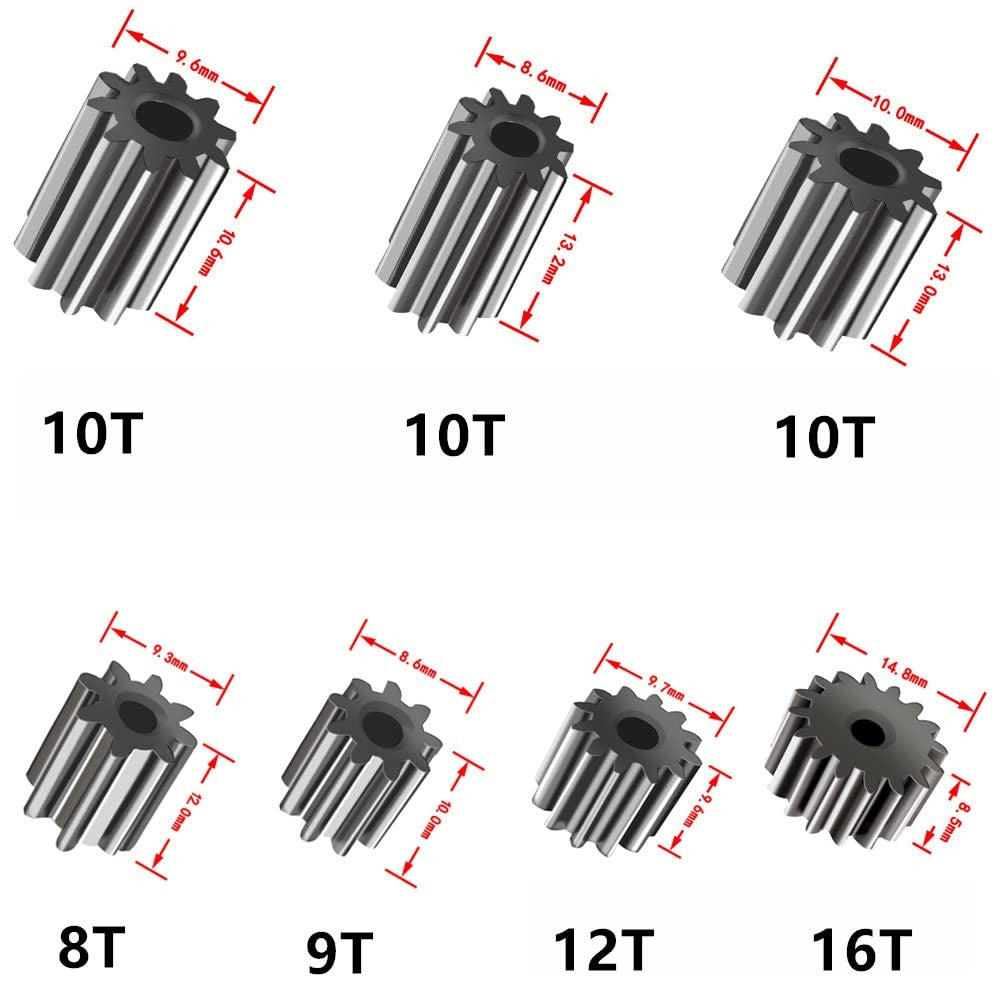

5. Includes 7 types of teeth of varying specifications for compatibility with different motor gearboxes (8T, 9T, 10T, 12T, 16T).

Installation Instructions

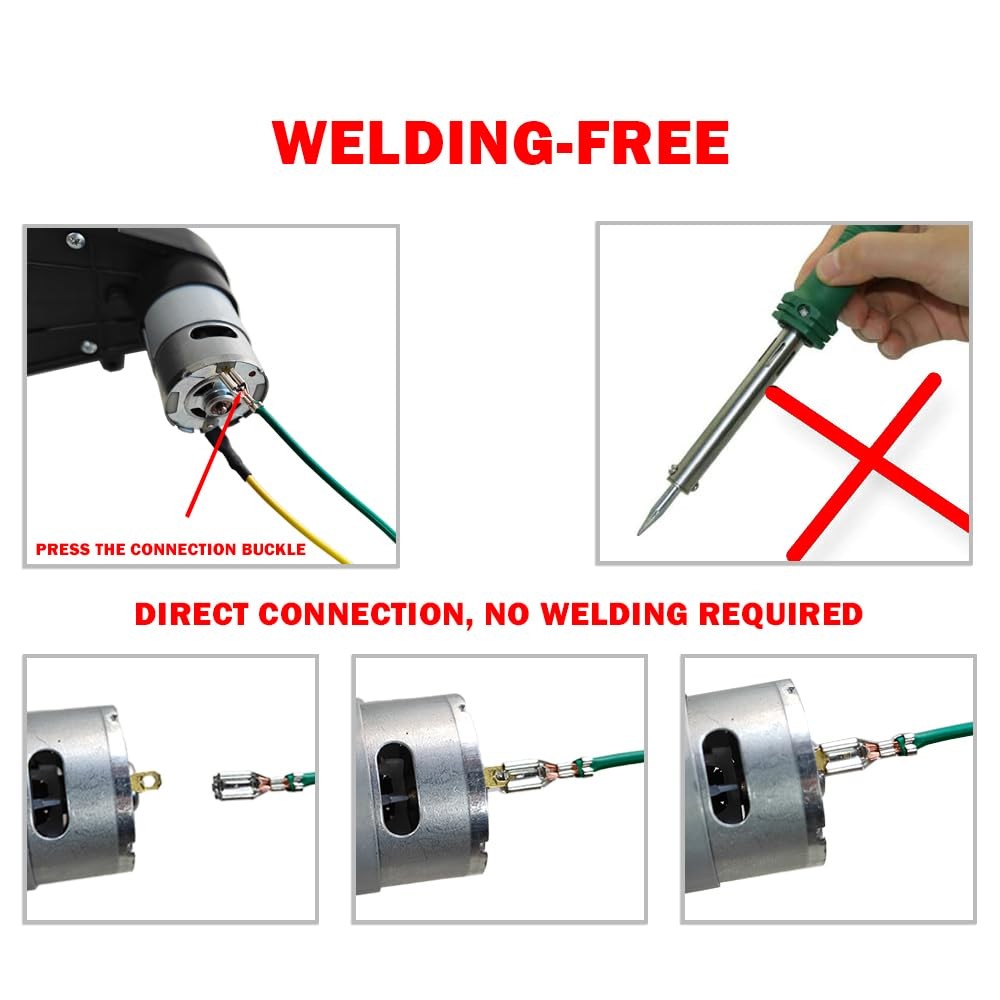

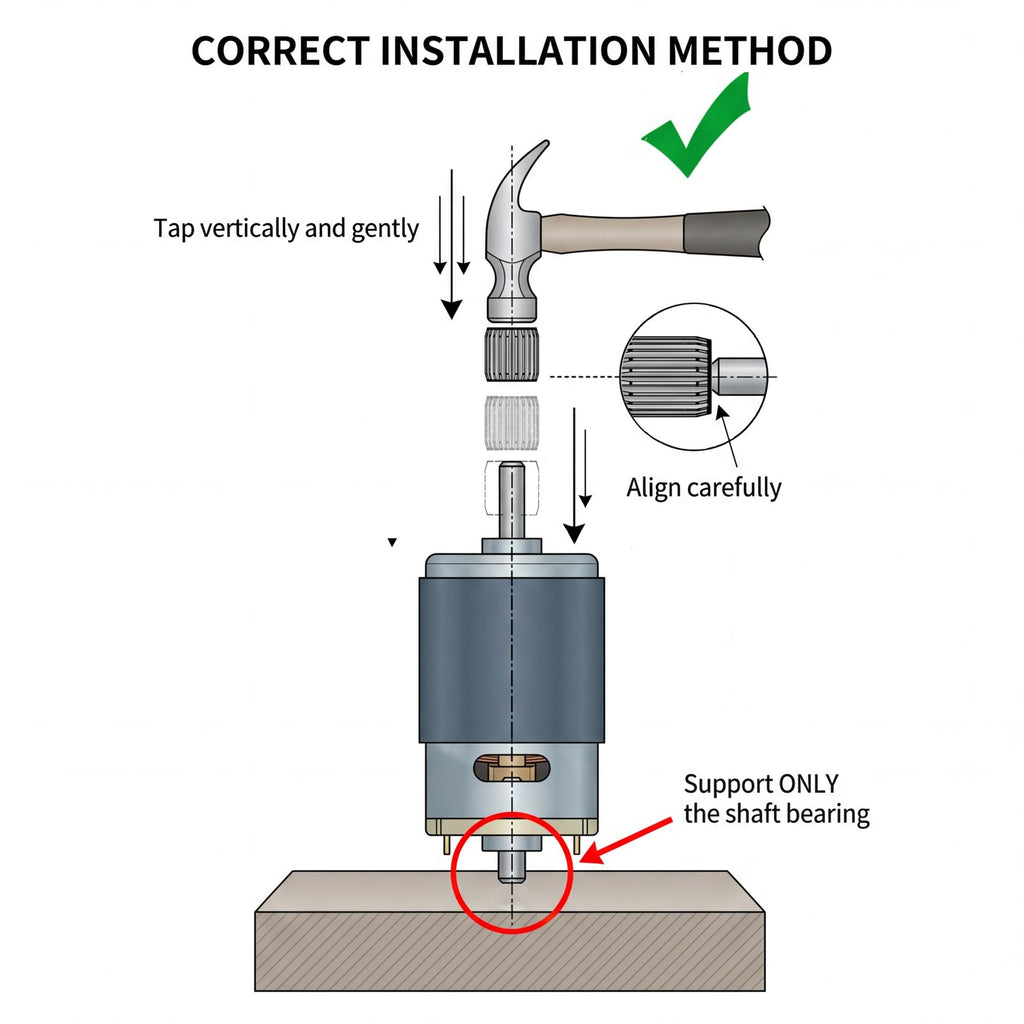

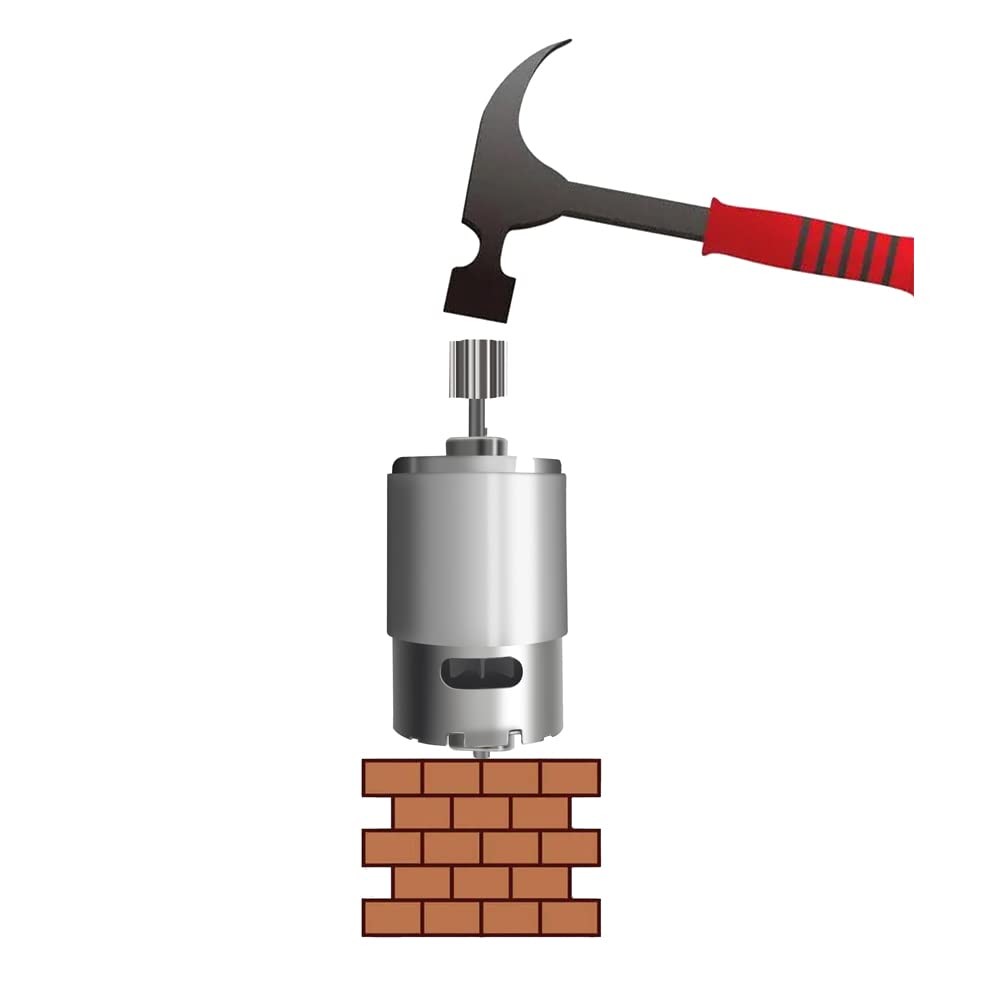

To install, compare the steel teeth on the original motor and select the corresponding size. Use a hammer to gently knock the motor shaft while ensuring the bottom of the motor is placed on a solid surface. The motor cable can be easily attached to the motor copper sheet with one key.

Important Note

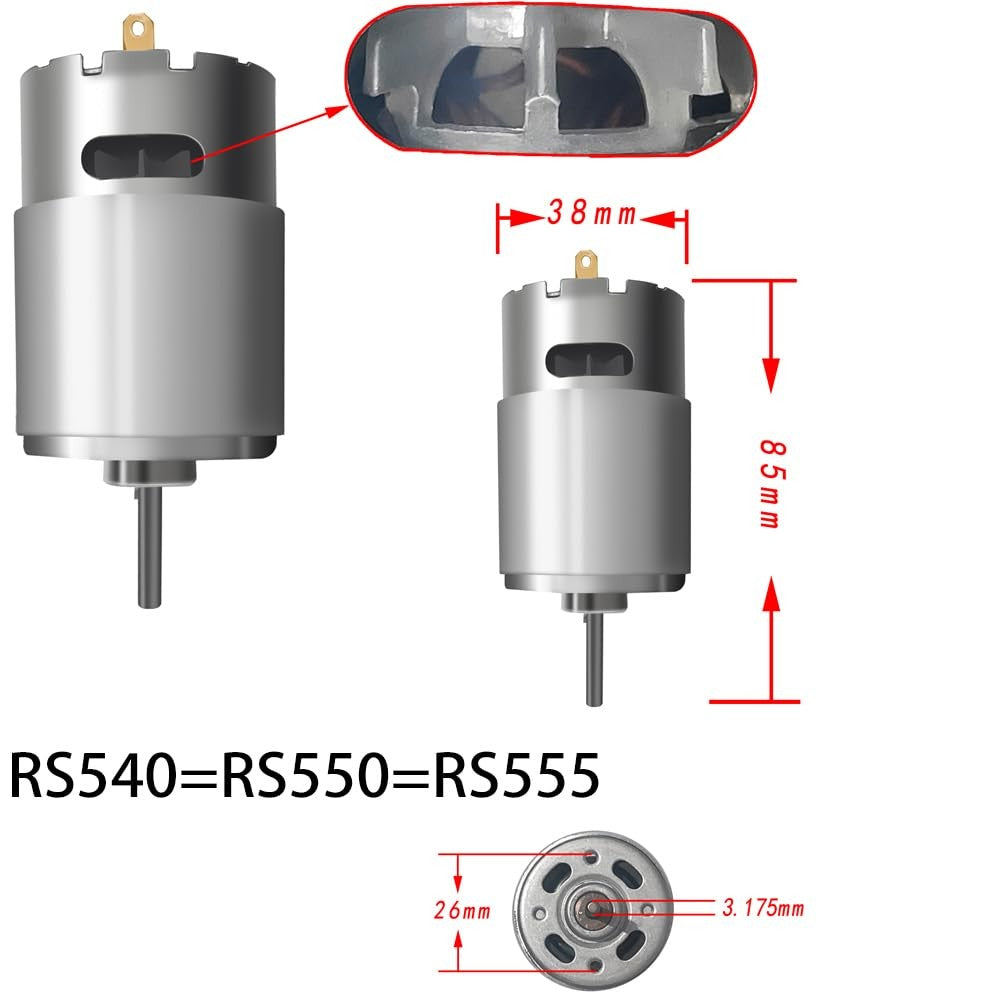

Before purchasing, please remove the original motor and carefully compare the motor size and teeth specifications to ensure compatibility with our seven types of motor teeth. Choose an appropriate voltage for optimal performance.
