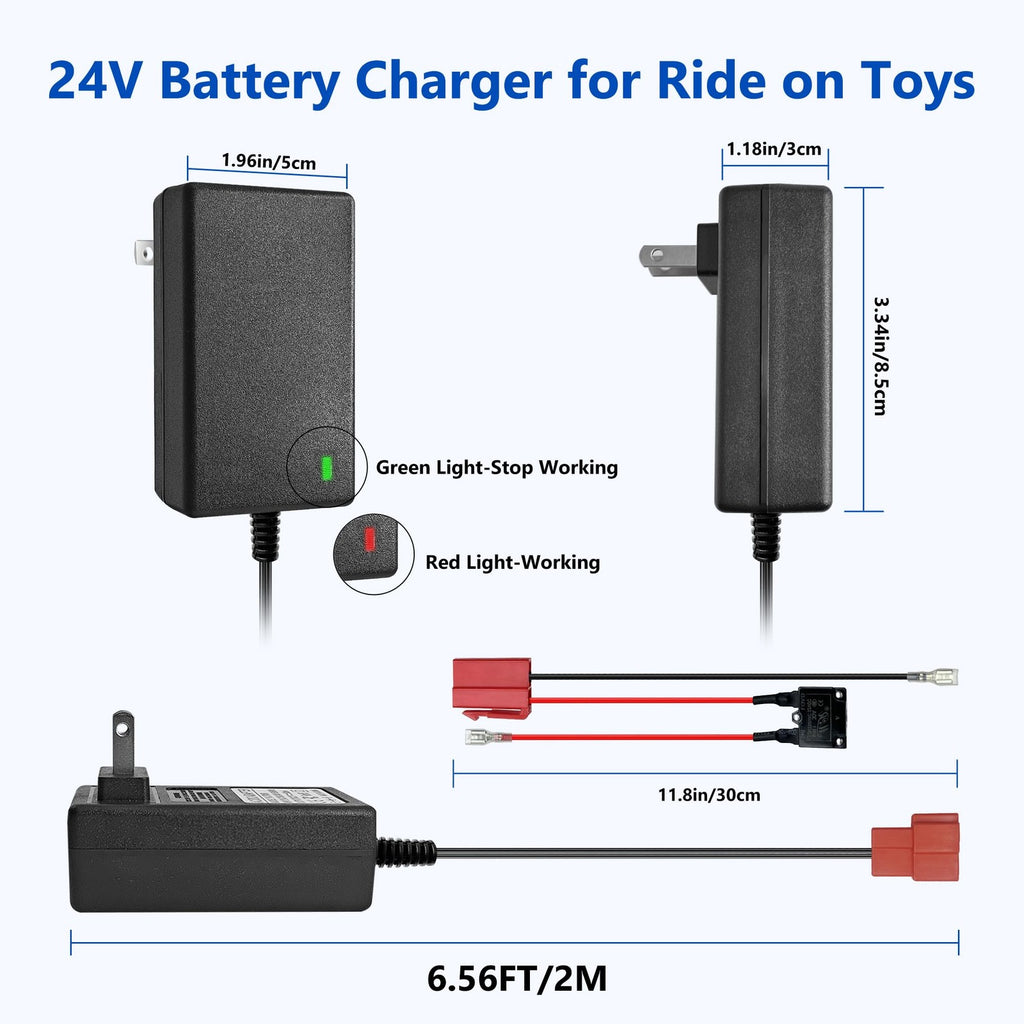

24V Battery Charger and Battery Wire Harness for Ride On Toys

Key Specifications

• Power Specification:
  • Input: 100-240V ~ 50/60HZ
  • Output: DC 24V 1000MA

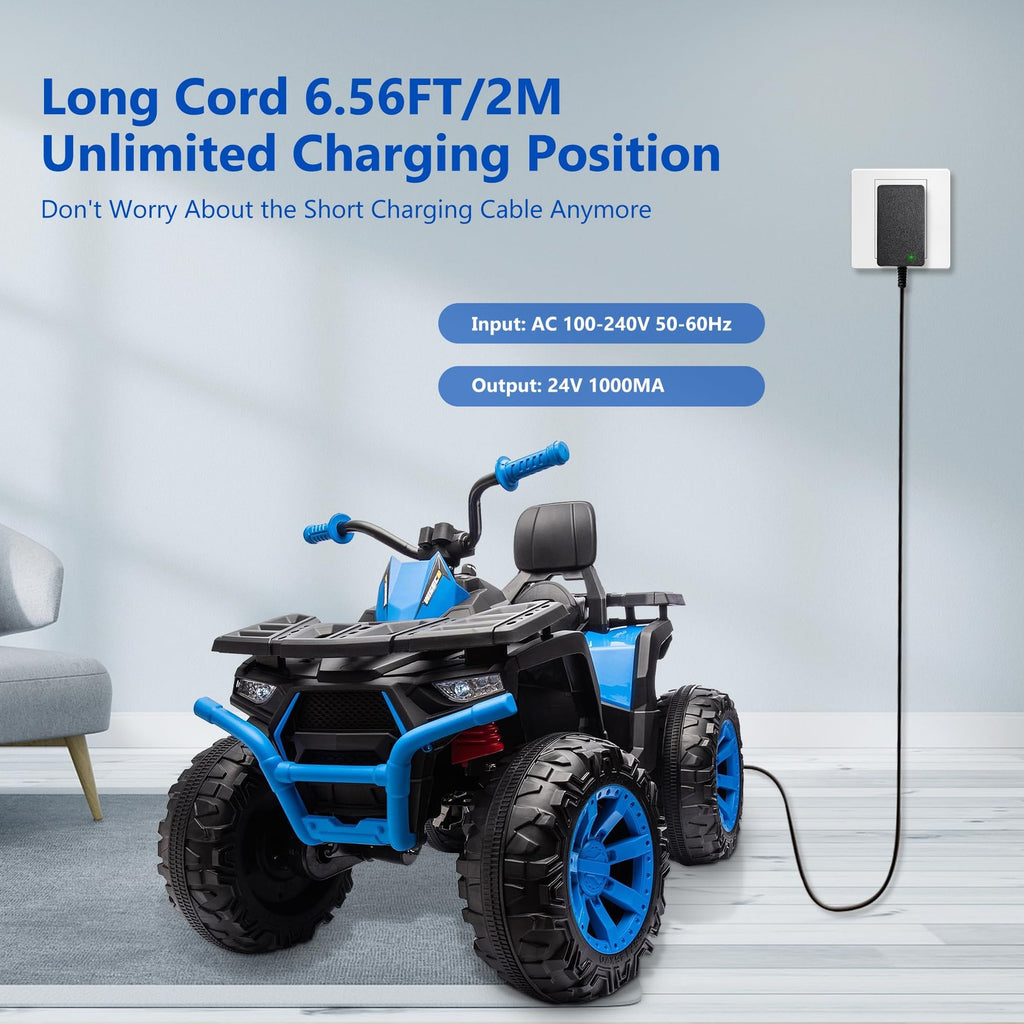

  • Cable Length: 6.6 FT (2 M)
• Battery Wire Harness Connector:
  • Wire Gauge: 14 AWG
  • Total Length: 11.8 inch (30 cm)
  • Includes: 30 AMP replaceable fuses
  • Note: Batteries are not included in the package.

Compatibility

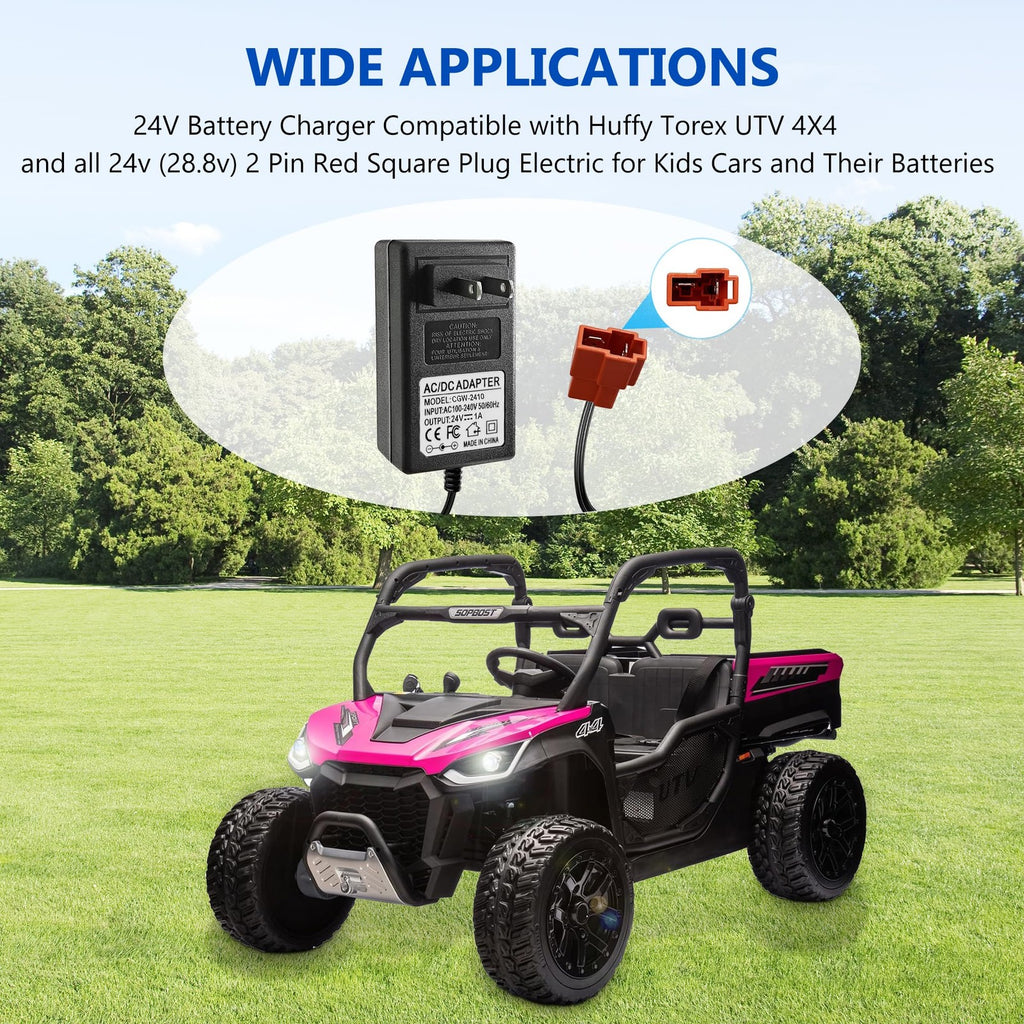

This 24V charger is compatible with Huffy Torex UTV 4X4 and all 24V (28.8V) 2 Pin Red Square Plug Electric ATVs for kids and their batteries.

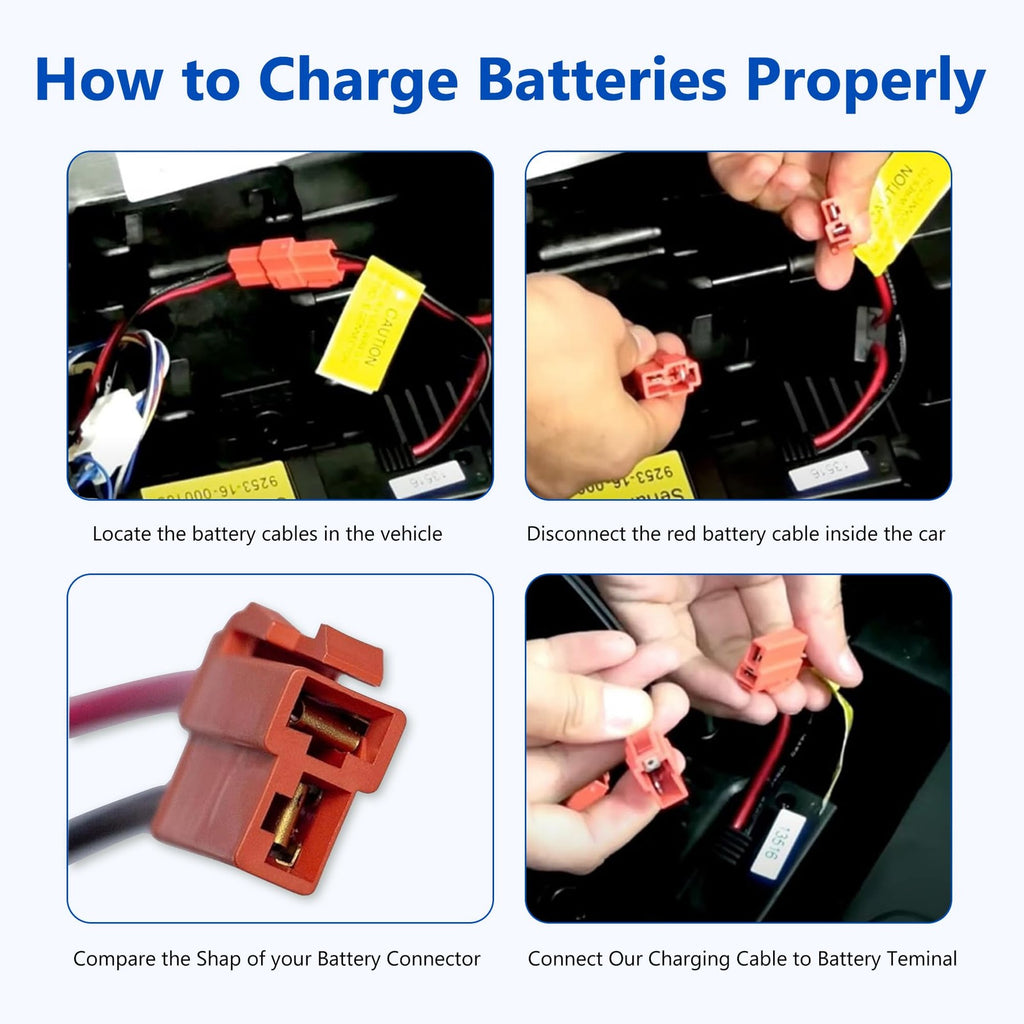

Easy Installation

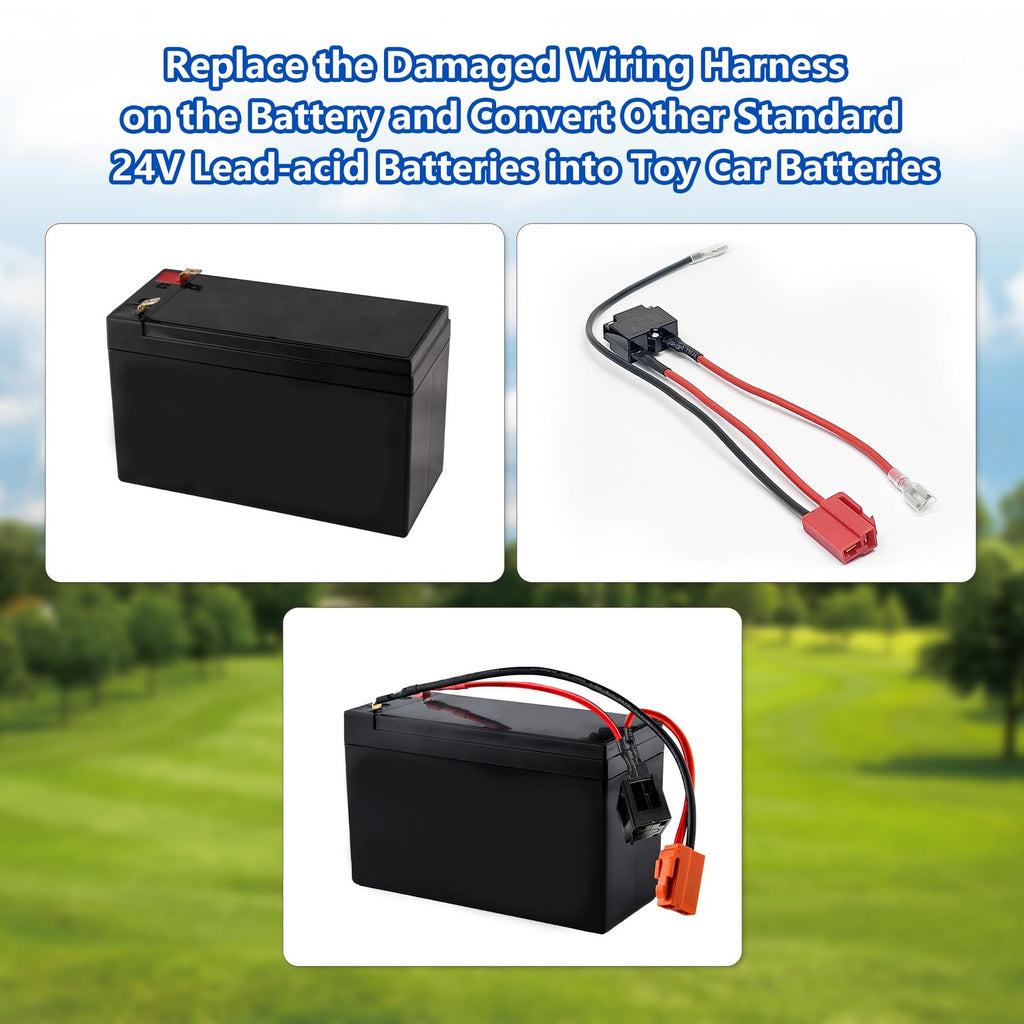

The 2-pin connector for the battery is compact and user-friendly, allowing for quick installation and removal. This enhances efficiency and enables the use of other standard 24V lead-acid batteries with the battery wire harness connector. It effectively extends the battery life of your ride-on toy while providing sufficient power.

LED Indicator Lights

The charger features a red LED light to indicate active charging and a green LED light to show when the battery is fully charged or disconnected. If the charger consistently displays a green light during charging, please check the battery circuit or consider replacing the battery.

Safety Features

Our 24V power wheel charger undergoes extensive testing and provides essential safety features, including:

• Overvoltage Protection
• Overcurrent Protection
• Short Circuit Protection
• Temperature Protection

Friendly Reminder

Please confirm battery compatibility and connector type before purchasing. Ensure the battery is not damaged prior to use. If the electric vehicle is not used for 2-6 months, the battery in a low voltage state may be damaged and could fail to function normally.

What You Will Receive

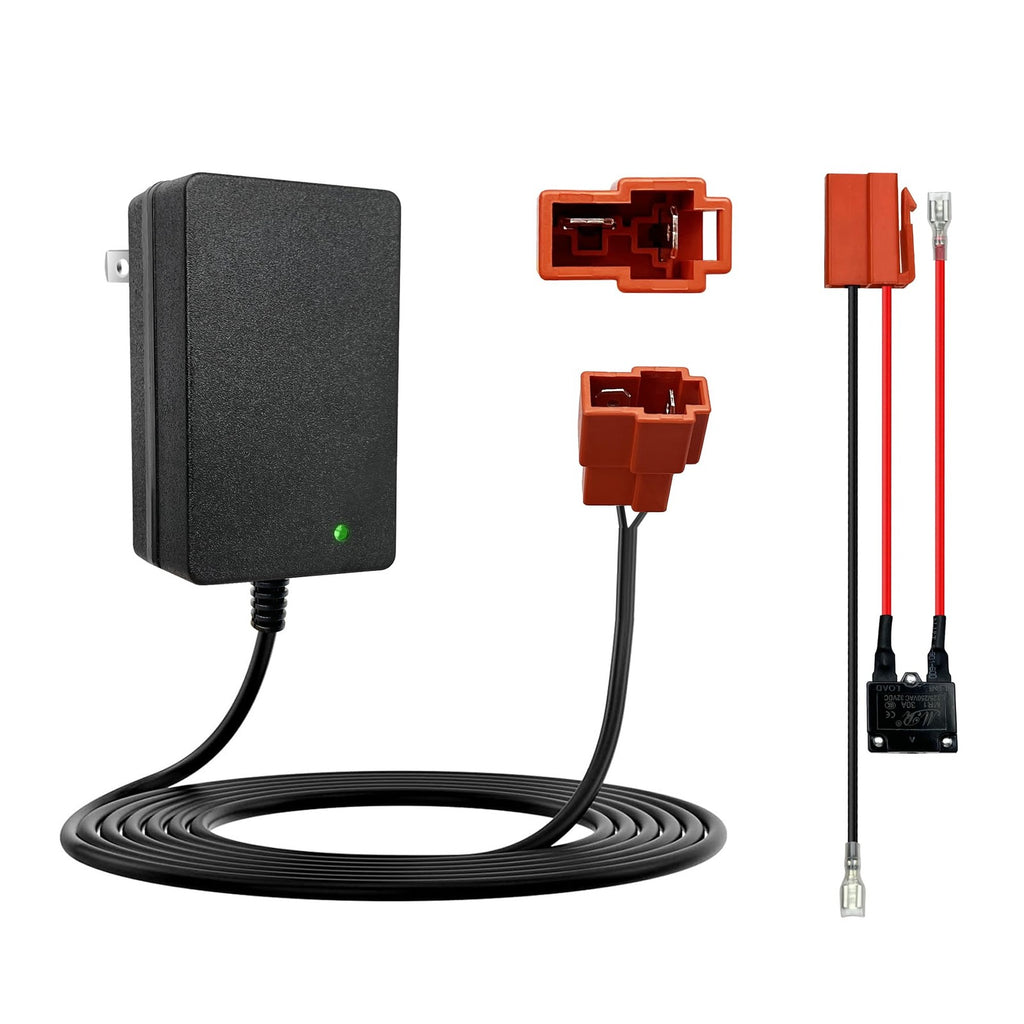

1 x 24V battery charger for ride-on toys
1 x Wire Harness Connector

Support and Service

If you encounter any issues with our 24V battery charger kit, please visit our product page and click on our name. We are here to assist you with any inquiries or support you may need.
